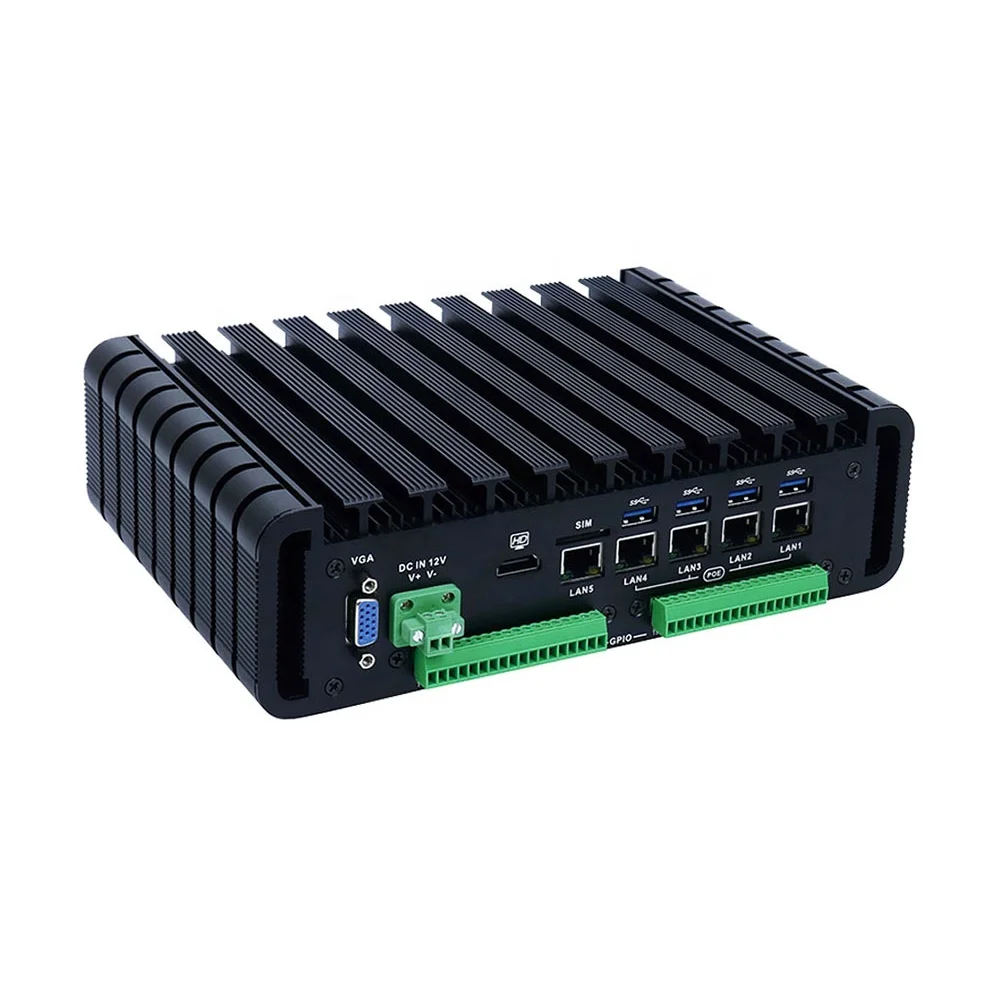

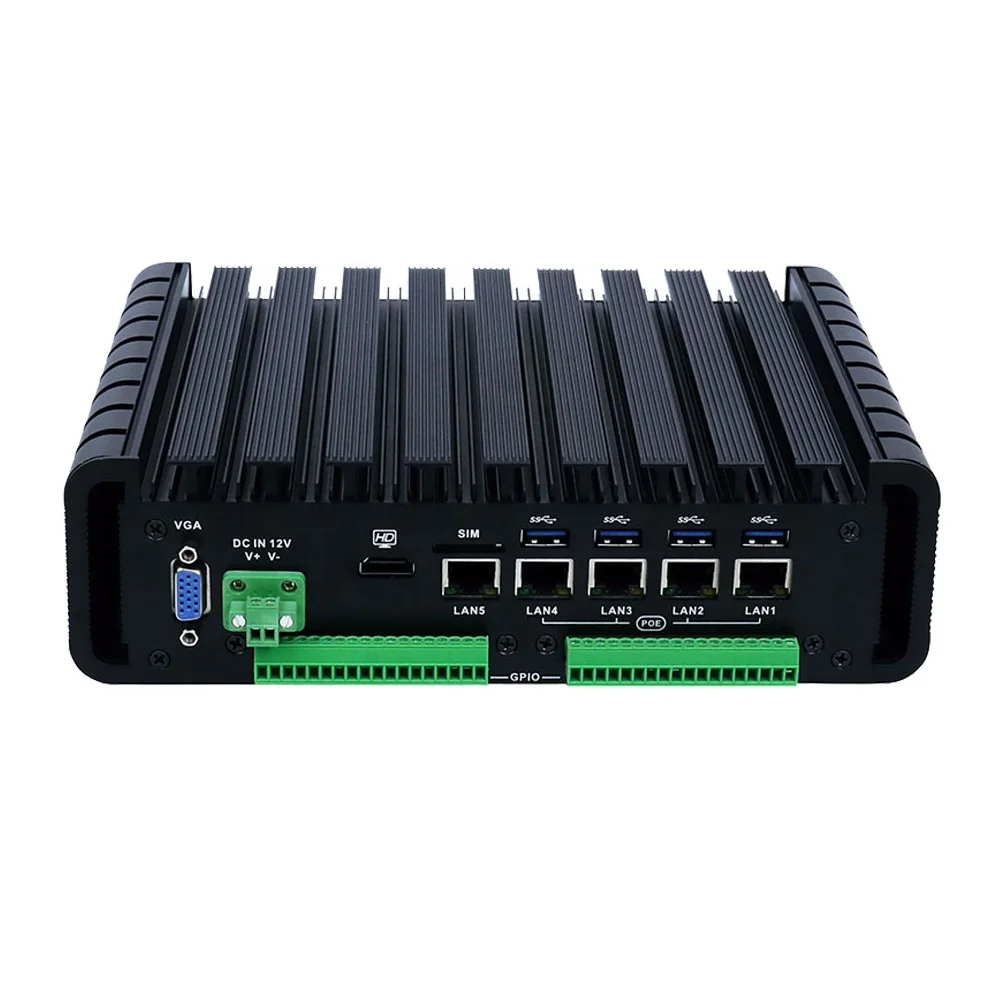

3855U Fanless Compact Industrial PC With 4 POE Multi Lan GPIO 4G SIM WiFi Rugged Mini ITX PC 9V 36V Win10 For Bus
- Category: >>>
- Supplier: Shenzhen Dechao Electronics Technology Co. Limited
Share on (62546772768):
Product Overview
Description
Related Products
Product Description
Intel Celeron 3855U Fanless Compact Industrial PC With 4 POE Multi Lan GPIO 4G SIM WiFi Rugged Mini ITX PC 9V-36V Win10 For Bus
Features:
- Sealed Aluminum alloy construction with fanless operation
- Support 6th Gen Skylake Intel Core i7 /i5 /i3, Intel Celeron 3855U

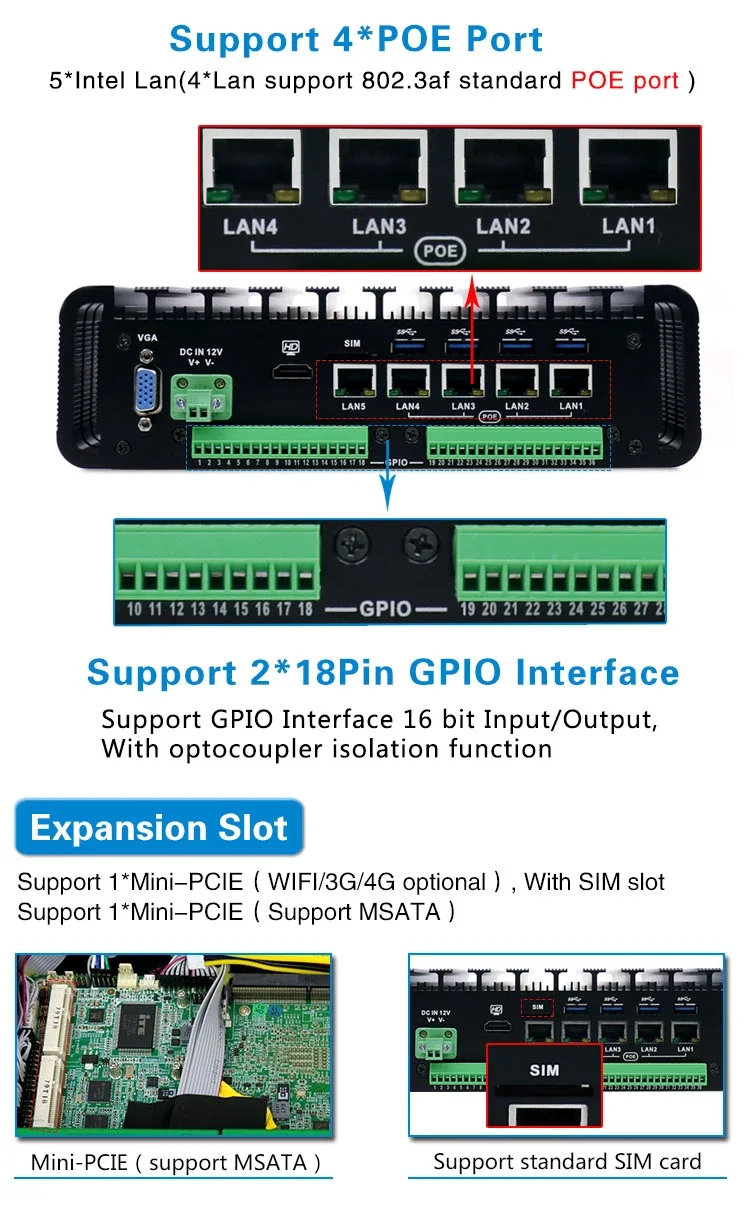

- 5* Intel Gigabit LAN (4* LAN support 802.3af standard POE function)
- Support GPIO Interface 16 bits Input / Output
- Support Wide Voltage 9V-36V Input
Specifications
Processor | CPU | Intel Core® i3-6100U | Intel Core® i5-6200U | Intel Celeron® 3855U |
Max. Speed | 2.3 GHz | 2.8 GHz | 1.6 GHz | |
Cores / Threads | 2 Cores / 4 Threads | 2 Cores / 4 Threads | 2 Cores / 2 Threads | |
Memory | Technology | Single Channel DDR4 | ||
Max capacity | 16 GB | |||
Socket | 1* 260 pin SO-DIMM memory | |||
Graphics | Chipset | Intel® HD Graphics 520 | Intel® HD Graphics 510 | |
Max Frequency | 1.0 GHz | 900 MHz | ||

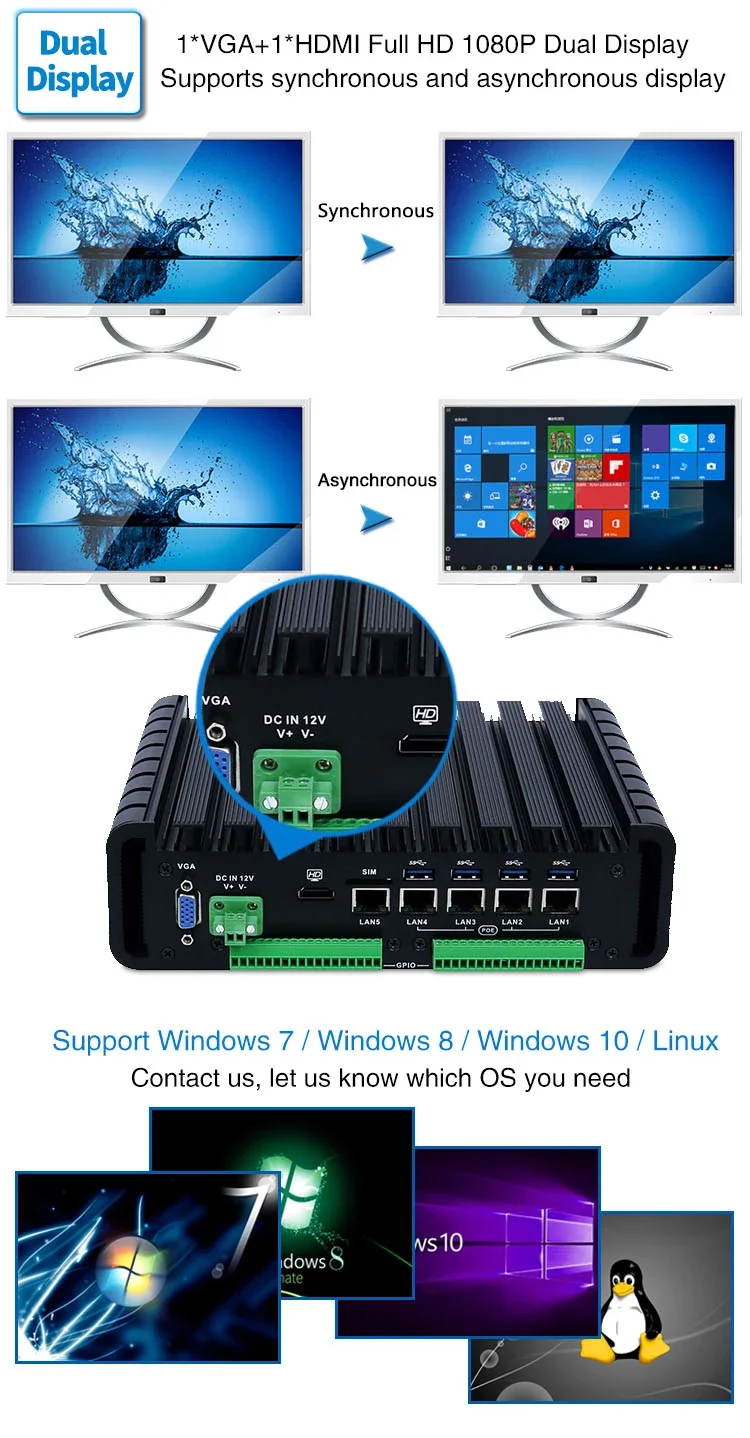

Interface | 1* VGA + 1* HDMI output | |||
Ethernet | Controller | Intel i211-AT | ||
Speed | 10/100/1000 Mbps | |||
Connector | 5* RJ45 | |||
Extension | WiFi (Optional) | 1* Mini PCI-e WiFi | ||
4G (Optional) | 1* Mini PCI-e 4G (Optional), embedded SIM slot | |||
BIOS | SPI AMI EFI BIOS | |||
I/O Interface | LAN | 5 (4* LAN support 802.3af standard POE function) | ||
GPIO | 2* 18 Pin GPIO Phoenix Terminal (with optocoupler isolation function) | |||
USB 3.0 | 4 | |||

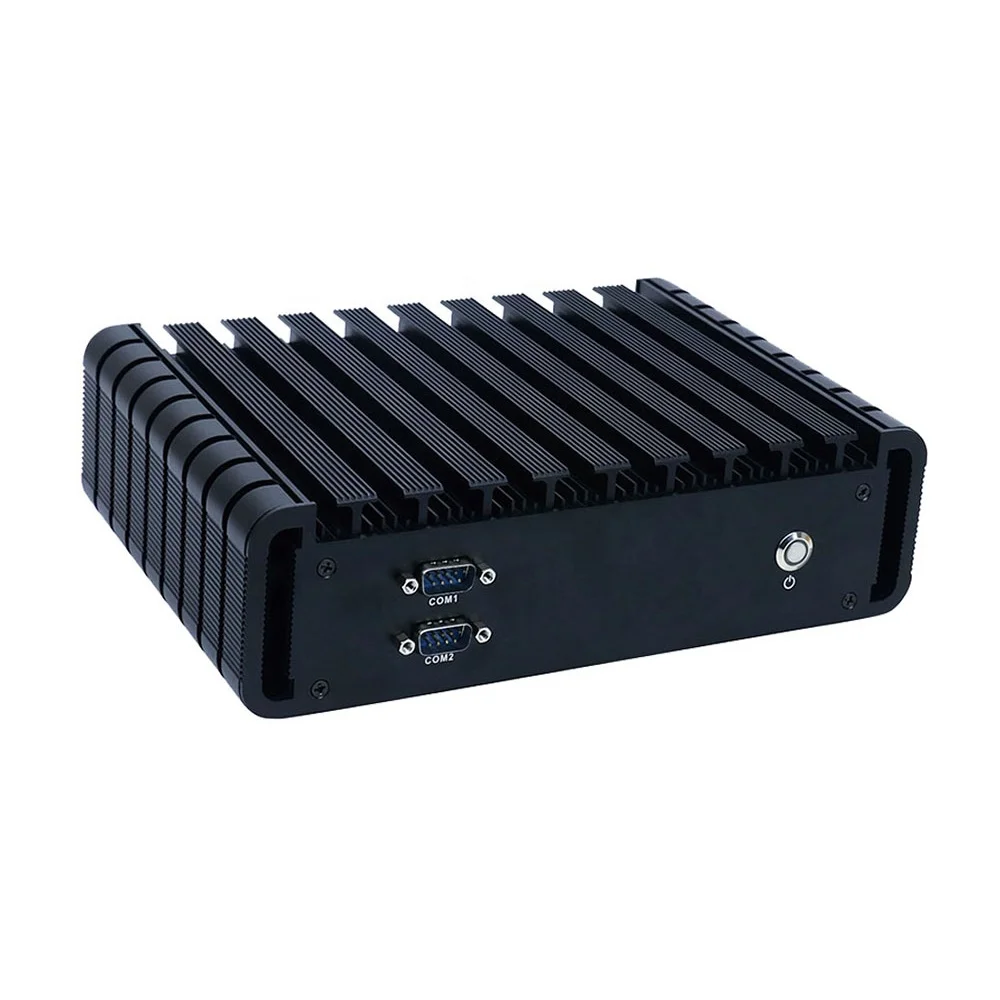

Serial Port | 2* RS232 | |||
SIM Socket | 1 | |||
Storage | SATA | Support 1* 2.5 inch SATA laptop HDD or SDD | ||
mSATA | Support 1* mSATA SSD | |||
System Support | Windows 7, 8.1, 10 and all kinds of Linux OS | |||
Power Requirement | Power Type | External power adapter mode | ||
Power Input | DC 9V-36V Wide Voltage | |||
Mechanical | Construction | High quality pure Aluminum alloy housing | ||
Mounting | VESA mounting | |||

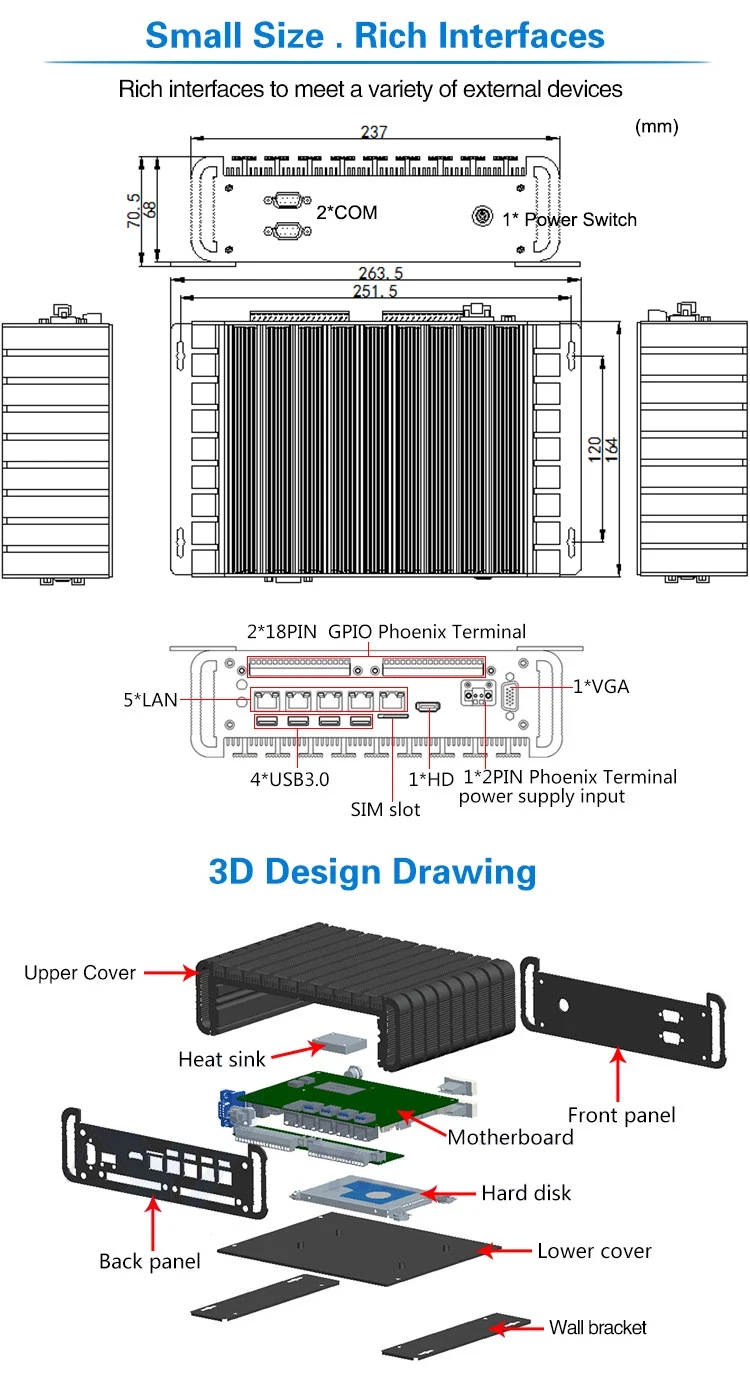

Dimensions | 237 * 164 * 70.5 MM | |||
G.W. | 2.3 KG | |||
Operating Environment | Temperature | 0℃ ~ +50℃ (HDD), -20℃ ~ +60℃ (SSD), Surface air flows | ||
Humidity | 5% ~ 95% (non-condensing) | |||

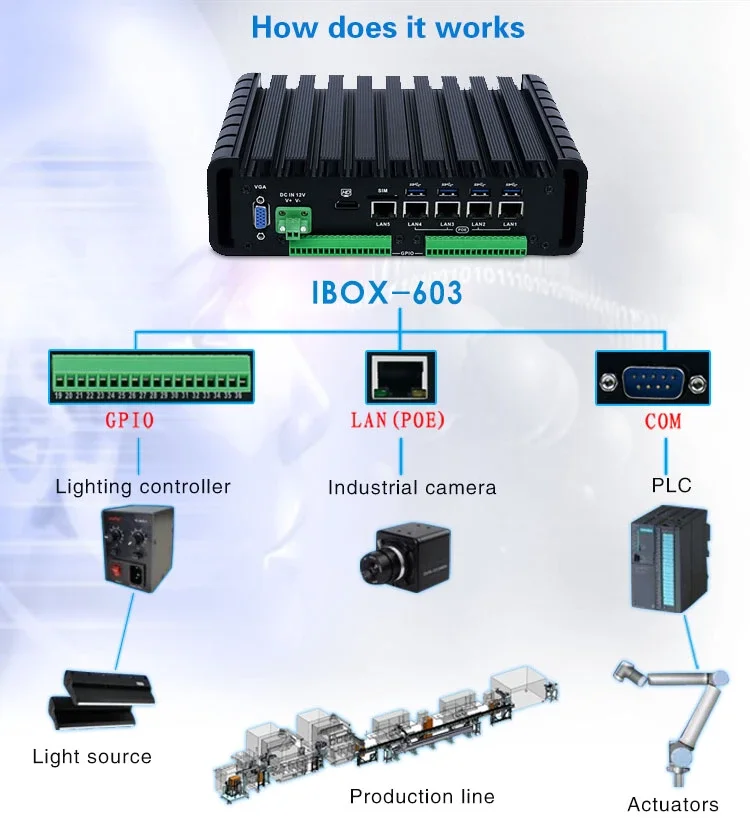

Application | Industry Field | Automation, Machine Vision, Digital Signage, Kiosk, ATM, Energy, Telecomommunication, Networking, Transportation, IP Camera, etc | ||
Highlights:
Packaging & Shipping

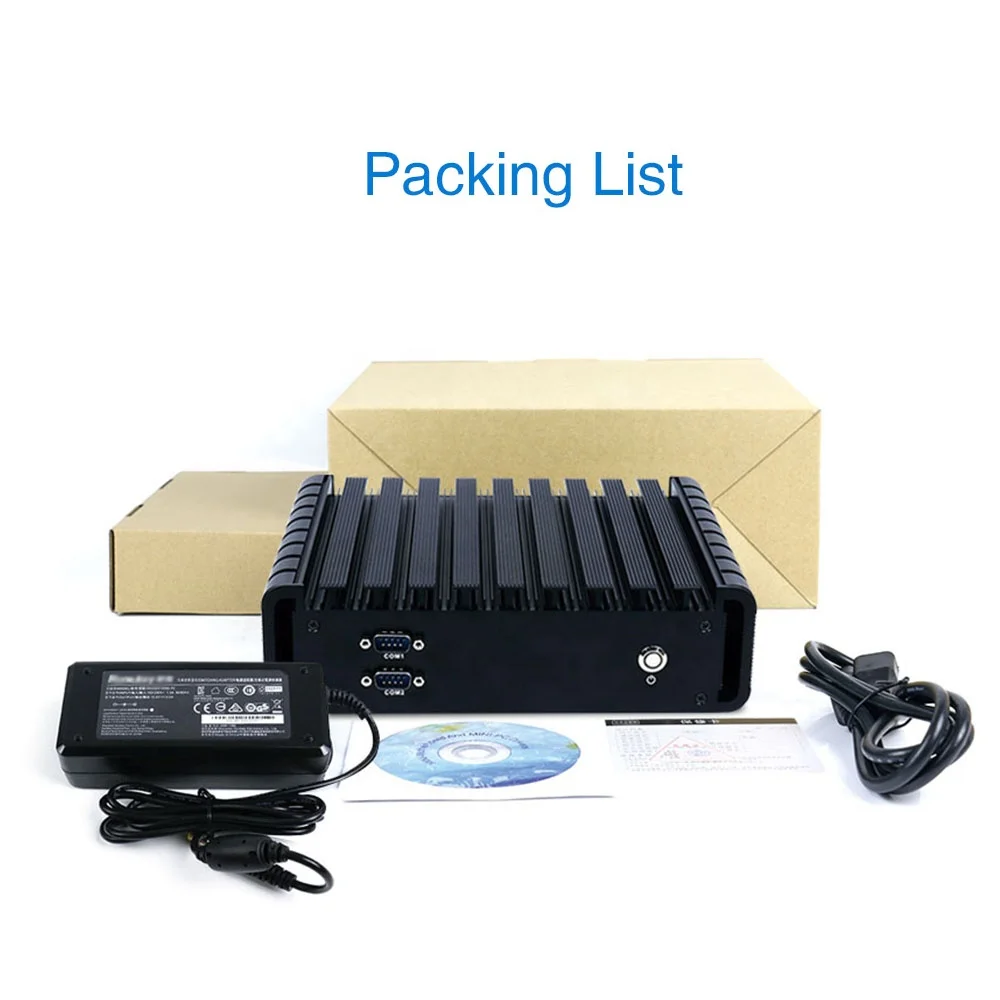

Packing List
Standard | 1* Mini PC |
1* Power Adapter, 12V/12.5A optional | |
1* Power Cord, as per local standard | |
2* Wall Mount Bracket | |
1* CD Driver | |
1* Warranty Card | |
Optional | 1* HDMI Cable |
1* HDMI to DVI Cable | |
1* HDMI to VGA Cable |
Our Services
Company Information
FAQ
1. Can you put my brand name (logo) on these products?
Yes,.We can support OEM / ODM service, the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
2. What payment method do you accept?
T/T, Western Union, PayPal, Escrew, Alibaba Trade Assurance order payment; Money Gram, Cash, L/C, etc.
3. What is the Minimum Order Quantity (MOQ)?
We can sell one piece of sample for your testing.
4. What is the lead time of your products?
1-3 days for one sample, 15 working days for a large quantity.
5. How many years for the product warranty?
3 years, we have a professional team work for after-sales services, please kindly feel free to contact us if any questions.
6. What are the shipping methods for it?
We can ship by International express, like DHL, UPS, Fedex, TNT, etc; or by Air/ Sea/Truck/Train, etc.
7. What kinds of customization can you do?
We can OEM / ODM the products as per your configuration of CPU, RAM, hard disks, WiF, I/O ports, color, size, customized OS, logo, etc.
8. Can you equip the devices with related products or services?
Yes, we can offer you mouse and keyboard combo, HDMI cable, genuine Windows 10 license key, external CD-ROW, USB Hub, Bluetooth dongle, etc.
9. What is HS code of Adeli mini pc?
8471504090
Any more questions, please feel free to contact us, will reply you soonest. Thanks.
