good priceplastic 1liter 4 L 5l visible view strip lubrication engine oil bottle making extrusion blowing blow moulding machine
- Category: >>>
- Supplier: Zhangjiagang Ostar Machinery Co. Ltd.
Share on (62546832469):
Product Overview
Description
Products Description

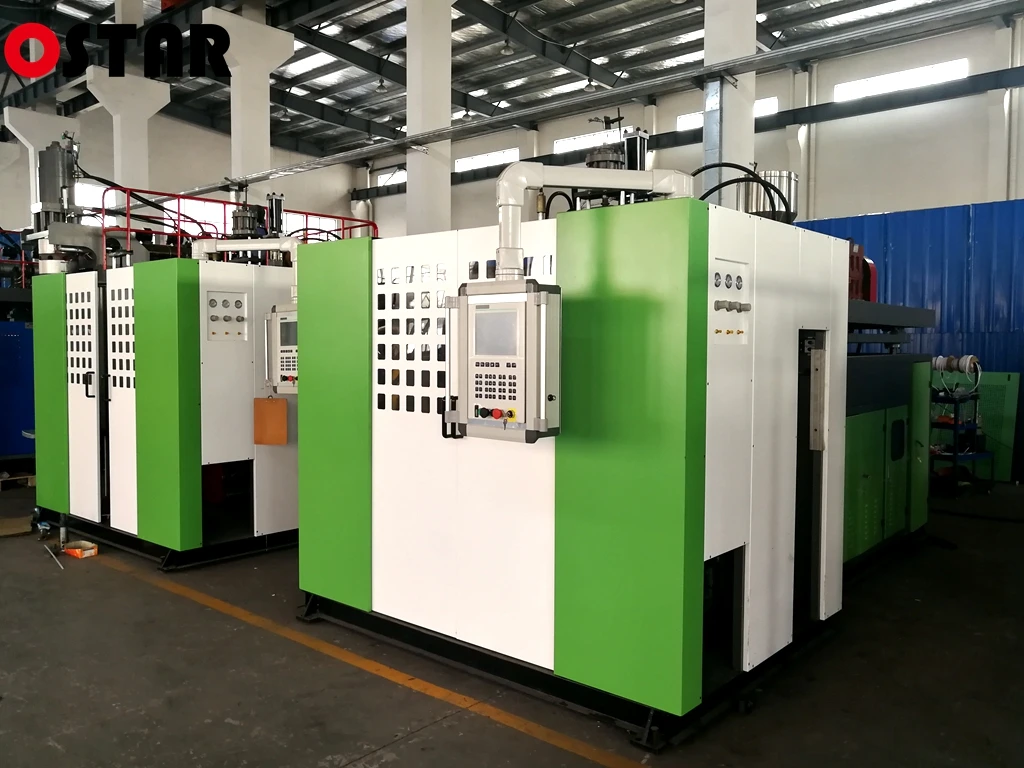

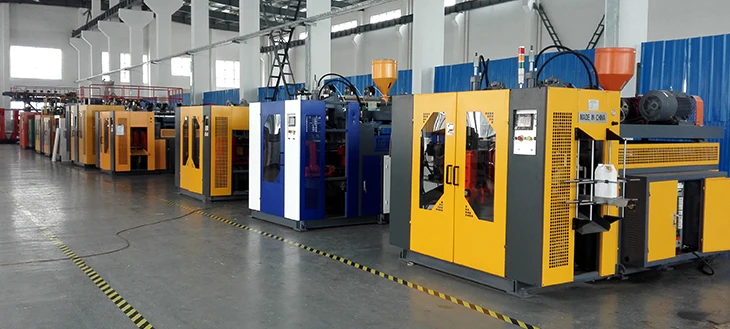

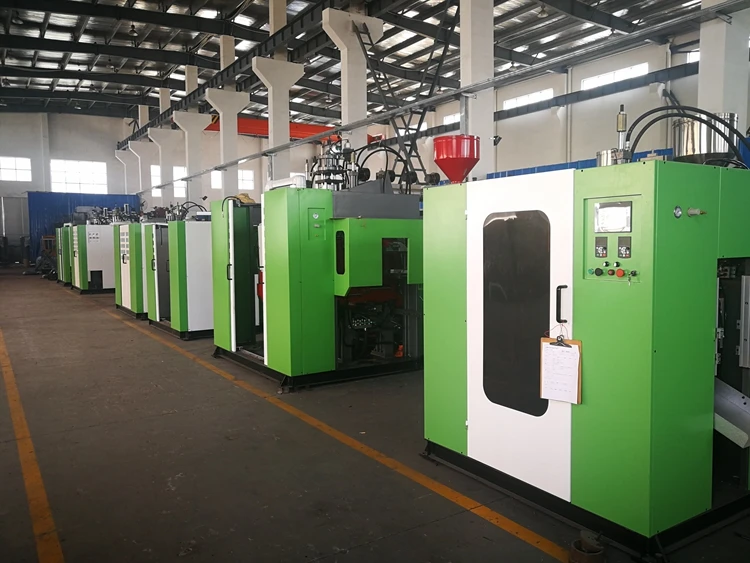

Extrusion blow molding machine
Extrusion blow molding machine is used to produce all kinds of the hollow plastic containers for foods, toys, beverages, medicines,chemical products, pesticides&detergents, water bottles,milk bottles,medical bottles,oil bottles,plastic balls,cosmetic bottles,lubricant bottles,plastic containers. The machines are low
investment, high efficiency, quick and safe operation, easy for trouble shooting, maintenance and other benefit.
investment, high efficiency, quick and safe operation, easy for trouble shooting, maintenance and other benefit.
Machine Paramenters
Specification | Unit | KSC-5L | KSC-5L/II | |||
Suitable Material | PE PP HDPE PVC.. | |||||
Max Product Volume | L | 5 | 5 | |||
Dry Cycle | Pcs/h | 1100 | 700*2 | |||
Machine Size | m | 3.2*1.8*2.5 | 3.4*2.2*2.5 | |||
Machine Weight | Tons | 4.0 | 5.5 | |||
Clamping Force | Kn | 70 | 70 | |||
Platen Distance | mm | 165-525 | 165-525 | |||
Mold Moving Stroke | mm | 420 | 420 | |||
Template Size(W*H) | mm | 360*400 | 360*400 | |||
Max Mold Size(W*H) | mm | 360*400 | 360*400 | |||
Screw Diameter | mm | 60 | 70 | |||
Screw L/D | L/D | 25 | 25 | |||
Screw Driver Power | Kw | 15 | 22 | |||
Screw Heating Power | Kw | 6.5 | 7.2 | |||
Screw Screw Heating Zone | Zone | 3 | 3 | |||
HDPE Output | Kg/h | 70 | 80 | |||
No of Die Heating Zone | Zone | 3 | 3 | |||
Die Heating Power | Kw | 5.7 | 5.7 | |||
Max Single Die Diameter | mm | 145 | 145 | |||
Double Die Center Distance | mm | 150-180 | 150-180 | |||
Triple Die Center Distance | mm | 110 | 110 | |||
Quadruple Die Center Distance | mm | 80-90 | 80-90 | |||
Total Power | Kw | 34.7 | 42.4 | |||
Oil Pump Motor | Kw | 7.5 | 7.5 | |||
Average Energy Consumption | Kw | 15.5 | 20.5 | |||
Blowing Pressure | Mpa | 0.6 | 0.6 | |||
Air Consumption | M3/min | 0.5 | 0.6 | |||
Cooling Water Pressure | Mpa | 0.3 | 0.3 | |||
Water Consumption | L/min | 50 | 60 | |||
Machine Components
Machine component
We choose famous brand component for our machine. make sure the machine working stable and durable.Each machine would be tested over 72 hours automatically, to make sure every machine component are in good condition, would not bring any trouble to our customer.

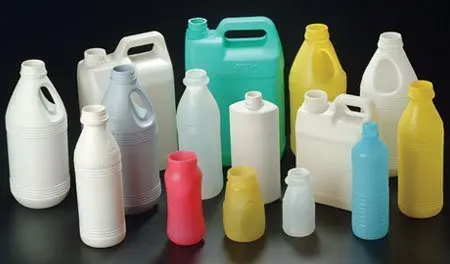

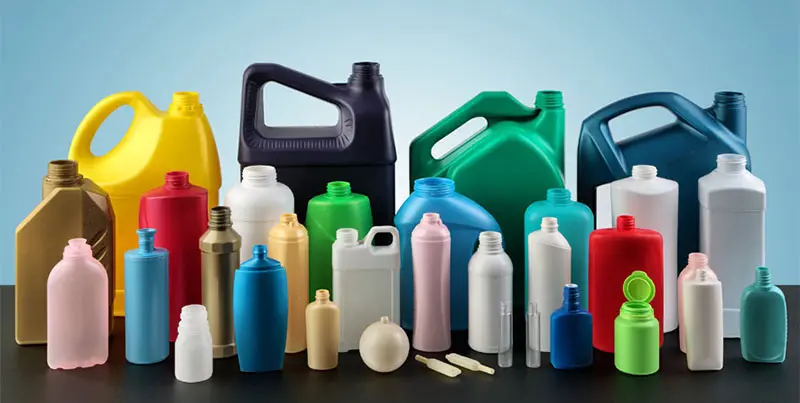

Machine Application
Machine Details
Controller Panel
Colorful screeen display with English.
Technical setting date saving system
100 points parison controller, to make sure even thickness of finished product.
Optimized switches, easily operation.
Electrical Cabinet
Famous brand electrical compoents, make sure durable & stable condition.
Digitization wire cable connection, easily for future inspection and testing
Modularized components, easy replace
Servo System
Adpot high efficiency servo motor and pump, saving up to 40% -50% power comsumption, reduce your factory manufacturing cost. low noise and stable working condition.
Hydraulic System
Famous brand Japan/Taiwan hydraulic valves, proportional control machine pressure, flow, for precious movement.
Optimized hydraulic oil system, fast response, precious control motion.

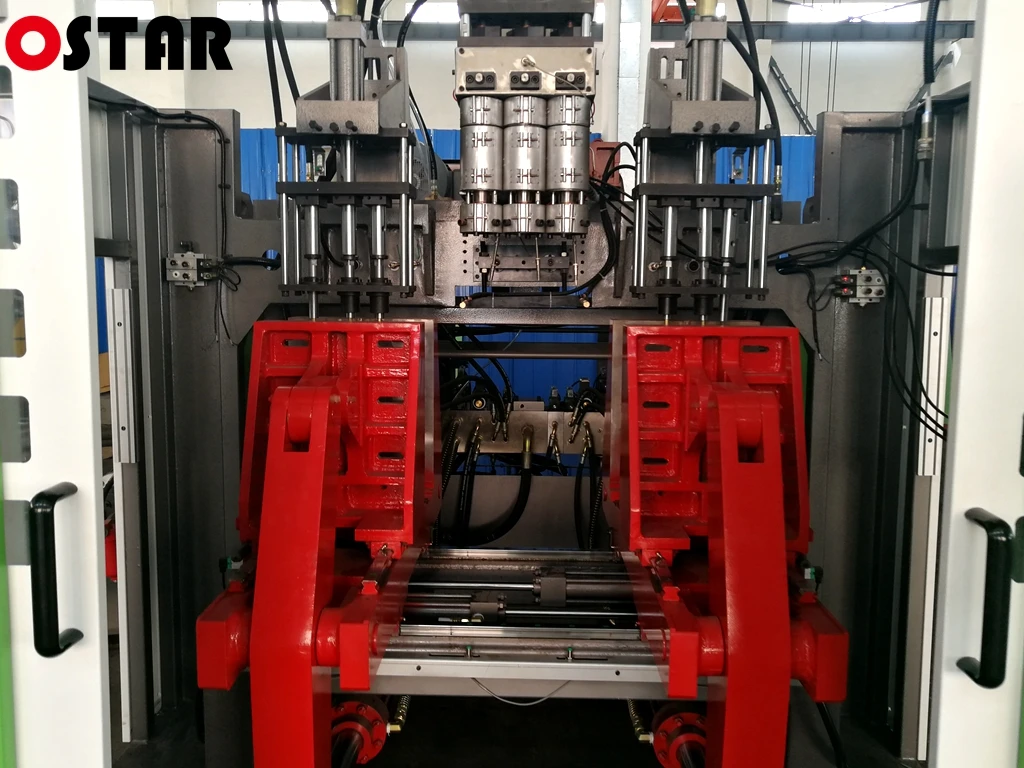

Clamping Unit&Die Head
Super strong machine clamping force, make sure tightly lock blow molds, for better finished products surface.
Safety protection device for operator.
Good material used for the die head.
Extrusion System
High hardness bimetalic screw &barrel for high plasticizing and longer life.
High quality gearbox, motor&inverter.
Special designed heating band, highly efficiency and less power consumption.
Mold&Auxilary

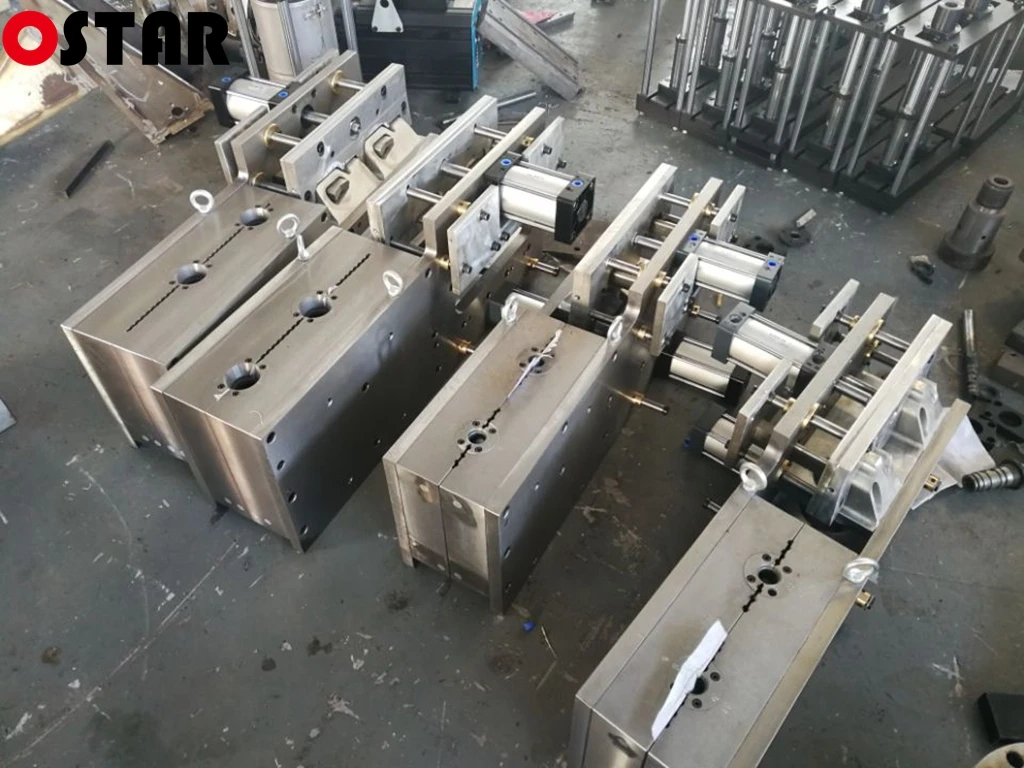

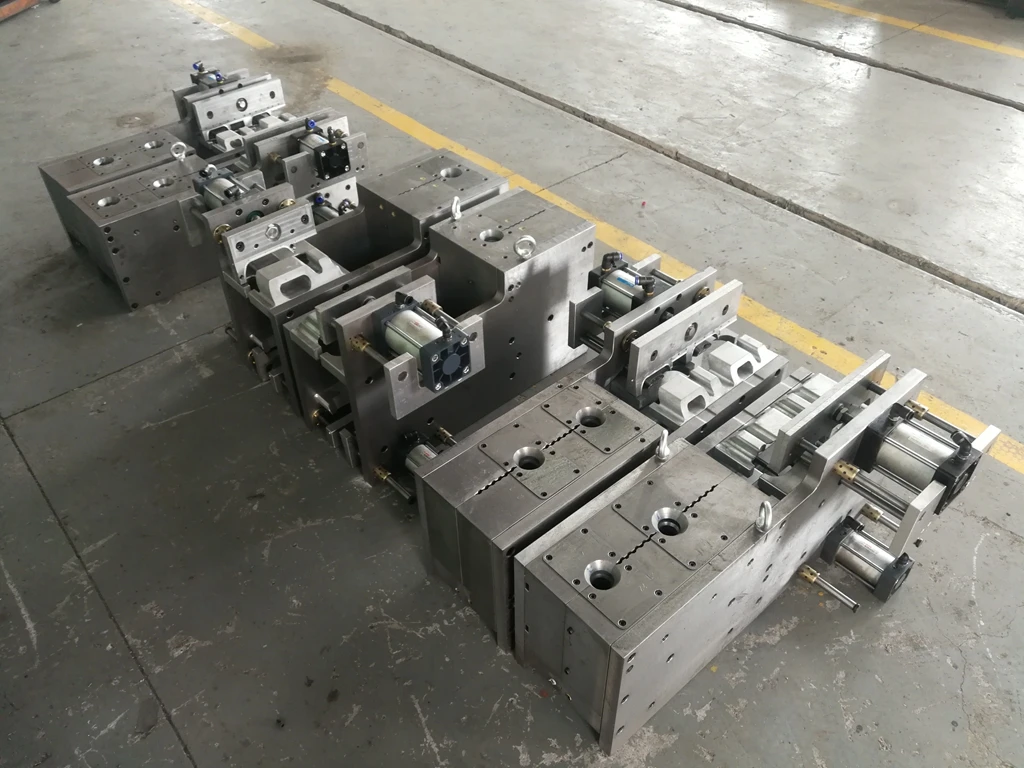

Blow Mold
We have own mold department, we design drawing, manufacturing mold parts, assembly together, testing molds on our machines, make sure running goods before shipment.
We choose quality mold material, such as P20, Aluminum, BeCu, for better finished product.
Mold design with optimized cooling system, help to reduce cooling time, increase production speed.
Mold with deflashing, automatic running condition.
Rotary Bottle Neck Cutting
Top hardness cutting balde, for smoothly bottle neck cutting
Auto deflashing System
Automatical remove flashing plastic, reduce manual labor
Auxiliary Equipment
We supply our customer blow molding machine, blow molds, and also necessary auxiliary, such as auto loader, crusher, conveyor, air compressor, chiler, leakage detector, in-mold labelling machine, outside labelling machine, self-adhesive labelling machine, robot, bottle neck trimming machine, automatic package machine. we are offering complete solution, automatic production line.
