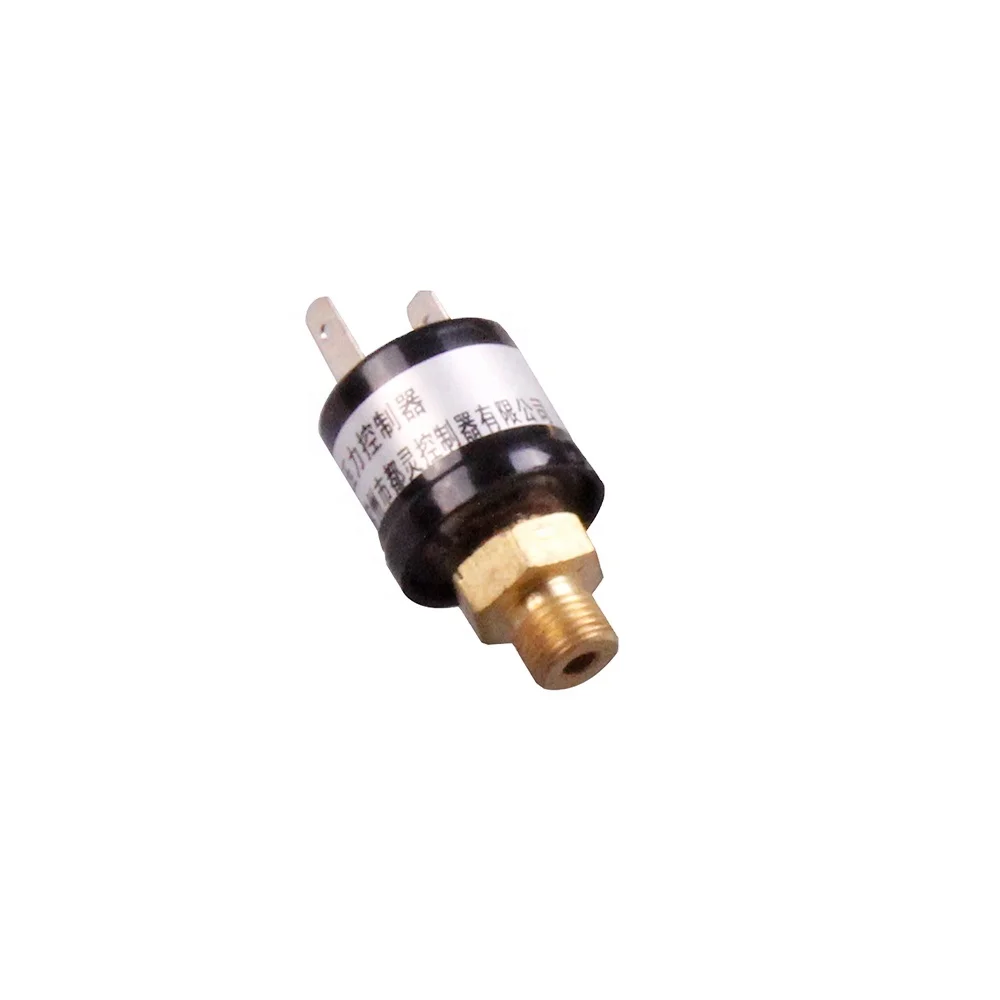

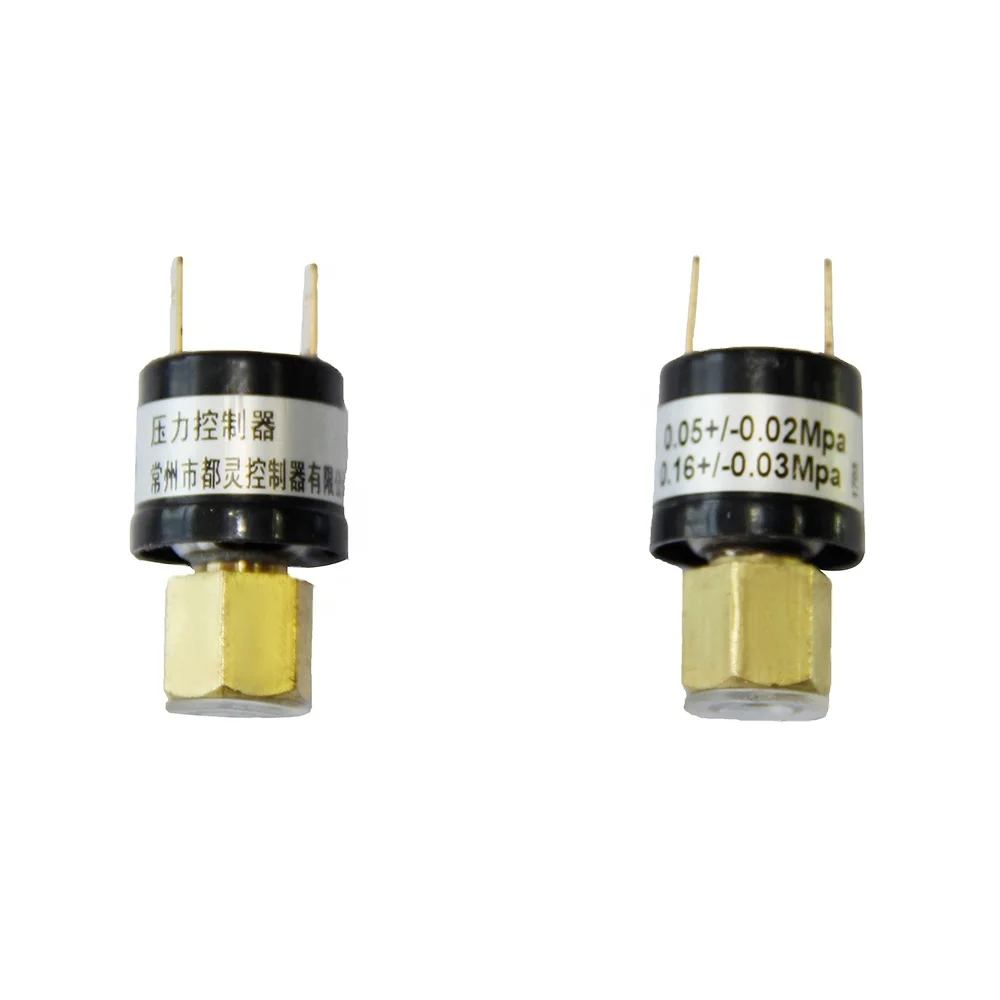

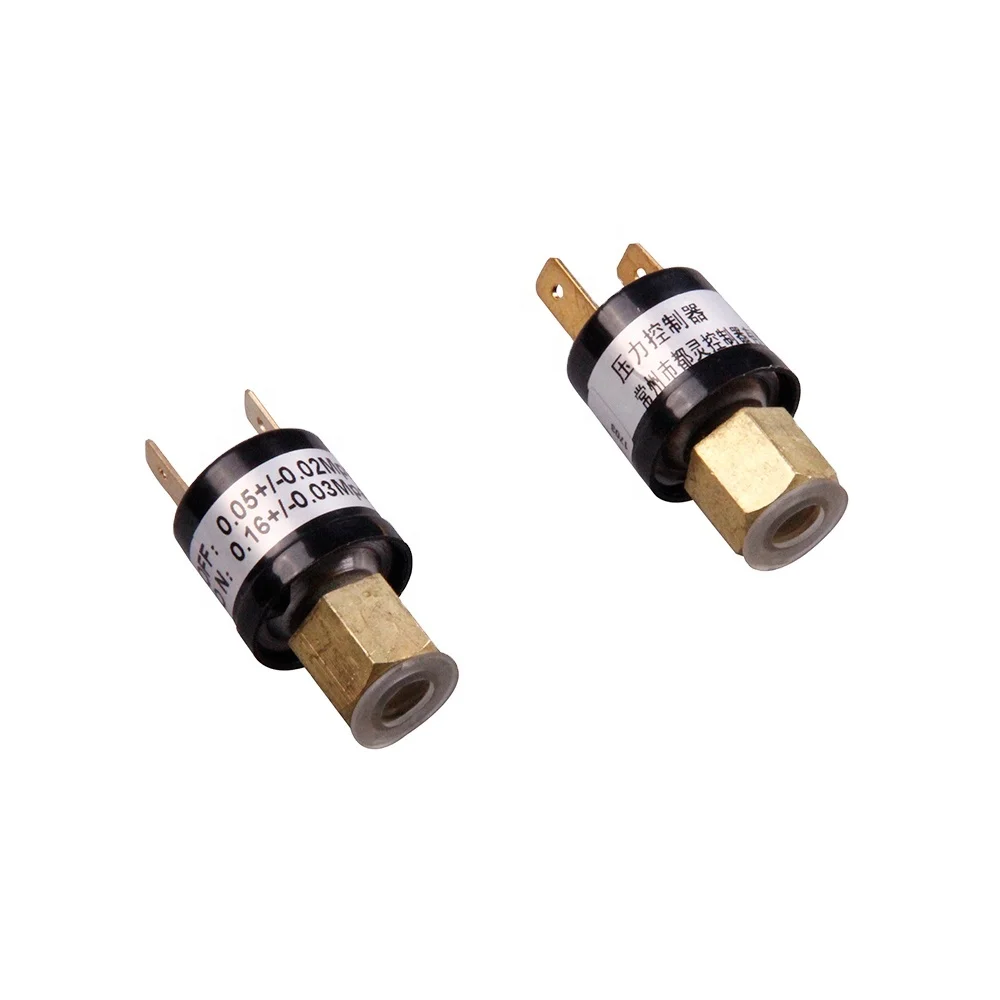

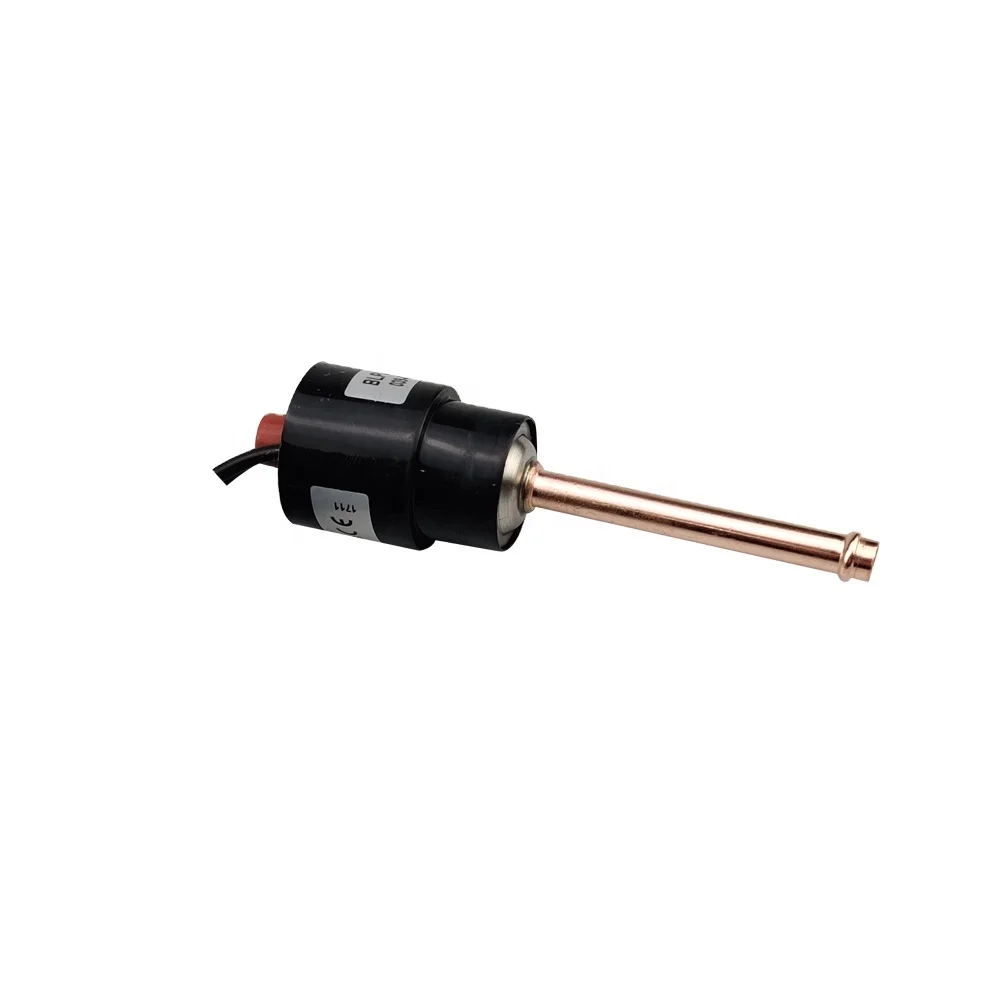

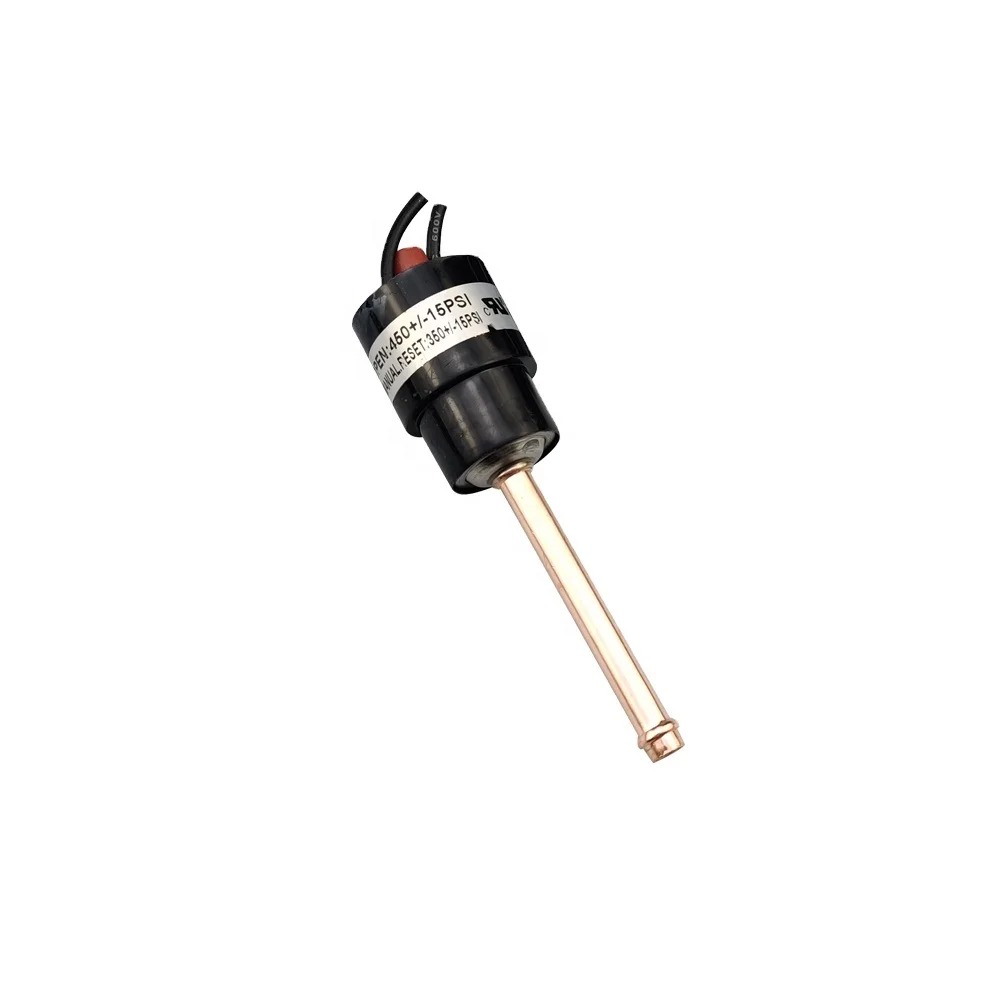

Factory Supply Oil Air Pressure Switch
- Category: >>>
- Supplier: Changzhou Duling Controller Co. Ltd.
Share on (62546880016):
Product Overview
Description
Product Description
Details
No. | Name | Features/Setting Value |
1 | Setting rang of pressure range | 3-667PSI/0.02-4.6mpa |
2 | Tolerance range of pressure switch | 1.45-14.5PSI/0.01-0.1mpa |
3 | Contact form | Normal open,Close |
4 | Contact capacity | AC240V,3A,AC120V, 6A |
5 | Contact resistance | ≤50MΩ |
6 | Insulation resistance | between terminal and housing ≥100MΩ |
7 | Dielectric strength | No burst phenomenon in 1min at ≤5000PSI （34.5mpa) blast pressure |
8 | Maximum burst pressure | No breakdown and flashing in 1 min at AC1500V |
9 | Gas tightness | No leakage(4.8 mpa/1 min) |
10 | Adaptive temperatue | -30-80 degree |
11 | Life cycle | 100000 times |
12 | Over pressure test | increase to 10mpa. No burst and leakage in 10 mins |
Certifications
Company Profile
Packaging and logistics
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time and MOQ?
A: Generally it is 5-10 days if the goods. MOQ is 20 pcs.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
shippment.
If you have another question, pls feel free to contact us as below:
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before
A: We are factory.
Q: How long is your delivery time and MOQ?
A: Generally it is 5-10 days if the goods. MOQ is 20 pcs.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
shippment.
If you have another question, pls feel free to contact us as below:
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before
