Product Overview
Description
High Speed 8-HI Plain Carbon Steel Cold Rolling Mill Line Speed 1000M
COIL MATERIAL:Stainless Steel, Iron, Carbon Steel, Aluminum, Galvanized Etc
USAGE:Steel Coil Cold Rolling Etc
Metal coil cold rolling mill is a kind of equipment which is used for rolling hot rolled coil. The equipment is designed with 4, 6 and 8 rollers. Screw pressing and AGC pressing modes are designed for customers to choose. It is suitable for cold rolling and rolling of stainless steel coil, iron coil, carbon steel coil, aluminum coil, galvanized coil, copper coil and other metal coils. It has the characteristics of high speed and high precision.

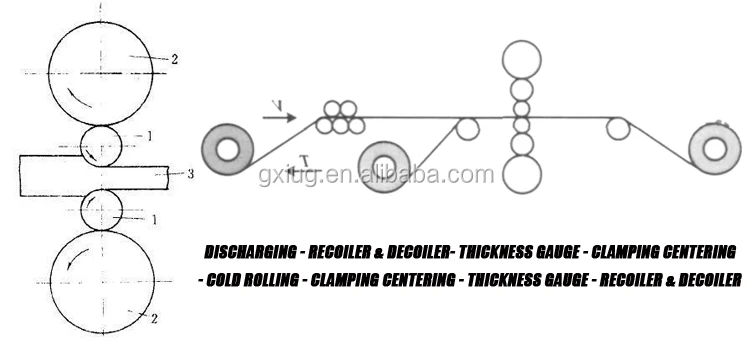

................................Production Process ................................
.................................Model & Parameter.................................
| High Speed 8-HI Plain Carbon Steel Cold Rolling Mill Line Speed 1000M | ||||||||
| MODEL | GXG-550 | GXG-650 | GXG-700 | GXG-750 | GXG-850 | GXG-950 | GXG-1150 | GXG-1450 |
| Coil width(mm) | 350-500 | 400-560 | 480-630 | 550-680 | 650-750 | 700-850 | 850-1000 | 1000-1250 |
| Coil material thickness(mm) | 2-3 | 2-3 | 2-3 | 2-3 | 2-3 | 2-3 | 0.6-2.5 | 0.6-3.5 |
| Finished coil thickness(mm) | 0.2-1 | 0.2-1 | 0.2-1 | 0.2-1 | 0.2-1 | 0.2-1 | 0.2-0.6 | 0.2-0.6 |
..................manufacturing process Display...................
.......................................ABOUT GXIUG.........................................
