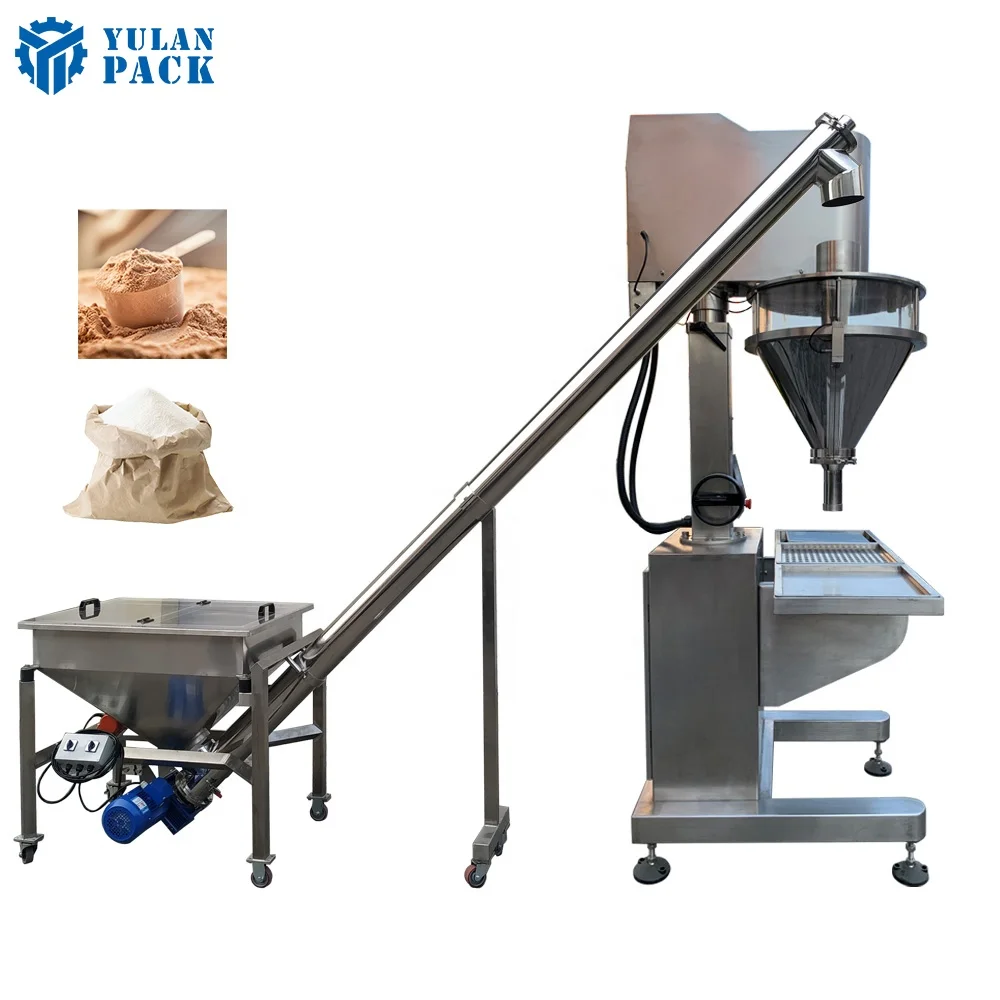

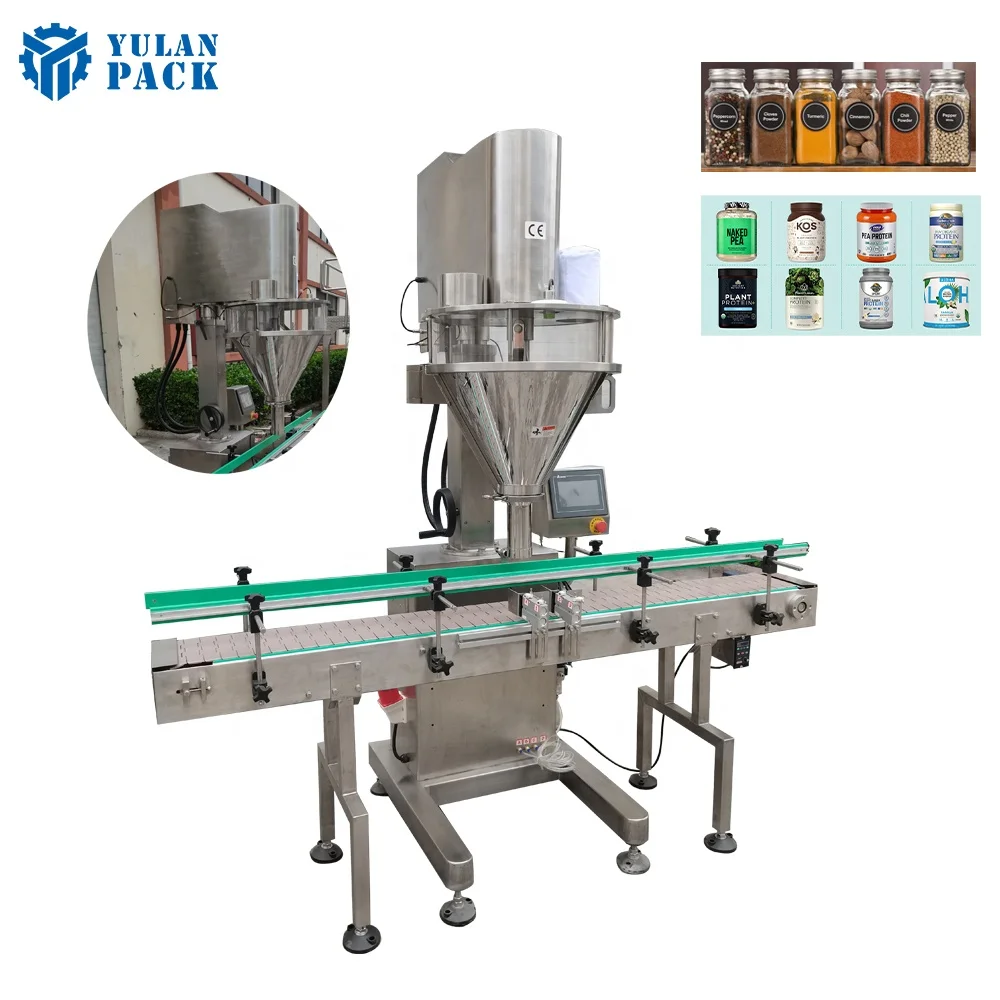

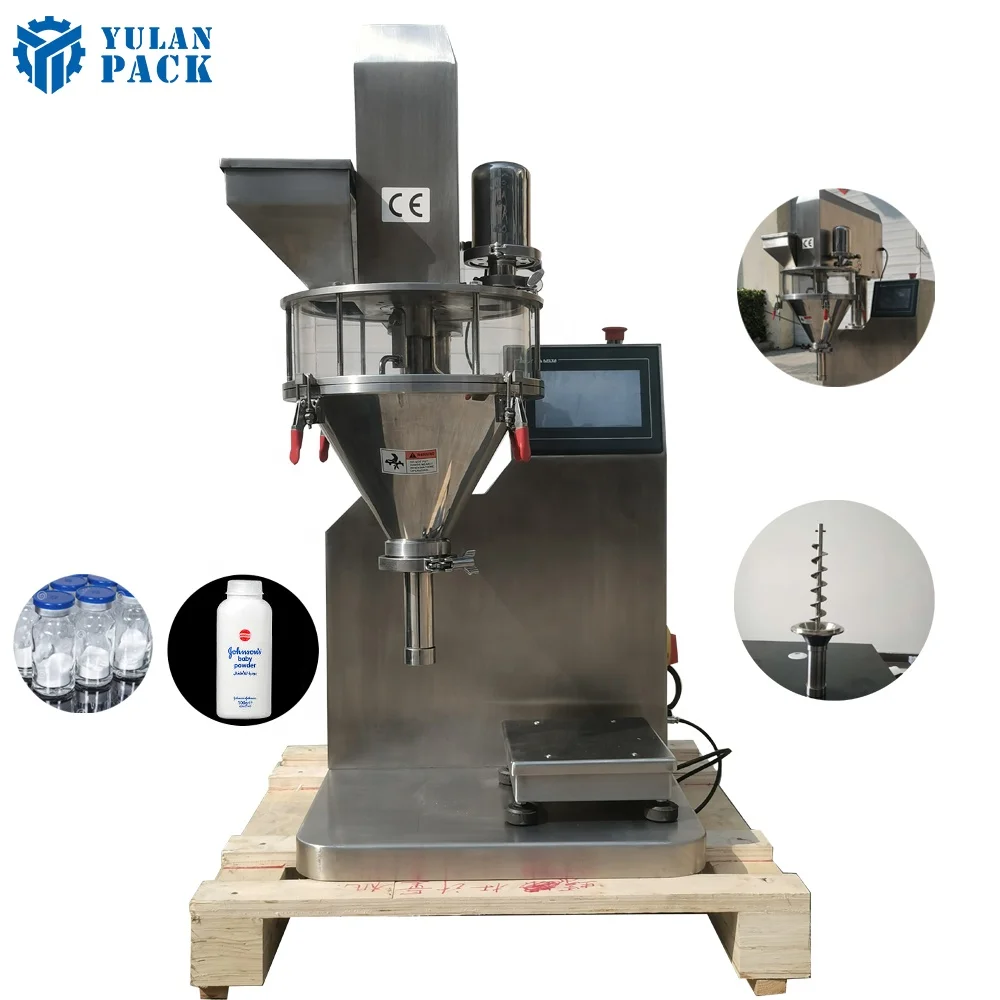

Manual Milk Powder Jar Filling Machine / Auger Filler / Dispenser With Lifting Turret
- Category: Packaging Machine >>>
- Supplier: Shanghai Yulan Packing Equipment Co. Ltd.
Share on (62547007347):
Product Overview
Description
Product shows
Products Configuration
New 1-500g or 1-5000g semi-automatic powder filling machine
Mode | YCL-1Y-321 | YCL-1L-321 |
Packing weight | 1-500g | 10-5000g |
Packing accuracy | ≤100g,≤±2%;100-500g,≤±1% | ≤100g,≤±2%;100-500g,≤±1%;≥500g,≤±0.5% |
Filling speed | 40-120times /min | 40-120times /min |
Power supply | 3P AC 208-415V 50/60HZ | 3P AC 208-415V 50/60HZ |
Total power | 0.95KW | 1.4KW |
Total weight | 130KG | 260kg |
Overall dimension | 800*790*1900mm | 1140*970*2030mm |
Hopper volume | 25L | 50L |
Configuration List
No | Name | Original | Brand |
1 | PLC | Taiwan | DELTA |
2 | Touch Screen | Taiwan | DELTA |
3 | Servo motor | Taiwan | DELTA |
4 | Servo driver | Taiwan | DELTA |
5 | Switching powder supply | Taiwan | DELTA |

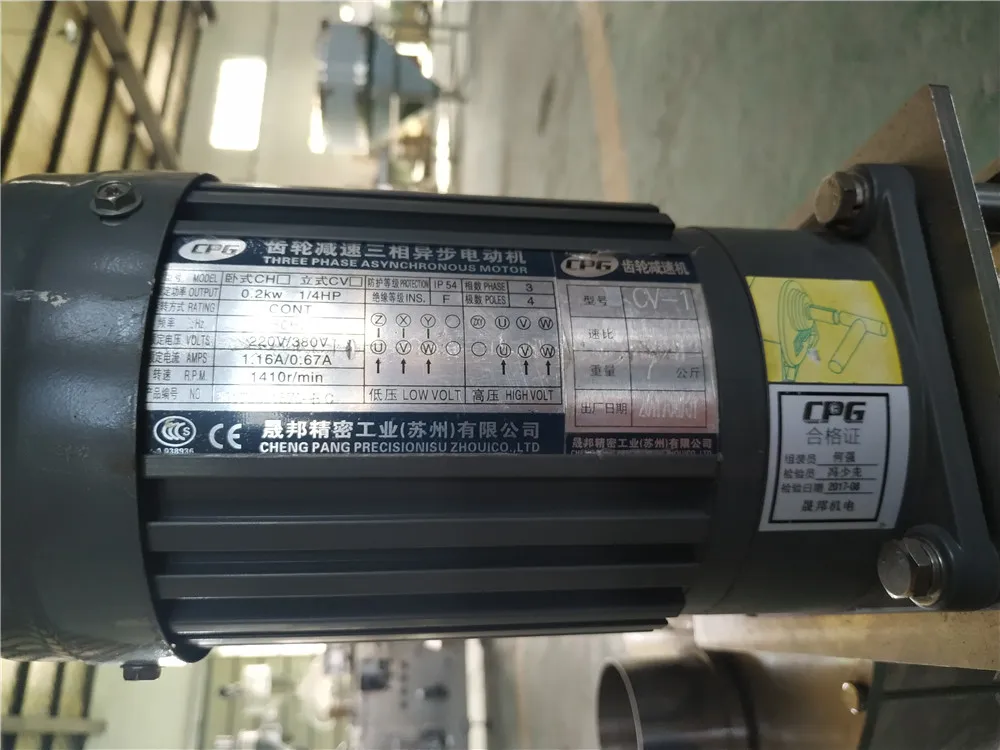

6 | Agitation motor | China | Wanshin |
7 | Thermal overload relay | France | Schneider |
8 | Relay | France | Schneider |
9 | AC Contactor | France | Schneider |
10 | Load cell | China | AMP |
11 | EMI filter | China | ZHONGYUHAO |

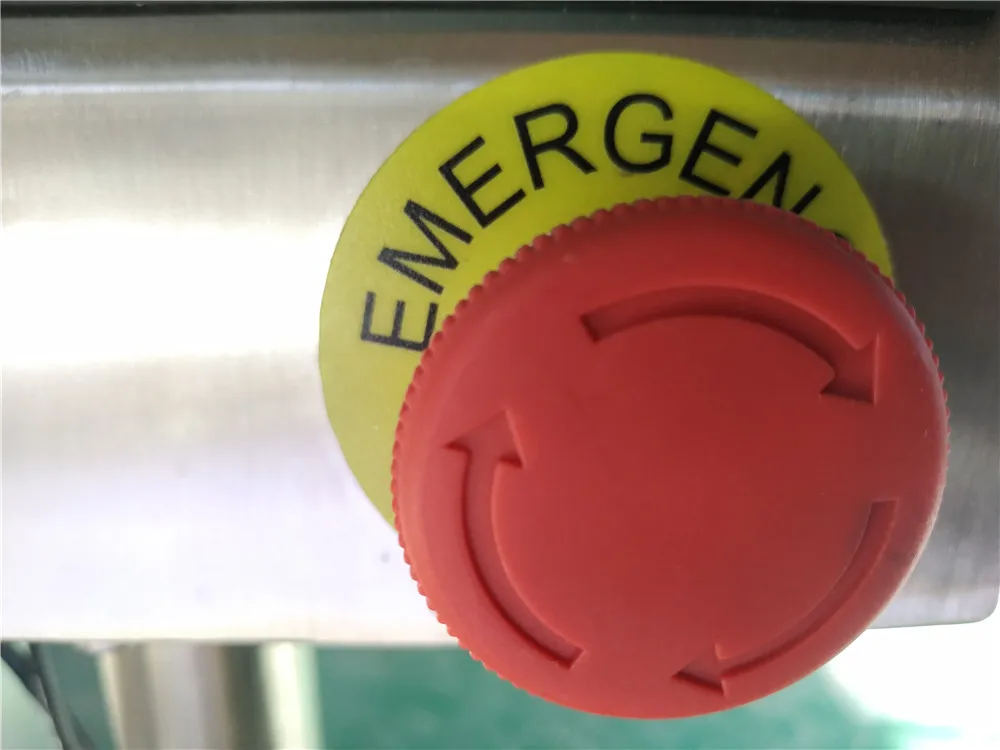

12 | Emergency switch | France | Schneider |
13 | Photo sensor | Korea | Autonics |
14 | Proximity switch | Korea | Autonics |

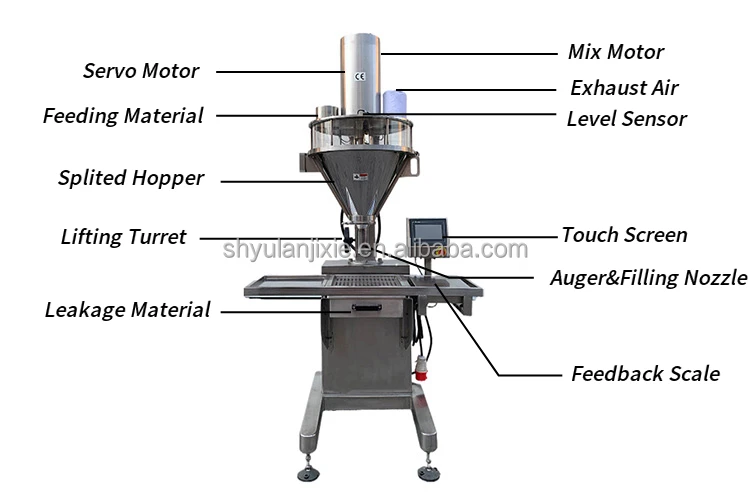

Product Exhibition

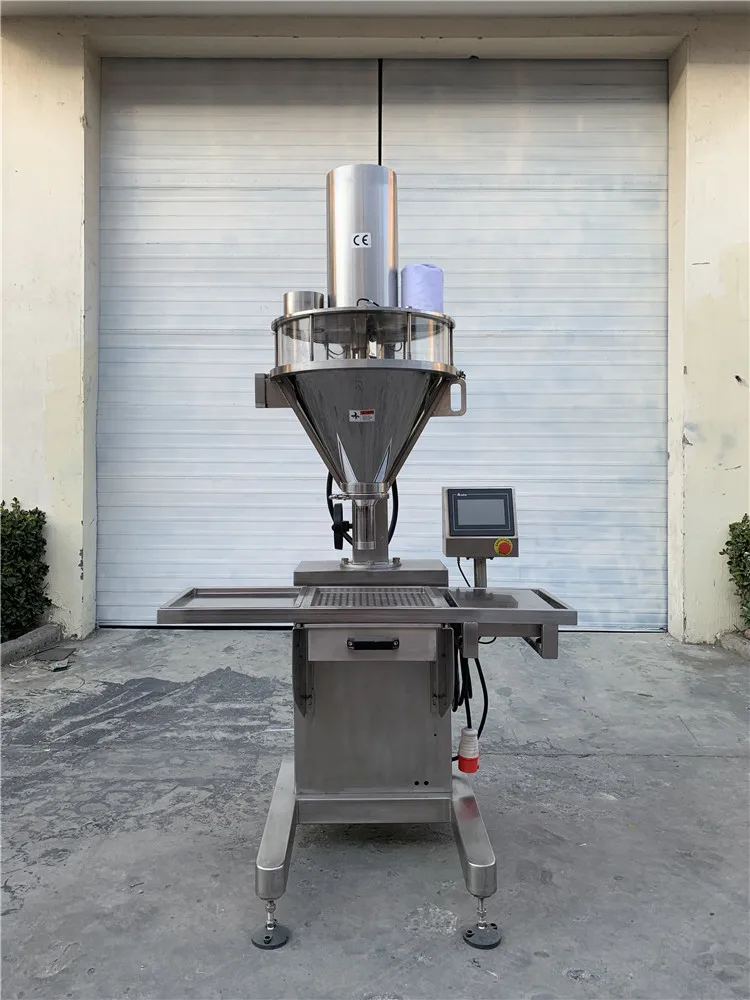

Semi automatic type filling machine,can dosing and filling work
-304 Stainless steel construction,screw type auger（not hang type）
-All material contact welds ground smooth, electropolish interior
-PLC Touch Screen

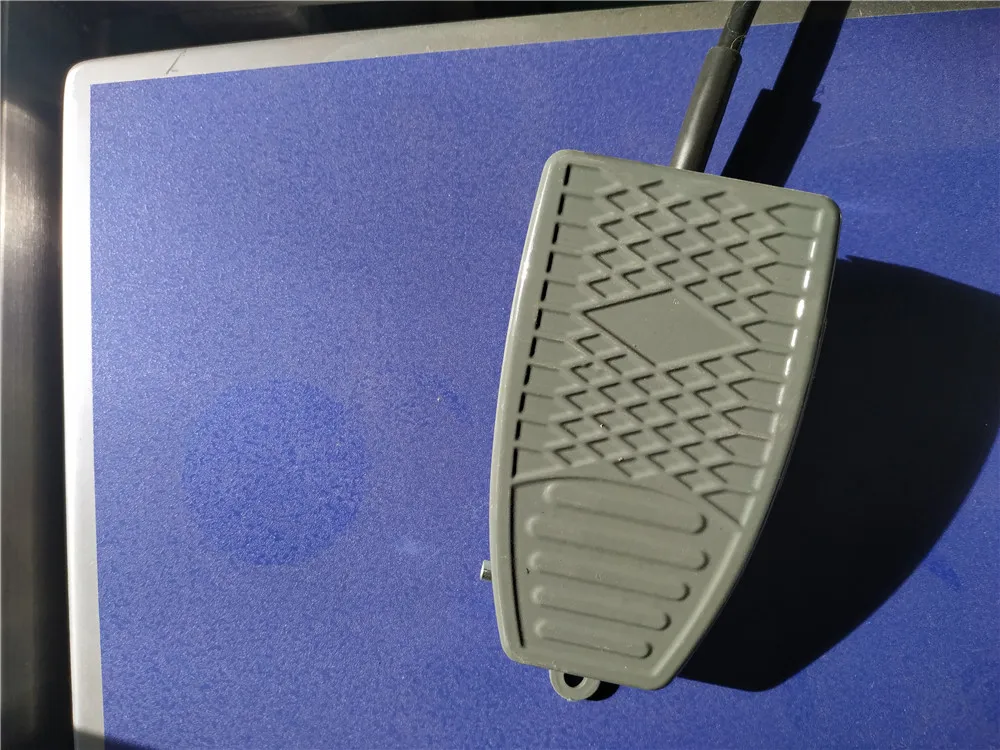

-Foot pedal for easy filling
-High Accuracy Servo Motor

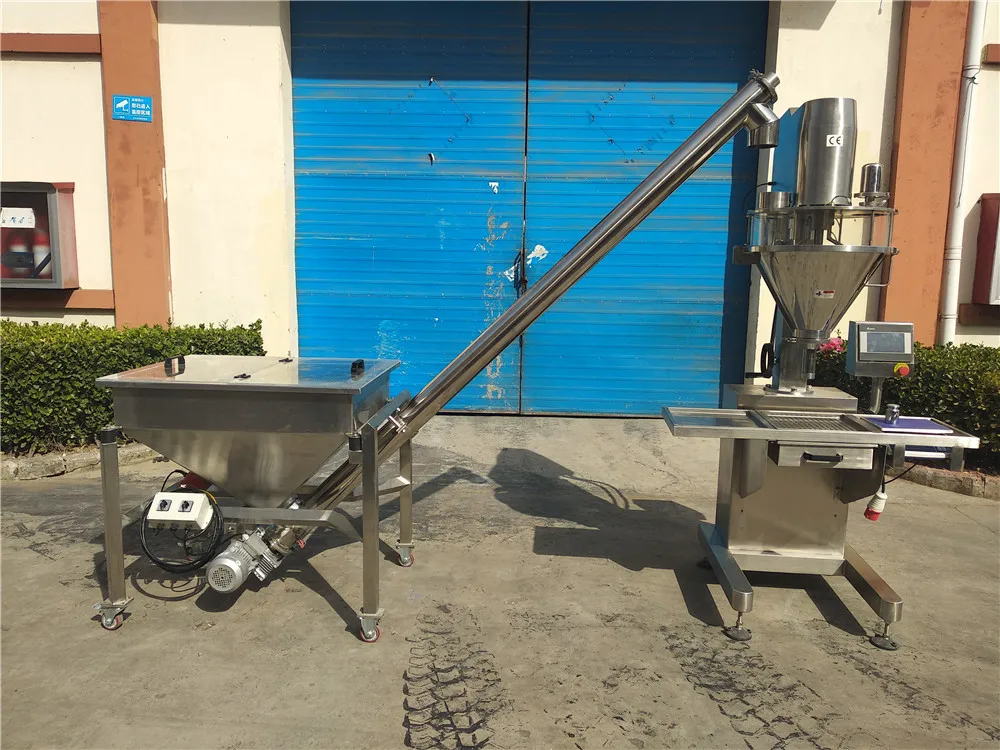

-Level switch (To allow this machine to be wired to our auger feeding machines for auto-fill and shutoff)
-All material contact welds ground smooth, electropolish interior
-PLC Touch Screen
-Foot pedal for easy filling
-High Accuracy Servo Motor
-Level switch (To allow this machine to be wired to our auger feeding machines for auto-fill and shutoff)

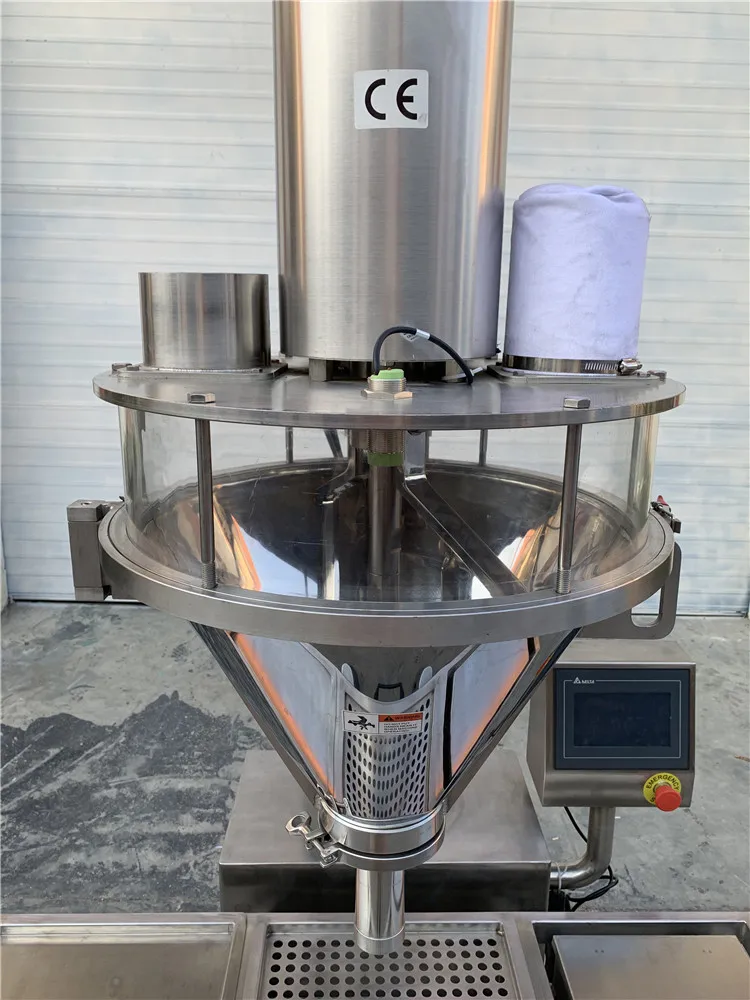

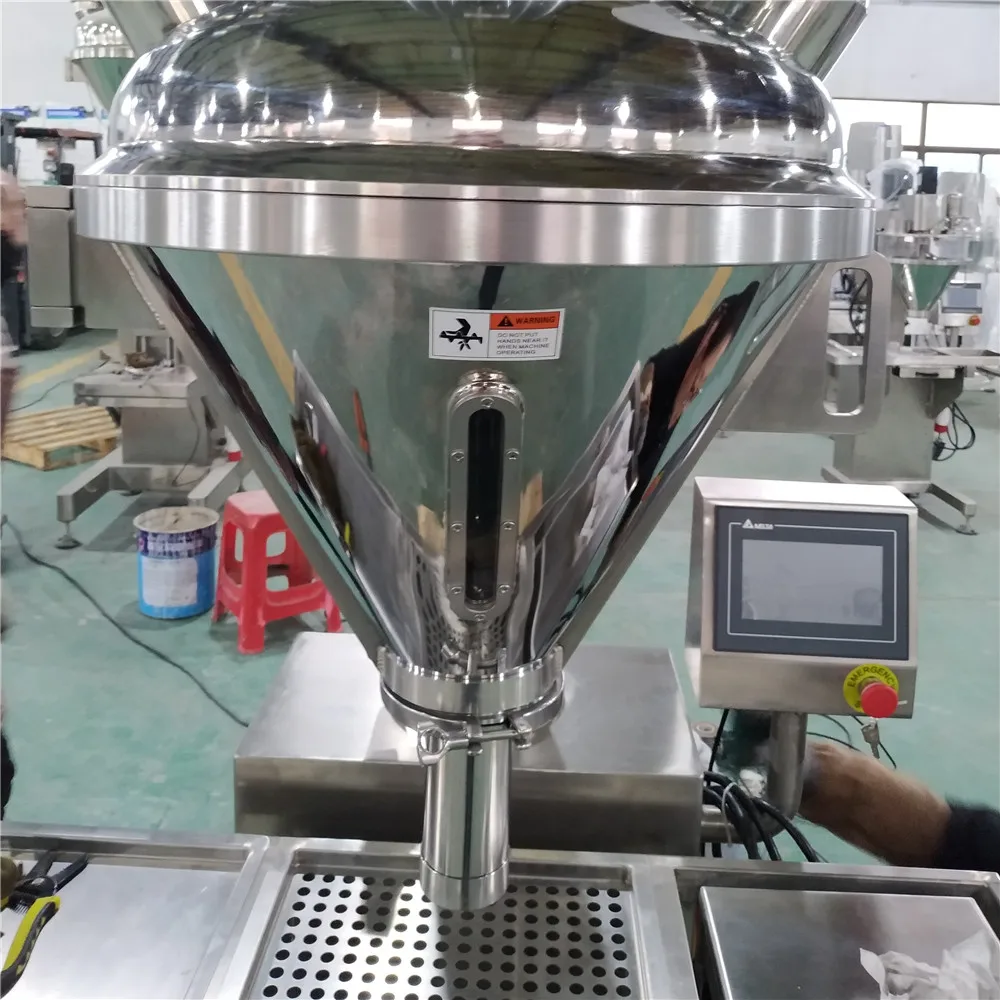

Split hopper: easy to clean and keep tidy.
Both the frame and the food contact parts and Bolts： SS304 Full welding and polishing
Inside the hopper : mirror finish.
Hopper side thickness:1.5mm,durable
Inside the hopper : mirror finish.
Hopper side thickness:1.5mm,durable

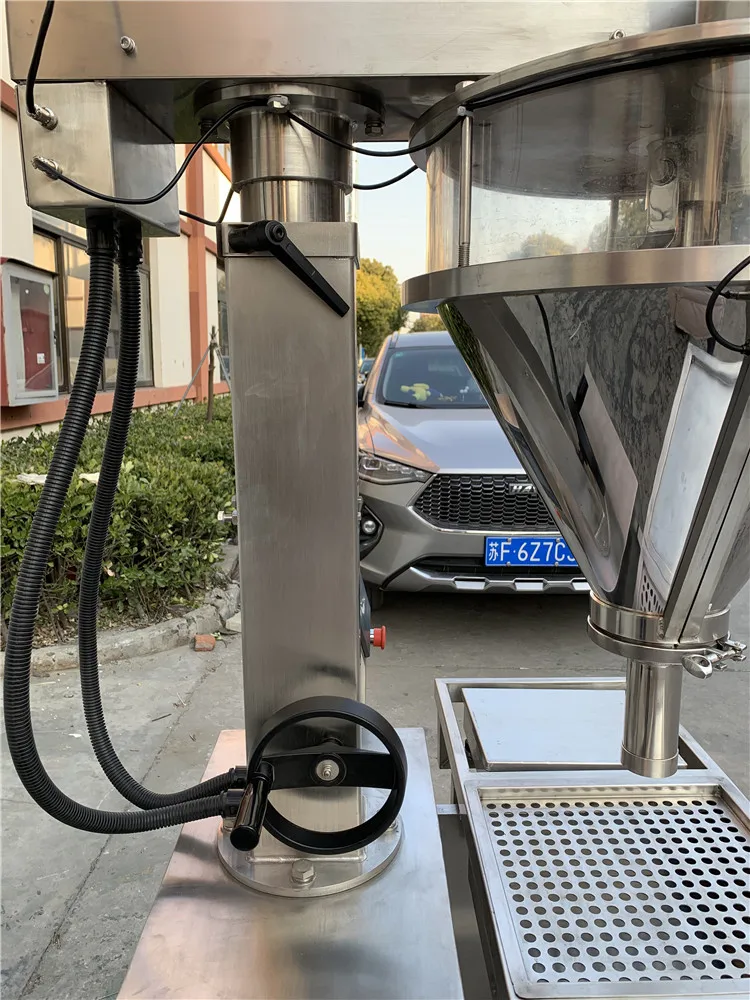

Hand wheel adjust turret height
-Adjustable height turret
-Turret can swing 180° to each side
-Turret can swing 180° to each side

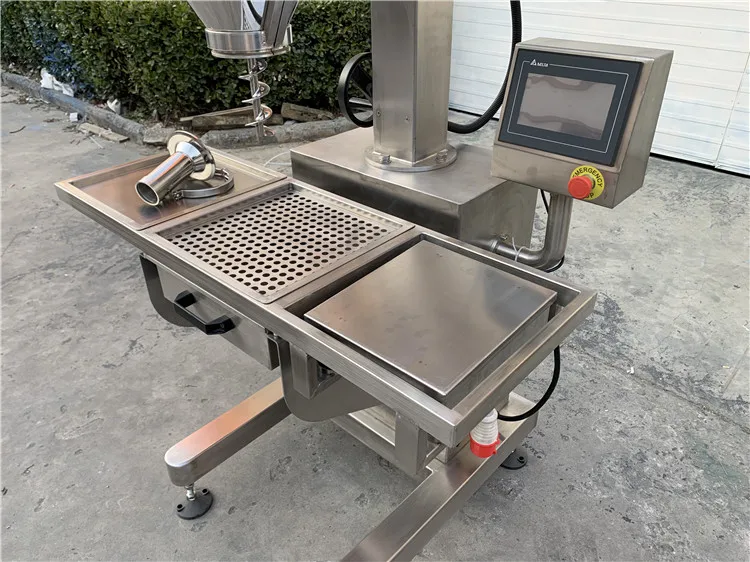

Work table
-Adjustable height work table
-Perforated catch tray with removable drawer
-Perforated catch tray with removable drawer

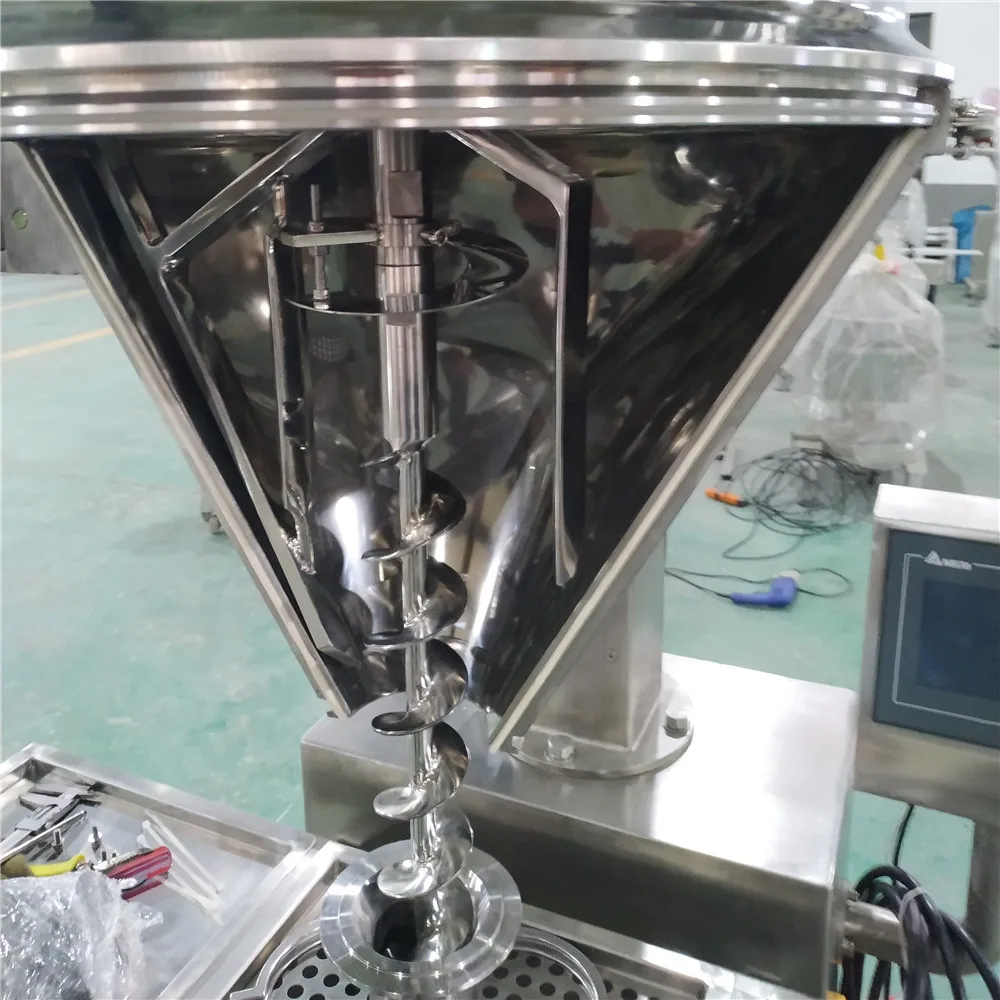

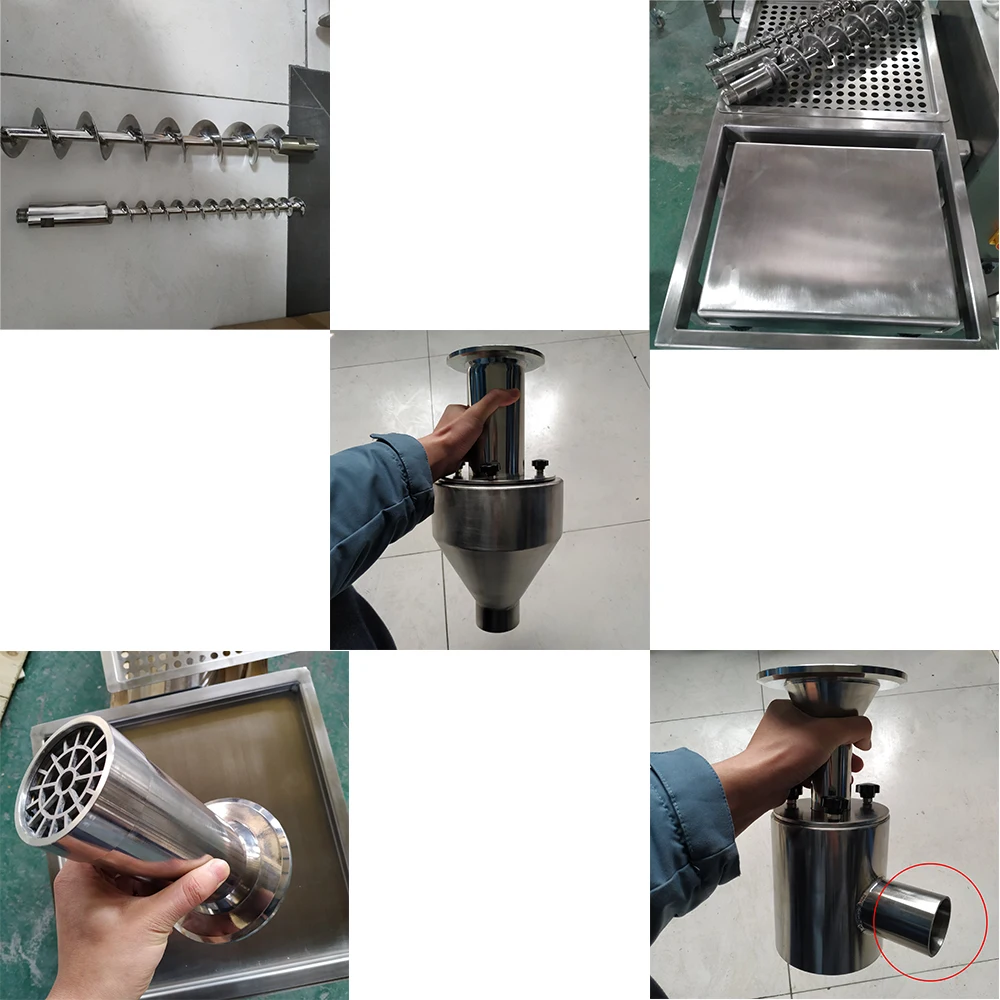

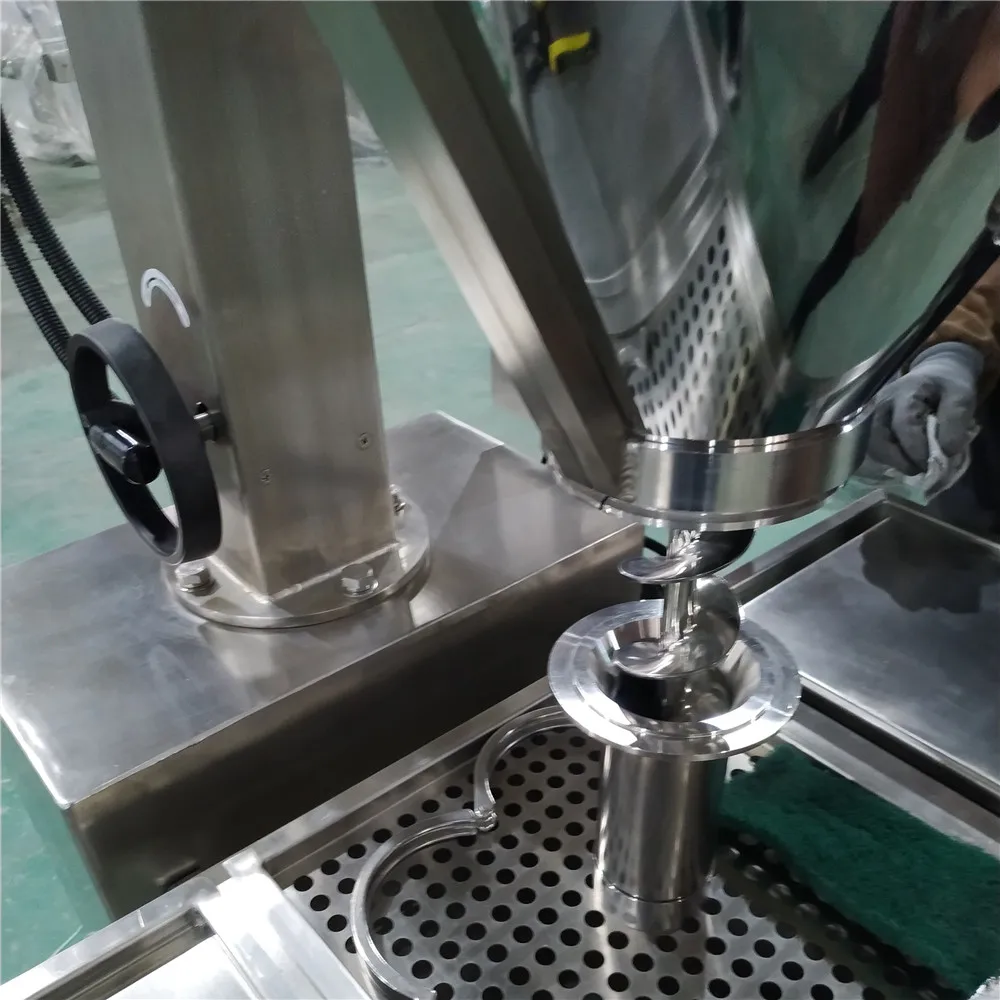

Auger and attachment
-Multiple auger sizes for filling speed
-Different attachments to work with both free flowing and bridging material.
-Different attachments to work with both free flowing and bridging material.

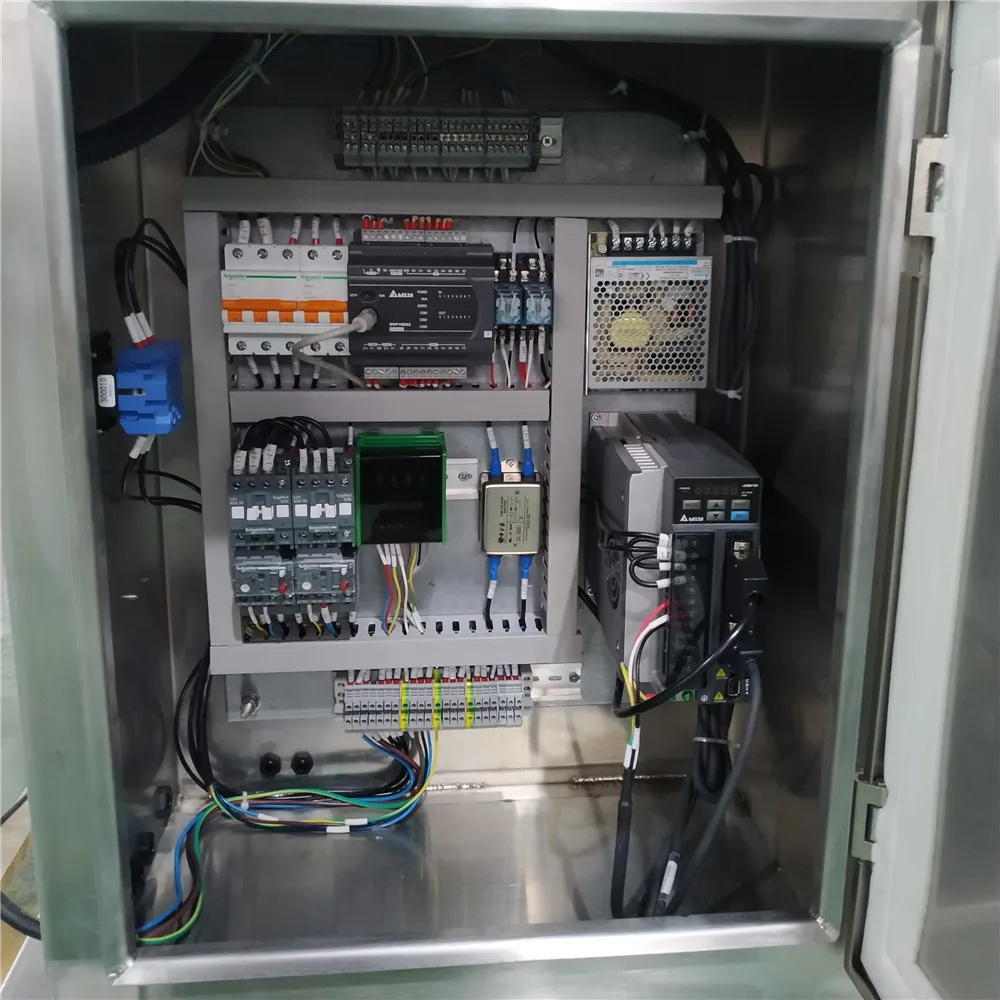

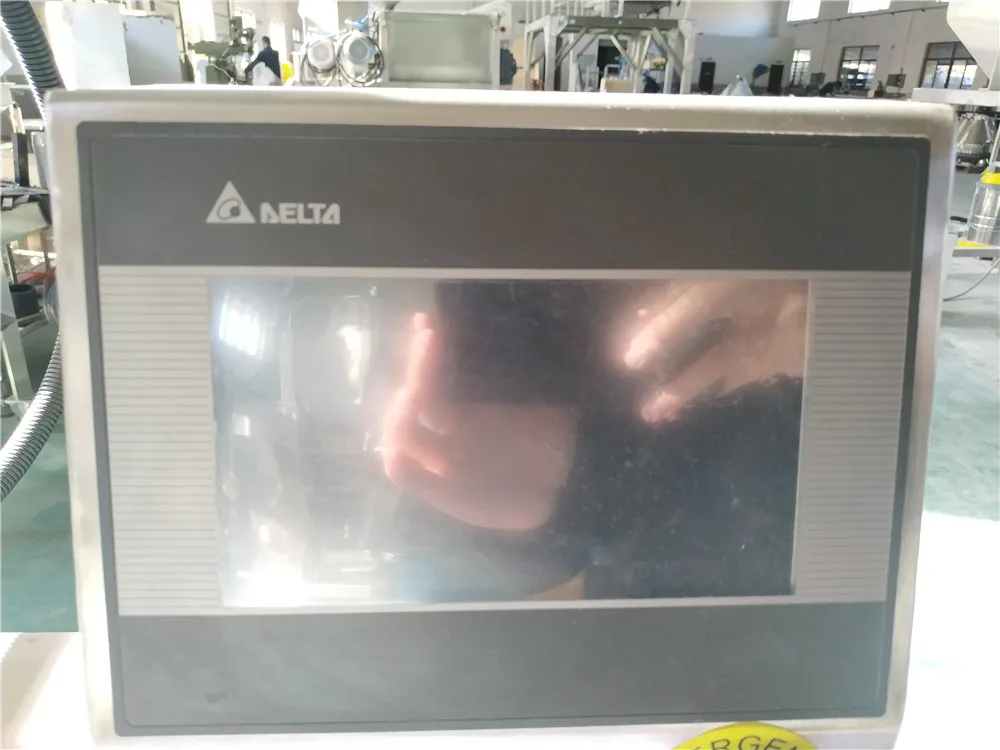

Electronic control box
PLC and touch screen &servo motor controlling system,easy to operate,high filling accuracy.
Packing & Delivery

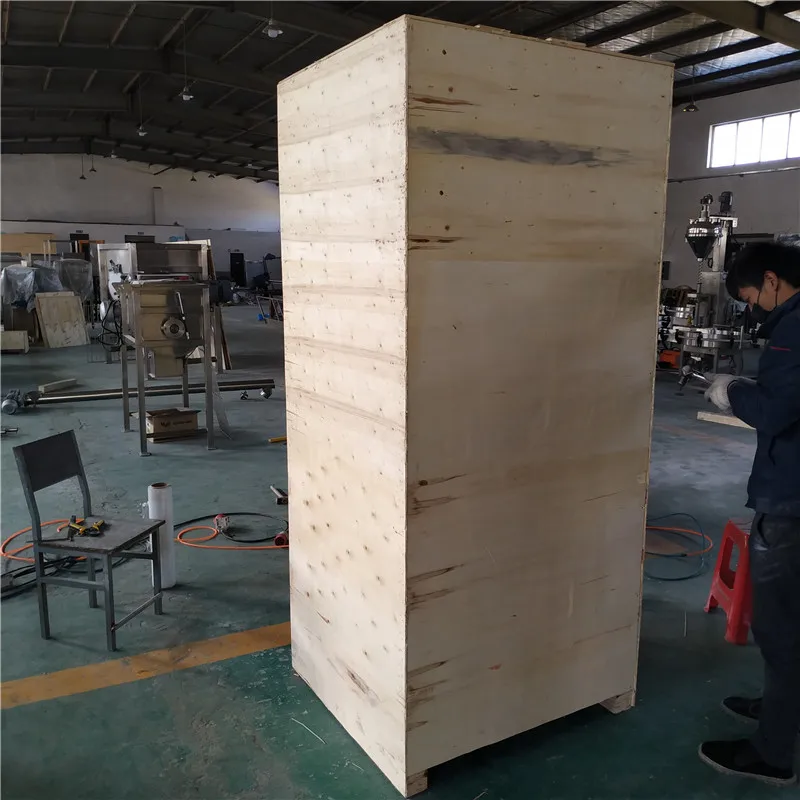

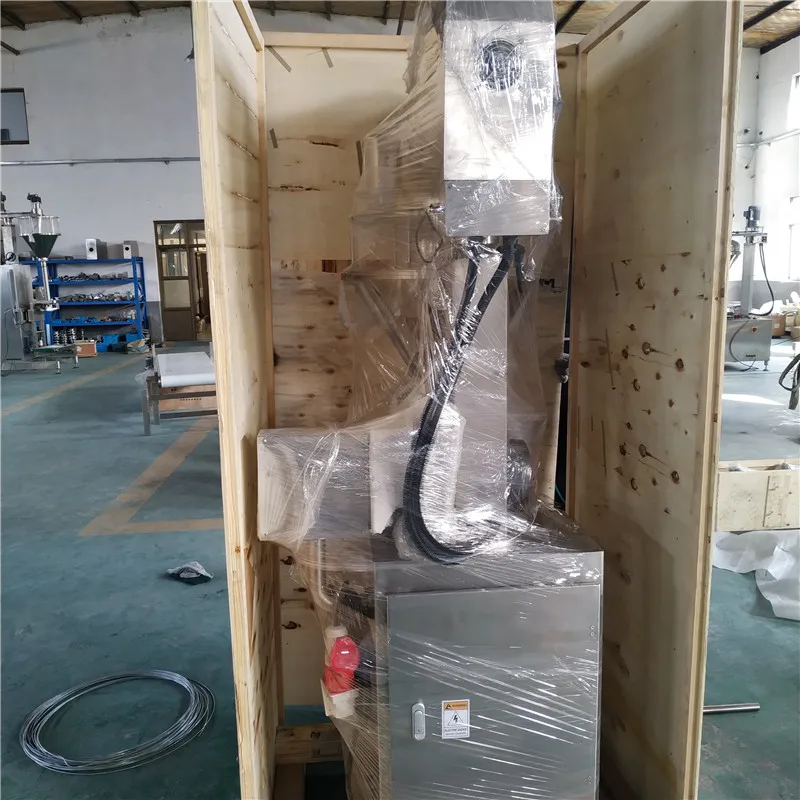

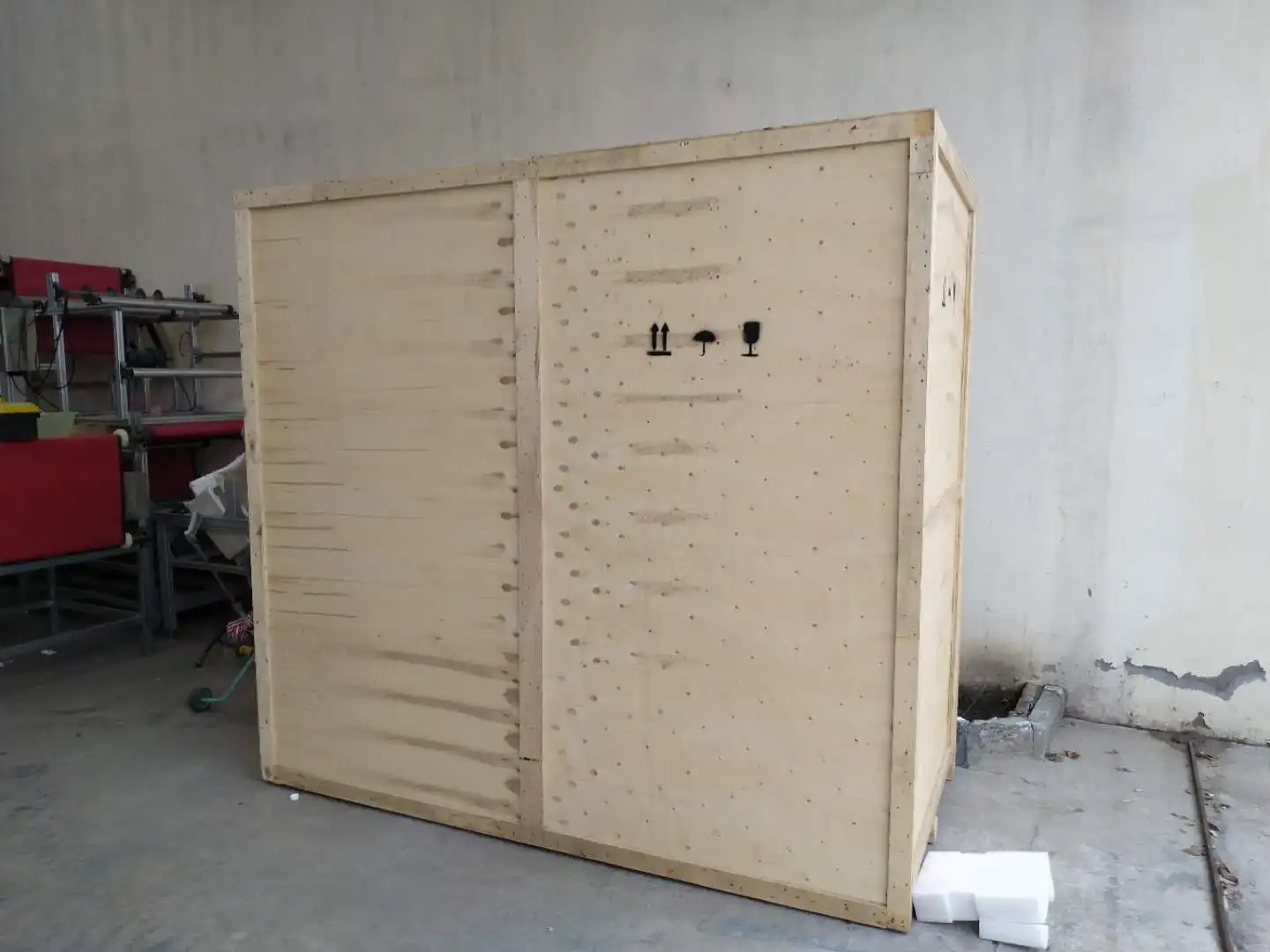

Packing Details : PACKAGES in Wooden box,film wrapped inside
Delivery Details : 5-7days
Delivery Details : 5-7days
Other show
Our Company

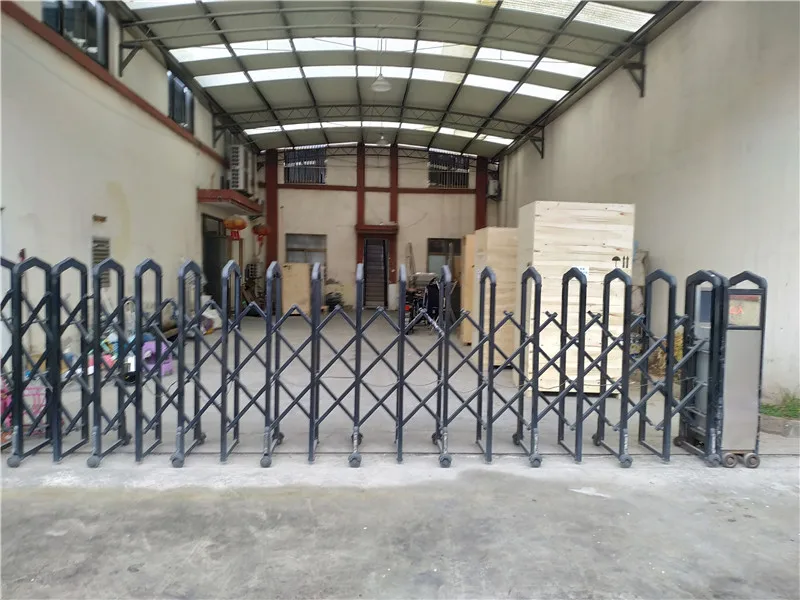

Factory
Workshop
Accessories rack
Warehouse
Office
Electrical room
For more details
Hi ,I am Darren
Email:darren(at)yulanpack.cn
Tel/whatsapp:00-86 18036202581
If you have any requirements,please let me know.
Email:darren(at)yulanpack.cn
Tel/whatsapp:00-86 18036202581
If you have any requirements,please let me know.
Payment Terms
Payment Terms | T/T | EXW | 30% T/T in advance, paid the 70% balance before shipment | ||
FOB | |||||
CFR | |||||
CIF | |||||
Paypal | Amount lower than 3000usd | ||||
West Union | Amount lower than 5000usd | ||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
Delivery Time | 7~10days after receiving payment of Deposit | ||||
After- Sales Service
Training services: | We will train your engineer to install our machine. You can send your engineer to our factory . We will introduce your engineer how to install the machine and how to fix problem. |
Trouble shooting service: | Usually we will help you solve the problem quickly. Some times if you can not fix the problem in your country, we will send our engineer there if you need us to support. Of course,you need to afford the round trip flight ticket and accommodation fee. |
Spare Parts replacement: | For machine in guarantee period, if spare part broken, we will send you the parts free and we will pay the express fee. And please send us the spare partsback. when machine is out of guarantee period, we will provide you the spare parts in cost price. |
FAQ
1.Are you a factory or a trading company?
We have two Yulan brand companies.
Shanghai Yulan is a trading company for export trade
Nantong Yulan is a factory for processing and production equipment.
Shanghai Yulan is a trading company for export trade
Nantong Yulan is a factory for processing and production equipment.
2.Can i visit your factory?
Yes,you are always welcomed.
3.What's your warrantly and after-sale service?
One year warrantly and lifelong after-sale service via skype/email/mobile/whatsapp.
4.What's the payment term?
30% T/T despoit and 70% T/T balance payment before shipping.
5.How long it takes for delivery?
It takes about 20-40 working days.
