16ton Tavol Wire Rope Hoists Steel Cable Electric Winch Electric Hoist with CE
- Category: Other Cranes >>>
- Supplier: Shandong Tavol Heavy Industry Co. Ltd.
Share on (62547041013):
Product Overview
Description
16ton Tavol Wire Rope Hoists Steel Cable Electric Winch Electric Hoist with CE
Product Details

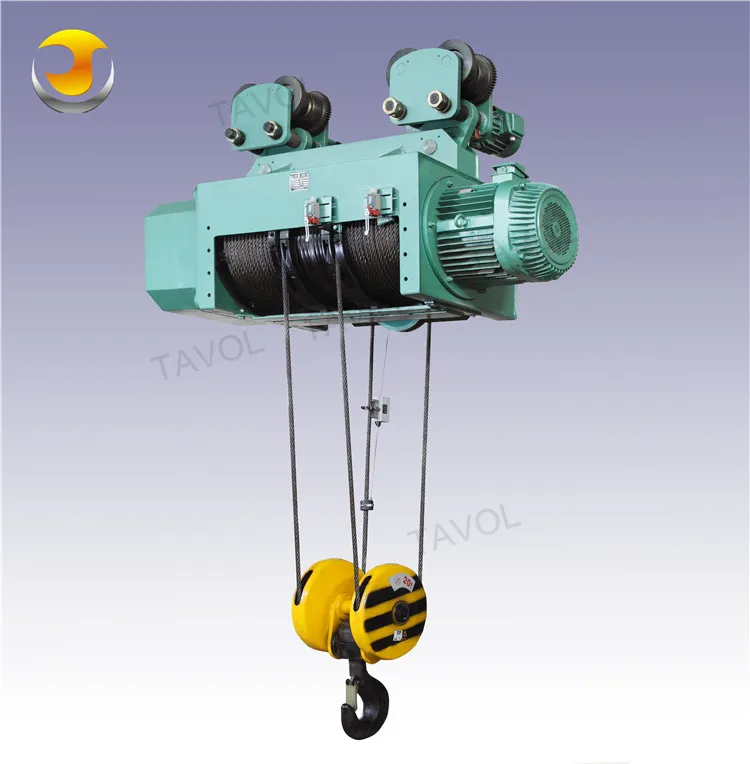

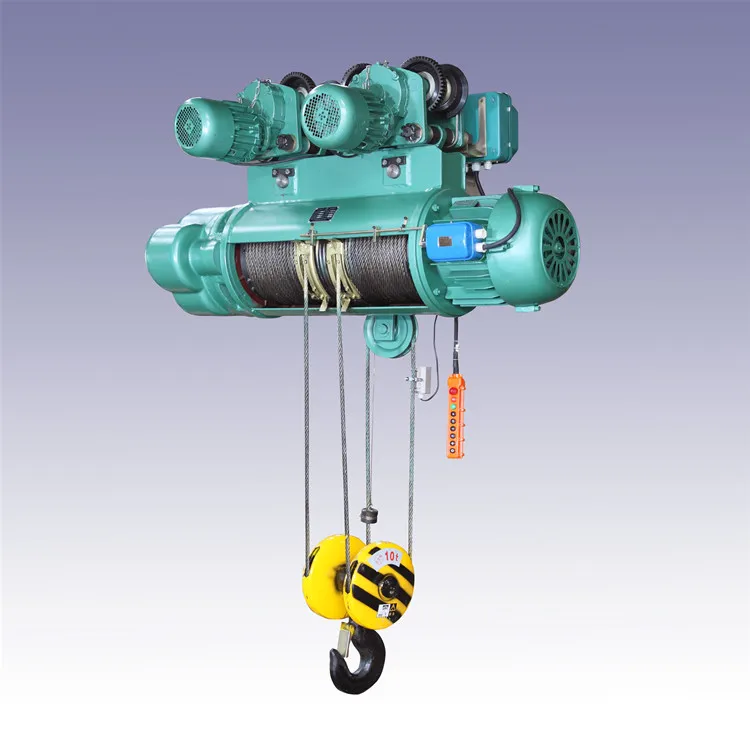

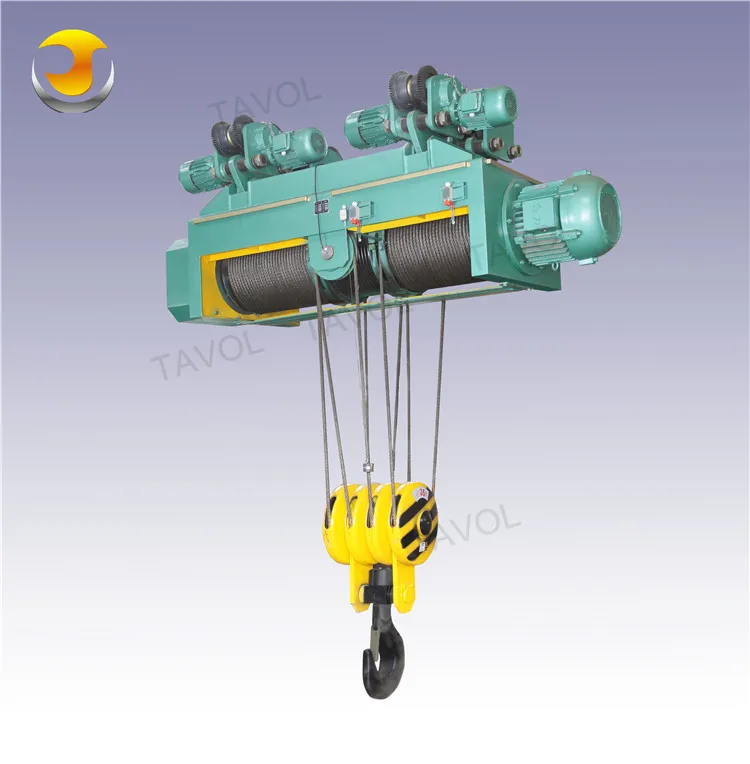

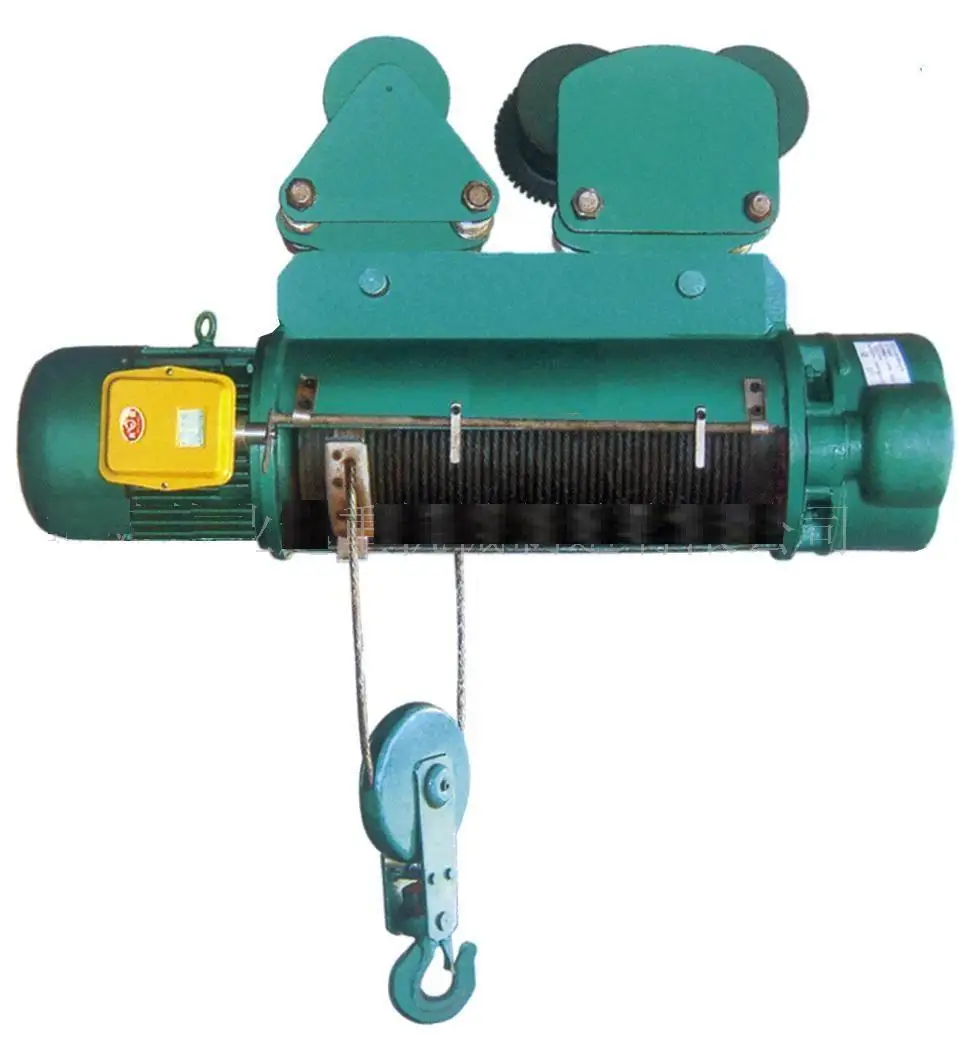

Electric Wire Rope Hoist
It is typical and unique optimal structure in shortening the distance between the machine body and the beam, it is applicable to operate inside low buildings, especially suitable for temporarily erected plant buildings or the sites where
expansion of effective hoisting spaces is required.. Light weight
2. Small size limit
3. High level of work
4. Good performance, high reliability and low failure rate
5. Chain sprocket, easy in job-hopping, more stable
6. Work with low noise, overload ability, braking torque.
expansion of effective hoisting spaces is required.. Light weight
2. Small size limit
3. High level of work
4. Good performance, high reliability and low failure rate
5. Chain sprocket, easy in job-hopping, more stable
6. Work with low noise, overload ability, braking torque.
Main Specification
Loading capacity | 0.25 ~ 80t | ||||||
Lifting height | 3 ~ 50 m or customized | ||||||
Lifting speed | Single speed: 0.3 ~ 8 m/min; or customized Variable frequency speed: 0.1 ~ 12.5 m/min; or customized | ||||||
Working class | M3 ~ M6 | ||||||
Working temperature | -20 ~ 40 ℃ | ||||||
Power supply | AC-3Phase-220//230380/400/415/440V-50/60Hz | ||||||
Control voltage | DC-36 / 48V | ||||||
Motor protection class | IP54 IP55 | ||||||
Control way | Ground handle control(Push button),wireless remote control | ||||||
Safety device | Buffer,current overload protection,overload device,power failure protection | ||||||
Application area | Factory,workshop,warehouse,power station,logstic,etc. | ||||||
Painting color | Blue or Customzied | ||||||

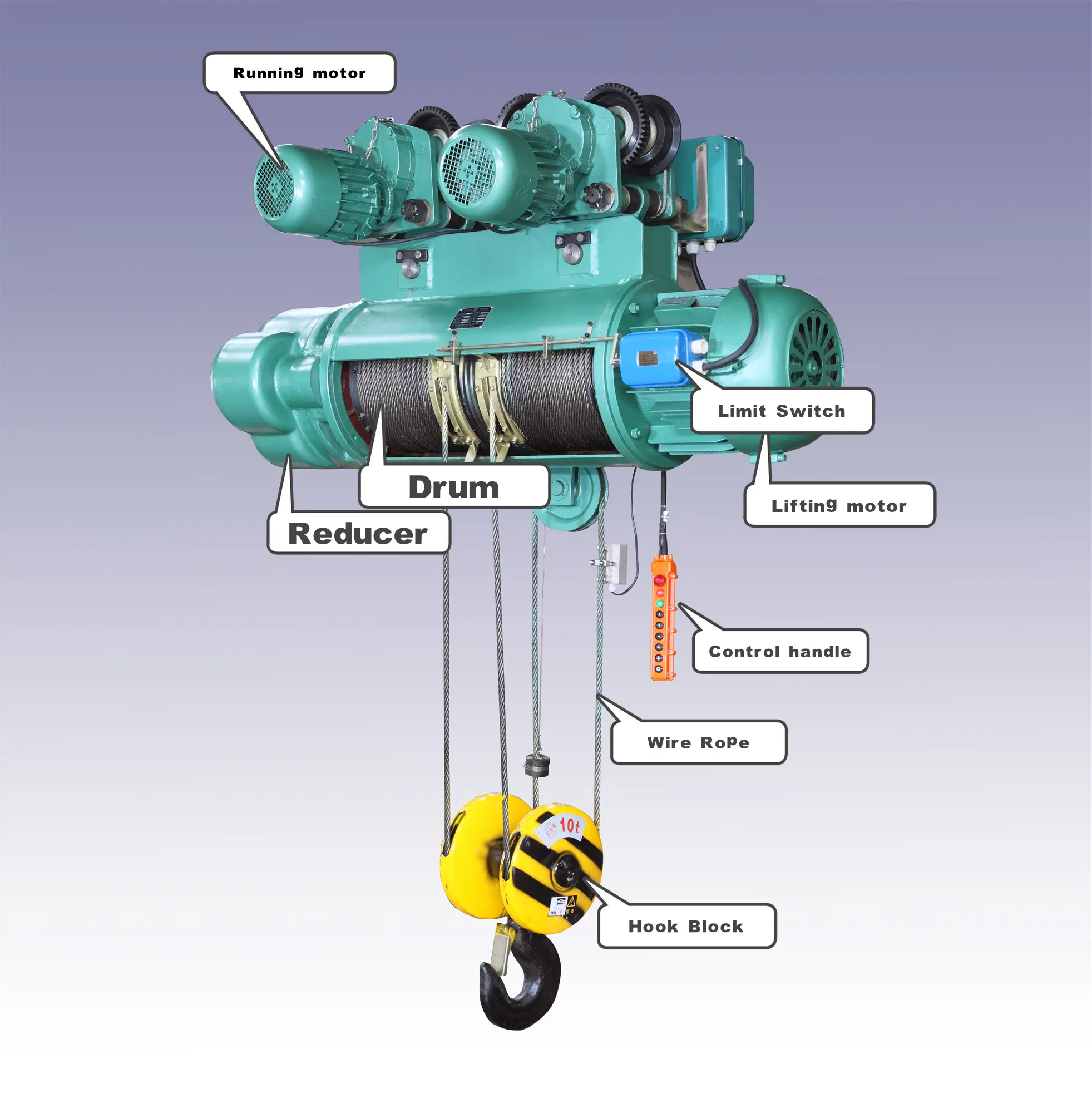

Control box: Model CD1 or MD1 is composed of the contactor box, controlling switch, cut-off limiter.
Wire Rope:Hoisting rope comply with the exporting standards. The leading rope taken by the Drum does not slip sideways when slack.
Rope drum:Grooved Drum, seamless pipe of adequate length to be wounded in one layer and to provide proper support for the rope to minimize abrasive wear is provided.
Rope guide:Rope Guide is in two halves, ensuring easy accessibility. It encircles the Drum completely so that the rope may not uncoil even when the Hoist is in unloaded condition.
Motor:Hoist Motor is a taper type rotor motor with braking; it is of the best quality motors, it has bigger torque
Hook:The hook block is tested to 150 % of full load before assembly. The rope sheaves are fully guarded with protective steel casting.

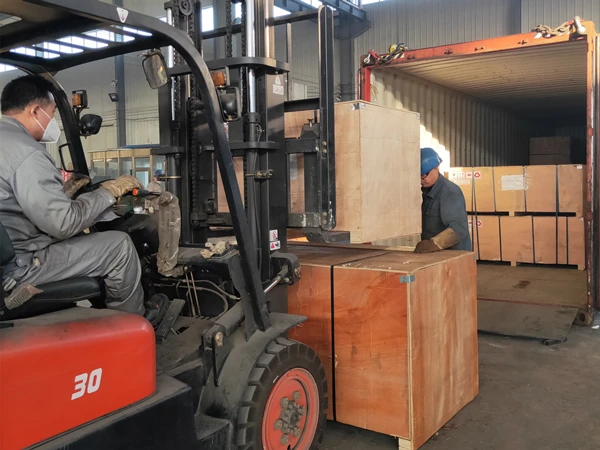

Packing&Shipping
Packing Details
1. Standard container packing;
2. According to customer's requirements
Delivery Time: Shipped in 15 days after receive the advanced payment
2. According to customer's requirements
Delivery Time: Shipped in 15 days after receive the advanced payment
Company

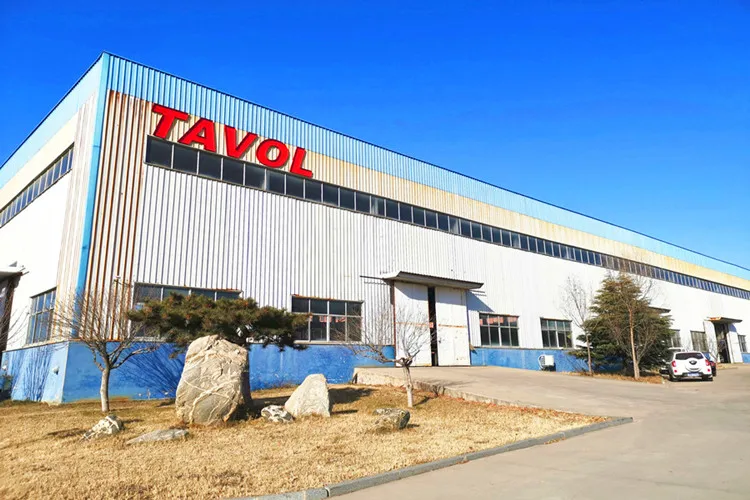

TAVOL Cranes Group is the professional industrial crane manufacturer and supplier who has been dedicated to supplying an extensive range of complex industrial crane systems and crane kits available in varied configurations for over 30 years.
TAVOL has more than 60 professional experts and 12,000 square meters manufacturing factory. Our main innovative, high quality products and solutions include double girder bridge crane, single girder bridge crane, under hung bridge crane, overhead gantry crane, jib crane, overhead crane kits, etc. The material handling capacity of our industrial crane ranges from 0.5 to more than 300 tons. Product innovation, quality assurance and customer satisfaction are our long term commitment to all our partners. All our products has been passed the CE certificates. Hope to be your partner.
TAVOL has more than 60 professional experts and 12,000 square meters manufacturing factory. Our main innovative, high quality products and solutions include double girder bridge crane, single girder bridge crane, under hung bridge crane, overhead gantry crane, jib crane, overhead crane kits, etc. The material handling capacity of our industrial crane ranges from 0.5 to more than 300 tons. Product innovation, quality assurance and customer satisfaction are our long term commitment to all our partners. All our products has been passed the CE certificates. Hope to be your partner.
FAQ
If you have interested in our products,please contact us with the following parameters:
1.Lift capacity?
2.Lift height?
3.Trolley type or Fixed type?
4. Power supply? 380V/3P/50HZ?
2.Lift height?
3.Trolley type or Fixed type?
4. Power supply? 380V/3P/50HZ?
