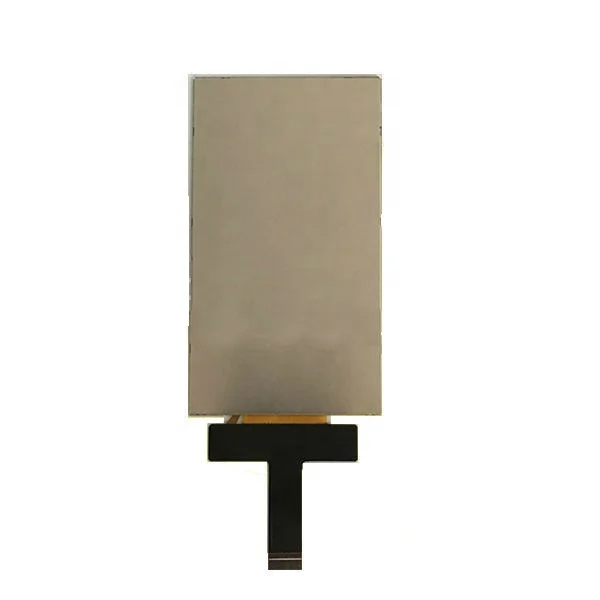

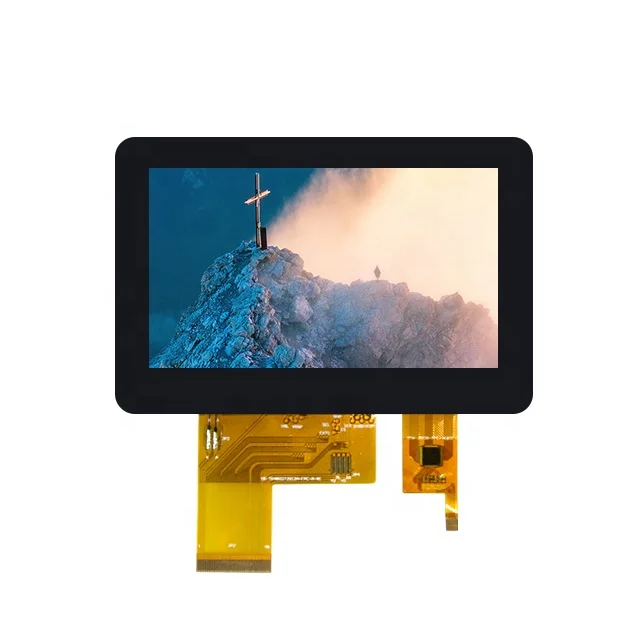

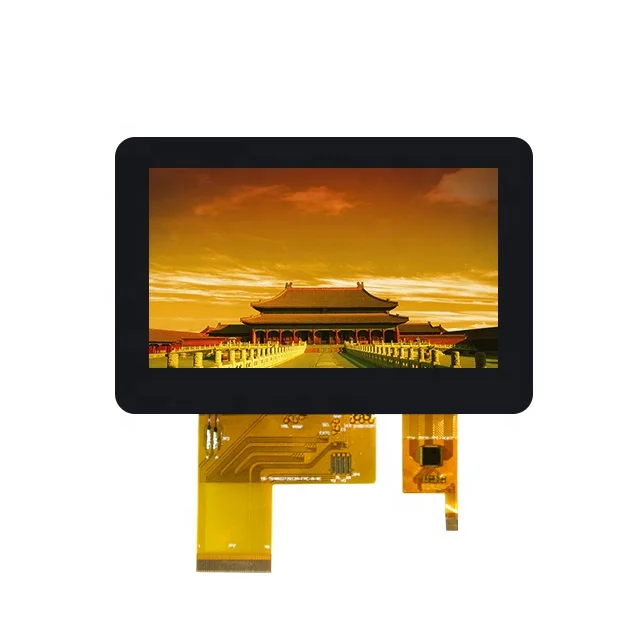

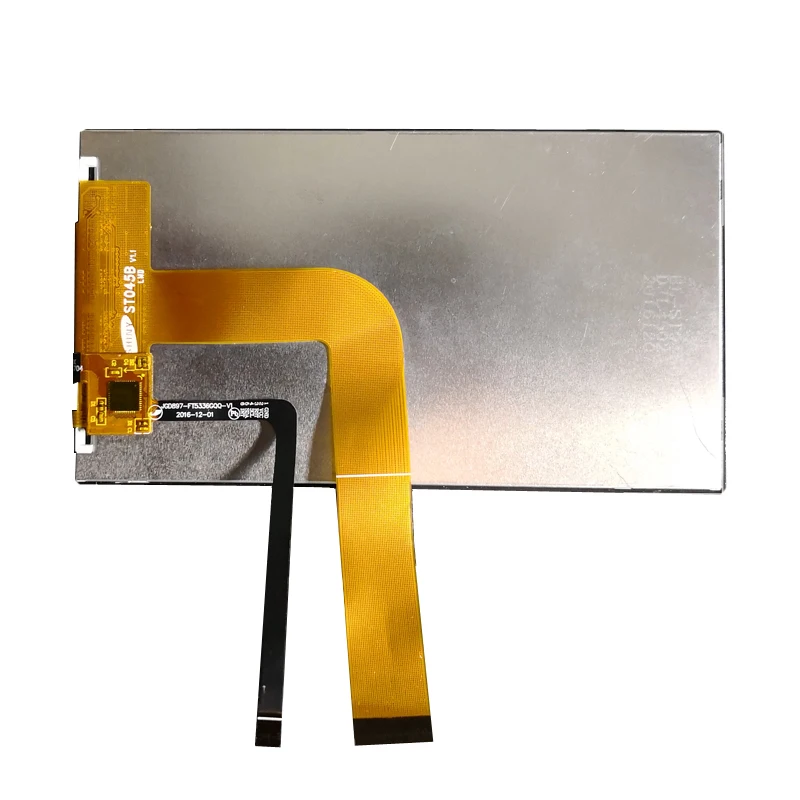

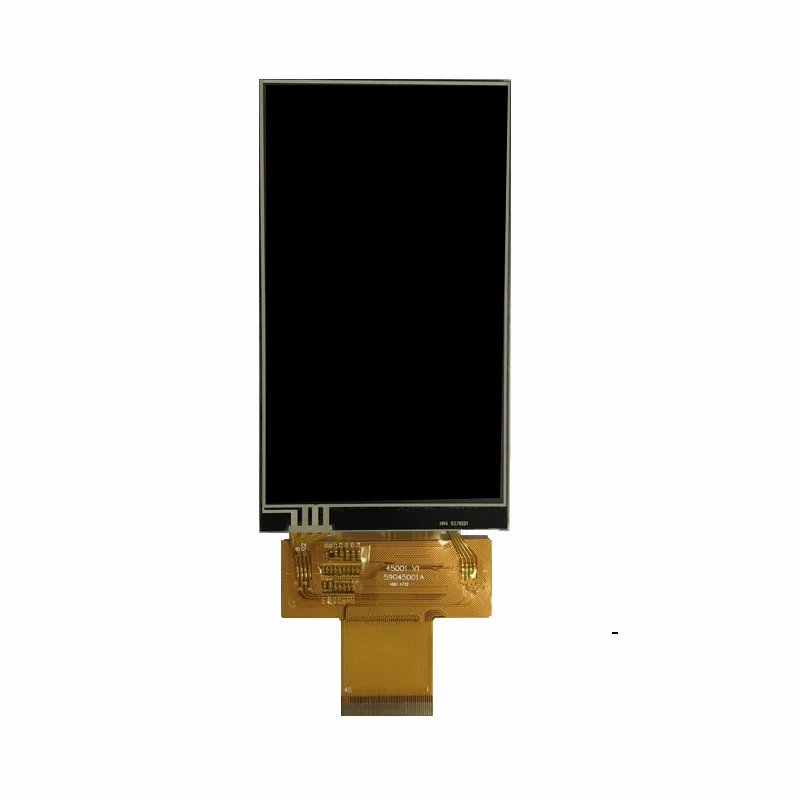

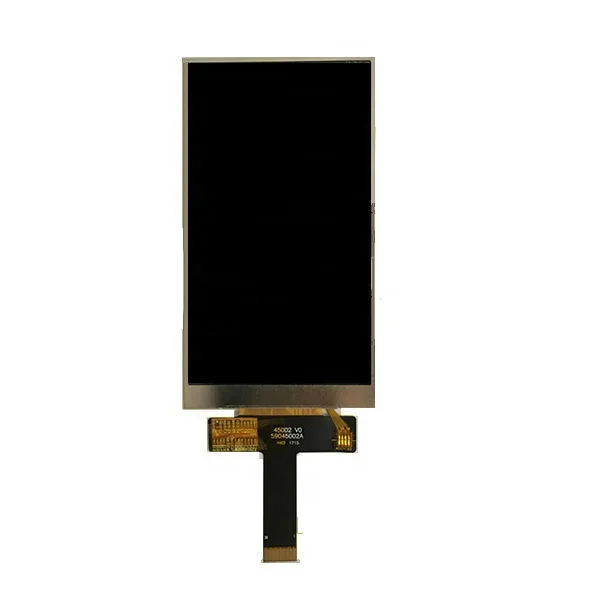

4.5 Inch 480x854 MIPI interface IPS TFT LCD Module Display with MIPI interface with Touch Panel Screen
- Category: Used Computers & Accessories >>>
- Supplier: Dongguan Shineworld Investment Ltd.
Share on (62547076932):
Product Overview
Description
4.5inch Low Power TFT Display 30 Pin TFT LCD Panel | ||||||||
Diagonal Screen Size | 4.5 inch | |||||||
Color | 262k | |||||||
Module Construction | IPS | |||||||
Number of Pixels | Graphic 480RGB*854 Dot-matrix | |||||||
Active Area | 55.44X98.64mm | |||||||
Panel Size | 60X61.09X2.25mm | |||||||
Pins | 30 | |||||||
Drive IC | ILI9806E-2 | |||||||
Interface | MIPI | |||||||
Product details
About TFT
SWI offers a wide product range of small to medium sizes TFT display modules in sizes ranging from 0.96” through 10.1”, no matter it is by engineering a custom display module, or by implementing a standard display from our wide selection of technologies, including being integrated with touch sensors and/or cover lenses. These TFT LCD modules are including options of TFT panel, TFT LCM with controller board, industry standard mono TFT LCM, TFT color display, IPS display and wide operating temperatures of -20°C to +70°C or -30°C to +80°C. The interface options are MCU / RGB / SPI / UART / 8080 / LVDS. We also offer customization of backlight or/and FPC. Our products have been applied in a wide range of industries including E-cigarettes, wearable deivices, energy meter equipment, fiscal processors, portable devices, intelligent home solutions, medical facilities and industrial control.
With our automatic direct bonding process, we can also integrate these displays with customized capacitive touch panels and/or cover lens using lamination of OCA, SCA or OCR.
With our automatic direct bonding process, we can also integrate these displays with customized capacitive touch panels and/or cover lens using lamination of OCA, SCA or OCR.
More Products
Size | Type | Item No. | Pixels | Active Area (HxV mm) | Panel Size (HxVxD mm) | Interface |
0.96" | IPS | 80RGBx160 | 10.8x21.7 | 13.5x27.95x1.5 | 4-wire SPI | |
1.14” | IPS | 135RGBx240 | 14.864x24.912 | 17.6x31.0x1.6 | 4-wire SPI | |
1.0" | TN | 128RGBx128 | ⌀26.67 | 32.67x36.39x1.95 | ||
1.28" | IPS | 240RGBx240 | ⌀32.4 | 35.6x38.1x1.5 | 4-wire SPI | |
1.28" | IPS | 240RGBx240 | ⌀32.4 | 35.6x38.1x1.5 | 4-wire SPI | |
1.3” | IPS | 240RGBx240 | ⌀32.4 | 35.5x38.23x1.5 | ||
1.3” | IPS | 240RGBx240 | 23.4x23.4 | 26.16x29.22x1.5 | 4-wire SPI | |
1.44" | TN | 128RGBx128 | 25.5x26.5 | 30.9x36.51x2.3 | 4-wire SPI | |
1.54" | IPS | 240RGBx240 | 27.72x27.72 | 33.72x31.52x1.5 | 8 Bit 8080 MCU | |
1.54" | IPS | 240RGBx240 | 27.72x27.72 | 33.72x31.52x1.5 | 4-wire SPI | |
1.54" | IPS | 240RGBx240 | 27.72x27.72 | 33.72x31.52x1.5 | 4-wire SPI | |
1.77" | TN | 128RGBx160 | 28.03x35.04 | 34x43.7x2.5 | 8-Bit Parallel | |
2.0" | IPS | 240RGBx320 | 30.6x40.8 | 35.7x51.2x2.3 | 4-wire SPI | |
2.0" | IPS | 240RGBx320 | 30.6x40.8 | 35.7x51.2x2.3 | 4-wire SPI/MCU | |
2.1" | IPS | TFT21001A | 480RGBx480 | ⌀53.28 | 56.18x59.71x2.3 | 3SPI/RGB |
2.1" | IPS | TFT21002A | 480RGBx480 | ⌀53.28 | 56.18x59.71x2.3 | MIPI |
2.13" | Refl | 122x250 | 23.668x48.5 | 27.068x56.2x1.02 | 4-wire SPI | |
2.2" | TN | 240RGBx320 | 33.84x45.12 | 40.1x55.2x2.5 | ||
2.4" | IPS | 240RGBx320 | 36.72x48.96 | 40.44x57.0x2.2 | 8 BIT 8080 MCU | |
2.4" | IPS | 240RGBx320 | 36.72x48.96 | 42.72x60.26x2.2 | Parallel/RGB/4-wire SPI | |
2.4" | IPS | 240RGBx320 | 36.72x48.96 | 42.72x48.96x2.2 | Parallel/RGB/4-wire SPI | |
2.8” | TN | 240RGBx320 | 43.2x57.6 | 50x69.2x2.25 | Parallel/RGB/SPI | |
2.8” | IPS | 240RGBx320 | 43.2x57.6 | 50x69.2x2.3 | ||
3.0" | IPS | 423RGBx423 | 77.9x77.5 | SPI/Parallel 8-bit RGB | ||
3.2" | IPS | 480RGBx800 | 41.76x69.6 | 43.76x78.7x1.86 | RGB | |
3.5" | IPS | 320RGBx480 | 48.96x73.44 | 53.4x83.0x2.0 | RGB | |
3.5" | TN | 320RGBx480 | 48.96x73.44 | 54.94x85.5x2.3 | ||
3.97" | IPS | 480RGBx800 | 52.44x87 | 57.14x96.85x1.97 | MIPI | |
3.97" | TN | 480RGBx800 | 51.84x86.4 | 57.14x96.85x2.0 | ||
4.0" | IPS | TFT40005B | 480RGBx480 | 71.86x70.08 | 77x80x2.5 | SPI/RGB |
4.3" | IPS | 480RGBx800 | 56.16x93.6 | 60.66x104.25x2.3 | Parallel/RGB/4-wire SPI | |
4.5" | IPS | 480RGBx854 | 55.44x98.64 | 60x109.00x2.25 | MIPI | |
5.0" | IPS | 720RGBx1280 | 62.1x110.4 | 64.9x117.8x1.55 | MIPI | |
7.0" | IPS | 800RGBx480 | 154.08x85.92 | 164.9x100x3.5 | Digital/Parallel/8-bit RGB | |
9.0" | IPS | 800RGBx480 | 198.0x111.696 | 210.7x126.4x3.5 | RGB | |
10.1" | TN | 1024RGBx600 | 222.72x125.28 | 235x143x3.5 | RGB |
