AC EC High Air Volume Backward Inline Air Purifier radial fan motor Centrifugal Fans with metal guide ring for HVAC Ventilation
- Category: >>>
- Supplier: Zhongshan Pengfei Electrical Appliance Co. Ltd.
Share on (62547108486):
Product Overview
Description
Backward Centrifugal Fan Sizes | 133mm ~ 560mm |
Forward Centrifugal Fan Sizes | 120mm ~ 250mm |
Axial Fan Sizes | 200mm ~ 710mm |
Voltage | AC Input: 210V, 220V, 230V, 380V, 400V DC Input: 12V, 24V, 48V EC Input: 210V, 220V, 230V, 380V, 400V (or customized) |
Power | Up to 2300W |
Speed | Up to 3300RPM |
Airflow | Up to 24000m3/h |
Speed Control | Speed controller (AC) or PWM/0-10V Input (DC&EC) |
Approvals | CCC, CE, RoHs, UL, CUL |
Products Description

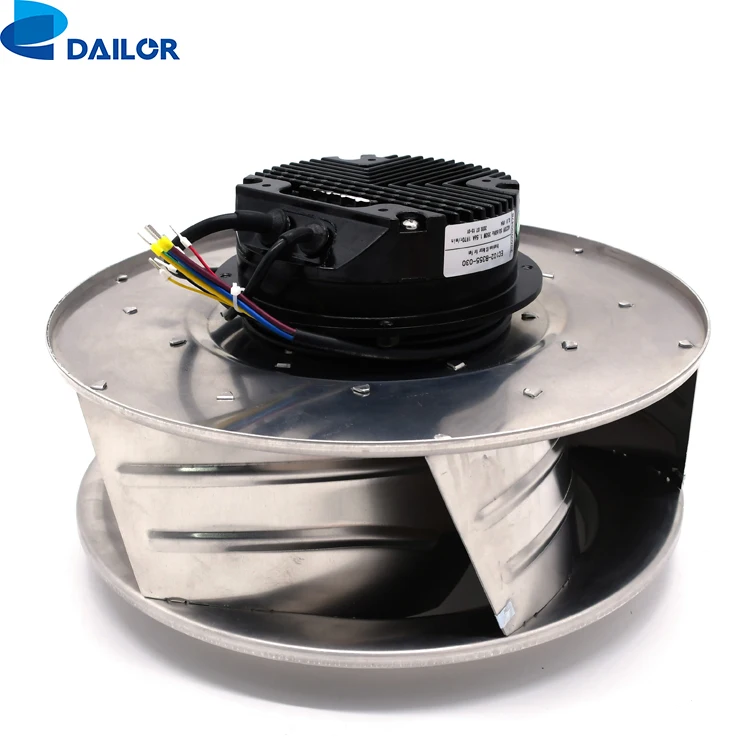

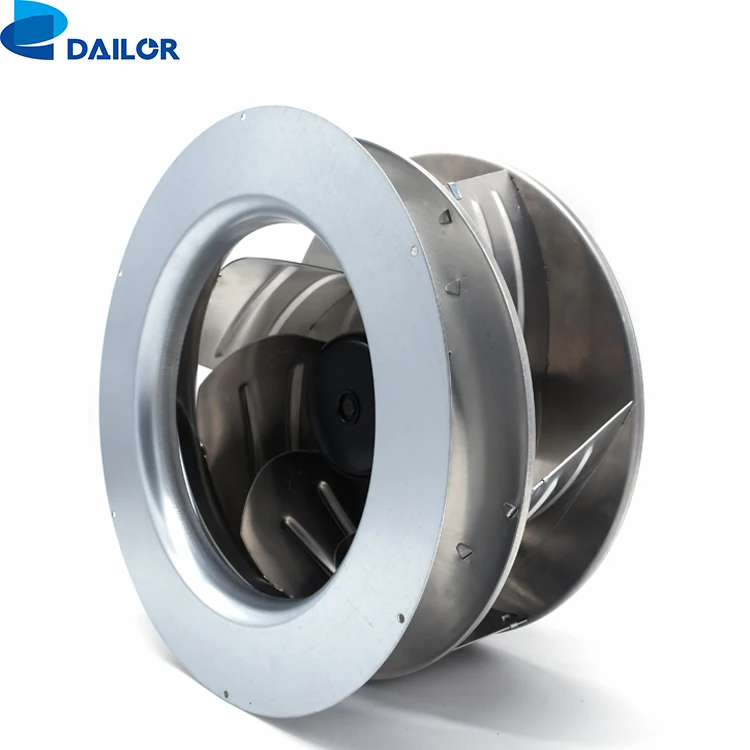

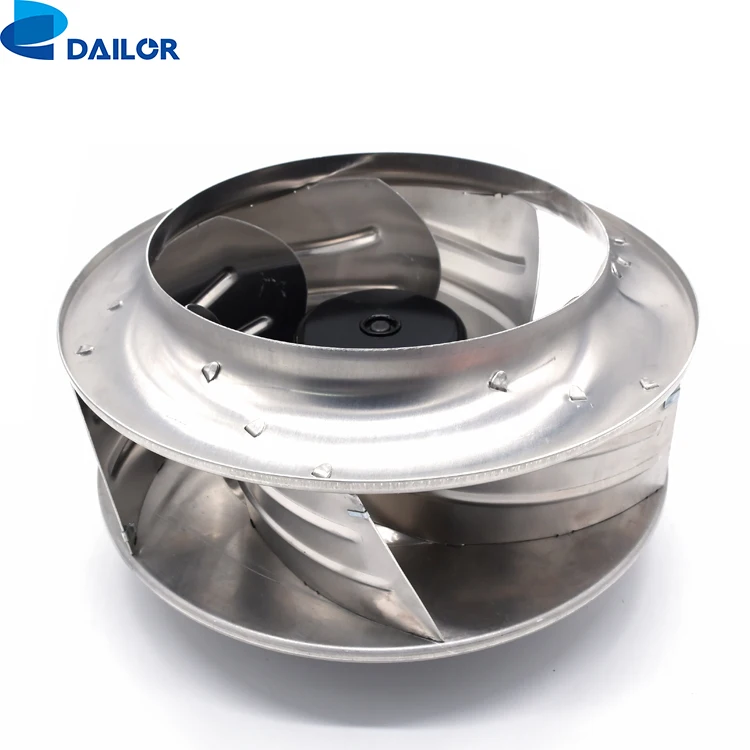

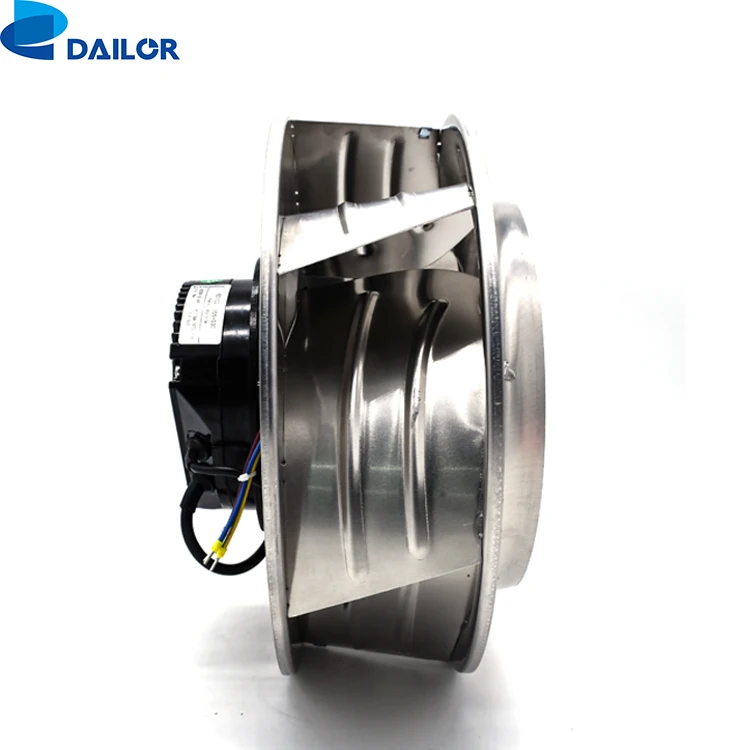

AC/EC/DC External Rotor Motor Powered Backward Curved Centrifugal Fan
1. The external rotor motor powered centrifugal fan has the characteristics of compact structure, reliable operation, low noise, easy installation, and high efficiency, etc.
2. There are single-phase and three-phase power input types for the external rotor motor powered centrifugal fan. And the centrifugal fans are widely used in the industries of air conditioning terminal system, IT & Telecom, FFU, Fresh air system, and ventilation, etc.
3. There's a built-in thermal protector for the single-phase motor, and the motor can be operated in the temperature from -30 to 60 degrees Celsius. If the customer needs a built-in thermal protector for the three-phase motor, please note us while placing the order.
4. The speed of the motor can be controlled by a transformer or VFD. We also can change the speed by changing the motor's △- and Y-wiring for the three-phase motor, and by using the shifts taps vary method for single-phase motor.
5. We would need the operating point parameters of the motor such as speed, power, and even the assembly size if the customer is only ordering the motor for their application. To get a suitable motor performance, we would prefer an impeller and housing for doing testing and research if the customer is going to use the motor for powering their centrifugal impeller.
6. Noise Level.
The noise level defined for our motor fan is the sound pressure level. The distance for doing the noise level test is 1m from the test point to the inlet hose according to the national standard requirements.
7. Average of our motors
The bearing used on our motor is a maintenance-free ball bearing, and the average life rating is L10 which is between 30,000 to 50,000 hours based on different operating conditions.
8. The external rotor motor powered fans are CCC, CE, UL, and CUL approved.
2. There are single-phase and three-phase power input types for the external rotor motor powered centrifugal fan. And the centrifugal fans are widely used in the industries of air conditioning terminal system, IT & Telecom, FFU, Fresh air system, and ventilation, etc.
3. There's a built-in thermal protector for the single-phase motor, and the motor can be operated in the temperature from -30 to 60 degrees Celsius. If the customer needs a built-in thermal protector for the three-phase motor, please note us while placing the order.
4. The speed of the motor can be controlled by a transformer or VFD. We also can change the speed by changing the motor's △- and Y-wiring for the three-phase motor, and by using the shifts taps vary method for single-phase motor.
5. We would need the operating point parameters of the motor such as speed, power, and even the assembly size if the customer is only ordering the motor for their application. To get a suitable motor performance, we would prefer an impeller and housing for doing testing and research if the customer is going to use the motor for powering their centrifugal impeller.
6. Noise Level.
The noise level defined for our motor fan is the sound pressure level. The distance for doing the noise level test is 1m from the test point to the inlet hose according to the national standard requirements.
7. Average of our motors
The bearing used on our motor is a maintenance-free ball bearing, and the average life rating is L10 which is between 30,000 to 50,000 hours based on different operating conditions.
8. The external rotor motor powered fans are CCC, CE, UL, and CUL approved.
Specification
>>> Backward Centrifugal Fan
• Please click on the model you want to see the details and prices
• Please click on the model you want to see the details and prices

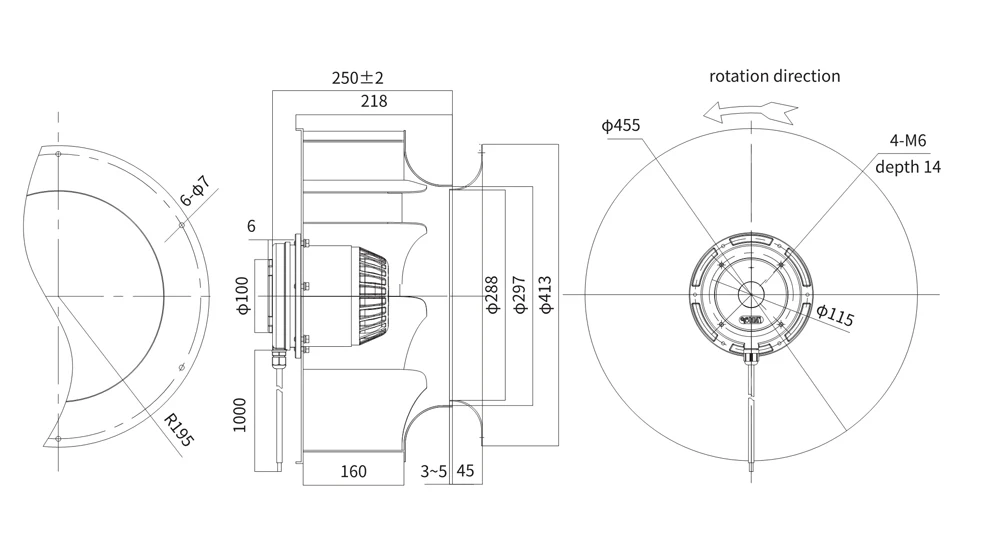

Φ450mm AC External Rotor Motor Powered Backward Curved Centrifugal Fan | ||||||||||||||||
Model | Nominal Voltage (V) | Frequency (Hz) | Current (A) | Input Power (W) | Speed (RPM) | Capacitor (μF) | Airflow m³/h/CFM | Noise (dB) | ||||||||
DYWF.B4T-450-218AB10 | 380/400 | 50 | 1.00 | 550 | 1340 | / | 5800/3140 | 66 | ||||||||
DYWF.B6S-450-218AB10 | 220/230 | 50 | 0.98 | 215 | 935 | 6 | 3900/2294 | 63 | ||||||||
DYWF.B6T-450-218AB10 | 380/400 | 50 | 1.00 | 300 | 920 | / | 3900/2294 | 63 | ||||||||
DYWF.B6T-450-218AA10 | 380/400 | 50 | 0.98 | 240 | 920 | / | 4300/2370 | 61 | ||||||||
Material of Impeller | Aluminum Alloy | |||||||||||||||
Material of Rotor | Aluminum casting | |||||||||||||||
Protection Class | IP54 | |||||||||||||||
Insulation Class | F | |||||||||||||||
Bearing System | Maintenance-free ball bearing | |||||||||||||||
Operating Temperature | -30℃ to +60℃ | |||||||||||||||
Φ450mm EC External Rotor Motor Powered Backward Curved Centrifugal Fan | ||||||||||||||
Model | Nominal Voltage (V) | Frequency (Hz) | Current (A) | Input Power (W) | Speed (RPM) | Noise (dB) | Applicable Temp. (℃) | |||||||
DEC137-B450 | 3~380 | 50/60 | 1.7 | 820 | 1560 | 74 | -20 ~ +60 | |||||||
Material of Impeller | Steel Sheet | |||||||||||||
Material of Rotor | Aluminum casting | |||||||||||||
Protection Class | IP54 | |||||||||||||
Insulation Class | F | |||||||||||||
Bearing System | Maintenance-free ball bearing | |||||||||||||
Wire Diagram | Contact us for details | |||||||||||||
NO. | Speed (RPM) | Input Power (W) |
1 | 1557 | 847.3 |
2 | 1559 | 952.9 |
3 | 1556 | 1129.5 |
4 | 1558 | 1107.4 |
5 | 1336 | 535.4 |
6 | 1335 | 607.7 |
7 | 1333 | 738.5 |
8 | 1333 | 690.5 |
Mechanical Parameter (only for EC/DC, not suitable for AC motor fan): | ||
Life Expectance | 50,000Hours(L10) At 40℃ room, humidity 15%~65%RH. | |
Direction of Rotation | Anti-clockwise | |
Direction of Air flow | All around | |
Insulation Class | B/F | |
Bearing | Maintenance-free ball bearing | |
Locked rotor protection; Reverse Polarity protection; Automatic restart capability. | ||
Speed Control | PWM/0-10V Input | |
Protection Type | IP44/IP54 | |
Operating Temperature | -20℃ to +60℃ | |
Voltage Output | +10VDC (Can be used as speed control input voltage or FG signal pull-up voltage,and need to be circumscribed in series with a pull–up resister, details as connection diagram.) | |
Signal Output | FG (Frequency Generator) | |
Main Application
>> Backward Curved Centrifugal Fan
• Air Purification
• Ventilating Units
• Air-conditioning Terminals
• Air-conditioning Fans
• Floor Ventilation
• Heat Pumps,
• Ground Source Heat Pumps
• Air Source Heat Pumps
• Roof Fans
• Filtration
• FFU
• Other related Industries
