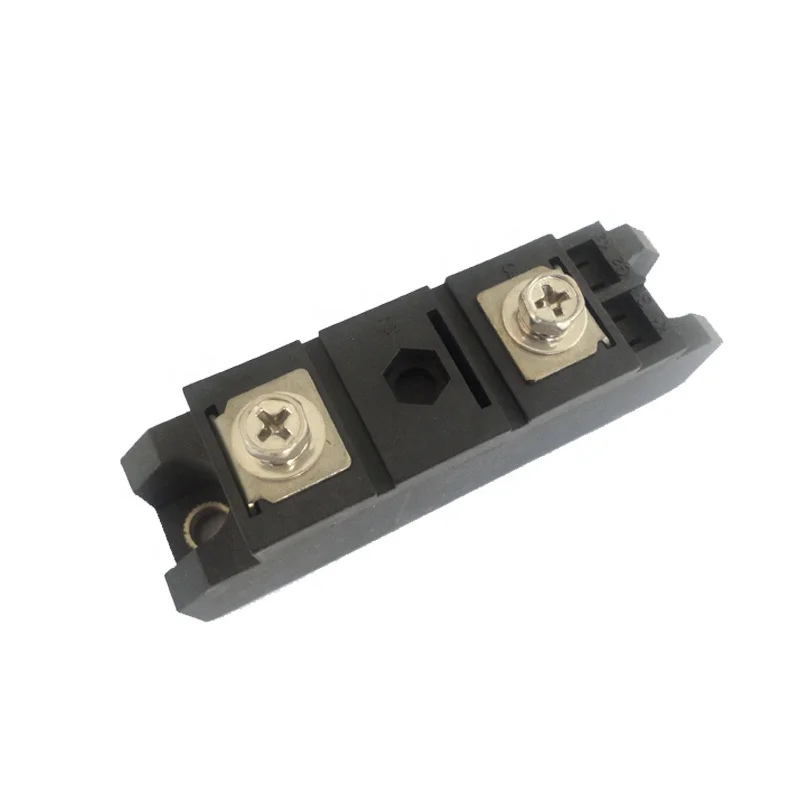

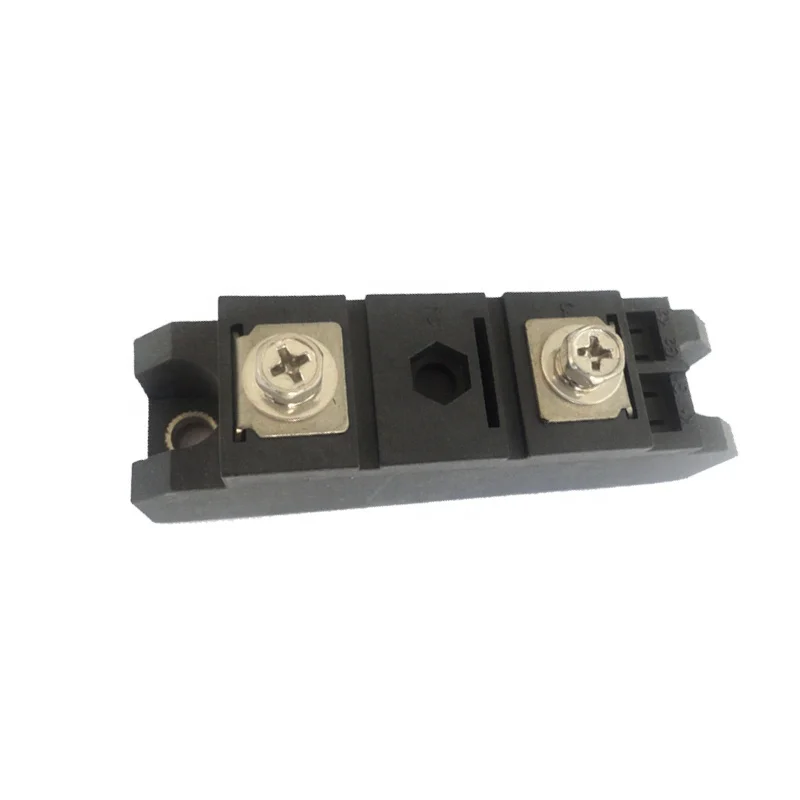

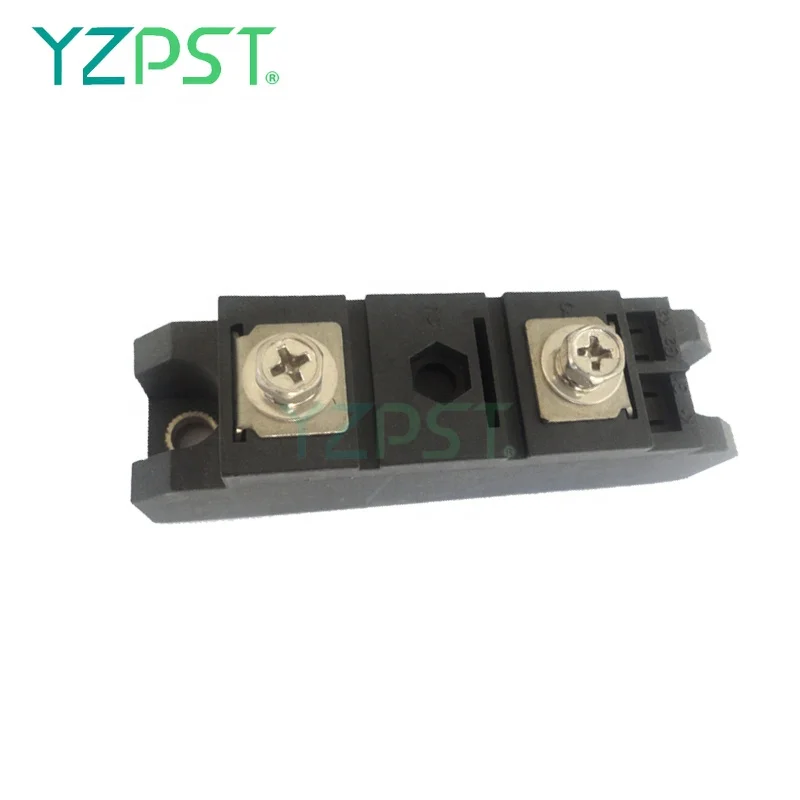

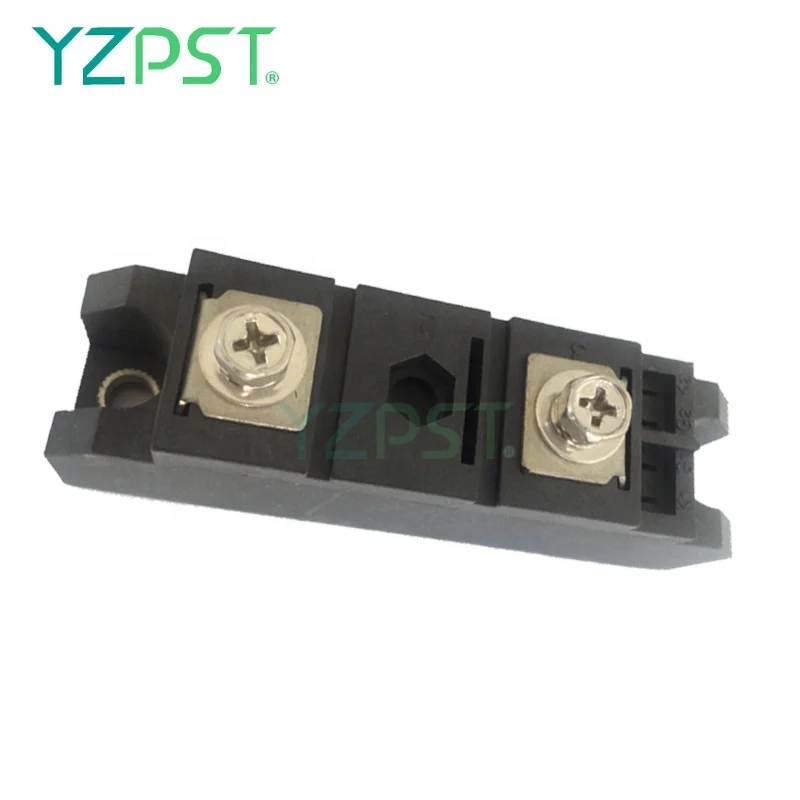

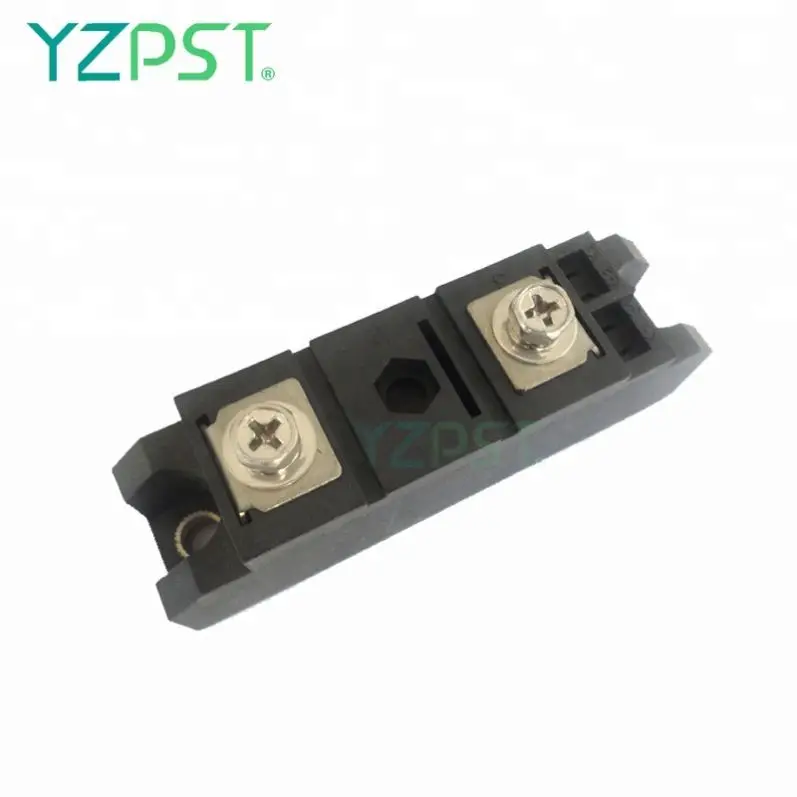

High surge capability Rectifier diode module manufacturer factory

VRRM (V)

VRSM (V)

TYPE

1000

1100

MD100-10

1200

1300

MD100-12

1600

1700

MD100-16

1800

1900

MD100-18

2200

2300

MD100-22

2400

2500

MD100-24

Symbol

Item

Conditions

Ratings

Unit

IF(AV)

Average Forward Current

Single phase,half wave, 180°conduction, TC=109 °c

100

A

IF(RMS)

R.M.S.Forward Current

Single phase,half wave, 180°conduction, TC=109 °c

157

A

IFSM

Surge Forward Current

1/2 cycle, 50/60HZ, peak value, non-repetitive

1800/2000

A

I²t

I²t

Value for one cycle of surge current

16700

A²S

Tj

Junction Temperature

-40 to +150

°c

Tstg

Storage Temperature

-40 to +125

°c

VISO

Isolation Breakdown Voltage(R.M.S.)

Main Terminal to case 1minute

2500

V

Mounting torque

Mounting(M6)

Recommended Value 2.5-3.9(25-40)

4.7(48)

Terminal(M5)

Recommended Value1.5-2.5(15-25)

2.7(28)

Symbol

Item

Conditions

Ratings

Unit

IRRM

Repetitive Peak Reverse Current, max.

Tj=150 ^°cat VRRM,Singe phase,half wave

6.0

mA

VFM

Forward Voltage Drop, max.

Foward current 100A , Tj=25 ^°c

Inst. measurement

1.15

V

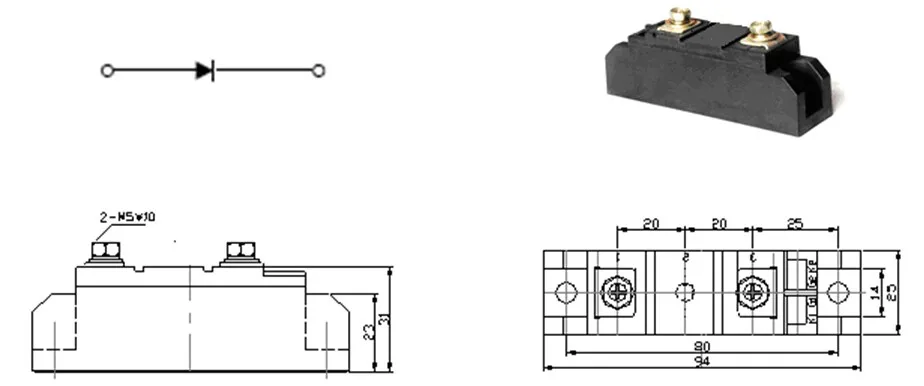

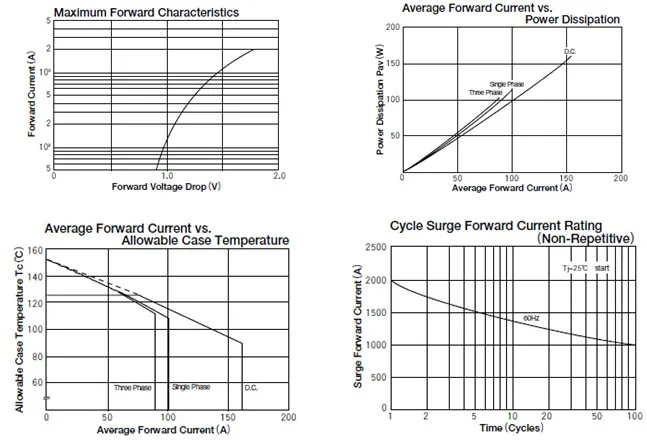

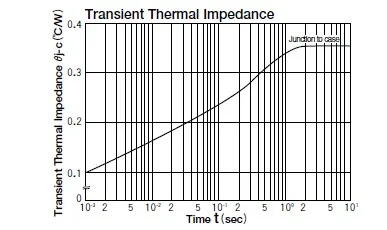

Rth(j-c)

Thermal Impedance, max.

Junction to case

0.35

°c/W
