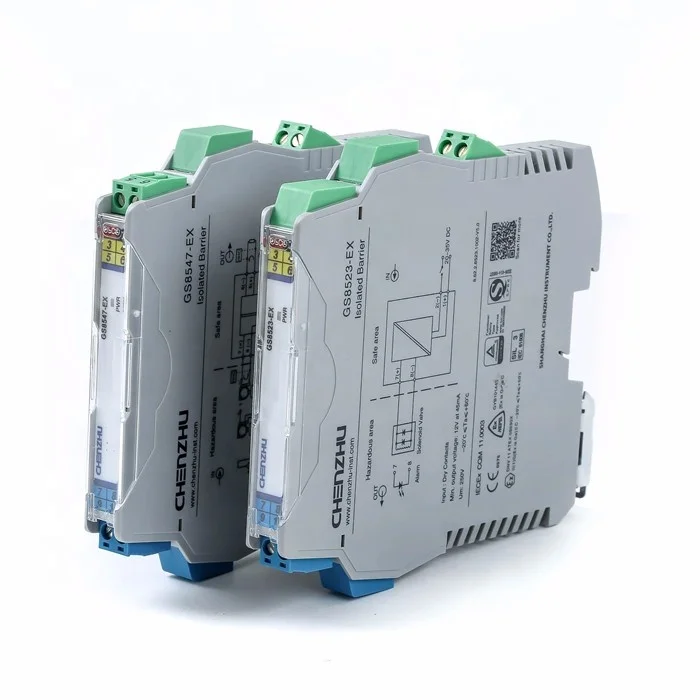

Do,Relay output Isolated Barrier(1 channel) Intrinsically safe 1input/1output CHENZHU GS8523 EX.I
- Category: >>>
- Supplier: Shanghai Chenzhu Instrument Co. Ltd.
Share on (62547184935):
Product Overview
Description
Product Description
Product Application

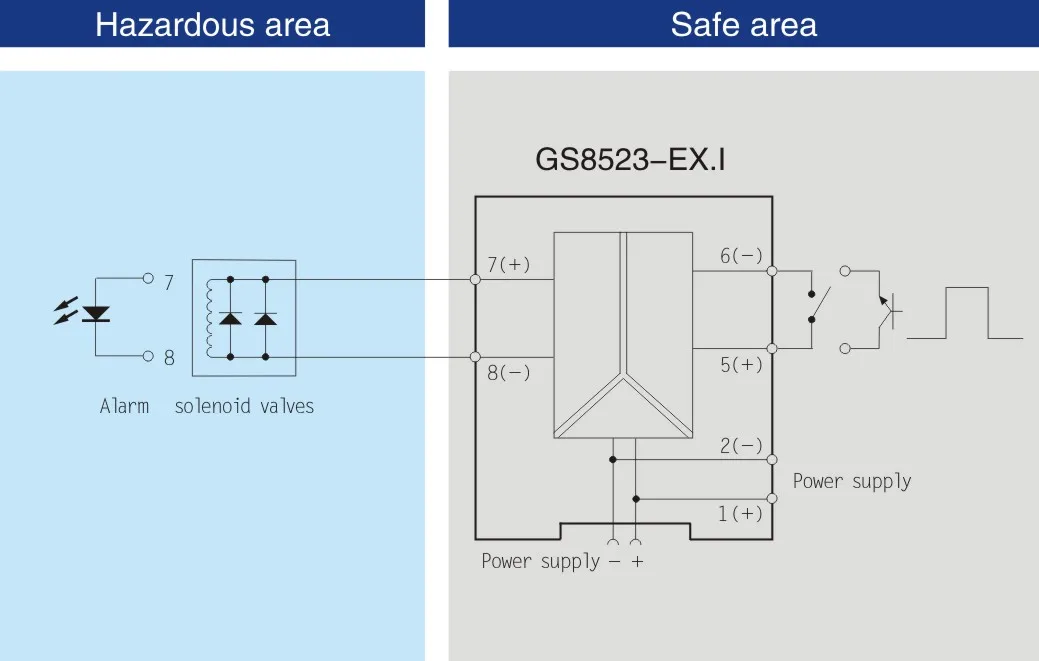

Digital output isolated barrier, enables instrinsically safe devices such as solenoid valves, alarm transmitters and some other
low-power loads,located in hazardous area to be controlled from safe area. The product should be supplied power independently. Power, input and output are isolated each other.
Technichal Data | ||||||
Basic Parameter | Driving current | 12V/45mA | ||||
Temperature drift | Number of channels | |||||
Response time | ms | ≤20ms | ||||
Security Data | Input signal | Switch | ||||
Output voltage | Open Circuit Voltage: 22V~24V Minimum output voltage: ≥12V at 45mA | |||||
Supply voltage(Ue) | DC | 20~35V DC | ||||
Other | Power protection | Reverse protection of power supply | ||||
Power supply mode | Independent power supply | |||||
Dimensions | D*H*W | 118.9*106*12.5 mm | ||||
Main Features:
1) G3 Coating
2) 3-way isolation with max.dielectric strength≥4000V AC

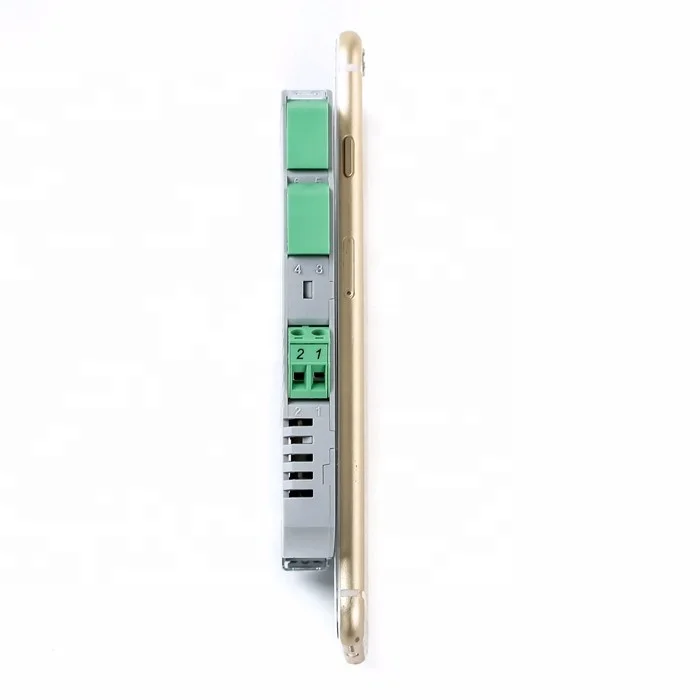

3) Ultra-thin structure with low power dissipation design 0.05%F.S.
4) Housing protection level (IEC 60529): IP20

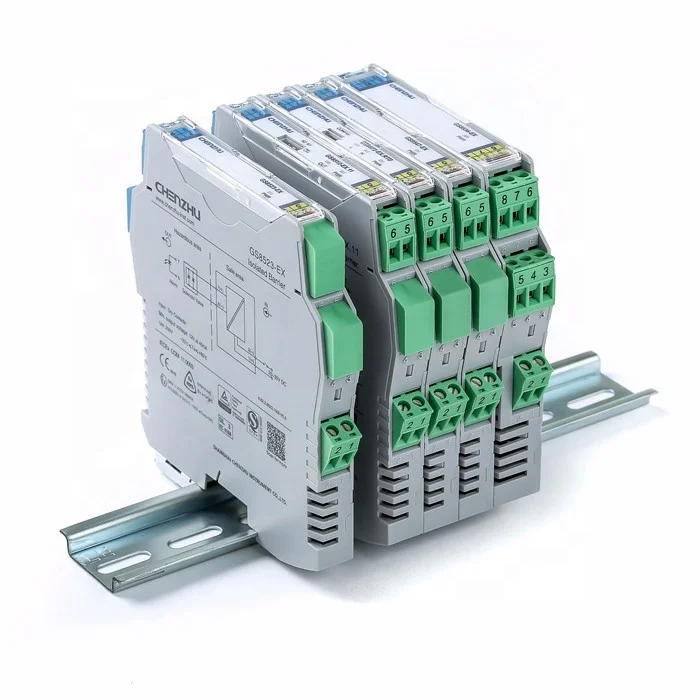

5) Easy install DIN35mm
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* 5 years warranty.
* Professional training.
* Fast respone.
Packing & Delivery
Unit Packaging | ||
Size | 140(L) * 115 (W) * 12.5 (D) mm | |
Net Weight | 0.4 KG | |
Packaging Details | The normal package is carton box(Size: L*W*H). Unit package for one piece, then outer packing. If you have special request for packing, please inform us in advance.. | |
Outer Packaging | ||
Size | 170 (L) * 145 (W) * 130 (D) mm | |
Carton Weight | 0.05 Kg | |
Packaging Details | The normal package is carton box(Size: L*W*H). Unit package for one piece, then outer packing. If you have special request for packing, please inform us in advance.. | |
Our Factory
Max capability of production reached to 1,000,000 pcs/year
Our factory created a versatlie smart production approach through system integation and establishment of information network in order to offer customer reliable, high efficiency, and high quality products.
Our Laboratory
FAQ
Q: What information should I provide before order?
A: Please confirm the input data, output data and another function you need.
Q: How long is your warranty period?
A: Dedication to our customers and recognition of industry requirements, we announced 5 years warranty at 2 0 1 3 and continues to drive our development of new products and solutions to meet our customers’ needs.
Q: Are you trading company or manufacturer ?
A: We are manufacturer, providing own brand product and also ODM/OEM services.
Q: How long is your delivery time?
A: ≤ 20 pcs, generally it is 3 days after 100% down-pay; 20--100 pcs, it is 3-10 days according to quantity; More than 100 pcs, pls contact with our support.
Q: What is your terms of payment ?
A: 100% T/T in advance.
A: Please confirm the input data, output data and another function you need.
Q: How long is your warranty period?
A: Dedication to our customers and recognition of industry requirements, we announced 5 years warranty at 2 0 1 3 and continues to drive our development of new products and solutions to meet our customers’ needs.
Q: Are you trading company or manufacturer ?
A: We are manufacturer, providing own brand product and also ODM/OEM services.
Q: How long is your delivery time?
A: ≤ 20 pcs, generally it is 3 days after 100% down-pay; 20--100 pcs, it is 3-10 days according to quantity; More than 100 pcs, pls contact with our support.
Q: What is your terms of payment ?
A: 100% T/T in advance.
