250~1600mm width foil electric automatic winding machines winding machine for industrial equipments
- Category: Foil Winding Machine >>>
- Supplier: Shanghai Tongli Electrical Engineering Equipment Factory
Share on (62547247983):
Product Overview
Description
Quick Details
| Port: | Port of Shanghai |
| Payment Terms: | L/C,D/A,D/P,T/T |
| Supply Ability: | 15 Set/Sets per Year |
| Weight (KG): | 9500 |
| Delivery time: | 90 Days |
| Foil weight: | 3000kg |
| Winding width: | 350~1600mm |

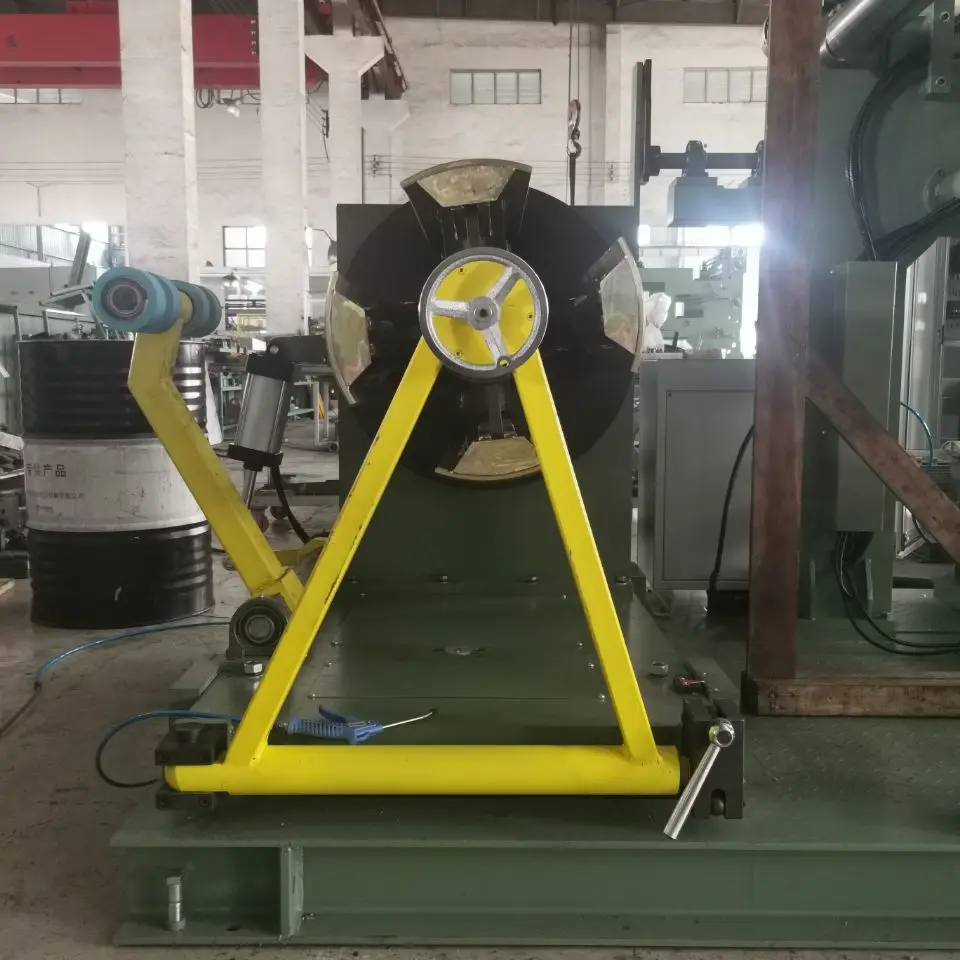

| Decoiler Loading: | 3000kg |
| Max.Winding Width(mm): | 4920 |
| Insulation Quantity: | 2 |
| After-sales Service Provided: | Field maintenance and repair service,Field installation, commissioning and training,Video technical support,Online support,Free spare parts |
| Dimension(L*W*H): | 6260*4270mm |
| Length of Axis (mm): | 1000 |
| Al foil thickness: | 0.5~3mm |
| Cutting Method: | Rolling Shearing method |
| Material thickness: | 0.5~2mm |
| Welding Method: | TIG direct current W welder |
| Thickness Range(mm): | 200~600mm |
| Winding Speed(rpm): | 24.5 |
| Decoiler Quantity: | 2 |
| Cu Foil thickness: | 0.5~2mm |
| Key Selling Points: | Automatic |
| CNC or Not: | CNC |
| Local Service Location: | None |

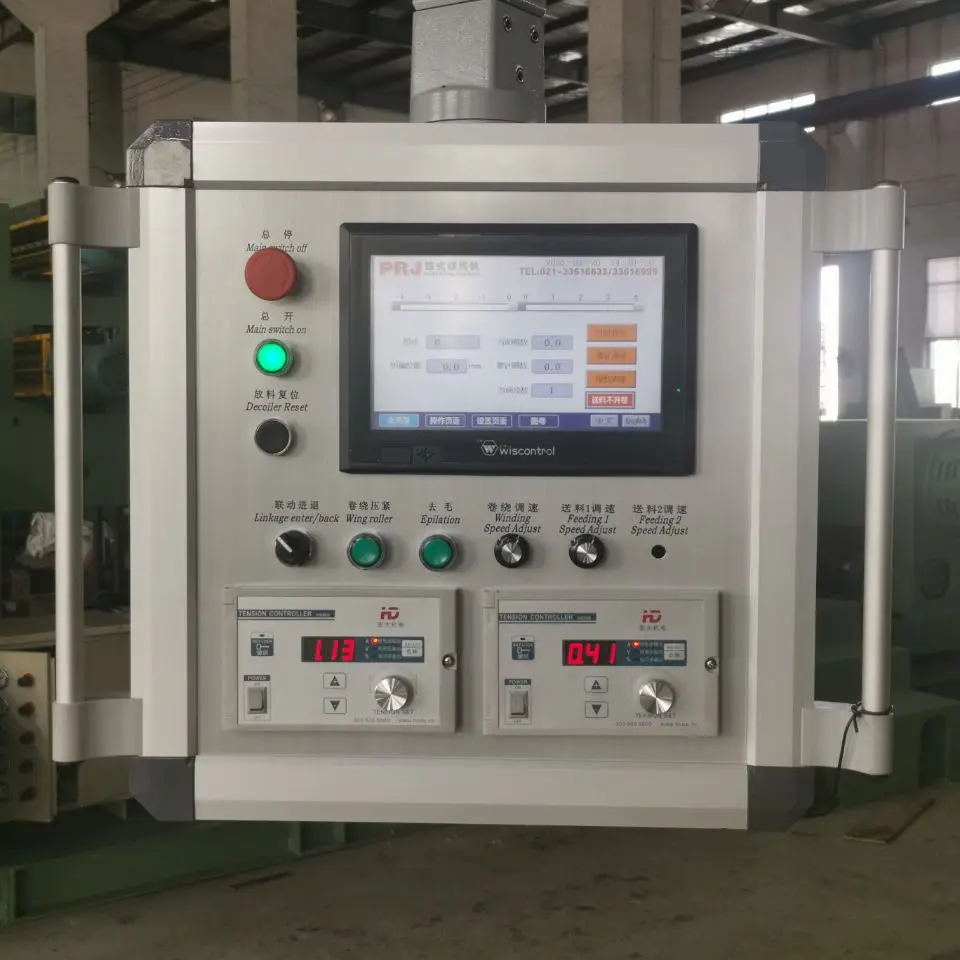

| Control method: | Touch screen control PLC |
| Coil Type: | Round |
| Condition: | New |
| Place of Origin: | Shanghai China |
| Warranty: | 1 Year |
| Counting Precision: | 0.1 turn |
| Showroom Location: | None |
| Material: | Other |
| Brand Name: | Tongli |
| Applicable Industries: | Machinery Repair Shops,Manufacturing Plant |
| Product name: | PRJ-foil winding machine |
| Axial length: | 250~1600mm |
| After Warranty Service: | Video technical support,Spare parts,Field maintenance and repair service |
| Motor power: | 30KW |
| CNC System: | CNC |
| Packaging Detail: | Packing in wooden cases. It depends on the purchase quantity, whether it is assembled or assembled |
| Package Preview: | https://sc03.alicdn.com/kf/H9c6cc1cdf4674840b70afa196cf303f5R.jpg_640x640.jpg,https://sc03.alicdn.com/kf/H7e9d8e6019d1439899120792c46dcaceS.jpg_640x640.jpg |
