SWL50K shovel wheel loader with fork for stone material
US $42750-$43150
SWL50K shovel wheel loader with fork for stone material
- Category: Earth-moving Machinery >>>
- Supplier: Sinoway,Industrial,(Shanghai),Co.,Ltd.
Share on:
Product Overview
Description
Product Features
1- Equipped with Weichai engine with strong power and high reliability.
2- High torque and high efficiency drive chain features reasonable matching.
3- The 160kN traction force and ≥3.5m high dumping capacity handle the severe conditions with ease.
4- This engine meets the instant overload demand during operations and sufficiently provides the power required for heavy-load operations.The air-assisted hydraulic four-wheel caliper brakes feature stable braking and high safety and reliability.
5- The easy and convenient daily maintenance ensure that the machine is under the best ready status at all times.
2- High torque and high efficiency drive chain features reasonable matching.
3- The 160kN traction force and ≥3.5m high dumping capacity handle the severe conditions with ease.
4- This engine meets the instant overload demand during operations and sufficiently provides the power required for heavy-load operations.The air-assisted hydraulic four-wheel caliper brakes feature stable braking and high safety and reliability.
5- The easy and convenient daily maintenance ensure that the machine is under the best ready status at all times.

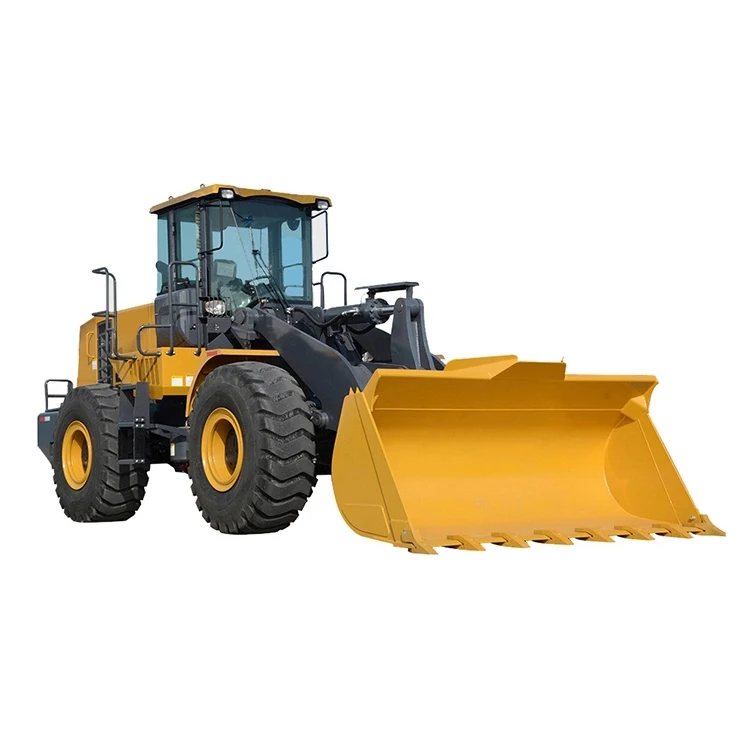

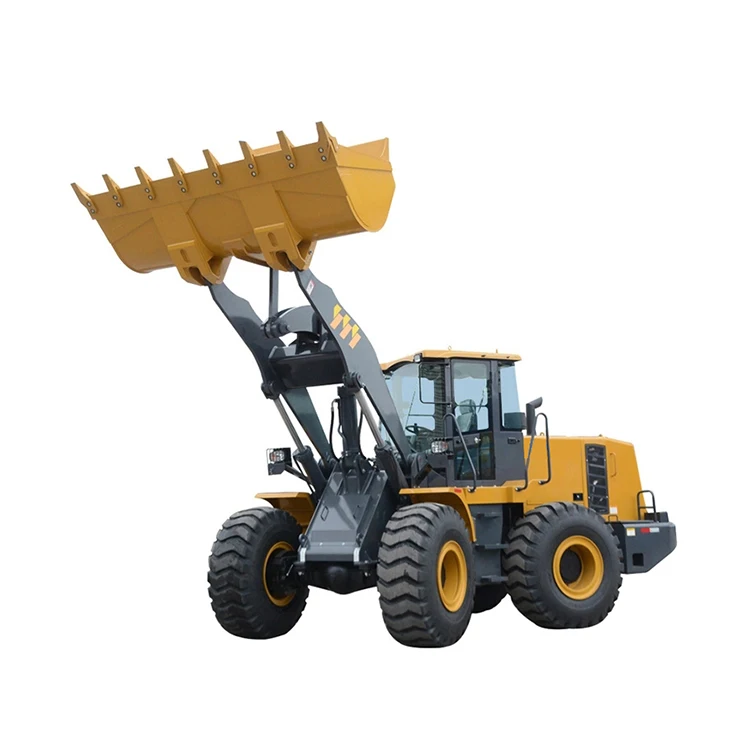

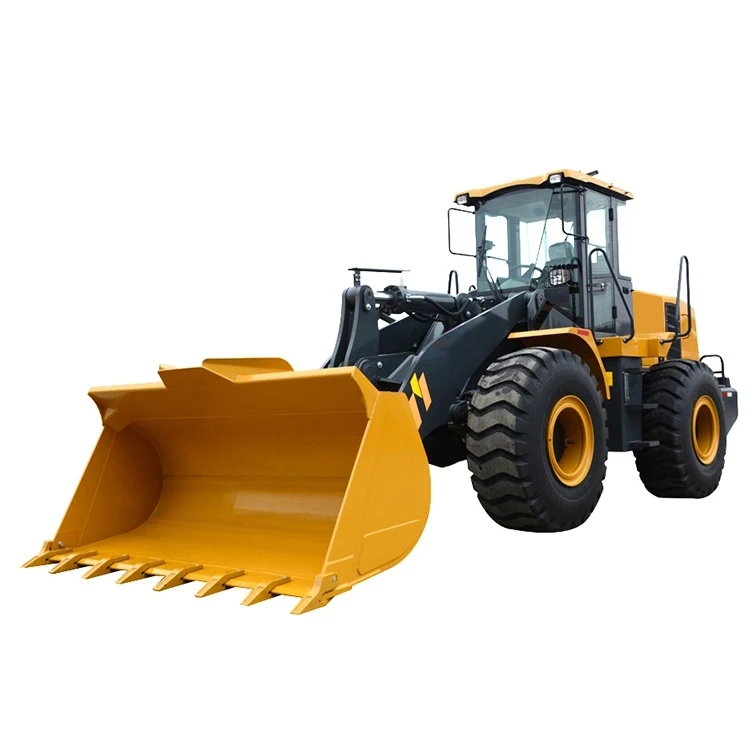

Product Show
Product Paramenters
Description | Unit | Parameter value | ||
Rated operating load | kg | 5000 | ||
Bucket capacity | m³ | 2.5~4.5 | ||
Machine weight | kg | 17500±300 | ||
Dump clearance at maximum lift | mm | 3100~3780 | ||
Reach at maximum lift | mm | 1100~1220 | ||
Wheel base | mm | 3300 | ||
Tread | mm | 2250 | ||
Max.breakout force | kN | 175±5 | ||
Max.horse power | kN | 160±5 | ||
Hydraulic cycle time-raise | s | ≤6 | ||
Total hydraulic cycle time | s | ≤10.5 | ||
Min. turning radius over tyres | mm | 5925±50 | ||
Articulation angle | ° | 38 | ||
Gradeability | ° | 30 | ||
Tyre size | 23.5-25-16PR | |||
Overall machine dimension L×W×H | mm | 8225×3016×3515 | ||
Model | WD10G220E21 | |||
Rated Power | kW | 162 | ||
Travel Speed | Ⅰ-gear(F/R) | km/h | 13/17 | |
Ⅱ-gear(F) | km/h | 41 | ||
