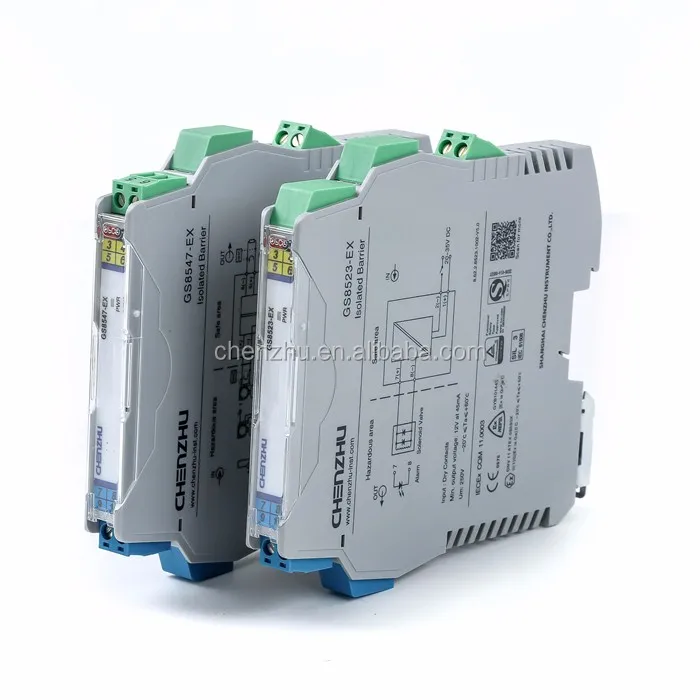

CHENZHUGS8547 EX TUV SIL3 1 input 1 output Intrinsic Safe Barrier Isolated Barrier 24VDC
- Category: >>>
- Supplier: Shanghai Chenzhu Instrument Co. Ltd.
Share on (62547396171):
Product Overview
Description
Product Description
Product Application
2-wire HART transmitter, 3-wire transmitter, current source input isolated barrier, provide isolated power supplies for
transmitters which located in hazardous area. Transfer 4~20mA signal(or current source signal) which generated by the transmitter from hazardous area to safe area separately, also allows bi-directional transmission of HART communication signals. The product should be supplied power independently. Input, output and power are each galvanically isolated.
Technichal Data | ||||||
Basic Parameter | Number of channels | 1input/1output | ||||
Temperature drift | 0.005%F.S./℃ | |||||
Response time | ms | Reach 90% of final value in 2ms | ||||
Security Data | Input signal | 0-20mA, 4-20mA, HART | ||||
Output signal | 0-20mA, 4-20mA, HART, 0-5V, 1-5V | |||||
Supply voltage(Ue) | DC | 20~35V DC | ||||
Other | Power protection | Reverse protection of power supply | ||||
Power supply mode | Independent power supply | |||||

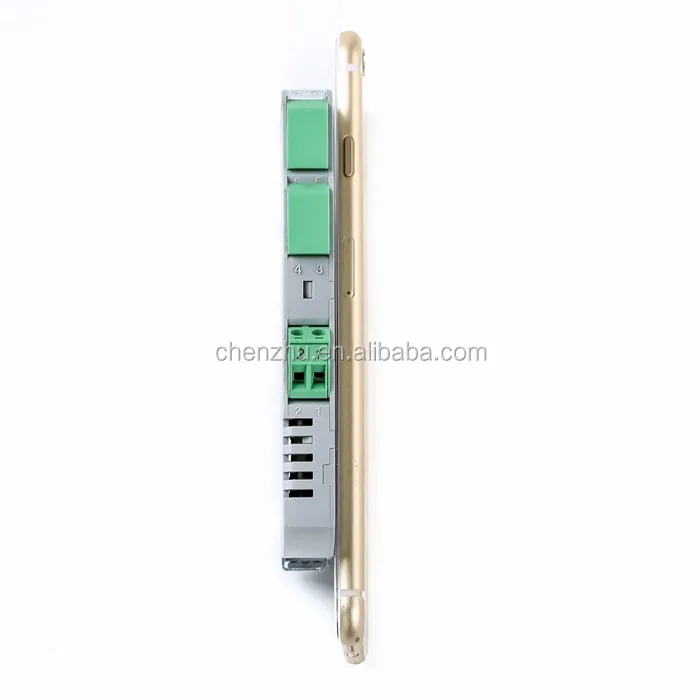

Dimensions | D*H*W | 118.9*106*12.5 mm | ||||
Main Features:
1) G3 Coating
2) 3-way isolation with max.dielectric strength≥4000V AC
3) Ultra-thin structure with low power dissipation design 0.05%F.S.
4) Housing protection level (IEC 60529): IP20

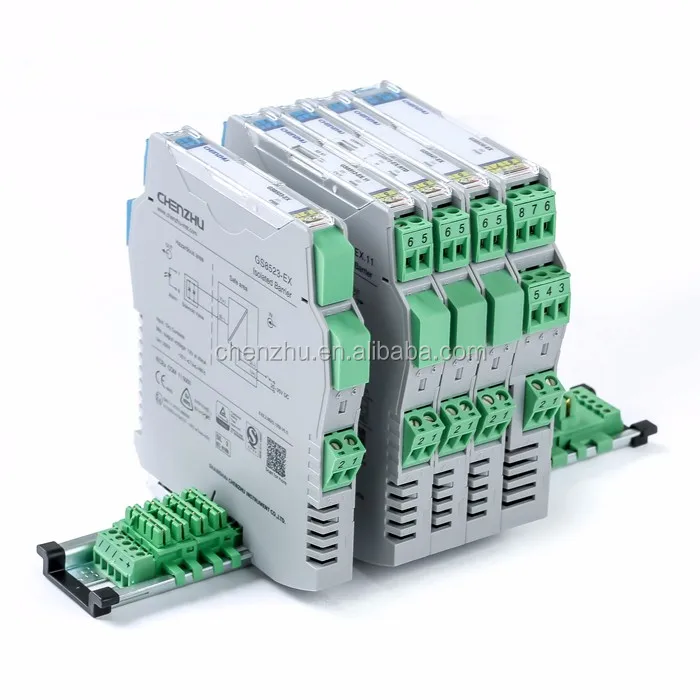

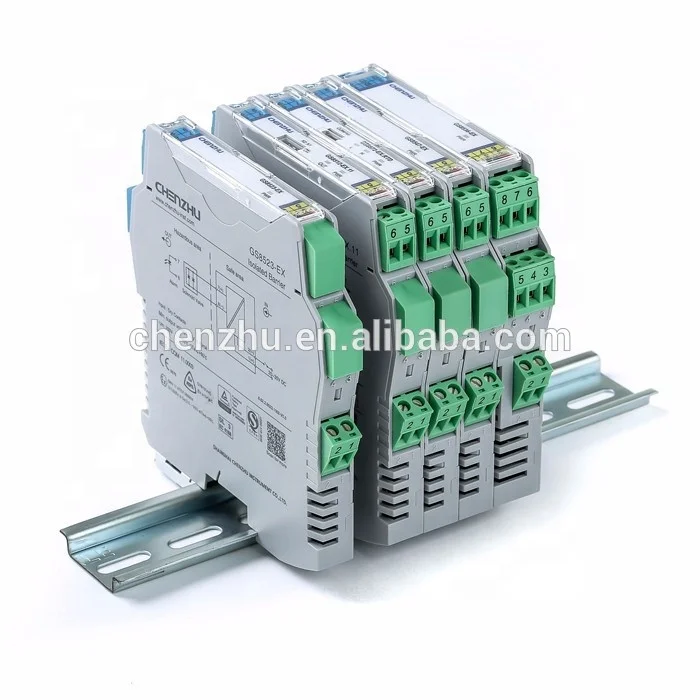

5) Easy install DIN35mm
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* 5 years warranty.
* Professional training.
* Fast respone.
Packing & Delivery
Unit Packaging | ||
Size | 140(L) * 115 (W) * 12.5 (D) mm | |
Net Weight | 0.4 KG | |
Packaging Details | The normal package is carton box(Size: L*W*H). Unit package for one piece, then outer packing. If you have special request for packing, please inform us in advance.. | |
Outer Packaging | ||
Size | 170 (L) * 145 (W) * 130 (D) mm | |
Carton Weight | 0.05 Kg | |
Packaging Details | The normal package is carton box(Size: L*W*H). Unit package for one piece, then outer packing. If you have special request for packing, please inform us in advance.. | |
Our Factory
Max capability of production reached to 1,000,000 pcs/year
Our factory created a versatlie smart production approach through system integation and establishment of information network in order to offer customer reliable, high efficiency, and high quality products.
Our Laboratory
