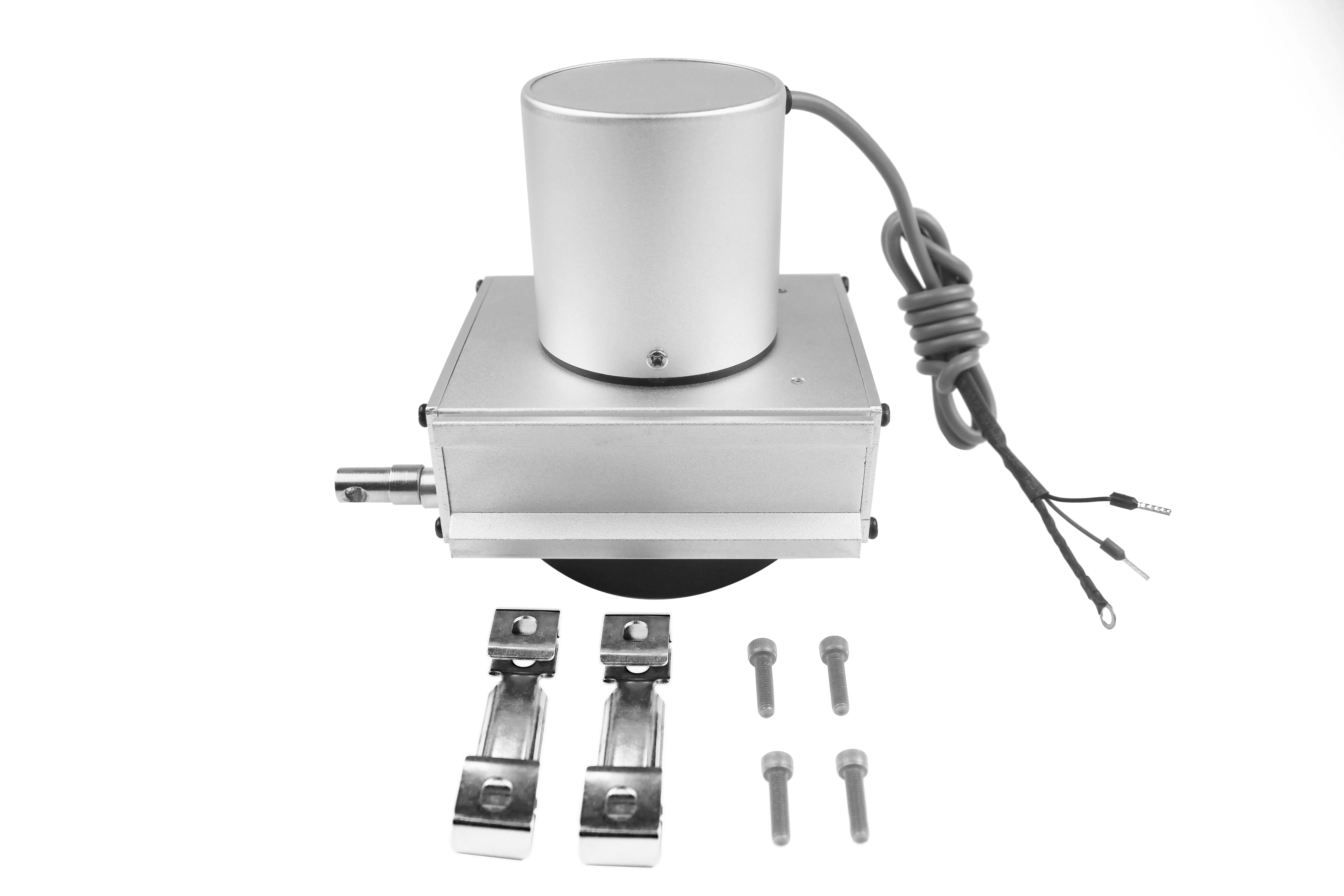

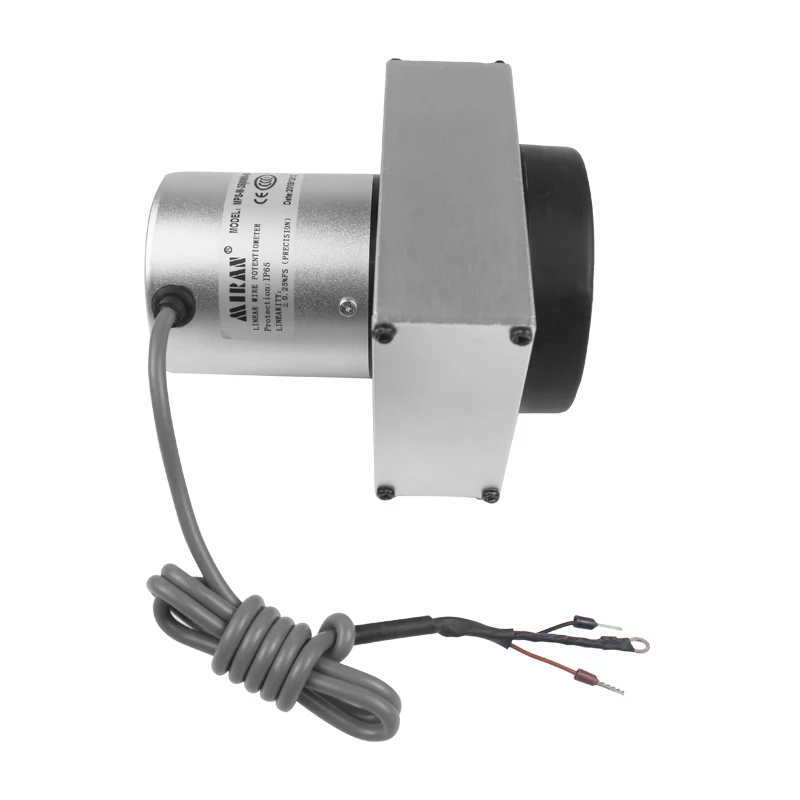

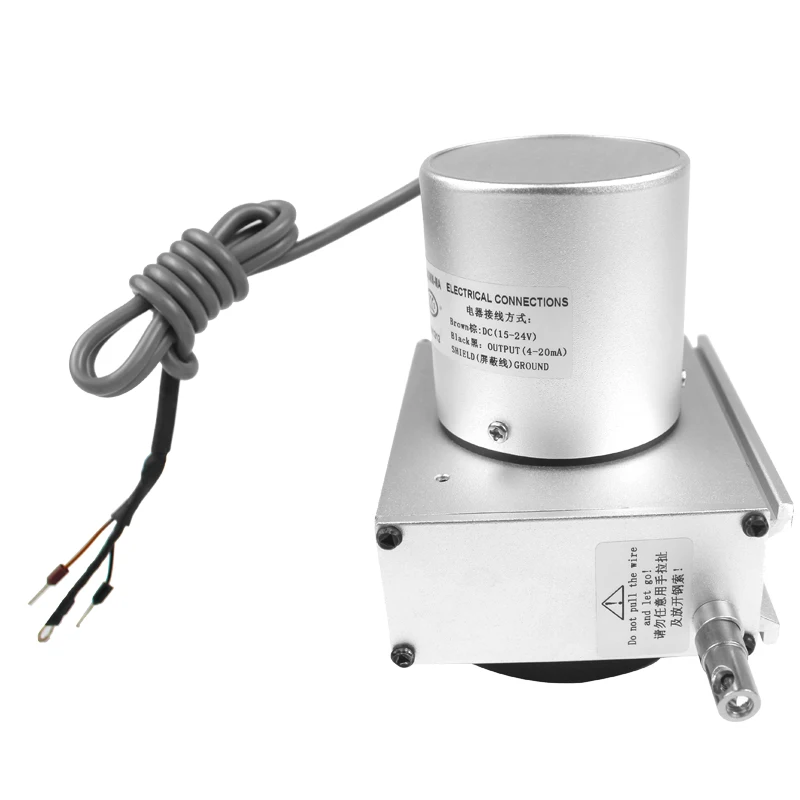

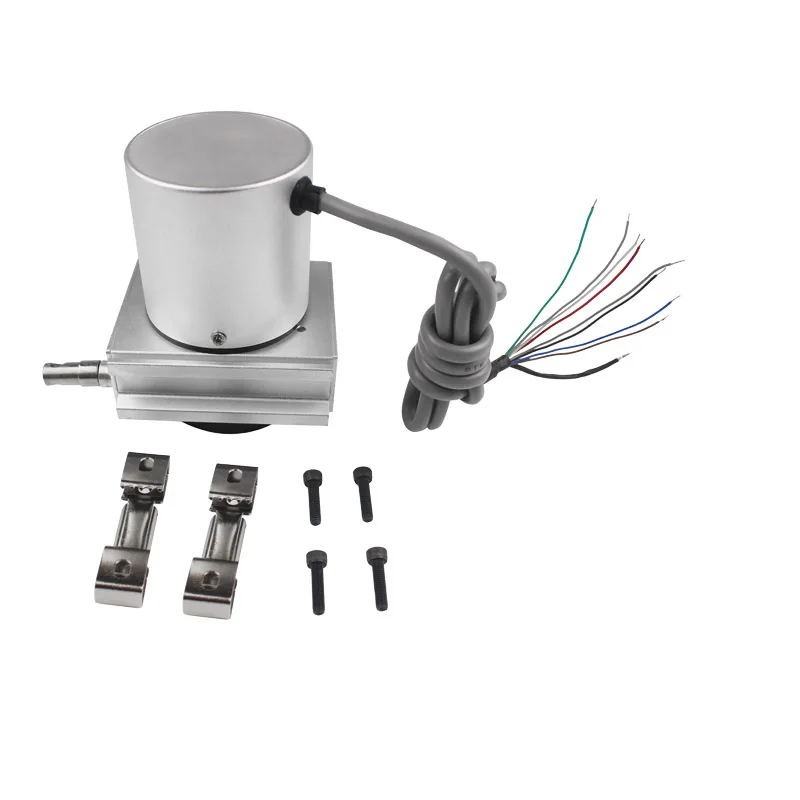

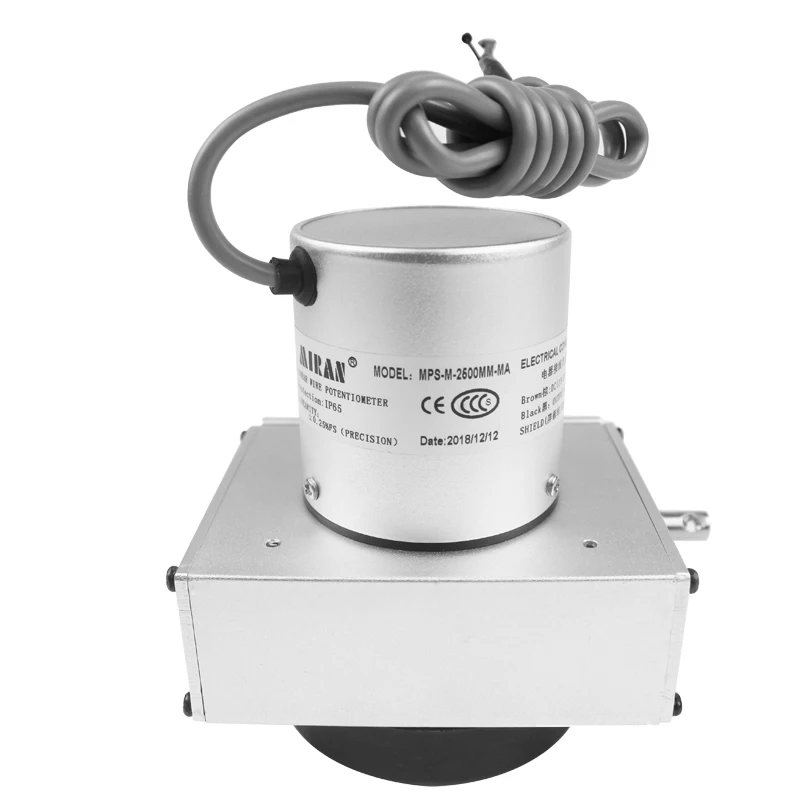

Miran MPS M 2500mm Draw Wire Potentiometer Tracking Range Cable Extension Pull Wire Displacement Linear Encoder/ Sensor
- Category: >>>
- Supplier: Zaoyang City Milang Science & Technology Co. Ltd.
Share on (62547410975):
Product Overview
Description
Product Desription
Draw wire encoder combines the advantages of angular sensor and linear displacement sensor, has a small mounting size, compact structure and high precision.Draw wire sensors from MIRAN are ideal for integration and subsequent assembly in serial OEM applications.
There are several range scale you can choose as below .
XXXS:100-200mm
XXS:100-800mm
XS:100-1000mm
S:100-1250mm
M:1250-4000mm
L:4500-8000mm
XL:9000-100000mm (Maximum up to 35m)
There are 6 kinds of output as below,please choose the one you need.
R: 0-5KΩ Resistance
V1：0-5V
V2：0-10V
A1：4-20mA with 3 wires
A2：4-20mA with 2 wires
P：incremental pulse phase output AB phase or ABZ phase.
XXS:100-800mm
XS:100-1000mm
S:100-1250mm
M:1250-4000mm
L:4500-8000mm
XL:9000-100000mm (Maximum up to 35m)
There are 6 kinds of output as below,please choose the one you need.
R: 0-5KΩ Resistance
V1：0-5V
V2：0-10V
A1：4-20mA with 3 wires
A2：4-20mA with 2 wires
P：incremental pulse phase output AB phase or ABZ phase.
RS:RS485
Electric Specifications of Resistance Wire Encoder: | ||
Stroke Length(mm) | (1250mm~4000mm) | |
Output Signal | Resistance (Potentiometer) | |
Linearity | ± 0.25%FS(normal standard); ± 0.10%FS(precision) | |
Repeatability | ± 0.02%FS | |
Resolution | Essentially Infinite | |
Wire Measurement | Diameter 1.5mm; SUS304; Diameter 0.8mm; SUS304; | |
Sensor Type | Wire-Winding potentiometer | |
Starting Force | (0-1250mm) 600g; (length≥1500) 1000g max | |
Max Measuring Speed (back and forth) | 1000mm/sec | |
Weight | ≤1000g | |
Mechanic Specifications of Resistance Wire Encoder: | ||
Input Resistance | 5ΚΩ ± 10%FS(normal); ±5%FS(precision) | |
Rated Power (Watts) | 1W at 70℃(500mm); 2W at 70℃(1000mm) | |
Recommended Input Voltage | 12-24VDC | |
Enviroment Specifications of Resistance Wire Encoder: | ||
Working Temperature | 0℃～+70℃ | |
Storage Temperature | -20℃～+80℃ | |
Vibration | 10Hz to 2000Hz | |
Ingress Protection | IP65 | |

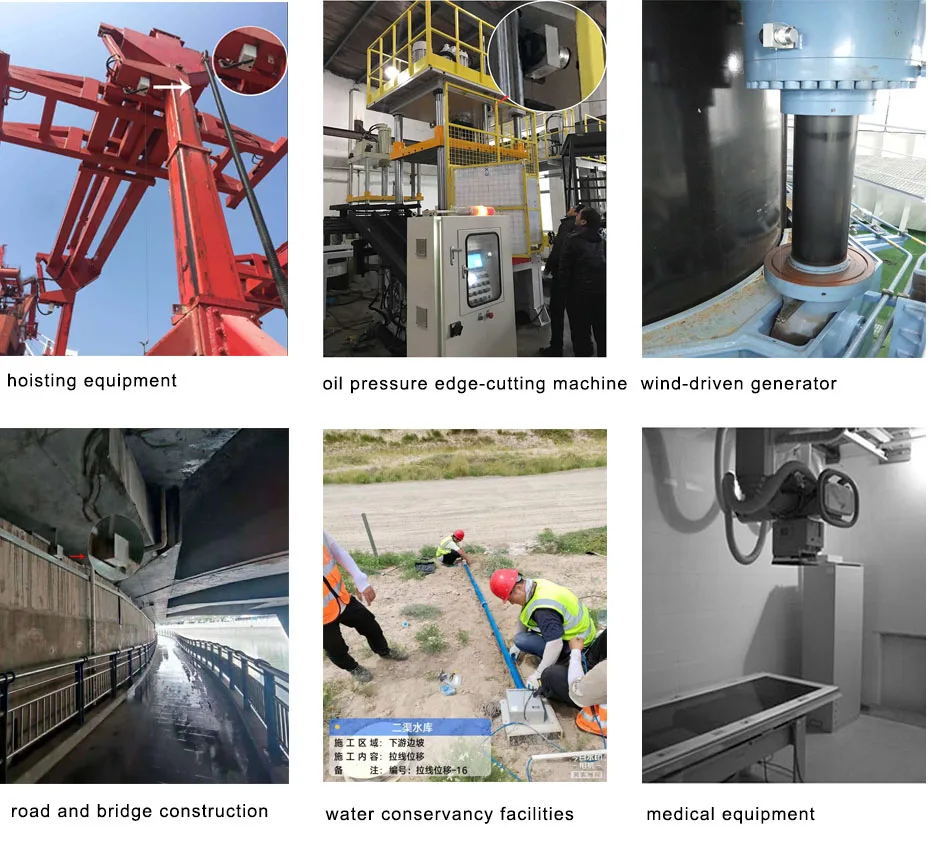

Widely used in position feedback or early warning of grinding machinery, positioning control of wood processing, detection and control of turbine guide blade opening, paper and plastic film forming, extrusion mold machinery, blow molding, position presetting and feedback of casting and forging machine tools, geodetic surveying system, valve opening presetting and feedback, etc.
