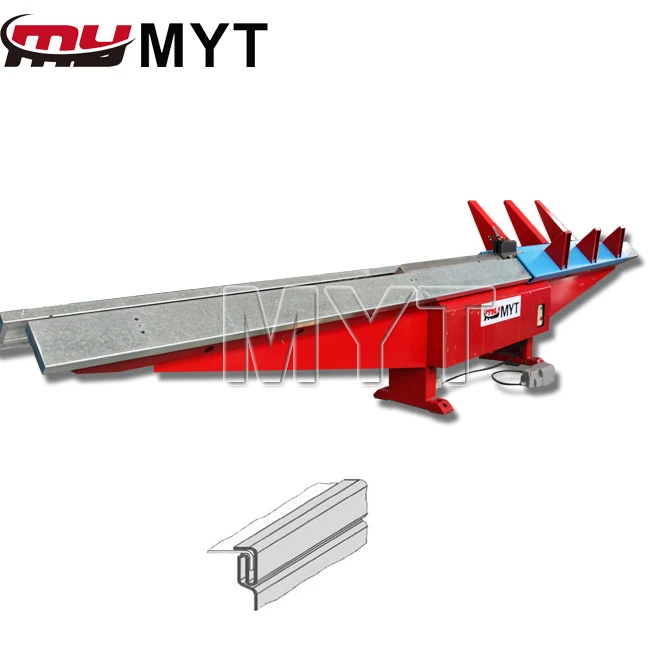

MYT brand HF 1 Duct zipper V ducting machine L shape pittsburgh seam closer for duct ventilation

Product Overview

Description

MYT brand Duct zipper V ducting machine L shape pittsburgh seam closer



• Seam closing machine assembly in one pass forms fold at the edges of rectangular or square channels and connects them to the castle. In the moment passage through the channel the machine in the still open seam can apply a special sealant for sealing products, as a result of which we get the airway rectangular section with dense hermetic seam.
• The machine body is a stable welded structure, bearing parts of which are made of sheet metal, which further strengthens the rigidity.

Specifications Duct zipper V ducting machine L shape pittsburgh seam closer

Descriptions	Units	HF-I	HF-II
Thickness	mm	0.5~1.0	1.0~1.25
Min. Duct size	mm	100X100	200X200
Speed	m/min	15	15
Support height	mm	700	700
Support length	mm	1500	1500
No. of support arm		2X3	2X3
Working height	mm	800	800
Power	kw	5.5	5.5
Dimensions	mm	5350X1000X1000	5350X1000X1000
Weight	kg	710	710

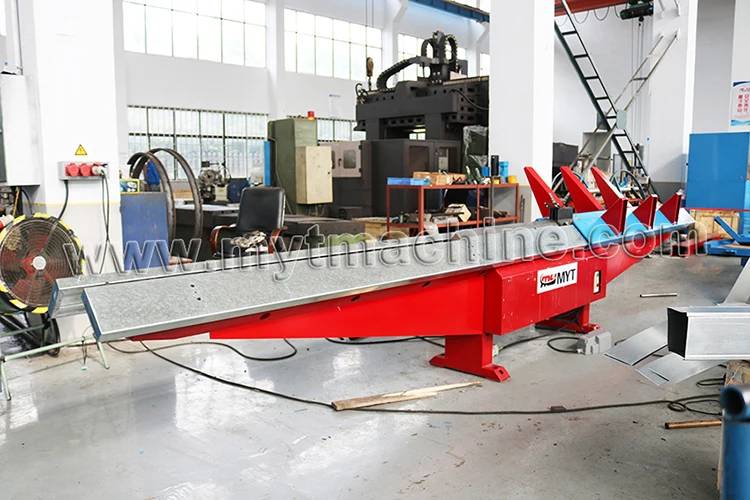

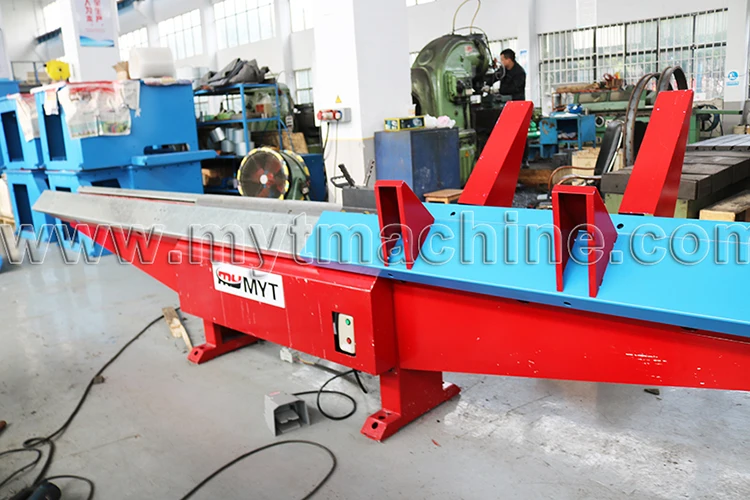

Detailed pictures about Duct zipper V ducting machine L shape pittsburgh seam closer

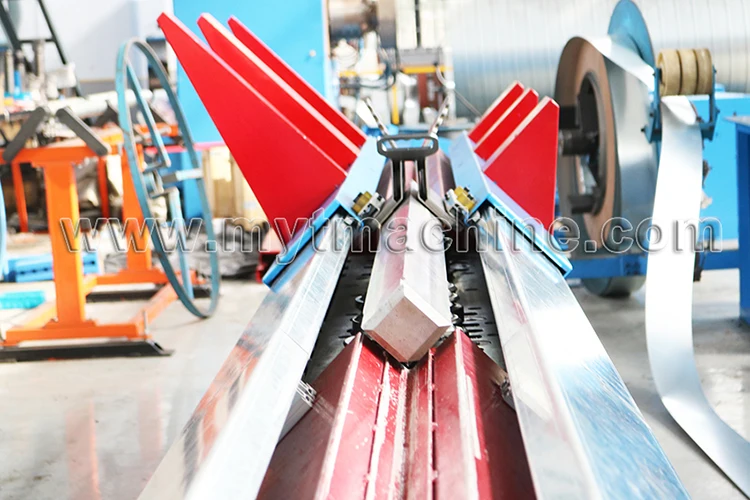

 HVAC Air duct zipper for seam locker

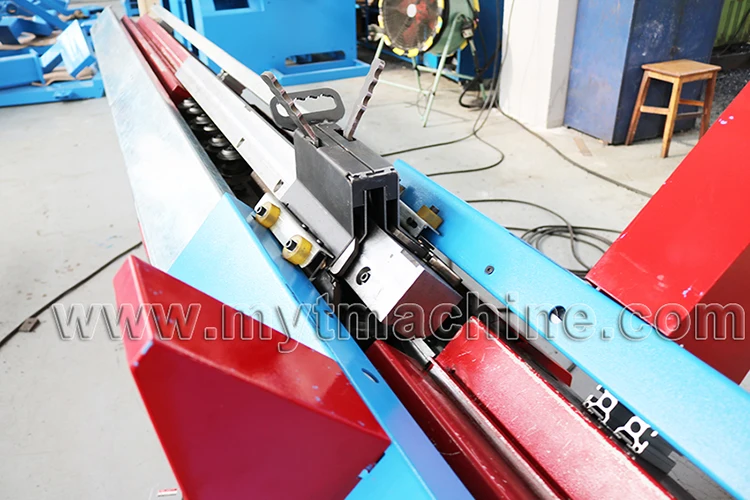

 HVAC Air duct zipper for seam locker

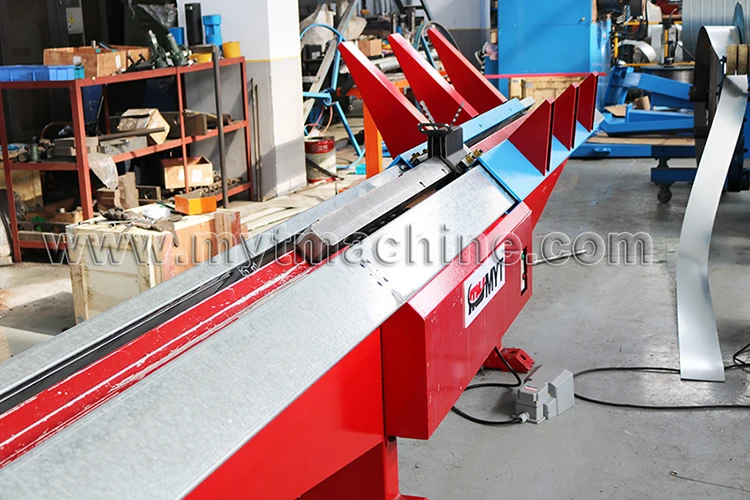

 HVAC Air duct zipper for seam locker

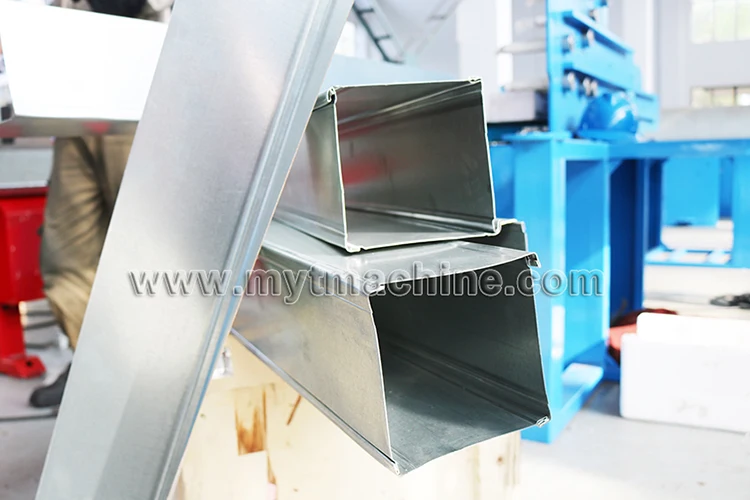

Finished product  HVAC Air duct zipper for seam locker













air duct zipper machine , vertical duct seam closing machin
