Auto feeder wood working cnc lathe machine for baseball bats handrails

Product Overview

Description

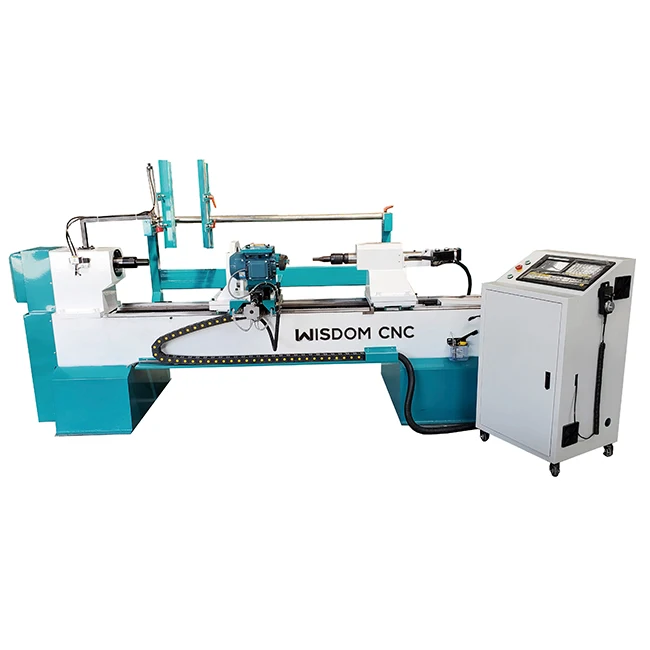

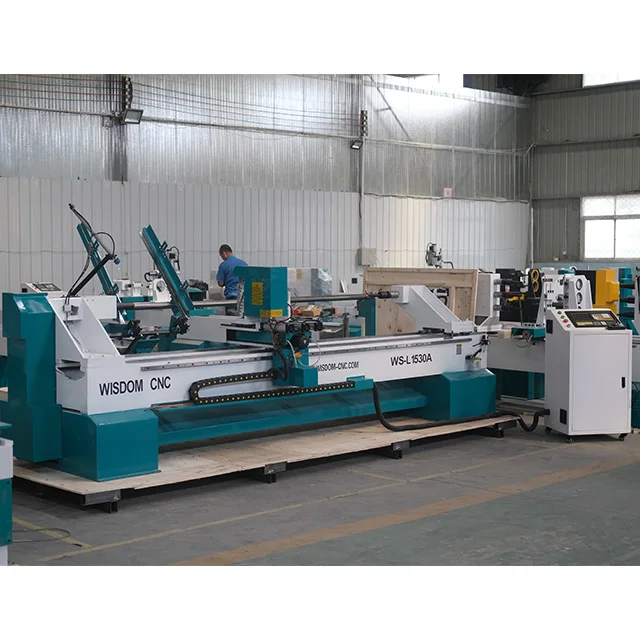

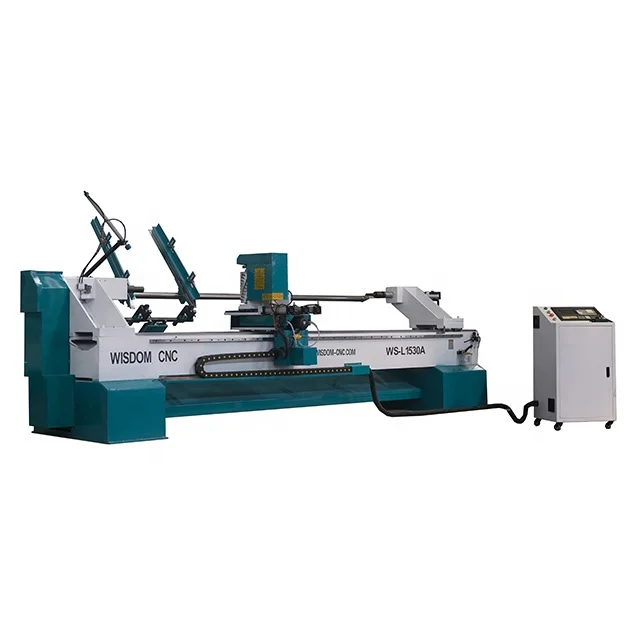

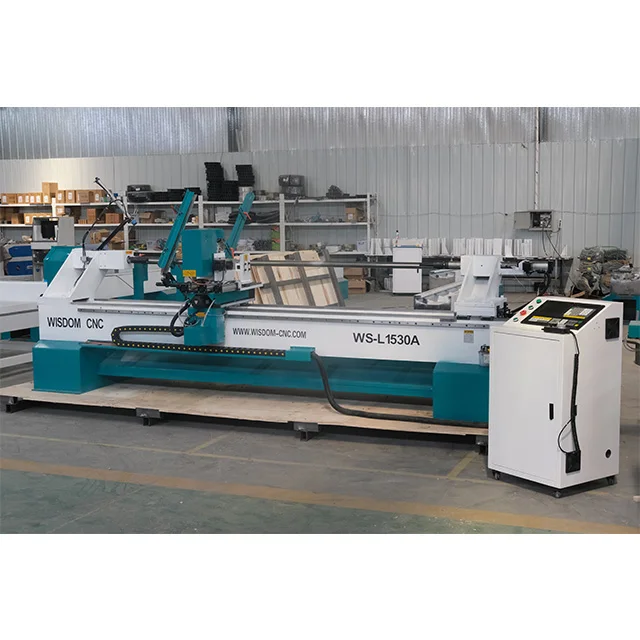

WS-L1530A Auto feeder wood work lathe machine for baseball bat handrails

Applications of WS-L1530A Jinan Automatic Loading CNC Wood Lathe:

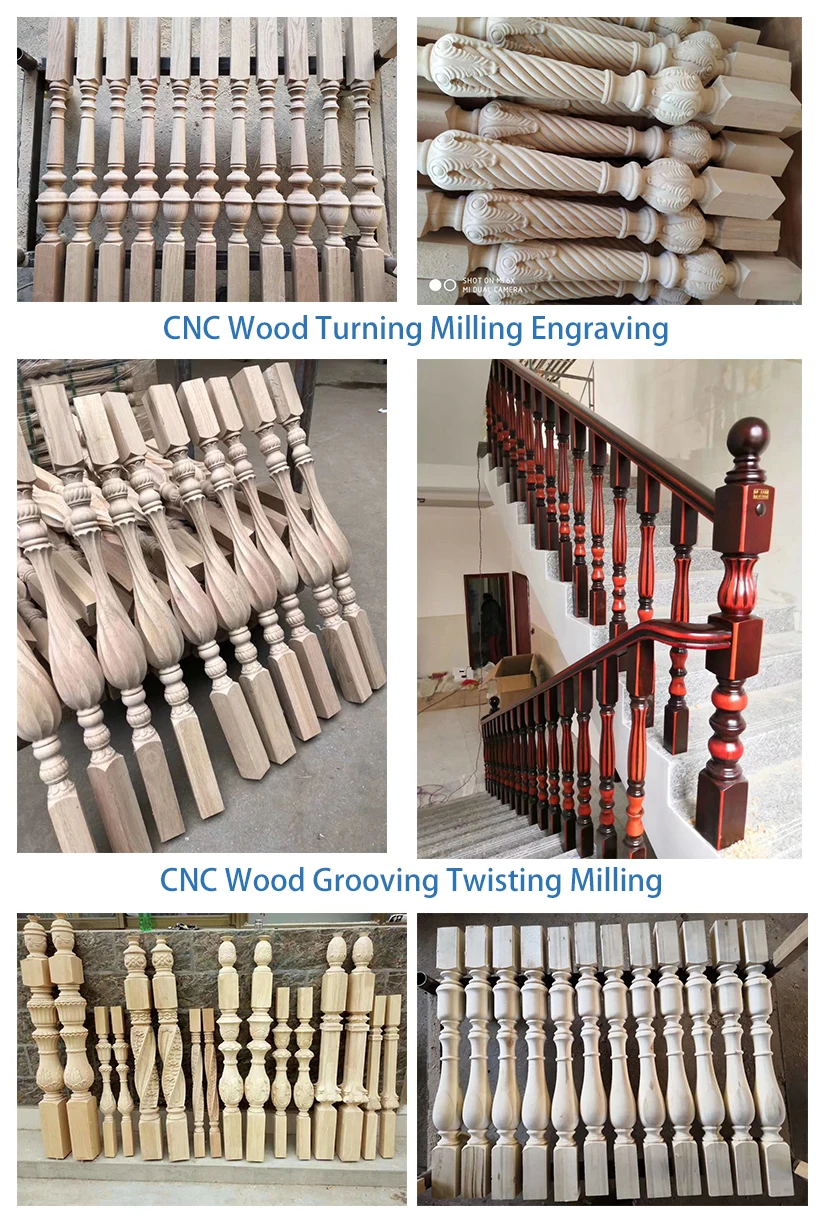

automatic CNC Wood lathe is used for various cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, such as various staircase column, Roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bats, car wooden furniture, children' s bed column, etc.

Full Automatic Feeding CNC Wood Turning Lathe Machine is suitable for mass production with same turning designs, the CNC wood lathe machine can automatic loading raw timber, automatic centering, automtic turning according to the program, save time and labor to improve the working efficiency.



Technical parameters of WS-L1530A Jinan Automatic Loading CNC Wood Lathe:

Model	WS-L1530A
Max turning diameter	20-300mm
Max turning length	100-1500mm
Number of axis	Single axis, double blades
Max feed rate	200cm/min
Max setting unit	0.01cm
Driving system	Big Stepper motor (Servo motor option)
Control system	LCD screen
Spindle power	3.5KW
Spindle speed	0-3000r/min
Feeding parts	Combined high-quality rails with precise screw drive , effective control error
Working speed	5X60cm Standard staircase column 40s/pcs
Power supply	AC380v /220v  50 /60hZ
cutter	2 white steel blades (18x18x200mm), 2 Korea imported alloy blades
Auxiliary hardware and software	Turning center with the knife (5cm wood, 6cm wood) tail top pin manualstretching, combined with pneumatic, convenient and flexible, intelligentprotection work table (limit alarm system) to prevent the collision phenomenon.



Features of WS-L1530A Jinan Automatic Loading CNC Wood Lathe:



1. Heavy cast iron lathe bed. Avoid shaking when the motor rotates fast for big sizes workpiece process, and the turning speed can be adjusted through the frequency converter.

2. Full Automatic Feeding CNC wood turning lathe Machine with one chuck and one backlash for fix materials, the max working dimension is 300*1500mm.

3. Full Automatic Feeding CNC Wood turning lathe Machine adopts Taiwan Hiwin square guide,high precision and durable.

4. Autocad software, it is easier for drawing designs .

5. DSP handle controller with USB interface, it is easier to use. LCD control system is optional.

6. With Full Automatic Feeding device, automatic loading raw timber, automatic centering, automtic turning according to the program, save time and labor to improve the working efficiency.











 Welcome to contact with us for more details and information.
