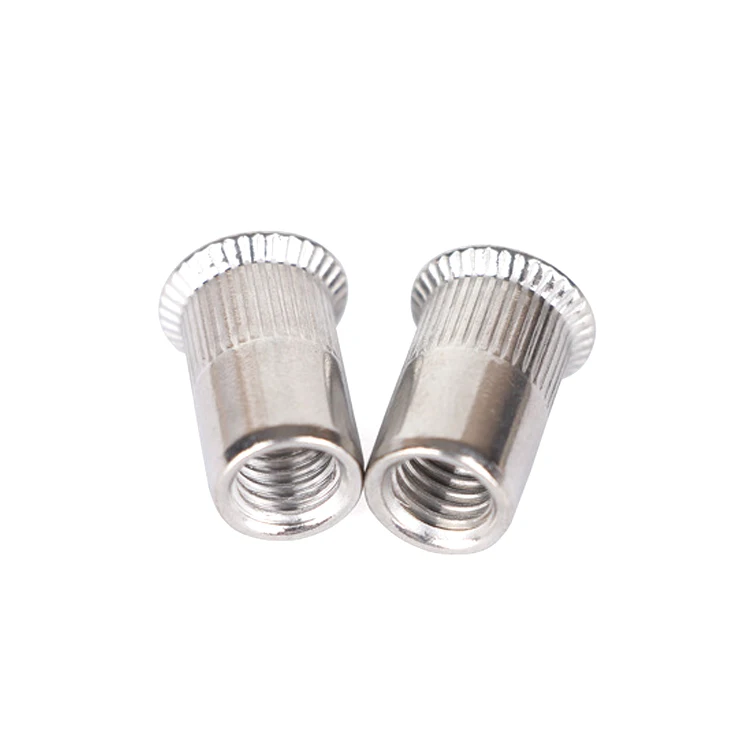

Countersunk Head Open Rivet Nut Stainless Steel threaded rivet nut CSK Head M3 M12 Silver
- Category: Other Fasteners >>>
- Supplier: Henan Zongxiang Heavy Industry Import & Export Co. Ltd.
Share on (62547535404):
Product Overview
Description
Product Description
Knurled Countersunk Rivet Nuts - A2 Stainless Steel
Introduction:
Flange knurled body thin wall series rivet nuts - grip range can be affected by parent material and hole size. Sherex recommends trial installations to determine the proper grip range for the application. CAK style nuts are available closed end designs.
Feature:
- Stainless Steel 304
- Round shank
- Countersunk head
- Open

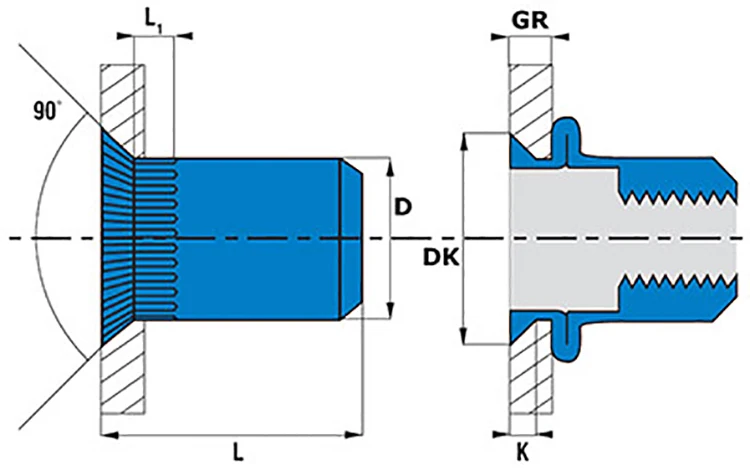

Drawing for the CSK knurled rivet nuts:
Size for countersunk head open end rivet nuts:
Thread Diameter | Grip Range (GR) | Hole Diameter (D) | Body Diameter | Head Diameter (DK) | Head Thickness (K) | Length (L) |
M3 | 1.5 – 2.0 | 4.8 | 4.7 | 8.0 | 1.7 | 9.0 |
M3 | 1.5 – 3.5 | 5.0 | 4.9 | 7.5 | 1.5 | 11.5 |
M3 | 3.5 – 5.0 | 5.0 | 4.9 | 7.5 | 1.5 | 12.5 |
M4 | 1.5 – 3.5 | 5.9 | 5.8 | 9.0 | 1.7 | 11.5 |
M4 | 1.5 – 3.5 | 6.0 | 5.9 | 8.5 | 1.5 | 12.0 |
M4 | 3.5 – 6.5 | 6.0 | 5.9 | 8.5 | 1.5 | 15.0 |
M5 | 1.5 – 4.0 | 7.0 | 6.9 | 9.5 | 1.5 | 13.0 |
M5 | 1.5 – 4.0 | 6.9 | 6.8 | 10.0 | 1.7 | 13.5 |
M5 | 4.0 – 6.5 | 7.0 | 6.9 | 9.5 | 1.5 | 16.0 |
M5 | 6.5 – 9.0 | 7.0 | 6.9 | 9.5 | 1.5 | 18.5 |
M6 | 1.5 – 4.0 | 9.0 | 8.9 | 11.5 | 1.5 | 15.5 |
M6 | 1.5 – 4.5 | 8.9 | 8.8 | 12 | 1.7 | 16.0 |
M6 | 4.0 – 6.5 | 9.0 | 8.9 | 11.5 | 1.5 | 18.0 |
M6 | 6.5 – 9.0 | 9.0 | 8.9 | 11.5 | 1.5 | 20.5 |
M8 | 1.5 – 4.5 | 10.9 | 10.8 | 14.0 | 1.7 | 19.0 |
M8 | 1.7 – 4.5 | 11.0 | 10.9 | 13.5 | 1.5 | 18.5 |
M8 | 4.0 – 6.5 | 11.0 | 10.9 | 13.5 | 1.5 | 21.0 |
M8 | 6.5 – 9.0 | 11.0 | 10.9 | 13.5 | 1.5 | 23.5 |
M10 | 1.5 – 4.5 | 12.9 | 12.8 | 16.0 | 1.7 | 21.0 |
M10 | 2.0 – 4.5 | 11.0 | 10.9 | 14.5 | 1.7 | 21.0 |
M10 | 4.5 – 7.5 | 12.0 | 11.9 | 14.5 | 1.7 | 24.0 |
M10 | 7.5 – 10.5 | 12.0 | 11.9 | 14.5 | 1.7 | 27.0 |
M12 | 1.5 – 4.5 | 14.9 | 14.8 | 18.0 | 1.7 | 24.0 |
M12 | 4.5 – 7.5 | 16.0 | 15.9 | 19.0 | 1.9 | 27.5 |
M12 | 7.5 – 10.5 | 16.0 | 15.9 | 19.0 | 1.9 | 31.0 |

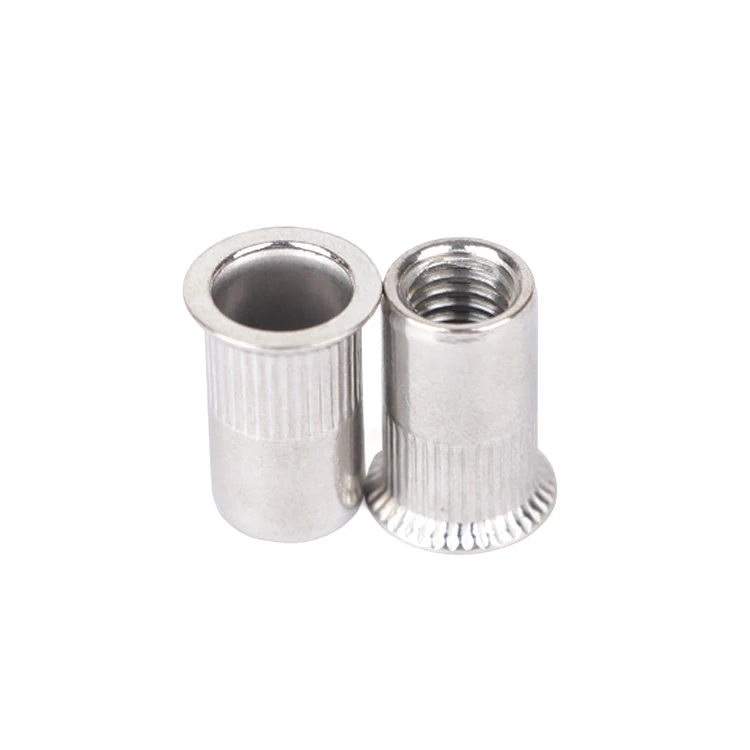

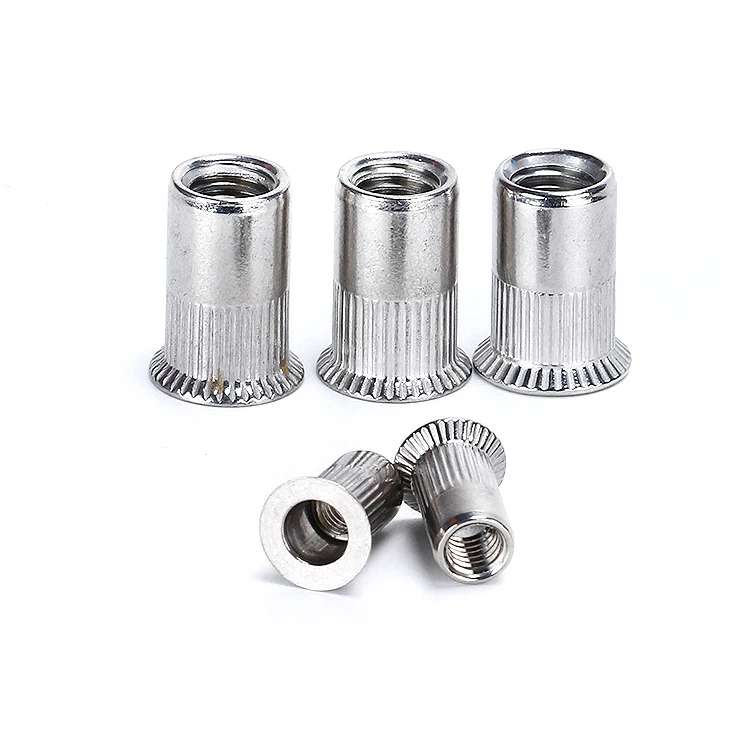

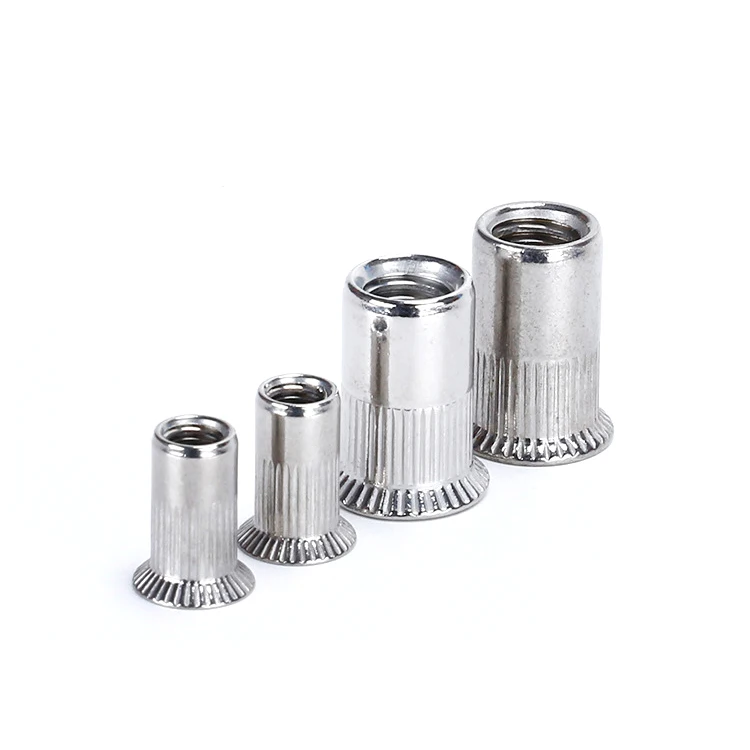

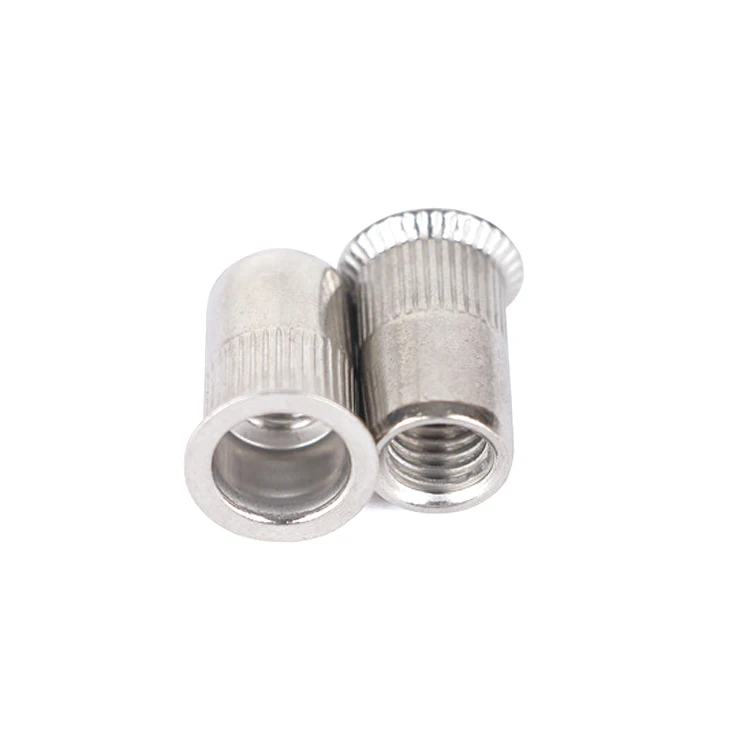

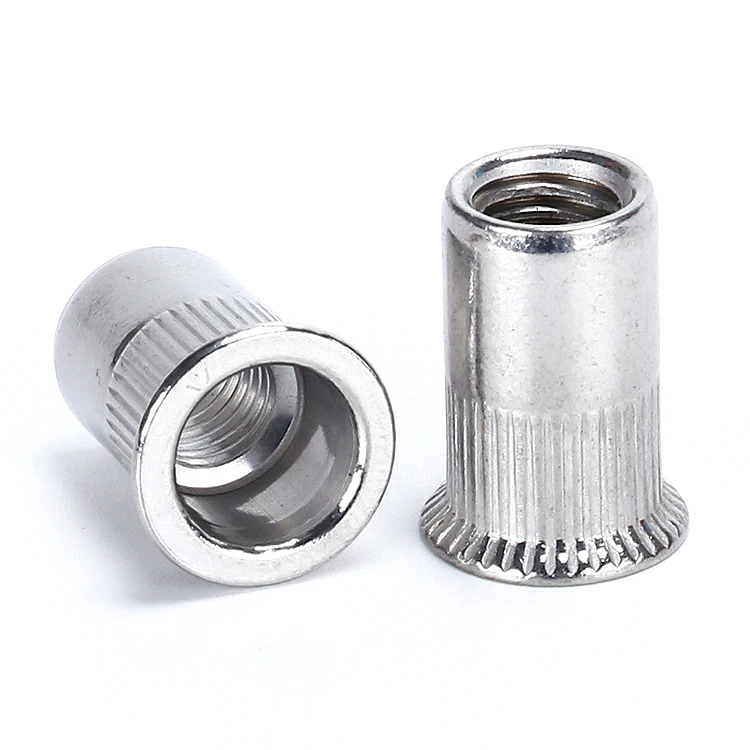

Pictures:
Packaging & Shipping
Packing: plastic bags + carton box for small quantity; plastic bags + carton box + plate
Shipping: Sample order will be shipped by express; larger quantity will be shipped by sea.
Company Information
Henan Zongxiang Heavy Industry Import & Export Co., Ltd. as an international trade subsidiary of Zhongxiang Steel Group Inc., who was founded in 1997. We have more than two decades experience on this field, covering an area of 33,000 square meters, with about 300 employees, 4 production lines, 2 R & D departments and 5 quality control staffs.
With the expansion of scale, in order to further meet the needs of customers at home and abroad, we have also started to get involved in the field of hardware products. All the fasteners are produced according to internationally recognized standards, such as DIN, ISO, ANSI/ASTM, IFI, BS and JIS and so on. Our fasteners and hardware, mainly including self tapping screws, hexagon bolts and machine screws, automatic lathe products ,CNC parts, special-shaped screw,bolts,rivets,nuts washer and so on.
We have the inventory, resources and experience to meet your needs.

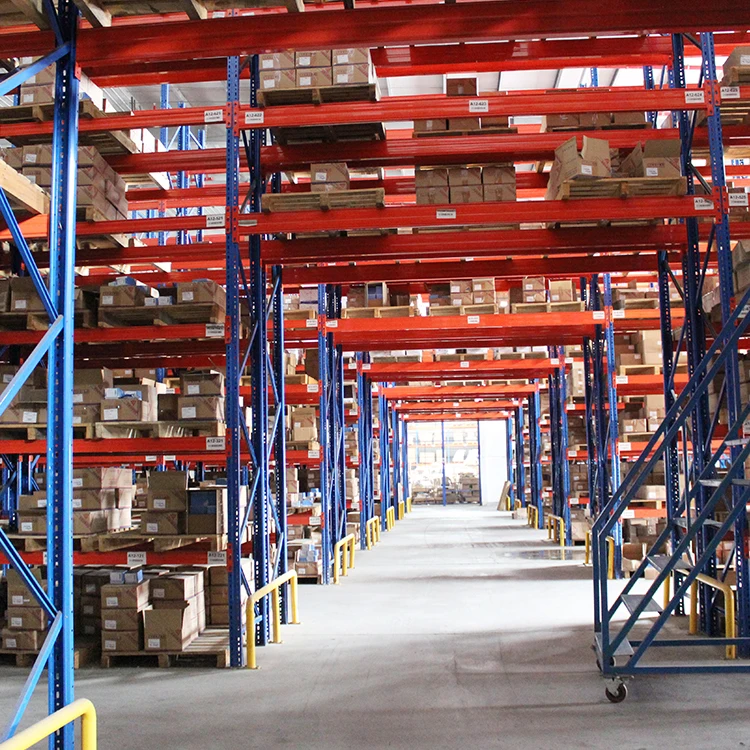

Workshop & warehouse
FAQ
1.How do you let me trust you?
We have own import & export right and is a member of alibaba and get the credit guarantee from Alibaba Group. you can make an order by alibaba to us directly.
2.How about your price?
High quality products with reasonable price.
3.Could you provide free samples?
For new customer, We can provide free samples for standard fastener, But the clients will pay the express charges. For old customer,We will send you free samples and pay express charges by ourself.
4.Do you accept small order?
Sure, we can accept any orders, we keep lots of stock for stainless steel fastener , carbon steel nut and bolt, Like hex weld nut, cage nut, wing nut, square weld nut,cap nut, hex nut,flange nut. Metric 8.8Grade, 10.9 Grade, 12.9 Grade Hex bolt and Hex Socket cap screw.
5.How about your delivery time?
General speaking, if the goods is in stock, we can delivery them with 3-7days, If the quantity is 1-2container, we can give you with 20-35days.
6.What is your packing?
Our packing is 20-25kg for one carton,36 or 48pcs cartons for one pallet. One pallets is about 900-960kg, We also can make customer's logo on the cartons. Or we customized cartons according to customers' requirements.
7.What is your payment term?
We can accept T/T,L/C for general order ,Paypal and Western union for small order or samples order.
