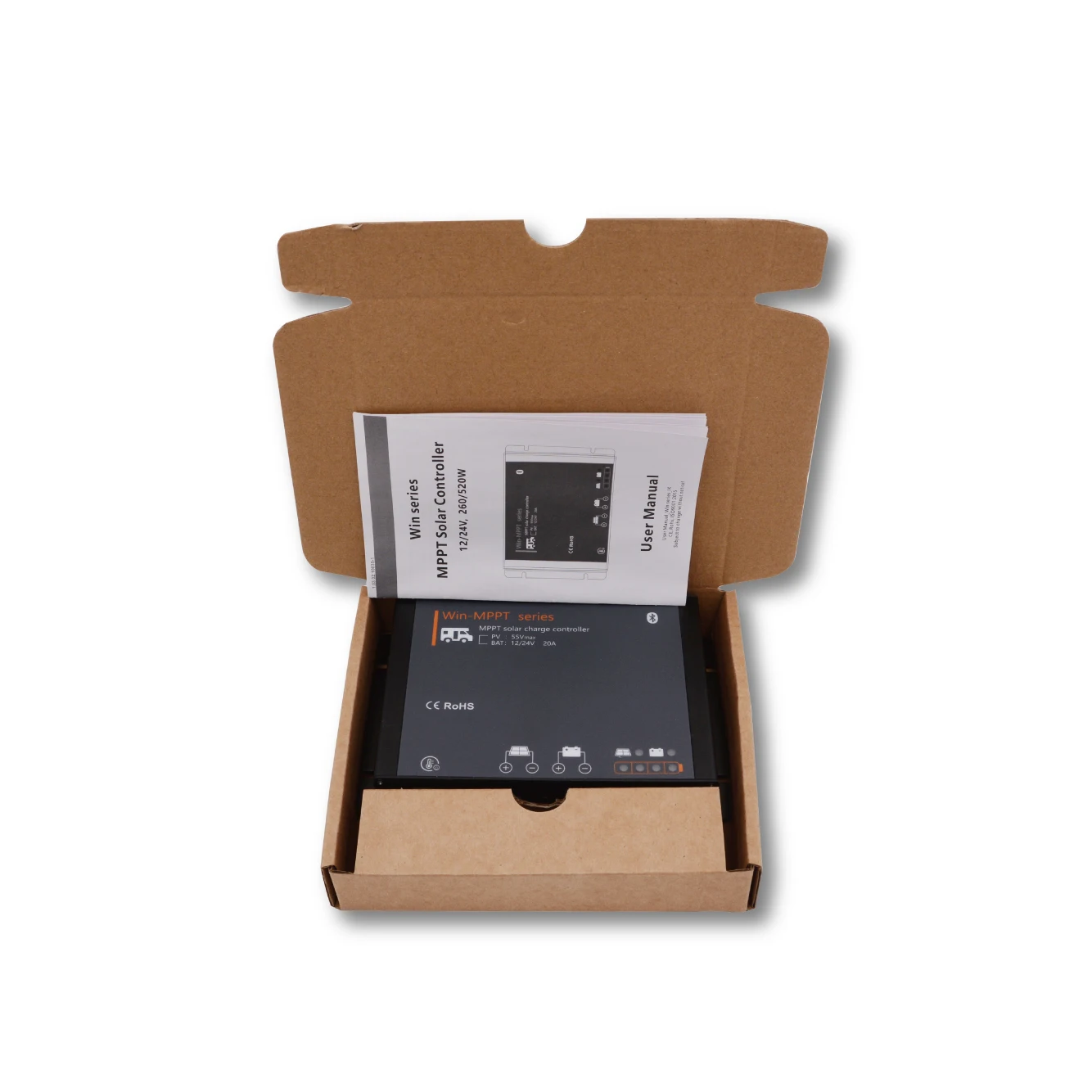

12v 24v 20A Lumiax solar charge controller mppt for RVs boats camping yacht
- Category: >>>
- Supplier: Qingdao Skywise Technology Co. Ltd.
Share on (62547547369):
Product Overview
Description
Type | Win500-MPPT | |
Battery Parameters | System Voltage | 12V/24V automatical recognization |
Max Charging Current | 20A | |
MPPT Charging Voltage | before boost or equal charging stage | |
Boost Voltage | 14.0~14.8V/28.0~29.6V@25℃（default:14.5/29V） | |
Equal voltage | 14.0~15.0V/28.0~30.0V@25℃（default:14.8/29.6V）Liquid,AGM） | |
Float Voltage | 13.0~14.5V/26.0~29.0V@25℃（default:13.7/27.4V） | |
Low Volt. Disconnect | 10.8~11.8V/21.6~23.6V,SOC1~5（default:11.2/22.4V） | |
Reconnect Voltage | 11.4~12.8V/22.8~25.6V@25℃（default:12.0/24.0V） | |
Overcharge Protect | 15.8/31.3V | |
Max volt on Bat. terminal | 35V | |
Battery Type | Liquid, Gel, AGM,Lithium | |
Panel Parameters | Max volt on PV terminal | 55V |
Max input power | 260/520W | |
Dusk/Dawn detect volt. | 8.0/16.0V | |
MPPT tracking range | （Battery Voltage + 1.0V）~ Voc*0.9 | |
Load | Output Current | 20A |
Work mode | Always on, Street lamp, User-defined mode | |
System Parameters | Max tracking efficiency | >99.9% |
Max charge conversion | 98.00% | |

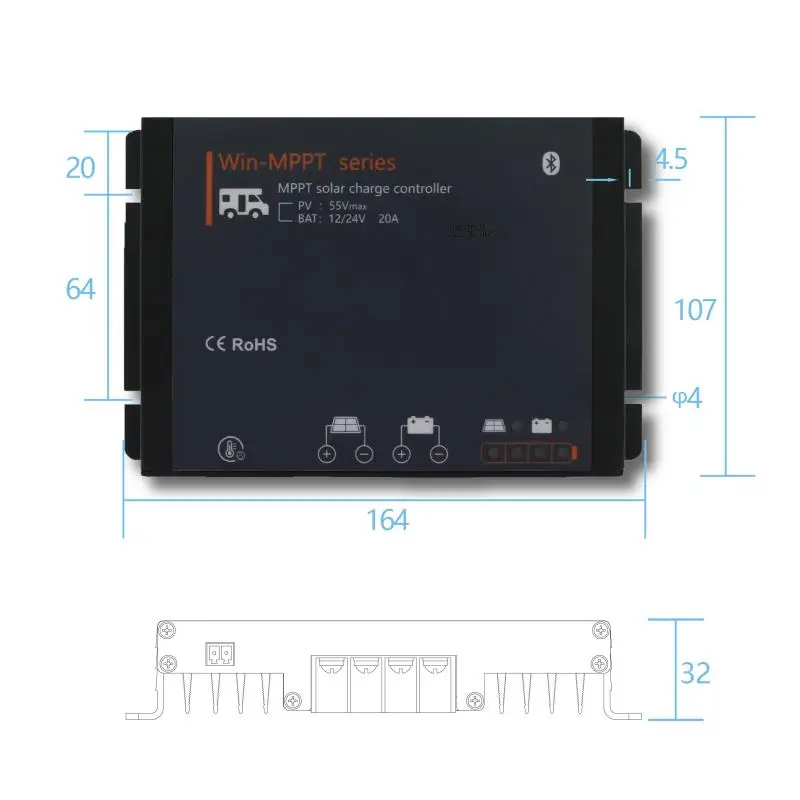

Dimensions(mm) | 164*107*32mm | |
Weight | 700g | |
Mounting Dimensions | 155*64mm | |
Ambient temperature | -20 ~ +55℃ | |
Ambient humidity | 0 ~ 100%RH | |
Protection degree | IP54 | |
Max Altitude | 4000m |
Related Products

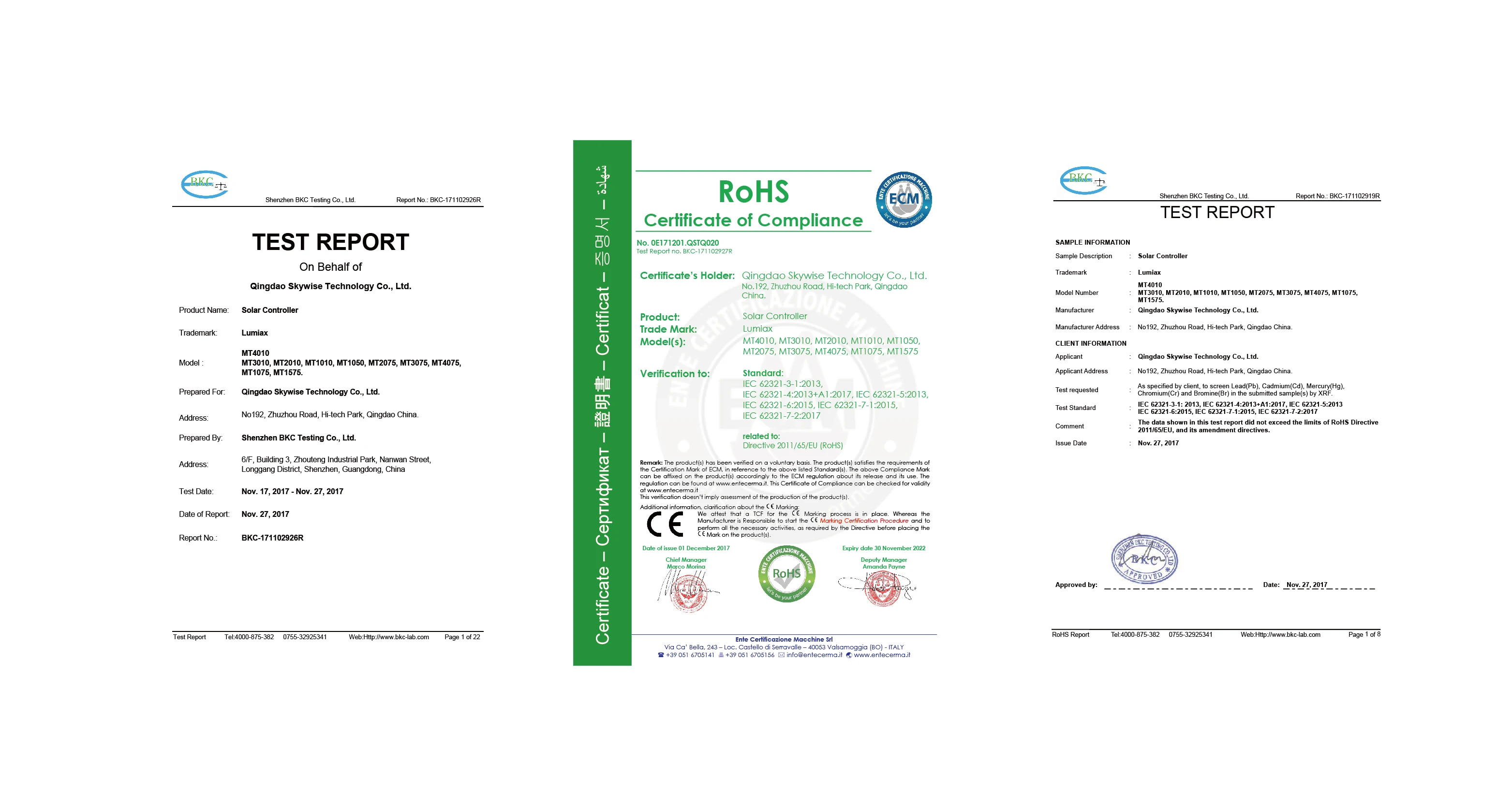

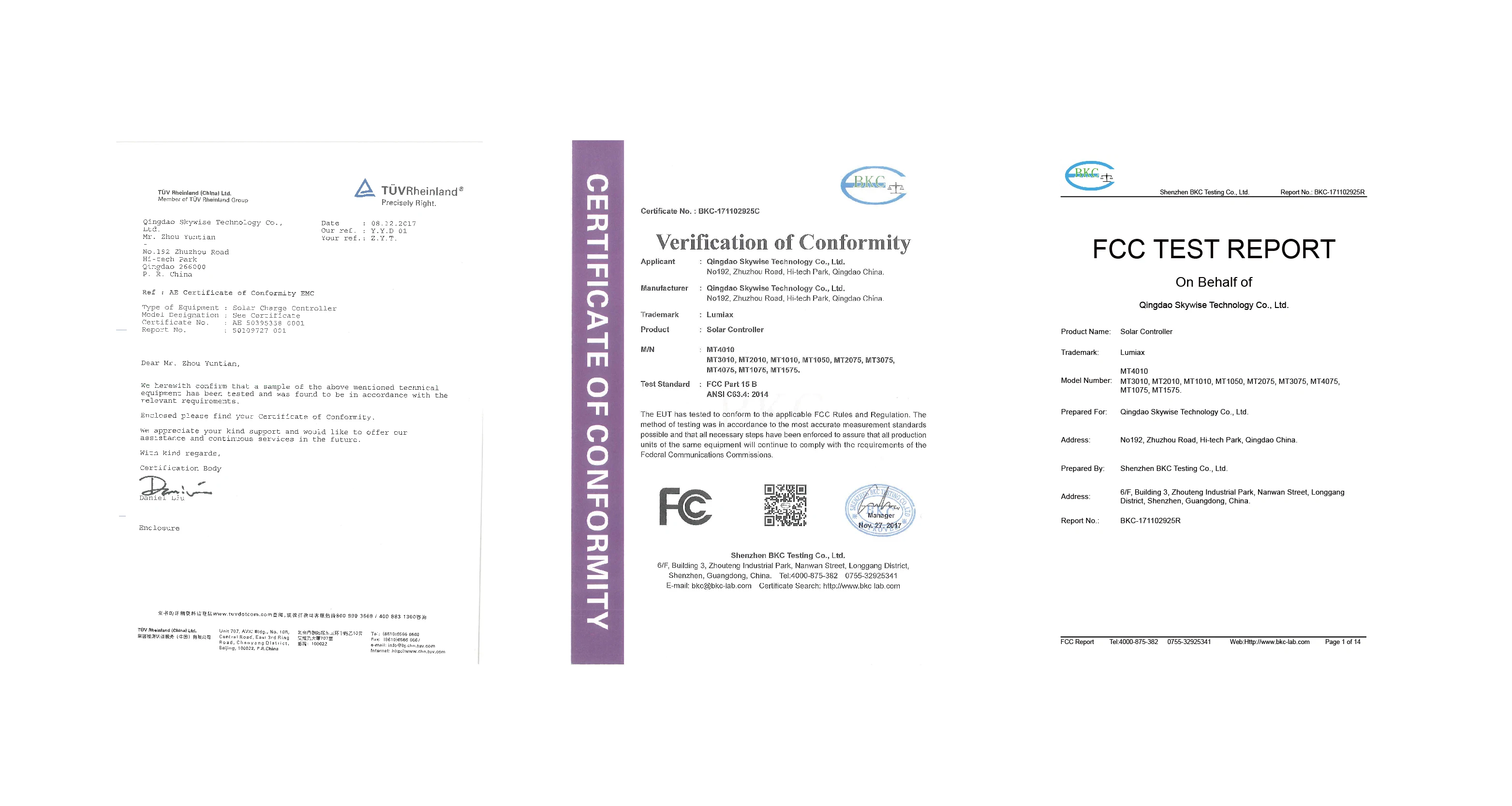

Certifications
