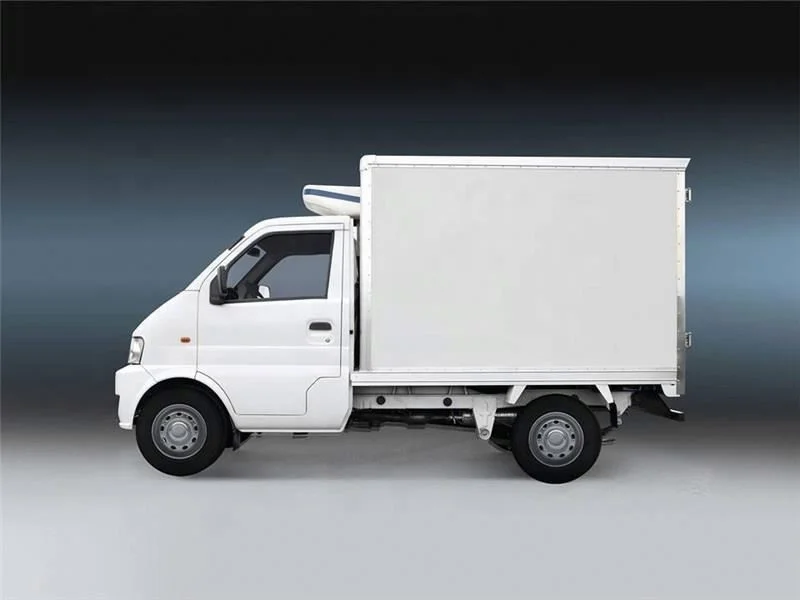

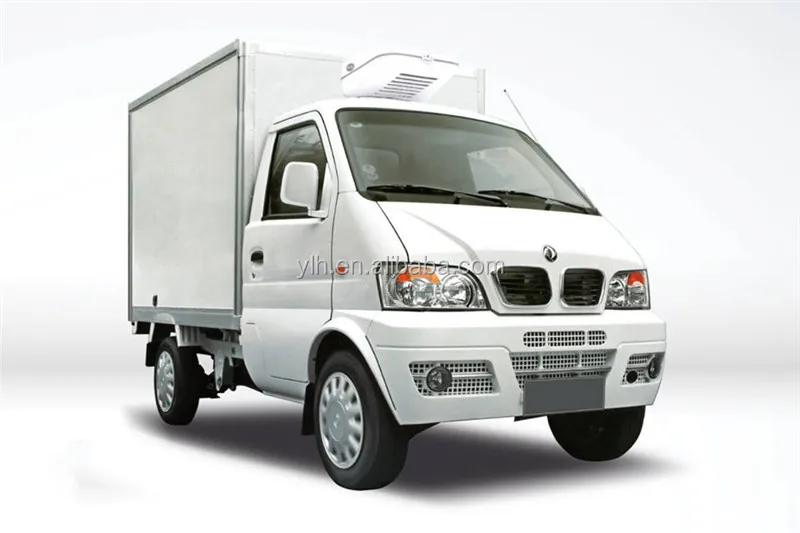

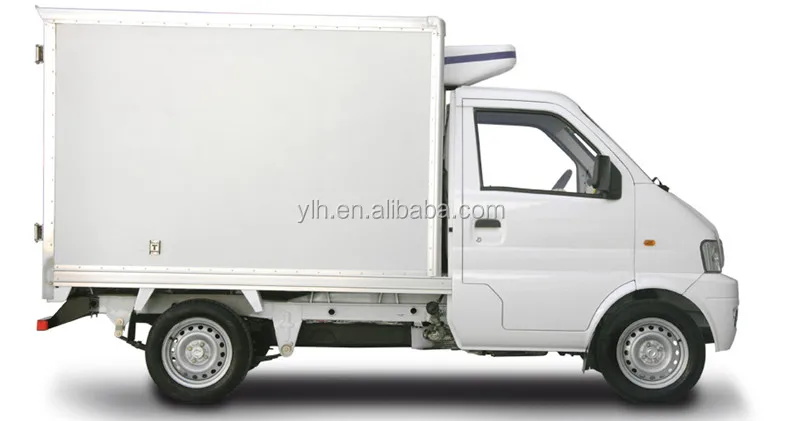

4x2 1.5 ton refrigeration truck for ice block

Product Overview

Description

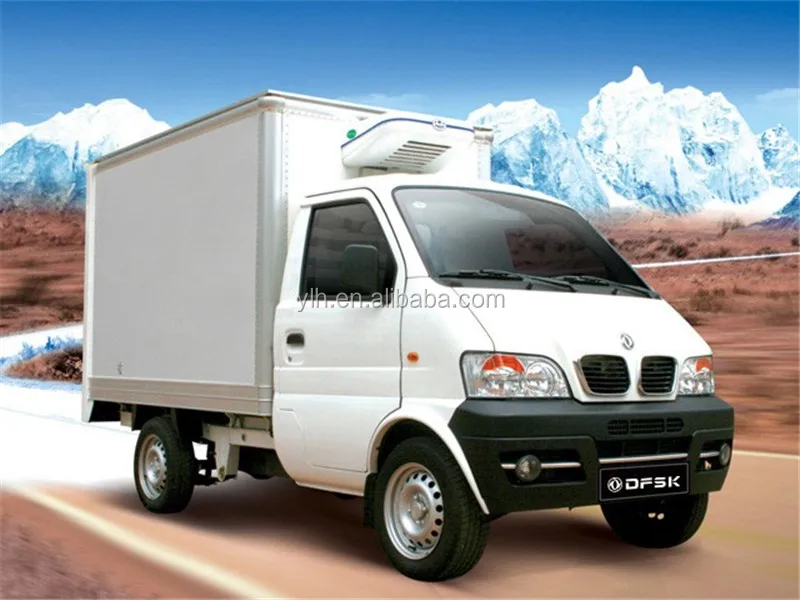

 4x2 1.5 ton refrigeration truck for ice block





















Name	DFK1010K1	DFK1012K2L1	DFK1012K2L2	DFK1012K2L3
Basic Parameter
Passenger	SINGLECAB  2 seat		CREWCAB  5 seat
Emission Standard	EURO V	EURO V	EURO V	EURO V
Dimension & Quality
Overall Dimension(mm)	3960*1560*2425	4435*1560*2425	4600*1560*2425	4600*1560*2425
Container Volume(m3)	5.86	7	5.2	5.2
Box Dimension(mm)	2260*1440*1800	2700*1440*1800	2000*1440*1800
Wheelbase(mm)	2515	2760
Wheel Tread F/R(mm)	1310/1310
Curb Weight(kg)	840	910	960	990
G.V.W(kg)	1770	1920	1990	1990
Engine
Engine Model	AF10/DK10	DK12	AF10/DK10	DK12
Engine type	Inline four-cylinder, four-stroke, water-cooled, electronically controlled fuel injection gasoline engine
Displacement (ml)	1000/995	1240	1000/995	1240
Rated Power(kW)	46/50	65	46/50	65
Fuel Tank Capacity(L)	40
Fuel Consumption (L/100km)	6.8	7.3	6.8	7.3
Transmission Type	Manual 5 Speed
Top Speed(km/h)	110	125	110	125
Chassis
Body Type	Semi-integral body
Drive Type	Middle-engine Rear-drive
Brake System	Front disc and rear drum, dual circuit hydraulic brake
F/R Suspension	McPherson independent front suspension, Five-piece leaf spring non-independent rear suspension
Steering System	Mechanical steering(Optional electronic power supply)
Tire	165R14
Body
Color	White / Silver
Standard	1.Electrically Adjusted Headlights   2.Steel Wheel   3.Front / Rear Fender
Internal Configuration
Color	Black Interior
Standard	1.Drive Visor  2.A/C  3.ABS/EBD  4. Radio  5.EIC  6.Saucer  7.Cigar Lighter  8.Ashtray









Option

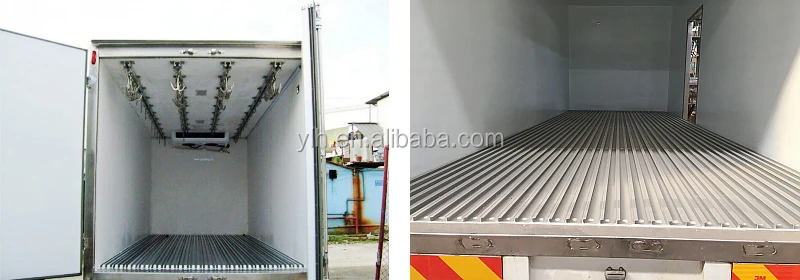

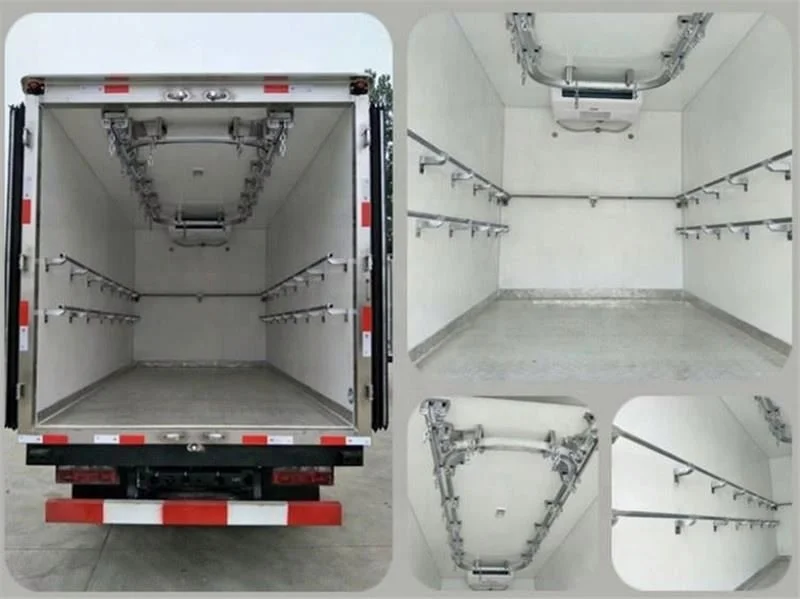

1. The freezer cargo box of Refrigerator truck equipped with meat hook will be reinforced during producing. Clients could select three or four hook rails.

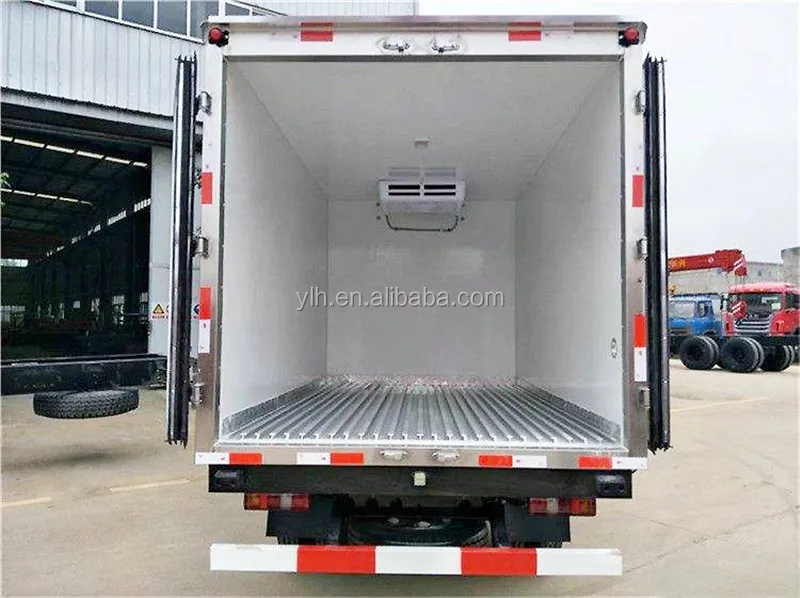

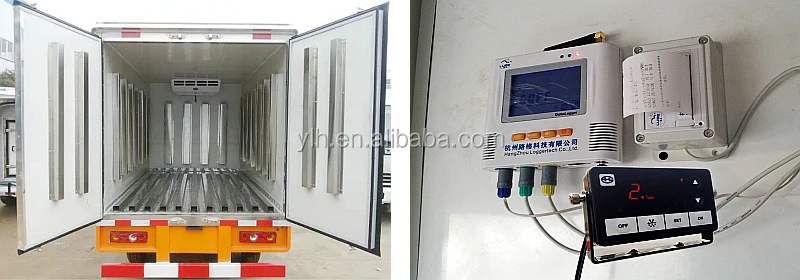

2. T-type air trunking is mainly used for increasing the Cold air circulation effect of the freezer machine. in the freezer box with air trunking, the goods will not be glued to the side wall and the bottom of the box, so that ensure the fresh of goods during long haul. air trunking is made by easier-clean aluminium alloy with simple structure.

1. Accoring to China National drug GSP certificate, drugs is forbidden to touch the interior wall and bottom of truck box. The air trunking of refrigerated vehicle is generally installed in the bottom or other four compartment walls, not install on the ceiling. The air trunking isolation height is requested as 50 mm.

2. The real-time temperature monitoring instrument of the drug refrigerated vehicle can track and record the real-time temperature changes in the refrigerated container throughout the whole process, and the customer can check it at any time through the data network software.

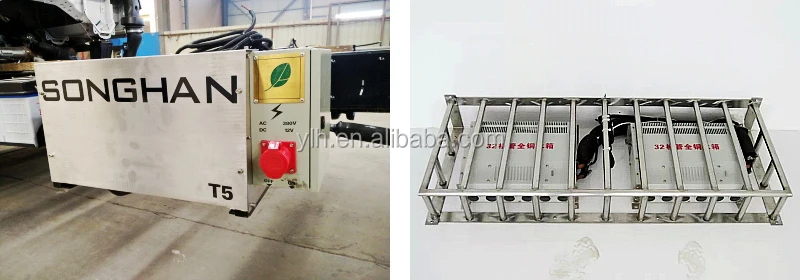

1. During transportation, when the trucks needs rest or if there is not goods unload in time, the external power supply will work. It provide power to the refrigerated unit compressor when the engine stops running, enabling the cargo to maintain the best condition in a constant temperature environment.

2. The heating system of refrigerated truck works through engine cooling liquid. It makes heat recovery to let the cargo box heating through Fully layout air pipe. Drug refrigerated trucks and trucks loaded with fruits and vegetables preheat to 2 to 8 degrees.
