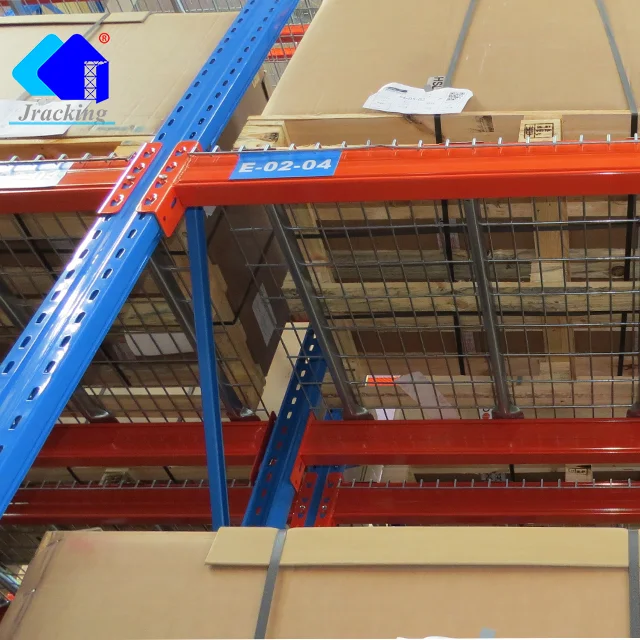

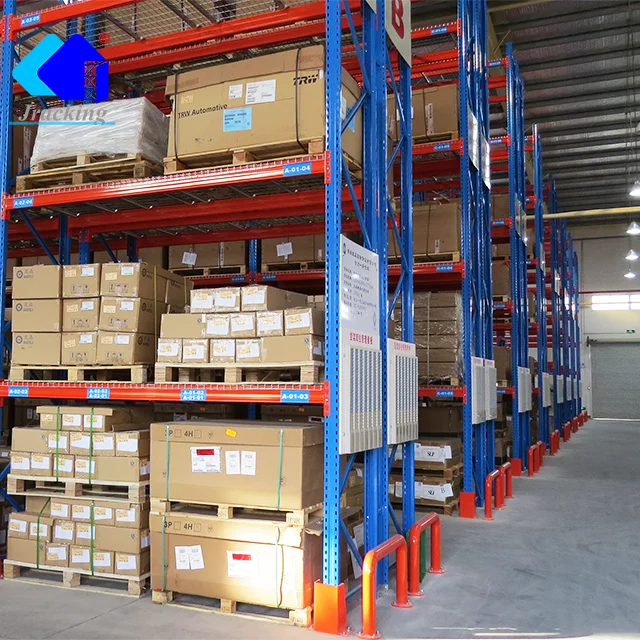

Стальная стойка для поддонов в европейском стиле

50mm pitch pallet rack is the most popular and versatile racking in the industry. It offers the best solutions for warehouses with palletized products and a wide variety of goods. 50mm pitch pallet racks is very popular in the markets of Europe.

Features

1.Lower level pallets can be located on the floor

2.Economical beams can be added for low level sorting

3.Accessories available can be in every unit load type

4.High average locations and good stock rotation

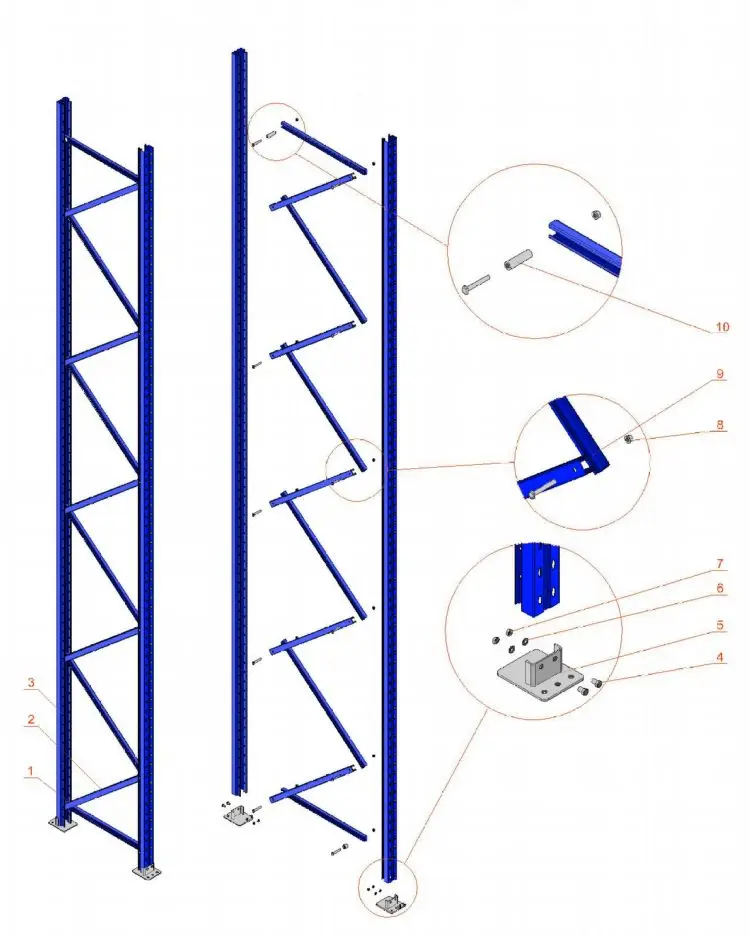

Main Structure

1.Horizontal Bracing

2.Diagonal Bracing

3.Upright Column

4.Bolt for Base-Column Connect

5.Base Plate

6.Bolt Washer

7.Nut Cap

8.Nut Cap for Bracing Connect

9.Bolt for Bracing Connect

10.Sleeve

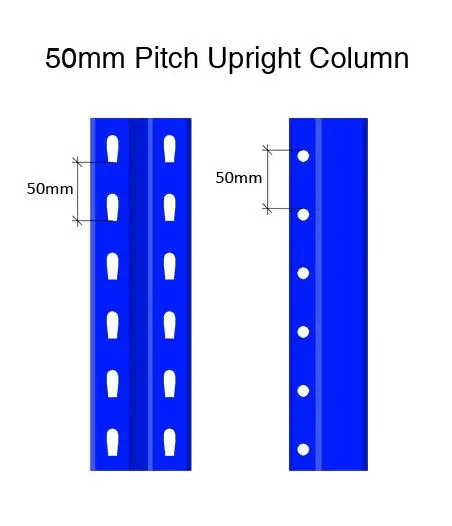

Upright Frame

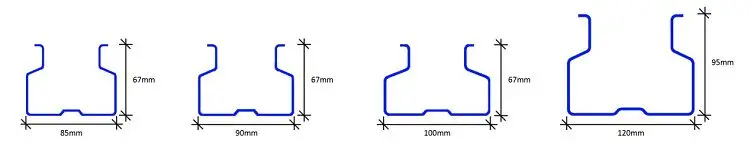

The bolted pallet rack system consists of 2 perforated uprights (standard finish electrostatic epoxy blue RAL 5017). Lattice bracing is made out of roll-out C-shape or tube profiles. The uprights are equipped with base plates and are fixed to the floor by anchoring bolts.

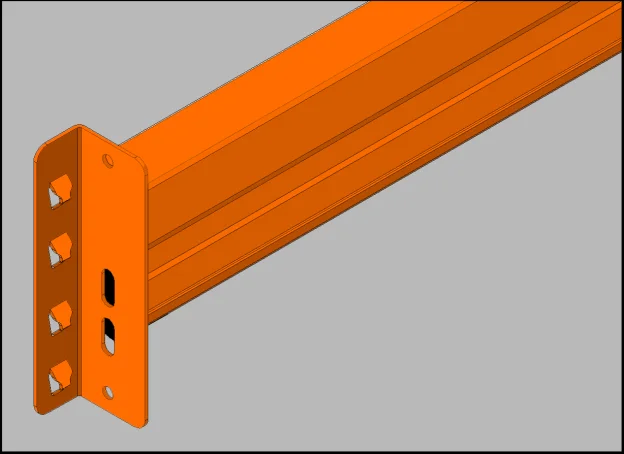

Beam

JRACKING beams consist of hollow profiles with beam end connectors welded to each end to connect with the uprights. Beam end connectors are available with 3 or 4 pins. Beams have an electrostatic epoxy powder coat (standard finish orange RAL 2004). Safety pins are also available to prevent the beams from unhooking.

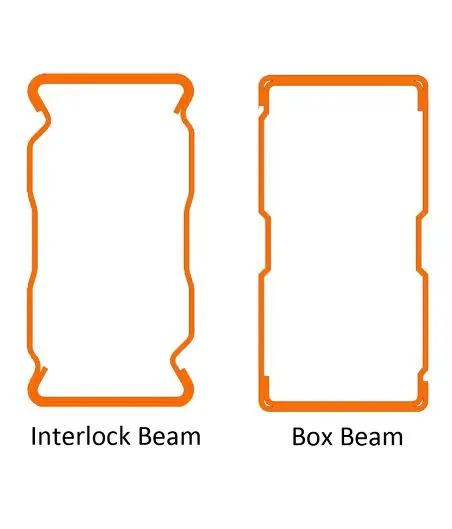

Jracking offers two kinds of section profiles for the beam interlock beam and box beam. Multiple bending points design upgrades the reinforcement to various sized beams, and at the same time, greatly reduced the deformation mechanical side-effect which used to behave on long materials. With the same weight load capability, different profiles will meet the demands in different markets and thus to meet client’s preference.

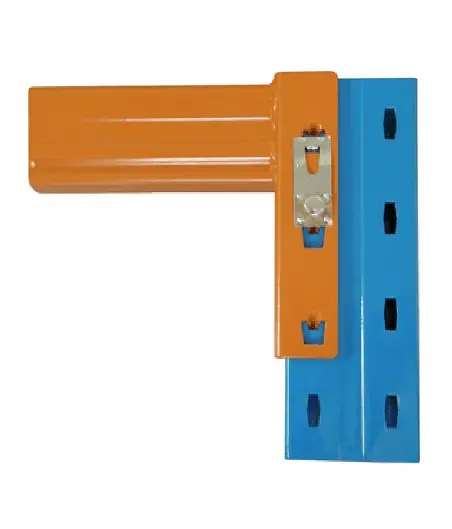

Beam connector

According to section size of beam, 3 or 4 holes hook can be chose to satisfy different capacity needs. Safety lock has been collocated on the connection, locking the beams firmly. Safety lock has been pre-installed at the factory which increases installation work efficiency and avoid safety issues without safety lock.

During the operation, due to the beam impacting by forklift, as long as safety lock does not popup, the beam would be still stuck on the upright. So security risks could be avoided.

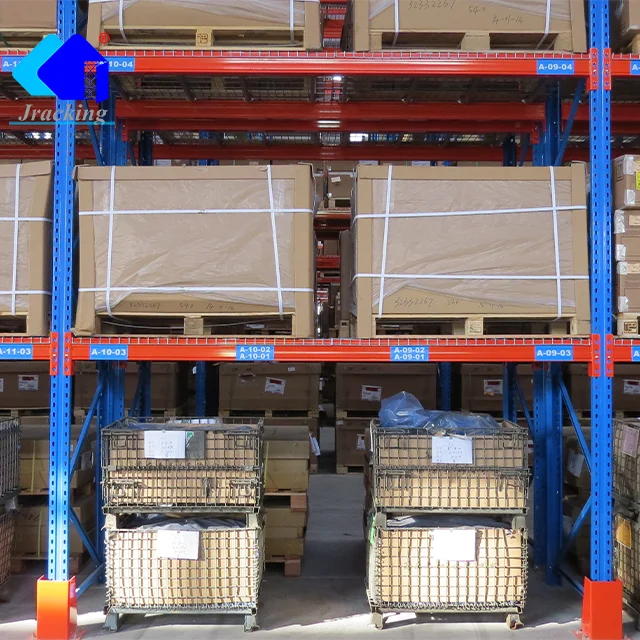

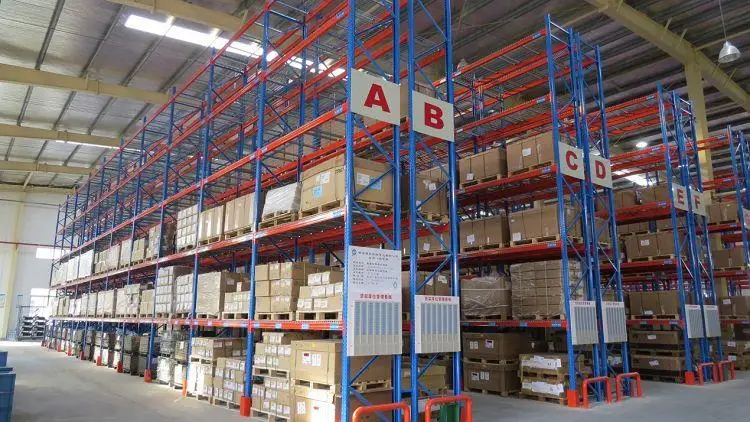

Real Cases

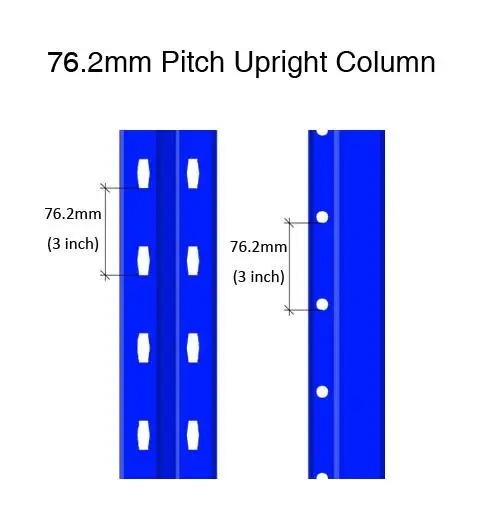

B.76.2 Pitch Australian Standard Heavy Duty Pallet Rack

76.2 pitch pallet racks is very popular in the markets of Australia and New Zealand. Our product ensures high quality standards according to AS 4084: Steel Storage Racking.

Features

1.Individual access to all pallets to full height of warehouse

2.Easy beam adjustment accommodates variable pallet heights

3.Simple stock rotation achieved

4.Compatible with many handling equipment types

Upright Frame

The bolted pallet rack system consists of 2 perforated uprights (standard finish electrostatic epoxy blue RAL 5017). Lattice bracing is made out of roll-out C-shape or tube profiles. The uprights are equipped with base plates and are fixed to the floor by anchoring bolts.

 2019 We are in Promat Chicago:

Jracking strictly implements ISO9001, FEM10.2.02, SEMA, and AS4084-1993 standard in all operations. Jracking offers a wide range of products to meet all of your order fulfillment & material handling needs: Teardrop pallet rack, Dexion pallet rack, European pallet rack and other Work Apparatus. Whether you are looking to populate an entire warehouse or you are in need of a single piece of equipment, Jracking has a solution for you.
