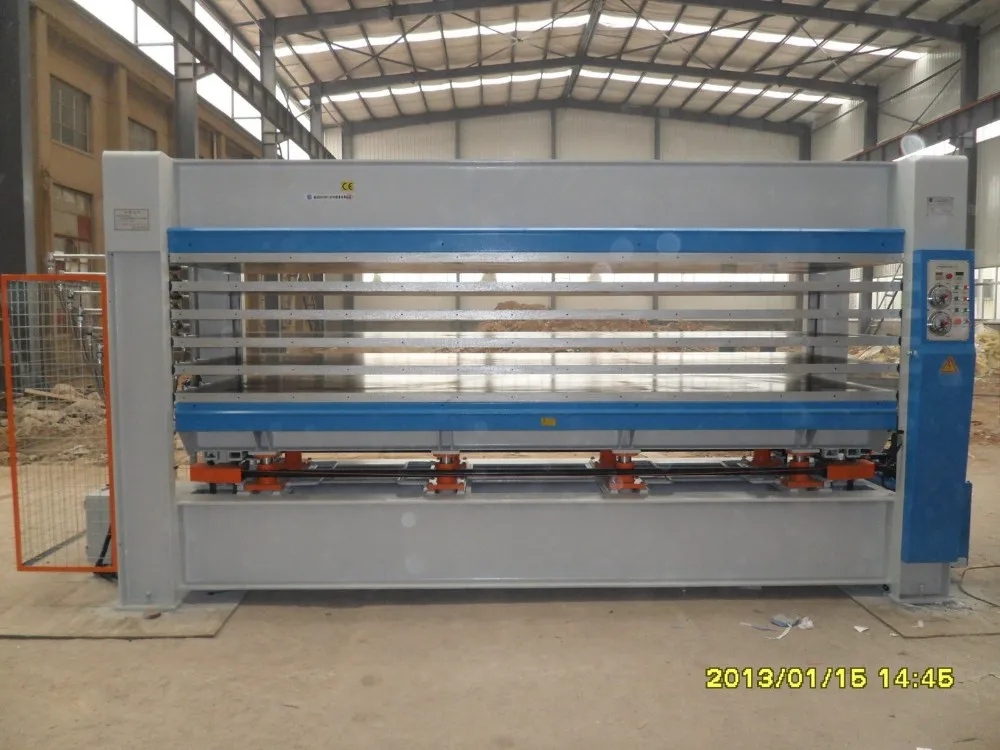

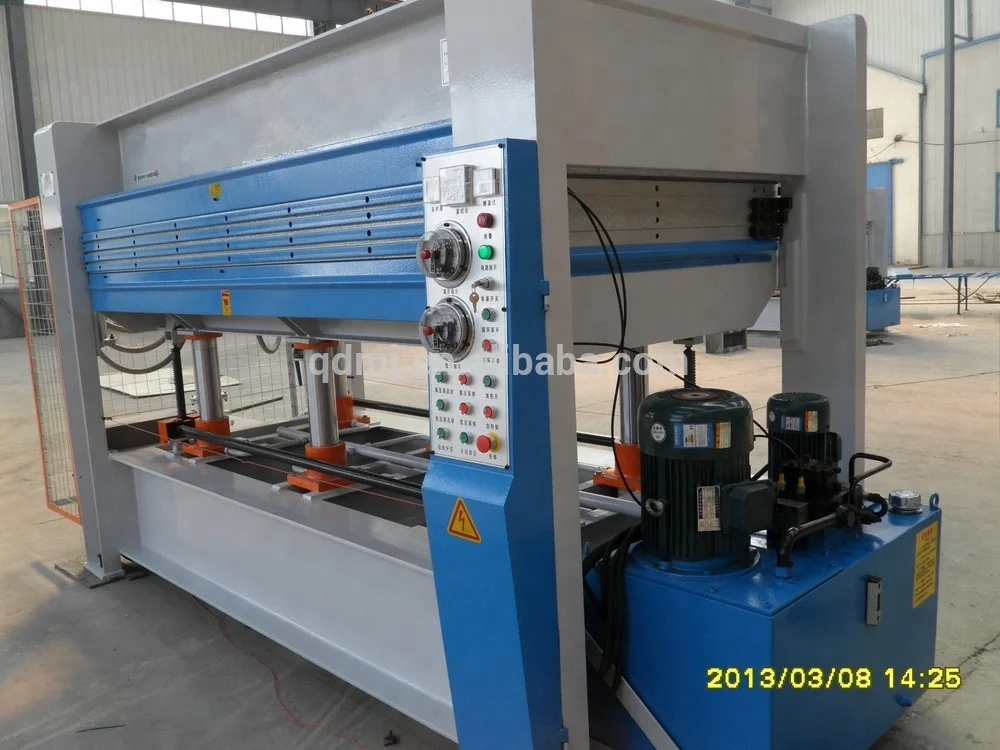

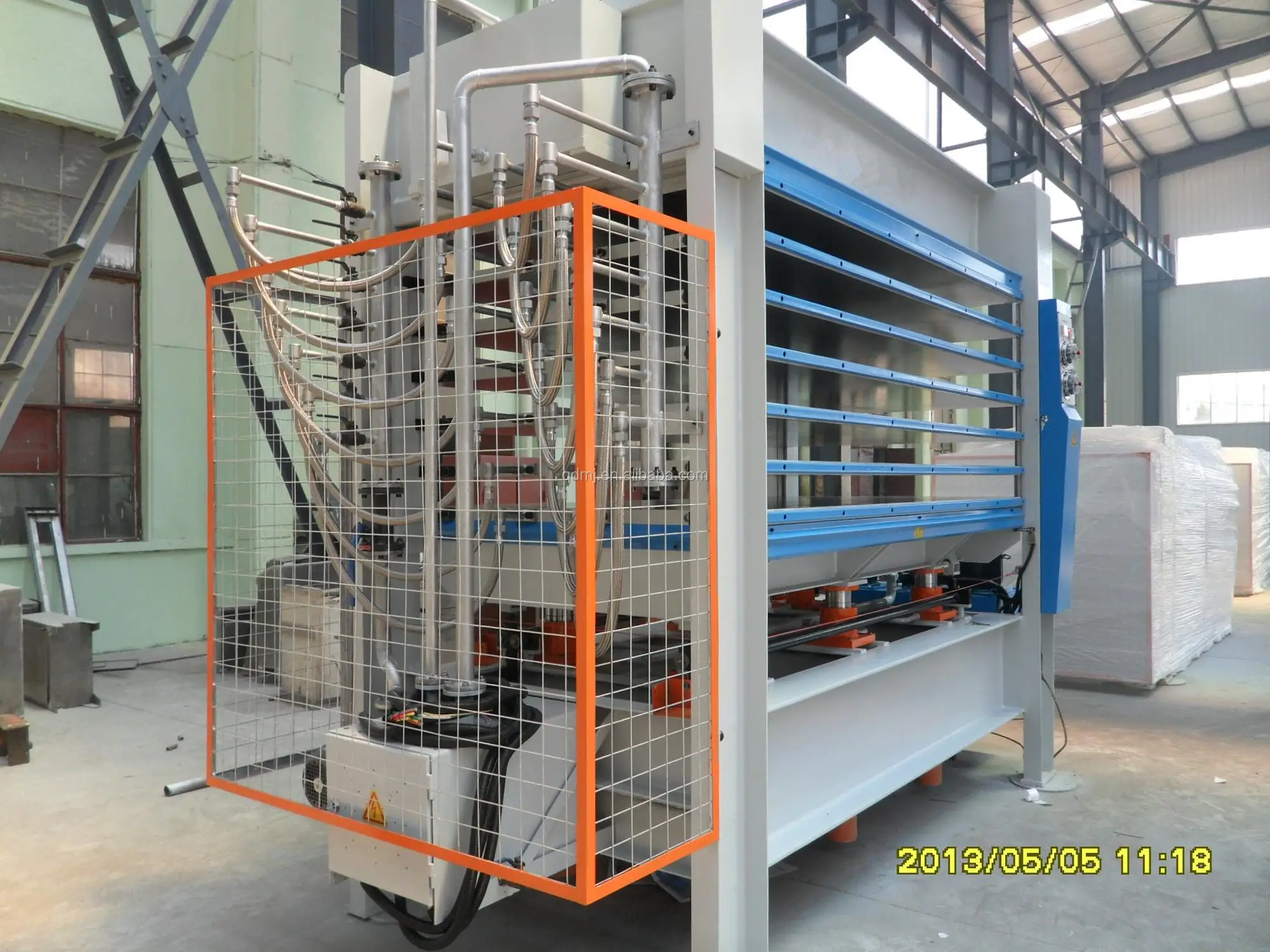

Veneer Laminated Plywood Hydraulic Hot Press Machine
- Category: >>>
- Supplier: Qingdao Haozhonghao Woodworking Machinery Co. Ltd.
Share on (62548051975):
Product Overview
Description
Product Description
Hot press machine is fit for the furniture factory or panel decorative plant, which can make lamination for panel, such as
wooden door, core board, MDF, Plywood, chipboard with all kinds of decorative paper HPL or veneer. It can also be used for drying or leveling veneer.
wooden door, core board, MDF, Plywood, chipboard with all kinds of decorative paper HPL or veneer. It can also be used for drying or leveling veneer.
Model | BY214*8/160(3)H |
Total pressure | 160T |
Feeding direction | Transversal |
Dimension of hot platen | 2500*1300*42mm |
Number of layers | 3 |
Opening | 100mm |

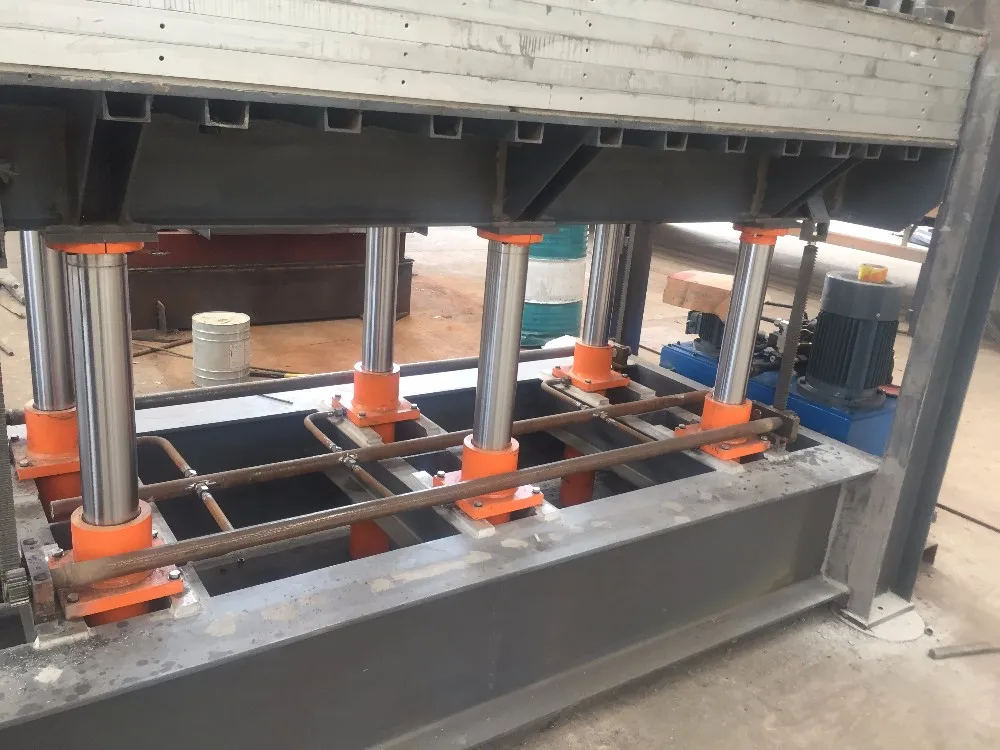

Diameter & stroke of Oil cylinder | 100mm* 300mm |
Number of cylinders | 8 |
Low pressure pump flux | 63L/min |
High pressure pump flux | 2.5L/min |
Heating medium | Steam or thermal oil |
Frame structure | Composite |
Working pressure of high pump | 25Mpa |
Total power | 6kw |
Overall dimension (Approx) | 3750*1450*2450mm |
Net Weight | 12800kgs |
Certifications
Related Products
Packing & Delivery
loading in container | ||
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
FAQ
Qingdao Haozhonghao Woodworking Machinery Co., Ltd. previously was Qingdao Woodworking Machinery Manufacturing Company, and was established in 1958.
With more than 50 year experience in making woodworking machines, our main products are Sanding Machine, Panel Saw, Guillotine, Veneer Slicer and Grinder. We firstly put BB1342 vertical slicer into the market in China. We developed BB1135B Horizontal Veneer slicer by integrating the internal and international technologies, the max slicing width reaches 1300mm. We are the first company which was certified by ISO9001 in the industry, and also a hi-tech enterprise in Qingdao.
Our website is www.qdmj.com; you could get more information about our company and our products.
What is the Warranty of machine?
Machine supplied quality guarantee period: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.What is the working of knife grinding ?
Usually is 1500-4500mm. Also It is changeable according to clients requests.
Why choose HAOZHONGHAO?
1,Professional: We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Panel Saw, Veneer Slicer and Grinder.
2,Excellent: Established in 1958, ISO9001 certificated, CE certificate
3,Economial: We offer the good price with great quality because we do high-volume production manufacturer.
4 Location: One hour reach Qingdao sea port
