Product Overview
Description
Product Description
We need six machines to finished the production

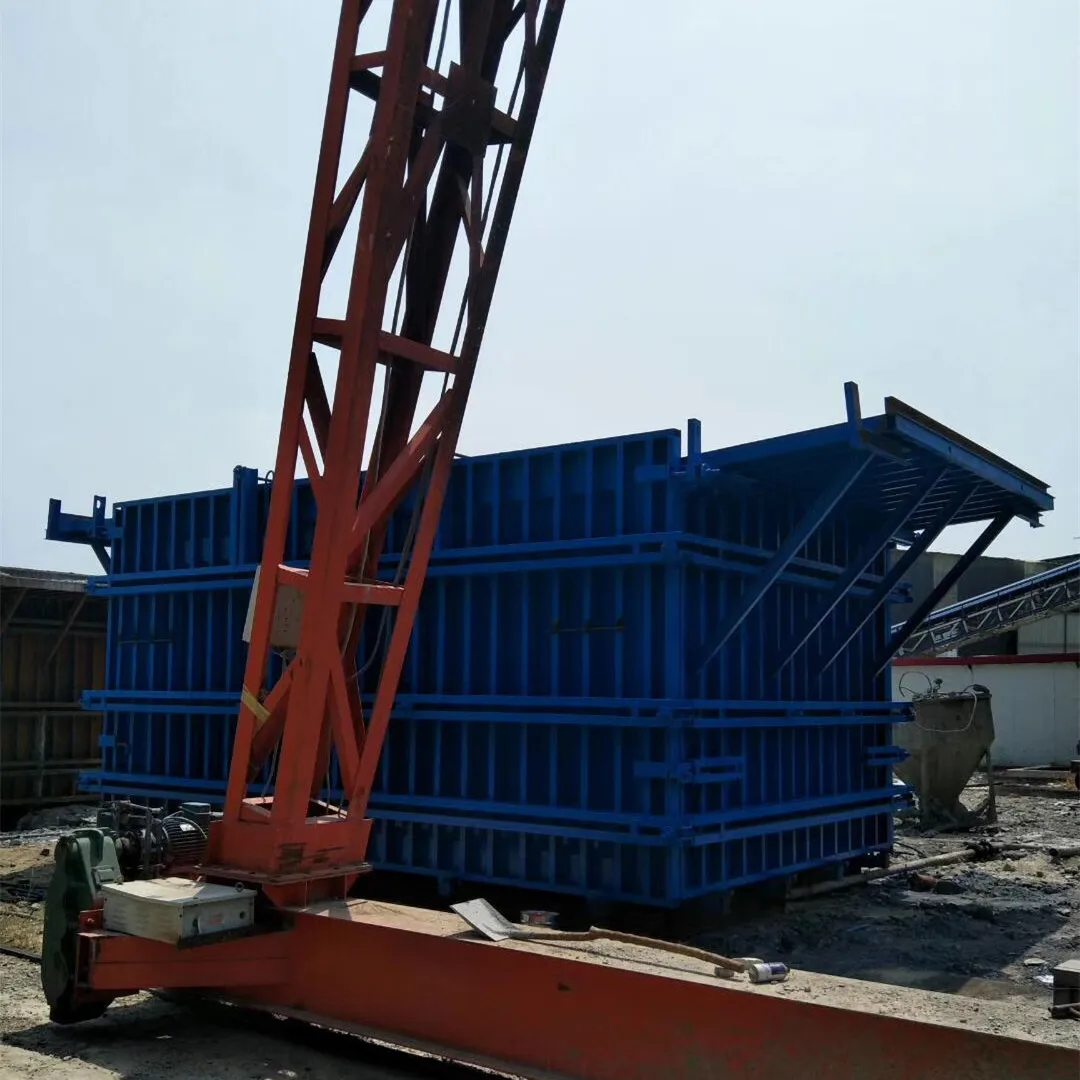

Parameters | House Forming Machine (Type: TC8010) |
Principle | Hydraulic |
Automation | Semiautomatic |
Production Method | RC Filling |
Forming Time | 2-3Hours |
Machine Material | Full Steel |
Side Sheet | Slidable |
Inner Box | Shrinkable |
Weight | 17000-23000KG |
Size | 3*6m, 3.3*6.6m, 3.6*7.2m |
Can Be Customized | Yes |

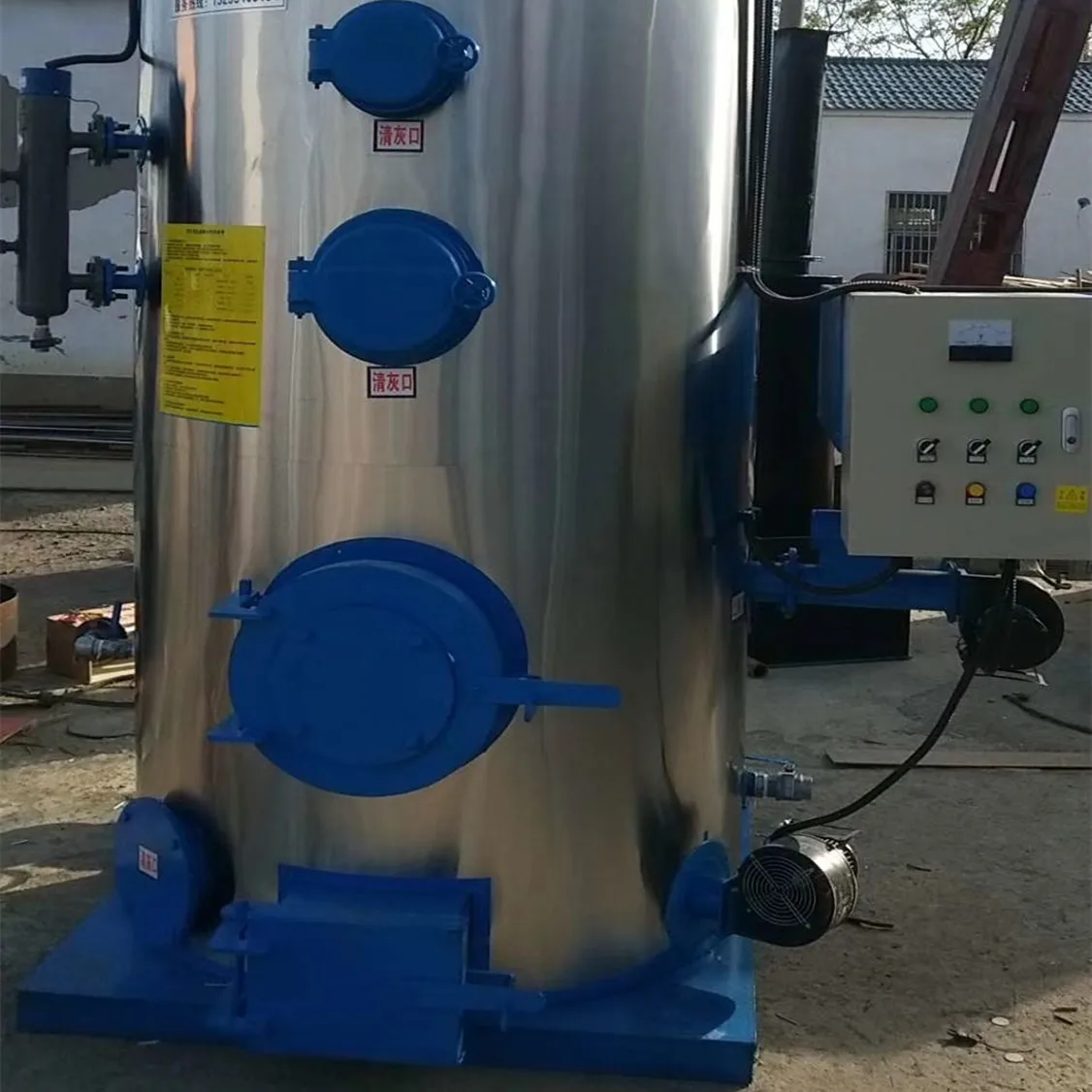

Parameters | House Quick-solidifying Machine A (Type: TC8021) | House Quick- solidifying Machine B (Type: TC8022) |
Efficiency | 500kg/h Evaporation | 1000kg/h Evaporation |
Preset pressure | 0.7Mpa | 0.7Mpa |
Temperature | 170 celsius | 170 celsius |
Voltage | 380V | 380V |
Power | 1.4kw | 3.3kw |
Weight | 2500kg | 4500 kg |
Size | Diameter 1m, Height 2.6m | Diameter 1.5m, Height 2.8m |

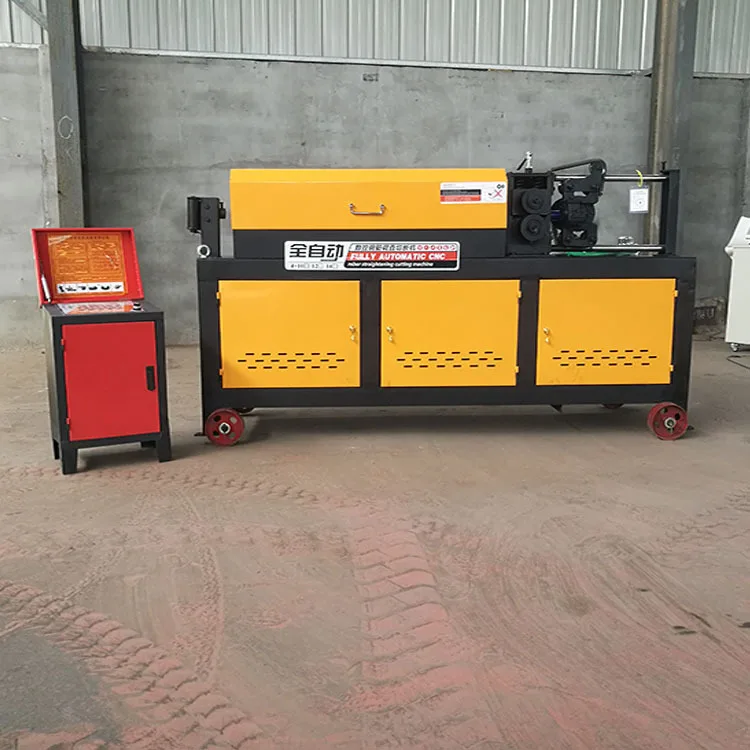

Parameters | CNC Rebar Processing Machine (Type: TC8030) |
Processing Speed | 20-40m/min |
Processing Diameter | 4-14mm Rebar |
Rebar Type | Round Rebar, Deformed Rebar |
Principle | Hydraulic |
Control System | CNC |
Voltage | 380v |
Power | 9kw |
Machine Size | 200*75*110cm |
Weight | 900kg |
Concrete Mixing Plant
Parameters | Concrete Mixer A (Type: TC8041) | Concrete Mixer B (Type: TC8042) | |
Feed Volume | 800L | 1600L | |
Discharge Volume | 500L | 1000L | |
Efficiency | 25 m3/h | 50 m3/h | |
Rotating Speed | 35 r/min | 25 r/min | |
Aggregate Size | Max 80mm | Max 80mm | |
Blades | 14 pcs | 20 pcs | |
Voltage | 380 v | 380 v | |
Power | 18.5 kw | 37 kw | |
Machine Size | 428*279*651mm | 877*344*654cm | |
Weight | 3900 kg | 8750kg |

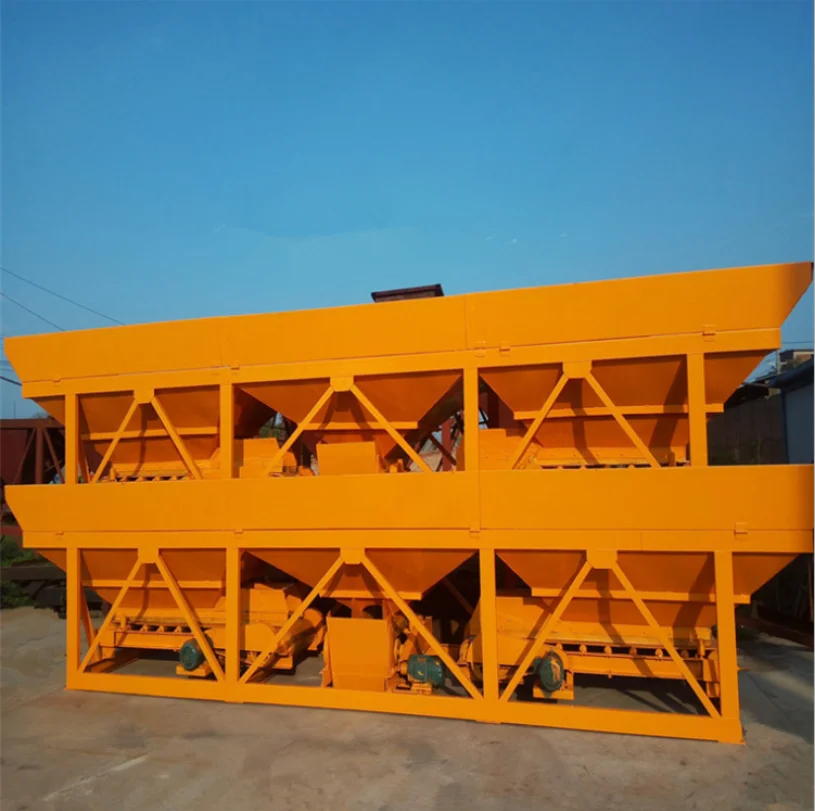

Parameters | Batching Machine A (Type: TC8051) | Batching Machine B (Type: TC8052) |
Weighing Volume | 800L | 1200L |
Storage Hopper | 5m3 | 7m3 |
Efficiency | 48m3/h | 60m3/h |
Batching Error | ±1% | ±1% |
Max Weighing Value | 3000kg | 4000kg |
Transfer Speed | 1m/s | 1.25m/s |
Voltage | 380V | 380V |
Power | 12kw | 16kw |
Machine Size | 560*183*270cm | 900*250*350cm |
Weight | 2450kg | 4500kg |

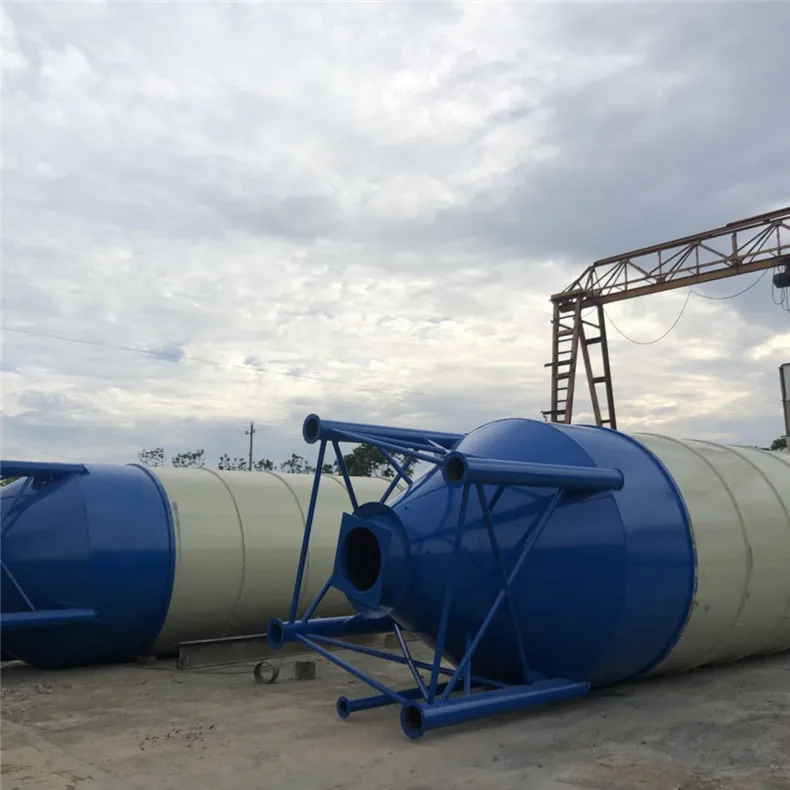

Parameters | Assembled Storage Tank A (Type: TC8061) | Assembled Storage Tank B (Type: TC8062) | |
Storage Weight | 80 tons | 150 tons | |
Volume | 60 m3 | 111 m3 | |
Diameter | 280cm | 320cm | |
Straight Segment height | 900cm | 1350cm | |
Total Height | 1105cm | 1584cm | |
Trestle Height | 300cm | 300cm | |
Steel Thickness | 6mm | 8mm |
- Concrete modular house features
1)The cost of building houses is low
2)Extreme speed of construction
3)Earthquake resistance
4)Wind-resistant.
5)Long life
2)Extreme speed of construction
3)Earthquake resistance
4)Wind-resistant.
5)Long life
6)Fire retardant
7)Sound insulation
8)Insulation
9)Energy-saving and environmentalprotection

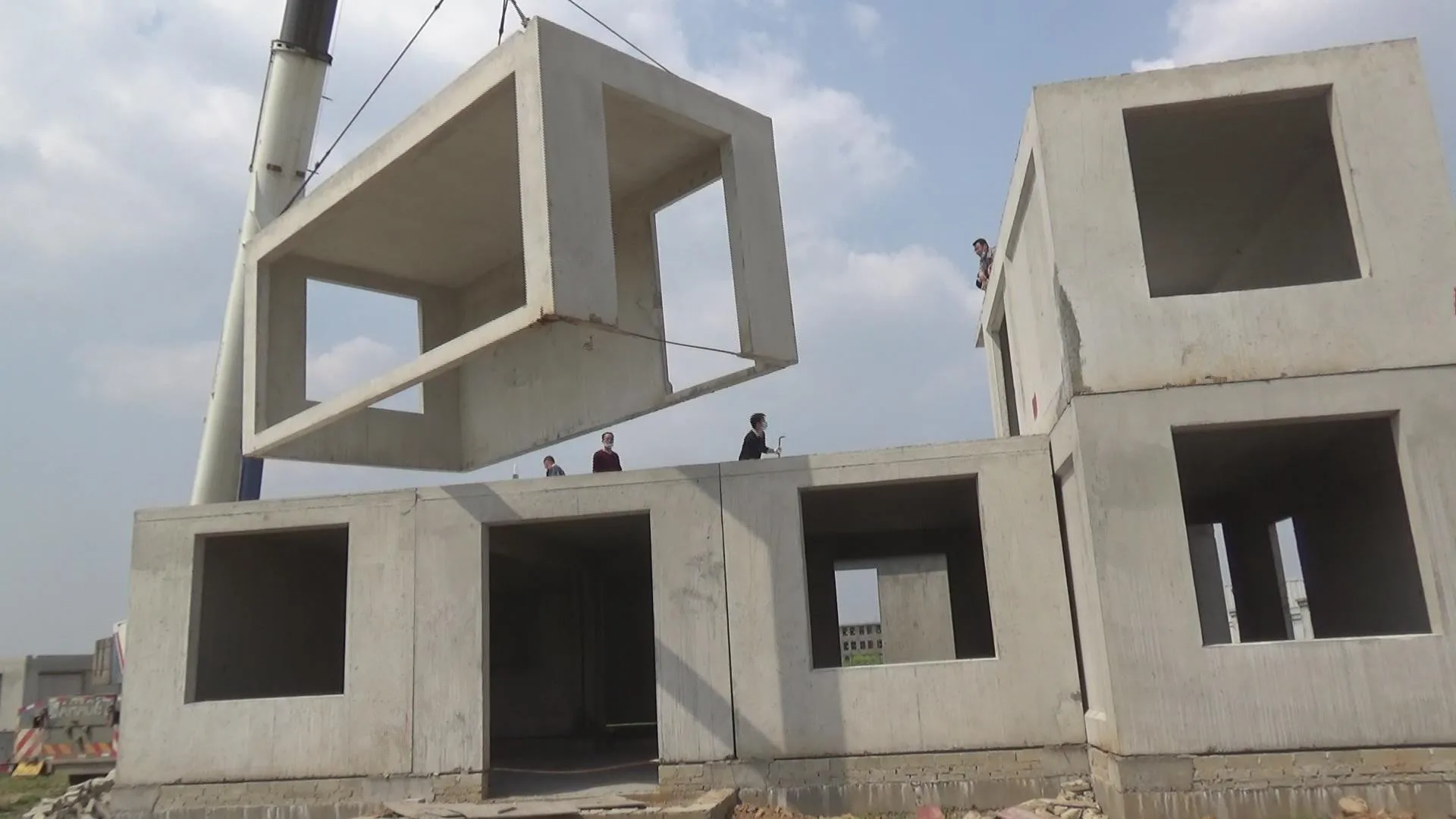

10)Flexible assembly
7)Sound insulation
8)Insulation
9)Energy-saving and environmentalprotection
10)Flexible assembly
Detailed Images
Accessories And Tools:
Concrete Hopper 、Welder 、Wire Tope 、U-shaped Buckle 、Vibrating Rod、Cover Box .... And Others.

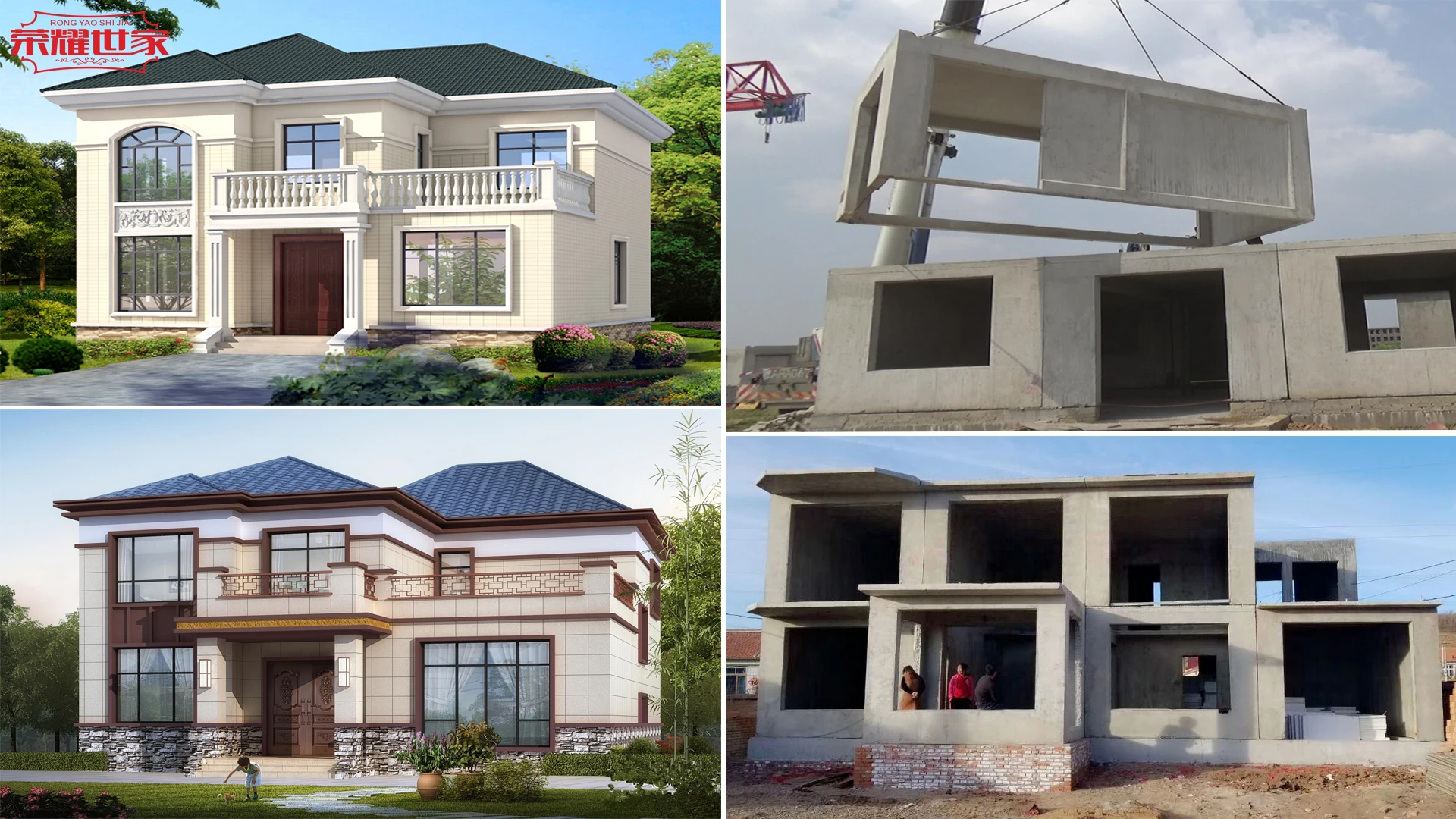

The production process of concrete modular house
1.Processing the rebar by CNC rebar Machine ,and weave the rebar （reinforcement）into grid and cover it on the inner chassis of forming machine.
2.Producing the concrete by the concrete machines.

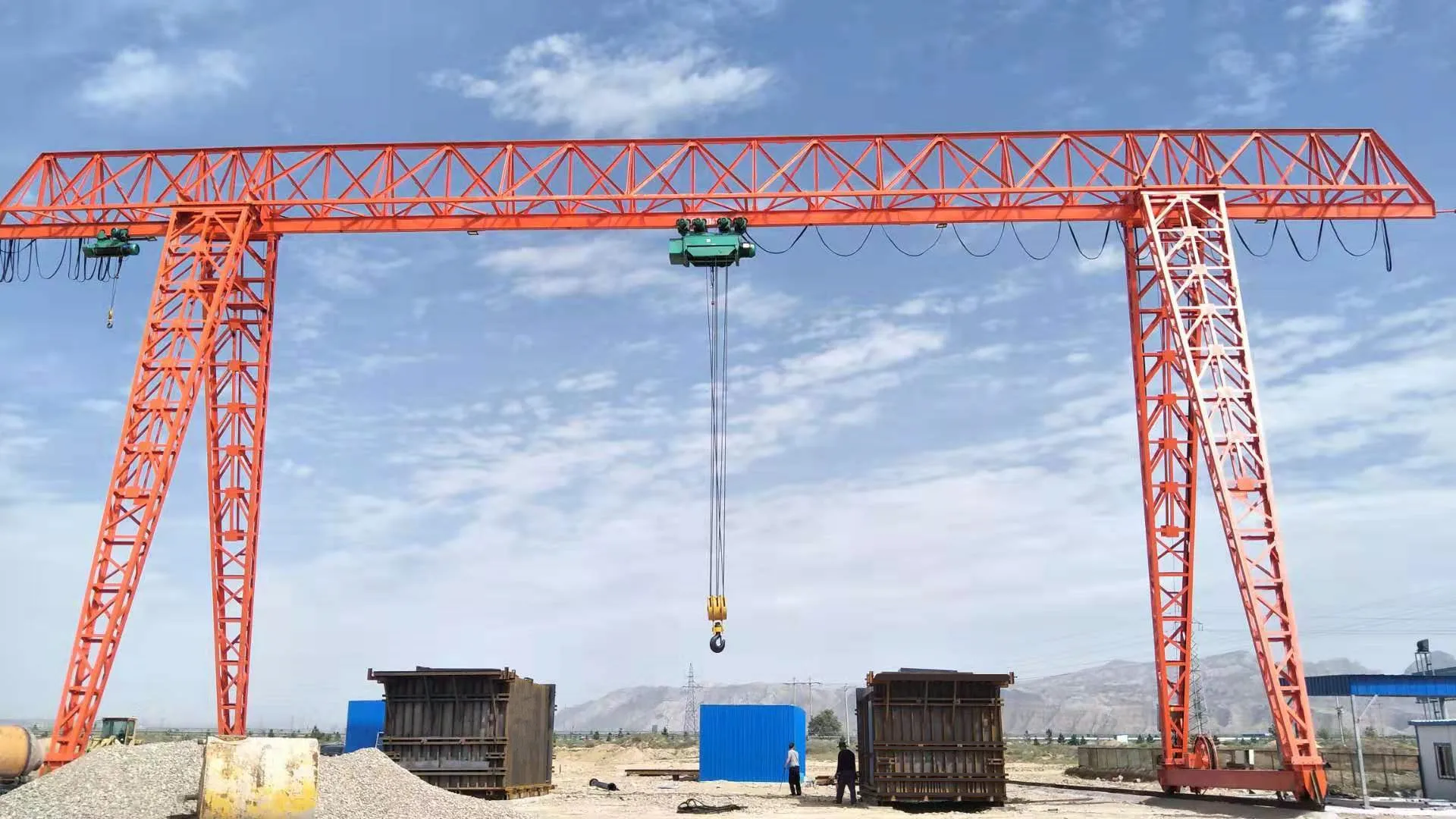

3.Adjust the forming machine, and use the gantry crane and hopper to hoist the concrete and pour into the machine until it is full
4.Cover the forming machine with the cover of quick-solidifying machine,and then turn on quick-solidifying machine to make the concrete solidify quickly .

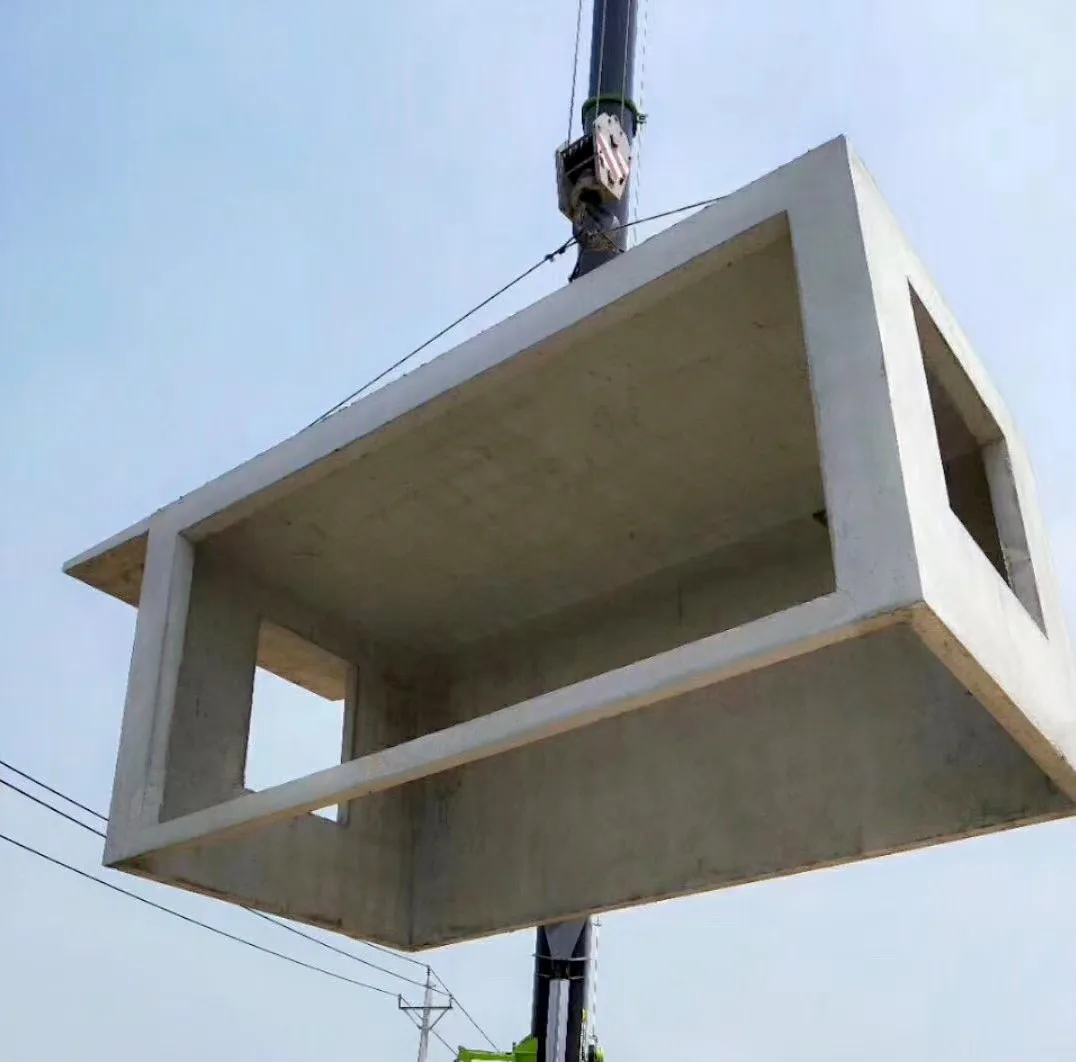

5.After 2-3 hours, a unit modular house is finished, pull open the side sheet of forming machine, adjust inner chassis shrink to detach the wall of house. Use the gantry crane hoist the house and store it.
2.Producing the concrete by the concrete machines.
3.Adjust the forming machine, and use the gantry crane and hopper to hoist the concrete and pour into the machine until it is full
4.Cover the forming machine with the cover of quick-solidifying machine,and then turn on quick-solidifying machine to make the concrete solidify quickly .
5.After 2-3 hours, a unit modular house is finished, pull open the side sheet of forming machine, adjust inner chassis shrink to detach the wall of house. Use the gantry crane hoist the house and store it.
We can purchase tool equipment for our customers or can be search and purchase locally

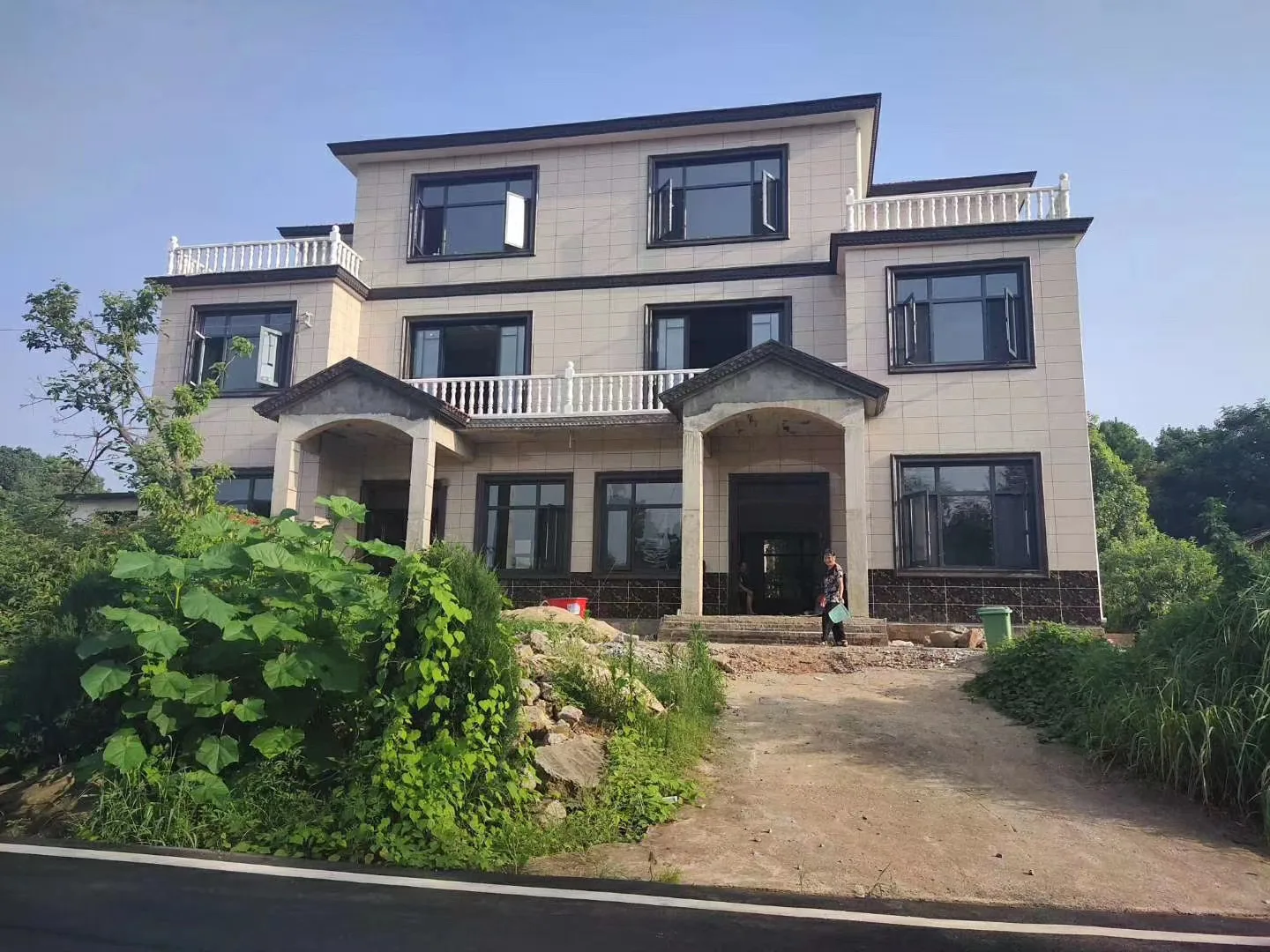

Show room
Advantage
It is characterized by earthquake resistant and wind resistant, moisture proof and fireproof , sound insulation and heat insulation.
Compared with traditional brick and concrete houses, the main advantages of concrete modular houses are low construction cost, good earthquake resistance, long service life, fast construction speed, labor saving , long lifetime, no leaving construction rubbish, and can be removed when demolition. It is in line with the development direction of environmental protection construction advocated by the world.
Compared with traditional brick and concrete houses, the main advantages of concrete modular houses are low construction cost, good earthquake resistance, long service life, fast construction speed, labor saving , long lifetime, no leaving construction rubbish, and can be removed when demolition. It is in line with the development direction of environmental protection construction advocated by the world.
Our Service
We will provide:
1)debugging equipment and technical training,
2)teaching customers to produce, design and assemble houses, let our client produce and sell the house locally
Packing&Shipping
Company Introduction

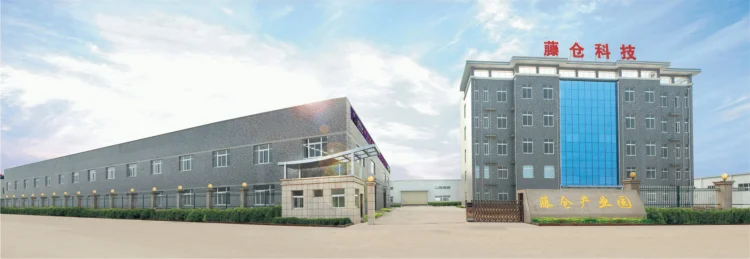

Hubei Tengcang building material technology company have built a new five-star Industrial Park, covering 23,000 square meters, located in the "Dongyong hometown"Wuhan city circle Hubei Xiaogan city National High-tech Development Zone, with research buildings, office buildings, standardized plant and automation equipment and other hardware facilities .we have more than 100 Scientific and technical staff, are specialized in producing the new decorative materials, construction materials, building materials ,building equipment and opto-electrical devices entity enterprise
FAQ
1.What are your terms of delivery?
We accept EXW, FOB, CFR, CIF, etc. You can choose the one which is the most convenient or cost
effective for you.
2.Are you factory or trading company?
We are manufacturers
3. How big land I need to get for build a factory?
The land size should be 80m*40m at least.
4. Does the concrete module can be customized to be any size?
Yes, it can be customized, the general sizes of one concrete module are:
effective for you.
2.Are you factory or trading company?
We are manufacturers
3. How big land I need to get for build a factory?
The land size should be 80m*40m at least.
4. Does the concrete module can be customized to be any size?
Yes, it can be customized, the general sizes of one concrete module are:
Width*length: 3*6m, 3.3*6m, 3.3*6.3m, 3.3*6.6m, 3.5*7m, 3.6*6m, 3.6*6.6m, 3.6*7.2m.
Height: 2.8m,3m,3.2m,
Length of eaves: 0-1.5m.
