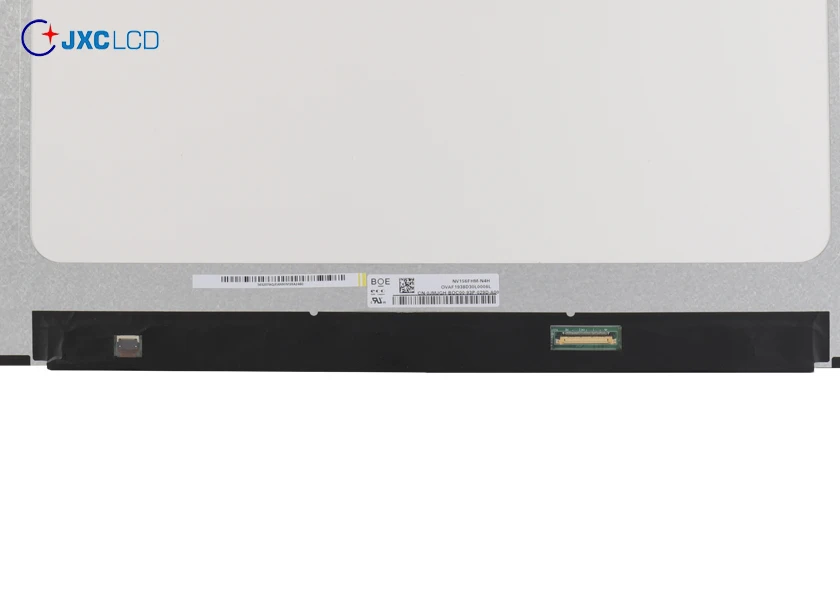

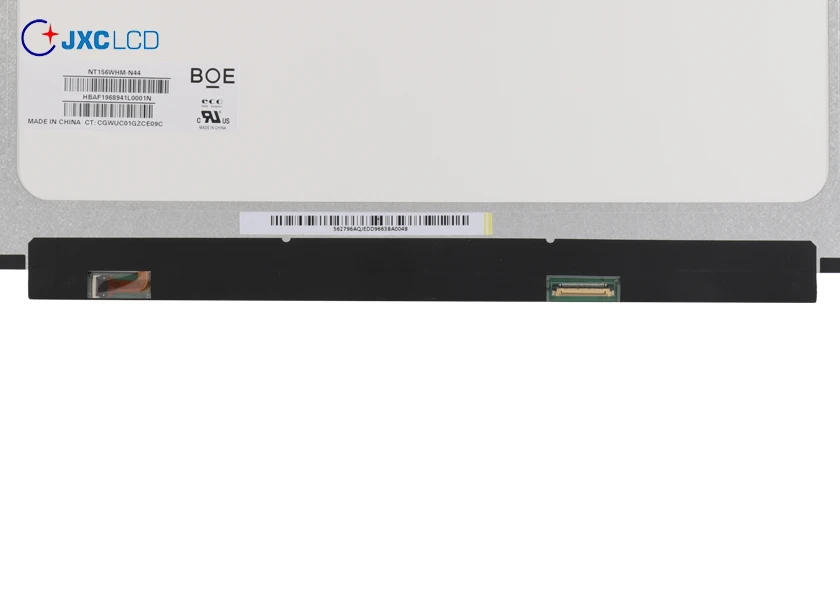

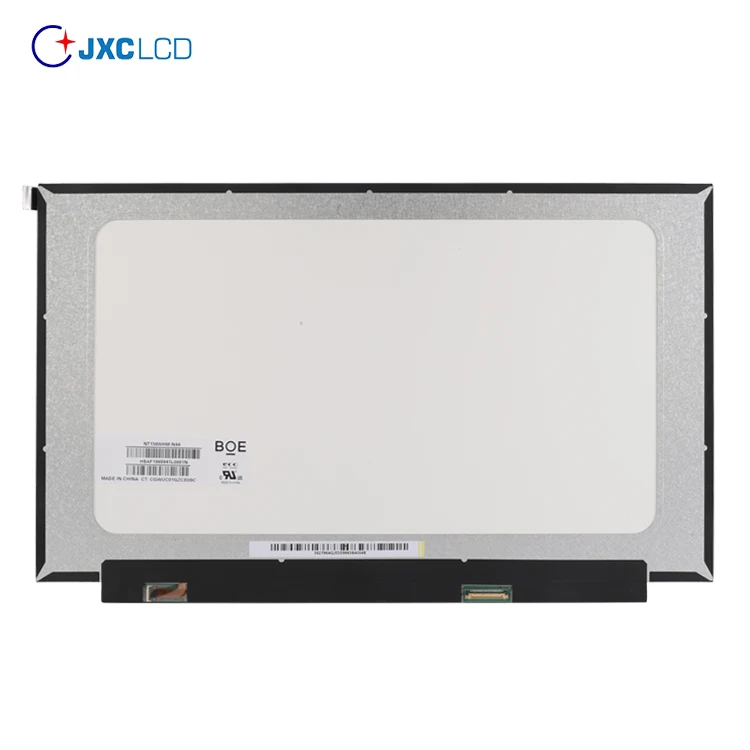

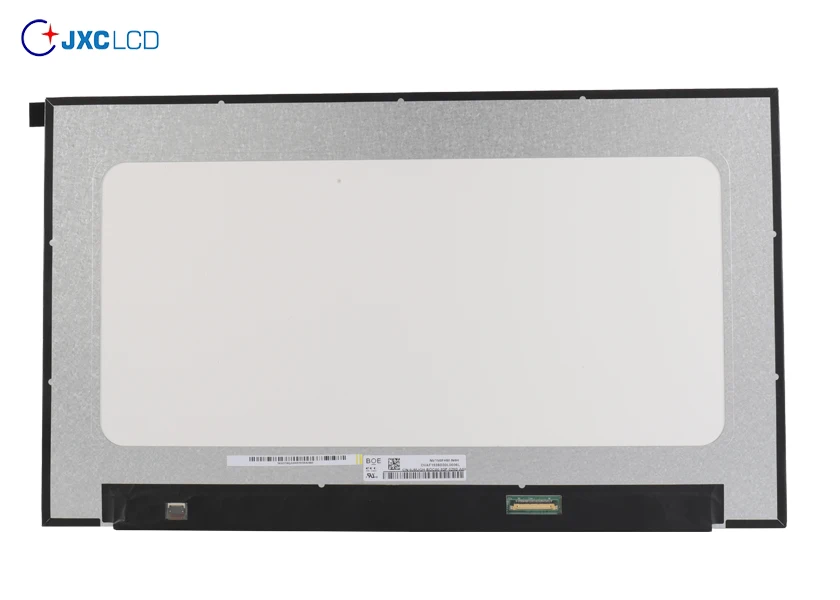

Original new wholesale laptop led panel screen NT156WHM N34 slim 30pin
- Category: Laptop Accessories >>>
- Supplier: Shenzhen Jingxingcheng Technology Co. Ltd.
Share on (62548071076):
Product Overview
Description
Panel BrandBOEPanel ModelNT156WHM-N34 (BOE076F)
Panel Size15.6"Panel Typea-Si TFT-LCD, LCM
Resolution1366(RGB)×768 , WXGA Pixel FormatRGB Vertical Stripe
Display Area344.232(W)×193.536(H) mmBezel Opening-
Outline Size350.66(W)×216.25(H) ×3.2(D) mmSurfaceHard coating (3H)
Brightness220 cd/m² (Typ.)Contrast Ratio400:1 (Typ.) (TM)
Viewing Angle45/45/20/40 (Typ.)(CR≥10) Left / Right / Up / DownDisplay ModeTN, Normally White, Transmissive
Best View on6 o'clockResponse Time12 (Typ.)(Tr+Td)
Display Colors262K 45% NTSCLamp Type9S4P WLED , 15K hours , With LED Driver
Frequency60Hz [Panelook copyright, copy is strictly prohibited]
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC CircuitTouch ScreenWithout
Shape StyleSlim (PCBA Flat, T≤3.2mm)ApplicationLaptop
Signal InterfaceeDP (1 Lane) , eDP1.2 , 30 pins Connector
Input Voltage3.3V (Typ.)
EnvironmentOperating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
| Brand | Size | Modle | QIY | Grade |
| BOE | 15.6 | NT156WHM-N45-A | 996 | A |
| BOE | 14 | NV140FHM-N4B-A | 344 | A |
| BOE | 15.6 | NT156WHM-N50-A | 3192 | A |
| BOE | 14 | NT140WHM-N31-A | 1438 | A |
| BOE | 15.6 | NT156WHM-N32-A | 2520 | A |
| BOE | 15.6 | NT156WHM-N42-A | 1260 | A |
| BOE | 15.6 | NT156WHM-N50-A | 912 | A |
| BOE | 14 | NT140WHM-N31-G | 13 | Q |
| BOE | 15.6 | NT156FHM-N41-T | 105 | T |
| BOE | 15.6 | NT156FHM-N41-G | 145 | Q |
| BOE | 15.6 | NT156WHM-N42-G | 28 | Q |
