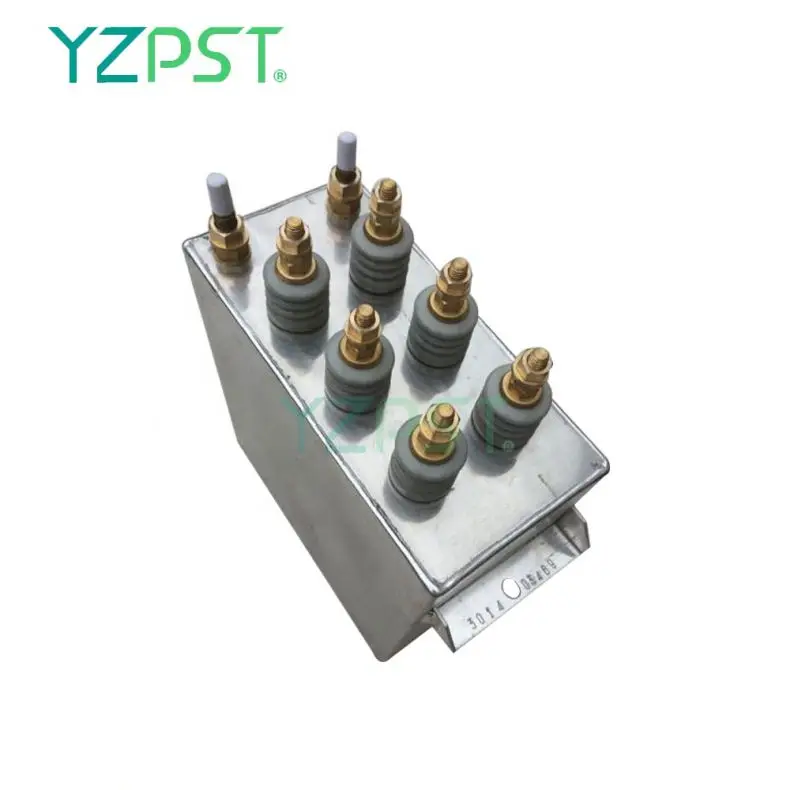

Film 1.7KV electric heating capacitors 3000Kvar

RFM series electric heating capacitors
YZPST-RFM1.7-3000-0.5S

The electric heating capacitor is obtained by roughening the polypropylene film and immersing it in a high-performance liquid as a composite medium, and a high-purity aluminum foil as an (electric) plate; the outer casing is a rectangular aluminum alloy fuel tank, which is often equipped with a water-cooled tube. Mainly used in controllable or adjustable AC power systems with rated voltages up to 3.6kV and frequencies of 50kHz and below, specifically designed to improve power factor in induction heating, melting, agitation or casting applications and similar applications.

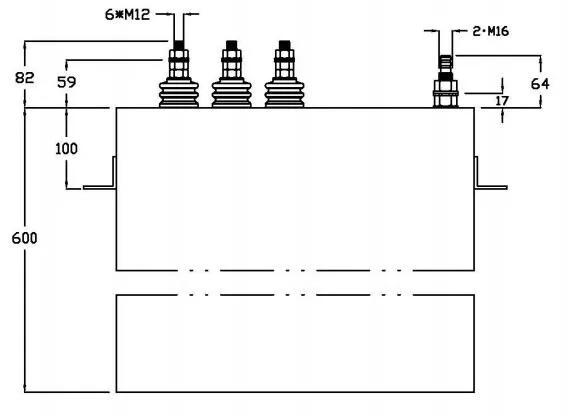

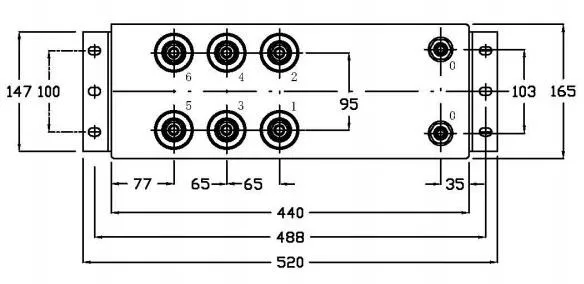

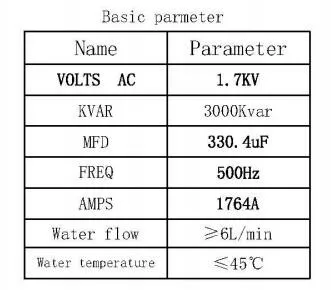

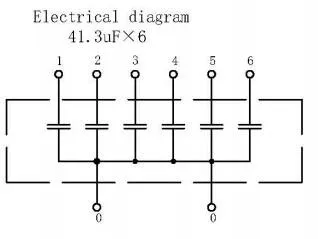

Specification:
