Gantry type heavy duty cnc plasma cutting machine china from TAYOR
Heavy duty, precision machine, duty cycle for large size sheet metal cutting
Product Detail
| Machine | gantry type plasma cutting machine |
| cutting model | plasma and oxyfuel |
| cutting material | mild steel, stainless steel, aluminium |
| Driving Motor | Panasonic/Yaskawa |
| CNC Controller | EDGE CONNECt, LKNC-3200 |
| Plasma Power | Hypertherm, Kjellberg, Victor, ESAB |
| Programming Software | Fastcam, SmartNest, Hypertherm |
| cutting size | customization |
| plasma cutting thickness | 1-80mm (customization) |
| flame cutting thickness | 4-150mm(standard), 4-500mm ((customization) |
| Product Keywords | cnc plasma cutting machine china,cnc plasma cutting and drilling machine |

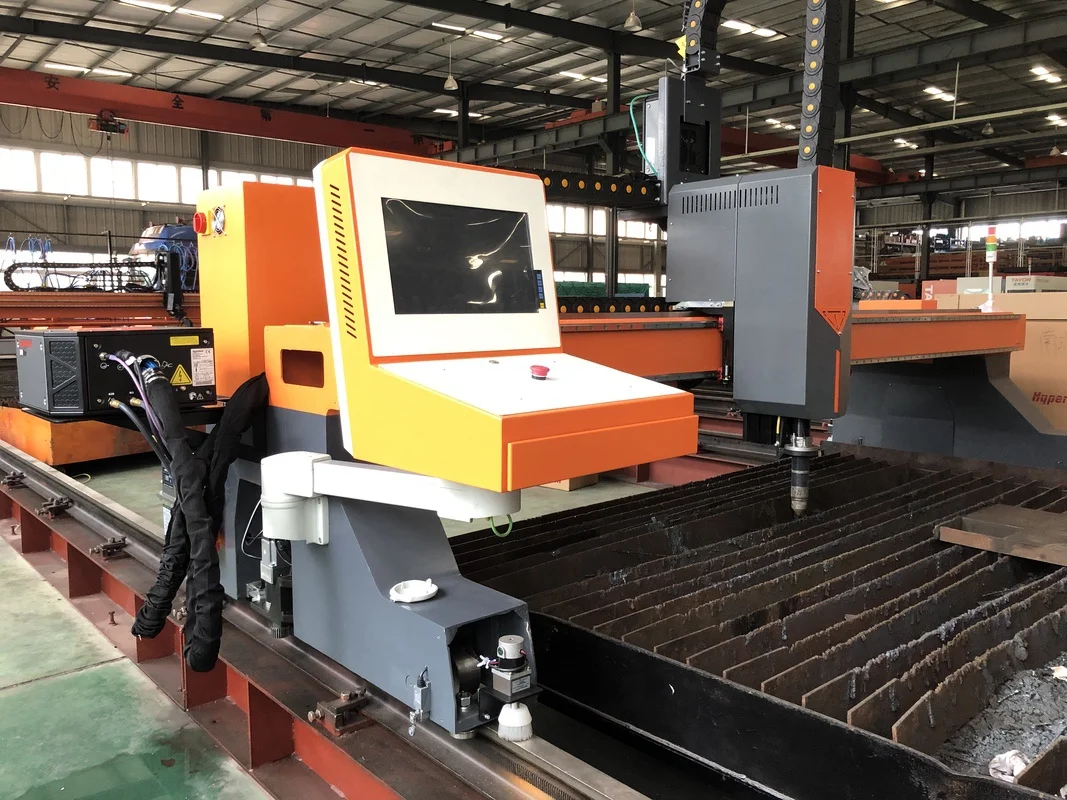

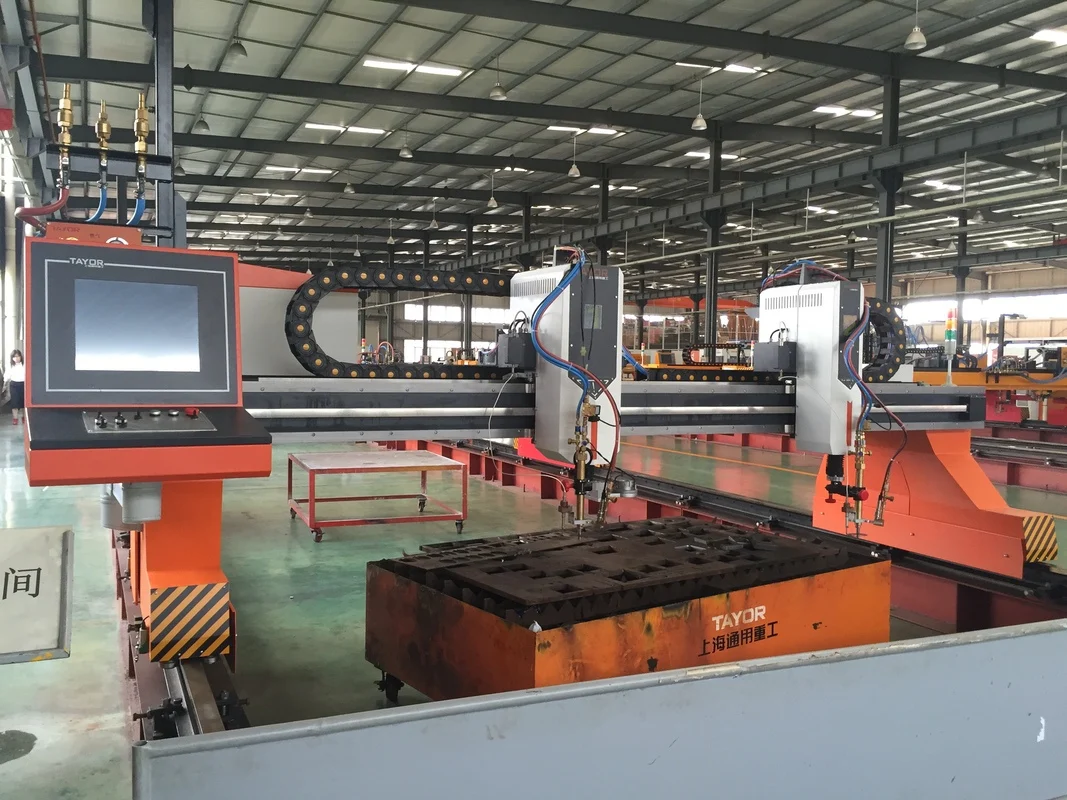

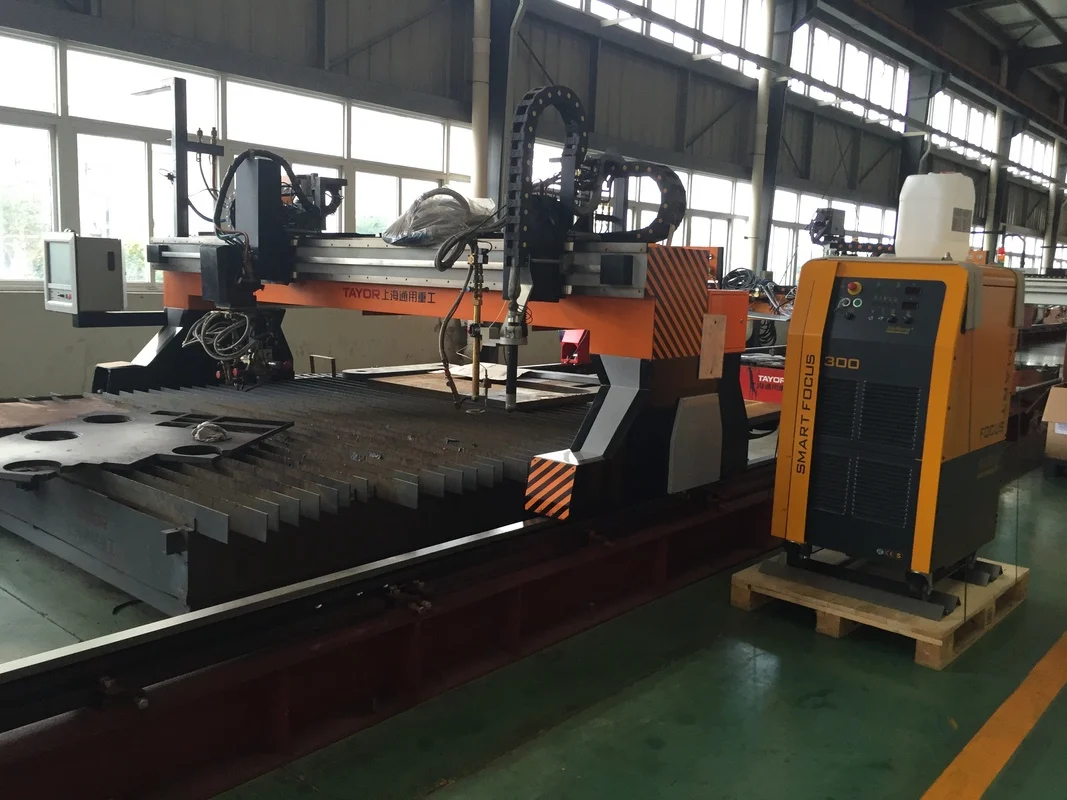

CNCSG3000 gantry type CNC plasma and oxyfuel cutting machine
Gantry Type Series CNCSG is heavy-duty, precision machine, specially designed for cutting large steel plate, can be equipped with multiple plasma torches and flame torches. It is very efficient, with excellent cutting quality.
Optional items:
Powder marking device
Straight line stripe cutting torch
Straight line triple beveling torch
Rotary triple flame curve beveling torch
Rotary plasma curve beveling torch
Blow and draft dust and fume collection system
Water surface and underwater cutting table
Machine Features
1. Gantry and box type welded structure, annealed, long service life, steady and durable under heavy load and high duty cycle condition.
2. Gapless gearing transmit, stable and smooth running in high speed, so that we can achieve excellent cutting quality.
3. Integrated auto-ignition with automatic height controller, keep the proper height between cutting torch and work piece, so that we can achieve the best cutting quality.

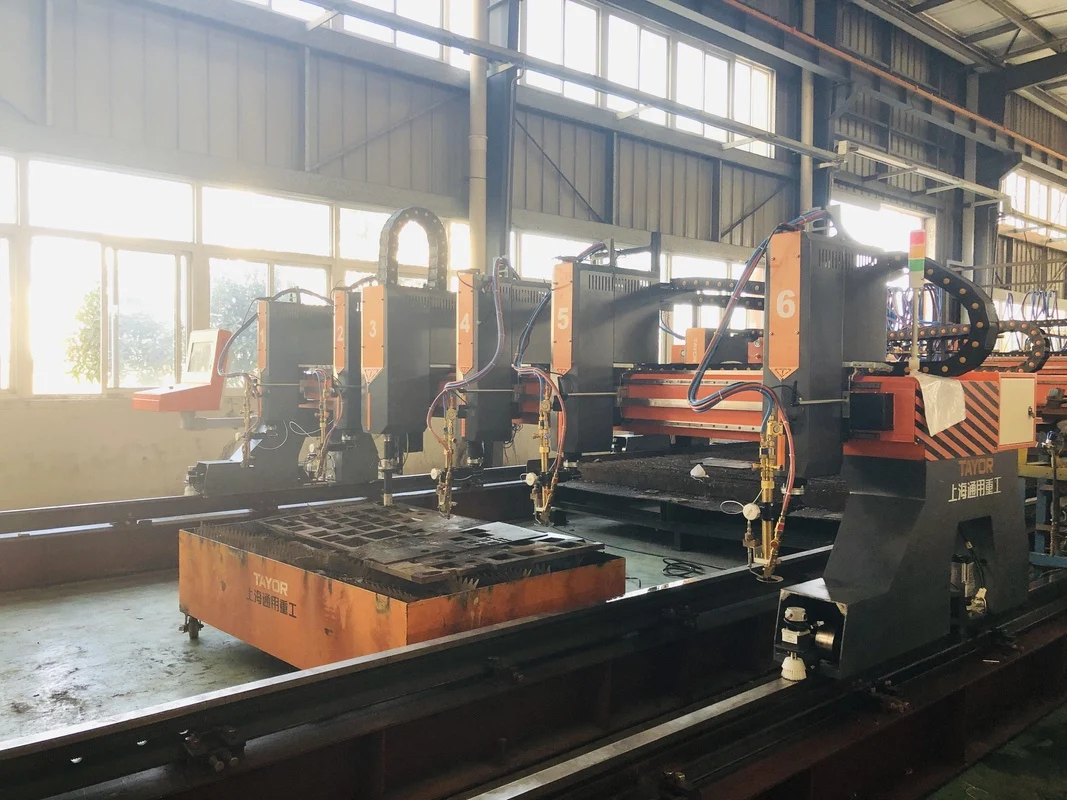

4. Able to cut work piece with several torches at the same time, can improve cutting efficiency
5. Low use and maintenance cost, dispensing special maintenance, friendly operator interface, easy to learn
6. Reliable, safe cnc system, automatic programming, optimization nesting and piercing path, so that we can save steel effectively
Technical Specification
Effective Cutting Width (mm): 3000 to 8000 (customized)
Effective Cutting Length (mm):3000 to 30000(customized)
Flame Cutting Thickness(mm) :5-120mm(Max 300mm)
Plasma:1-80mm(according to plasma model)
Basic Components
Cutting ModePlasma and Oxy-Fuel/Flame
Drive ModeAC Servo motor, Dual-drive
Cutting Torch NumberCustomization
Driving MotorPanasonic/Yaskawa
CNC Controller Hypertherm EDGE CONNECT TC; EDGE CONNECT; LKNC-3200
Available Plasma Power: Hypertherm, Kjellberg, Victor, ESAB
Programming Software:Fastcam, SmartNest, Hypertherm
Input Power Voltage3×380V±10% 50HZ/according to user's local condition
Operation Language: Multilanguage
Main Application
CNC Plasma and oxyfuel cutting machines are widely used for the industry of metal fabrication, shipping building, automation, Aerospace Military, Heavy Equipment, Pressure Vessels, Rail Transportation, Bridge Construction, Hardware Machinery, Energy Industry Etc.
TAYOR Cutting Systems, has over 20 years of experience qualifying us as experts in cutting. Let our qualified professionals work directly with you to find the right CNC plasma cutting machine for your plasma projects, oxy-fuel or fiber laser applications. Let our experience work for you.

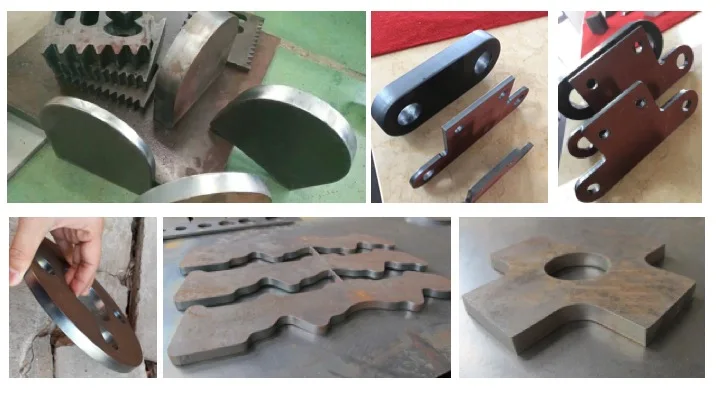

Plasma cutting samples

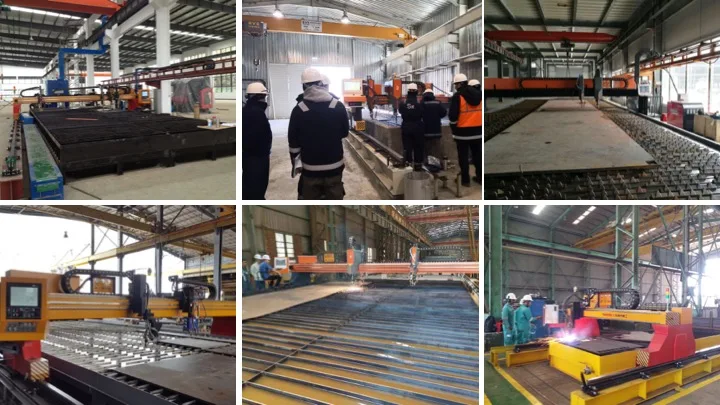

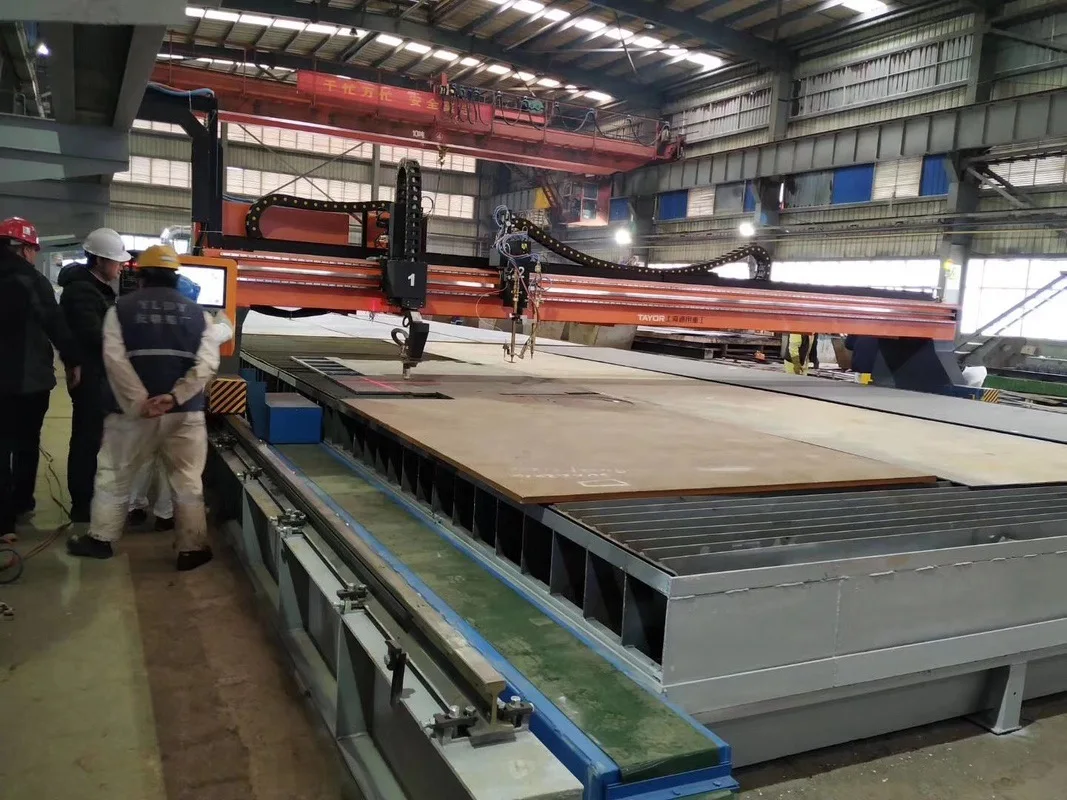

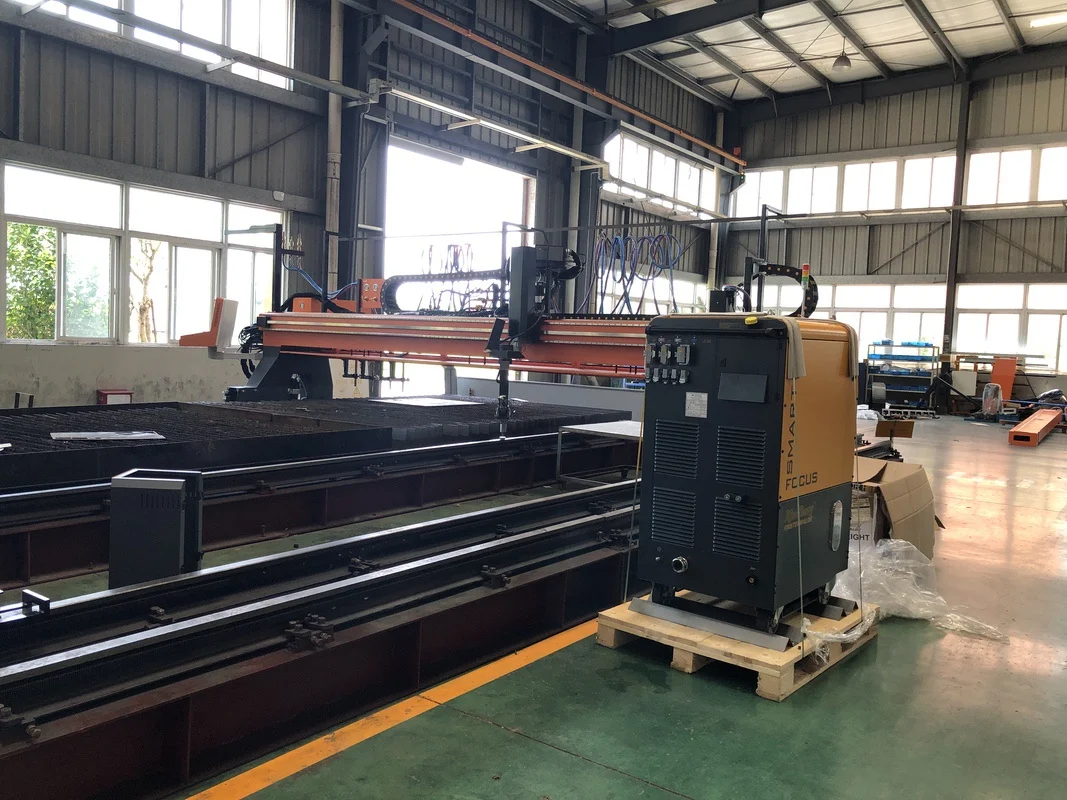

Users site
Packing & Shipping

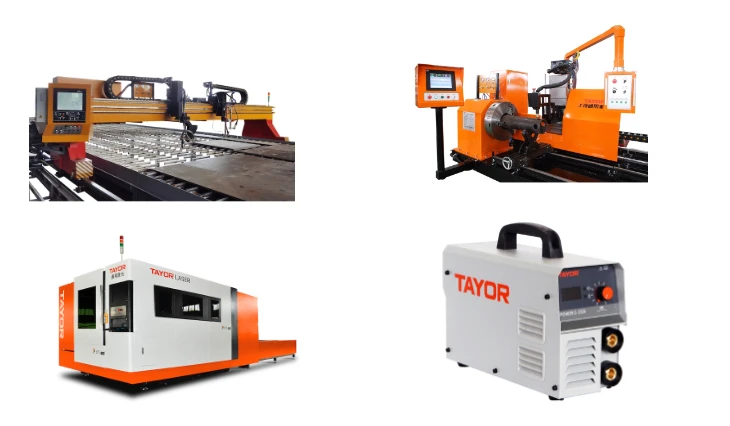

Product Category

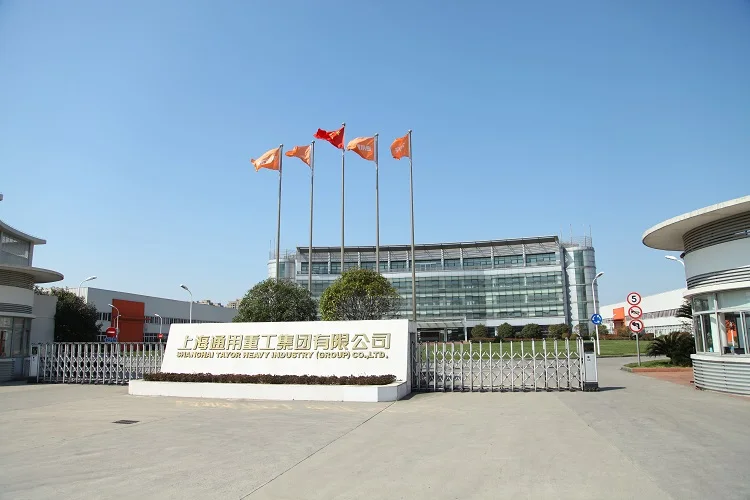

Company Information

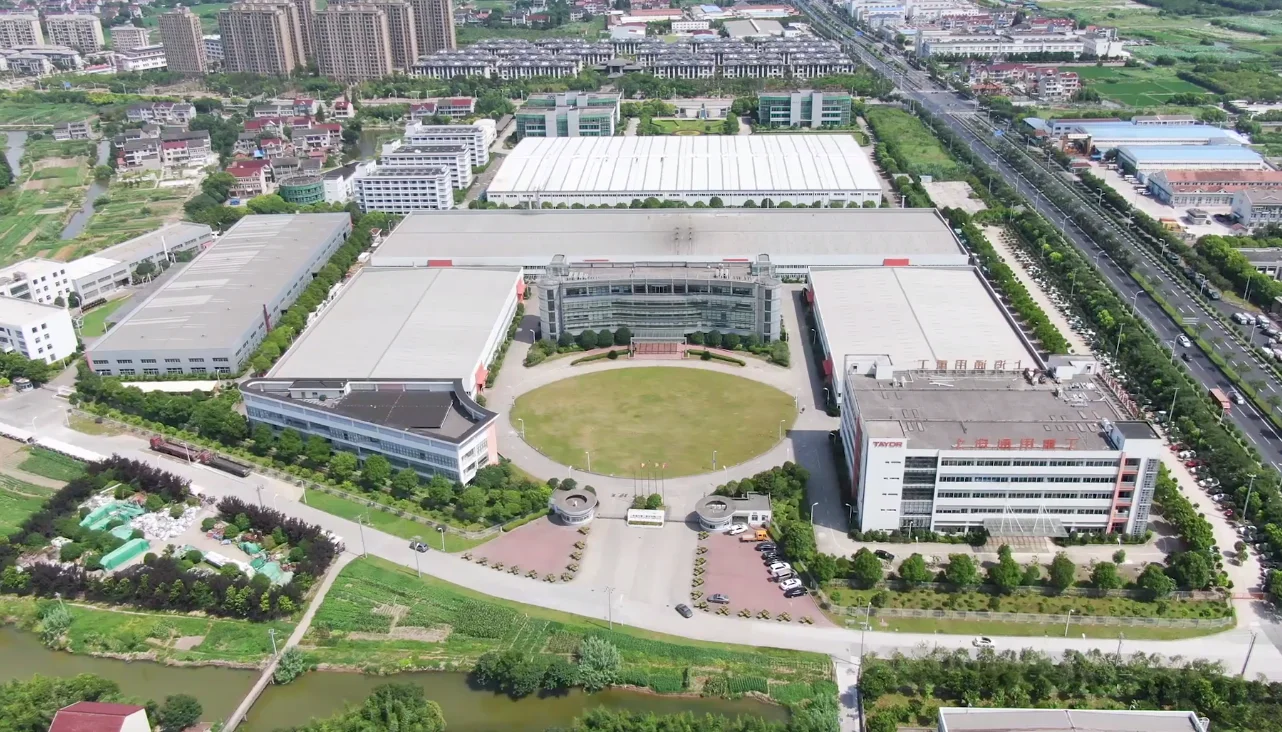

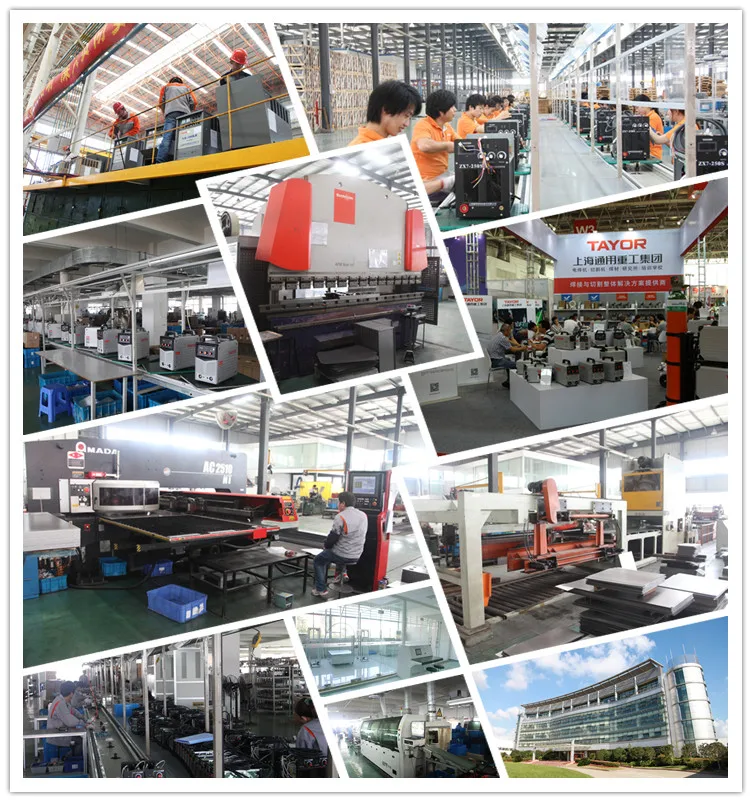

1. SHANGHAI TAYOR HEAVY INDUSTRY GROUP CO., LTD was established in the year of 1951, a group of integrating the manufacture of welding machine, auto - welding cutting equipment, welding consumables, welding technology R&D and training school. Tayor welding industry park is the biggest welding equipment manufacture bases in China.
2. Tayor concentrates on welding equipment , cutting equipment and welding consumables as core industry . We have brands of TAYOR, like SWEC, DONGFENG, YAZI and GOLDEN SHIP which indicate products of welders, cutters, welding robots, and welding consumables.
3. By means of global marketing network, the group supplies welding & cutting equipment, welding consumables and technical service for steel structure, heavy equipment, ship manufacturing, aerospace military industry, pipes and pressure vessels, bridge construction machinery processing, vehicles and rail transit, etc.. Our products are exported to more than 1 0 0 countries and regions.
