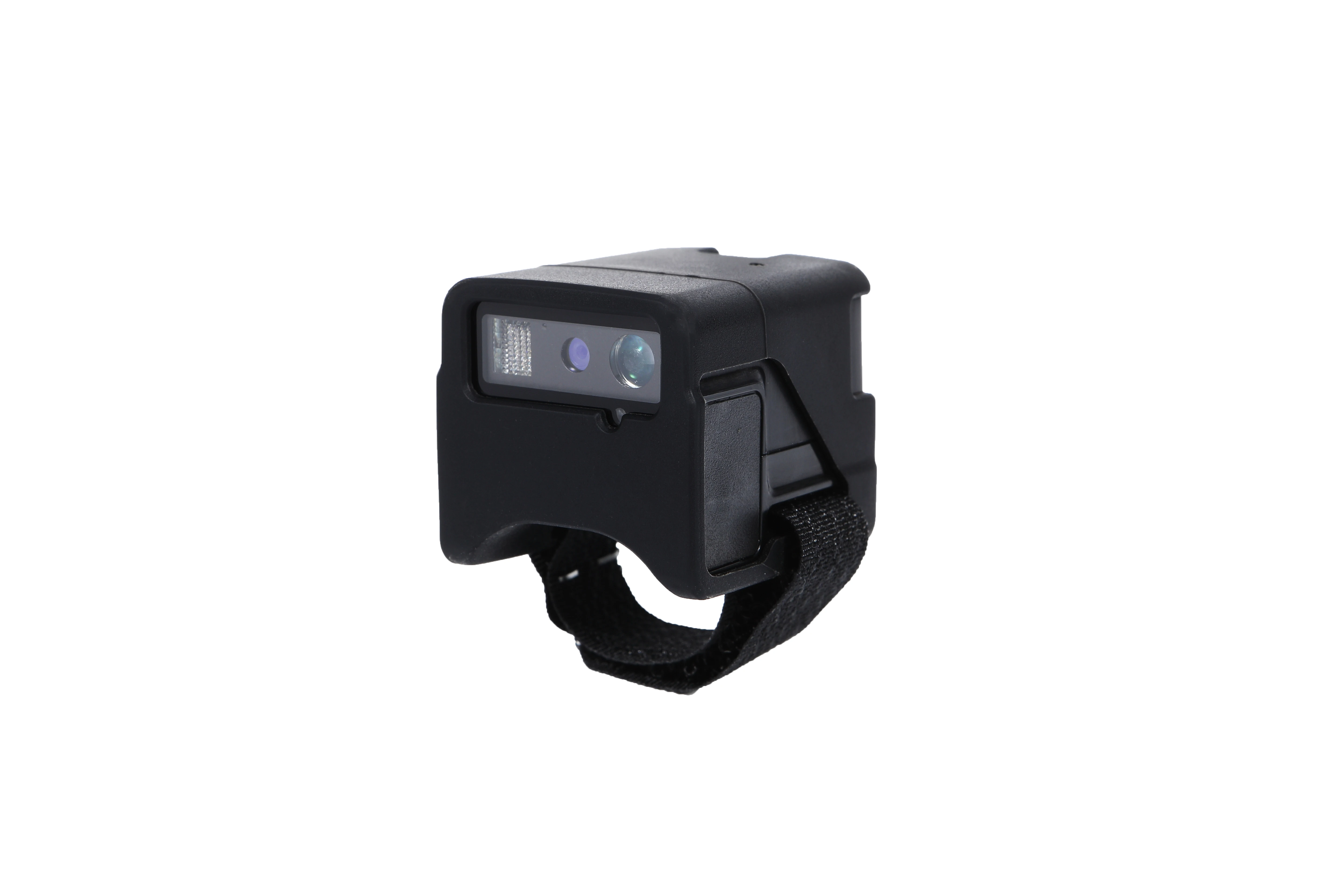

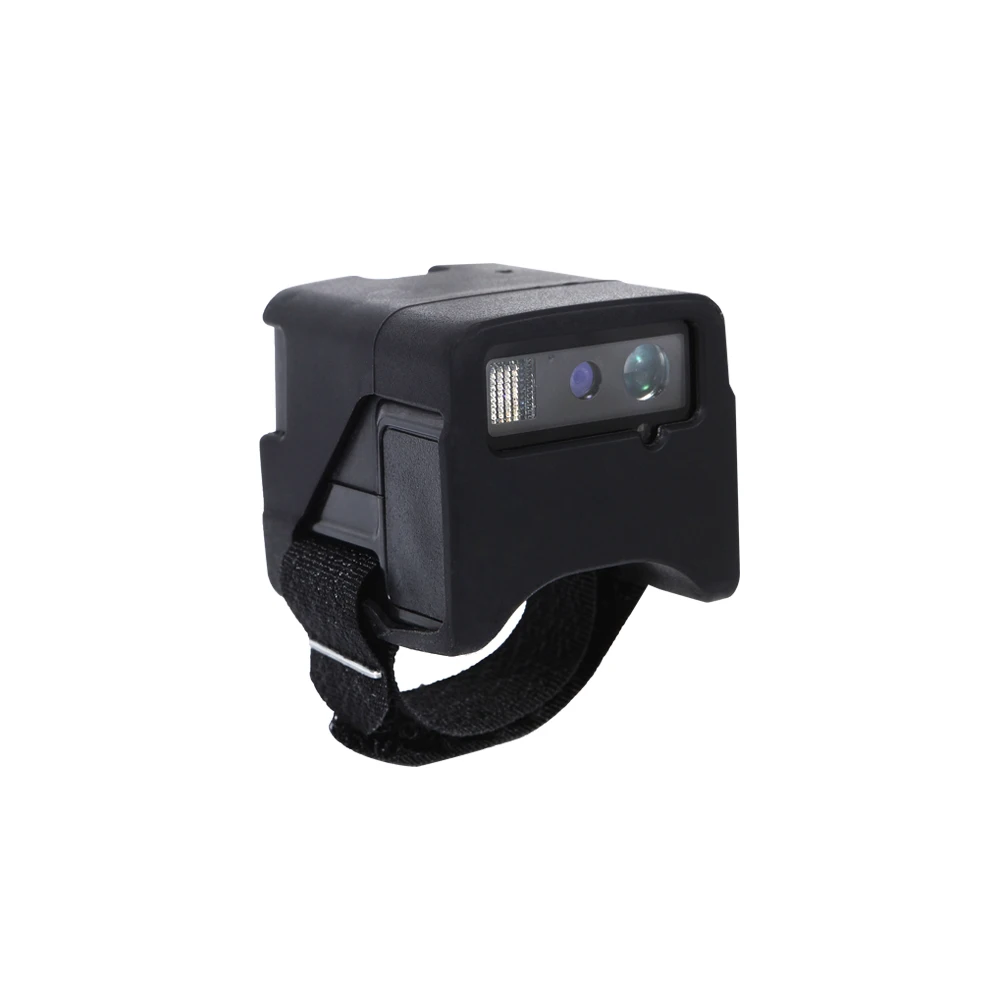

2d ring scanner QR code android micro usb,bluetooth barcode scanner IOS&android for pharmaceutical warehouse management
- Category: >>>
- Supplier: Shenzhen Effon Limited
Share on (62548234207):
Product Overview
Description
China Manufacturer CMOS 1D Barcode 2D Data Matrix PDF417 POS QR Code Scanner with Internal Battery

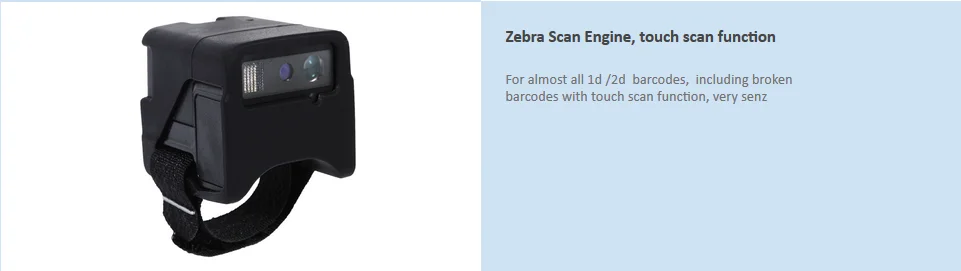

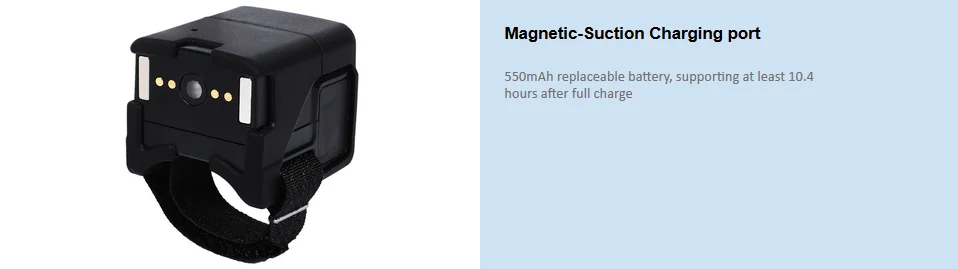

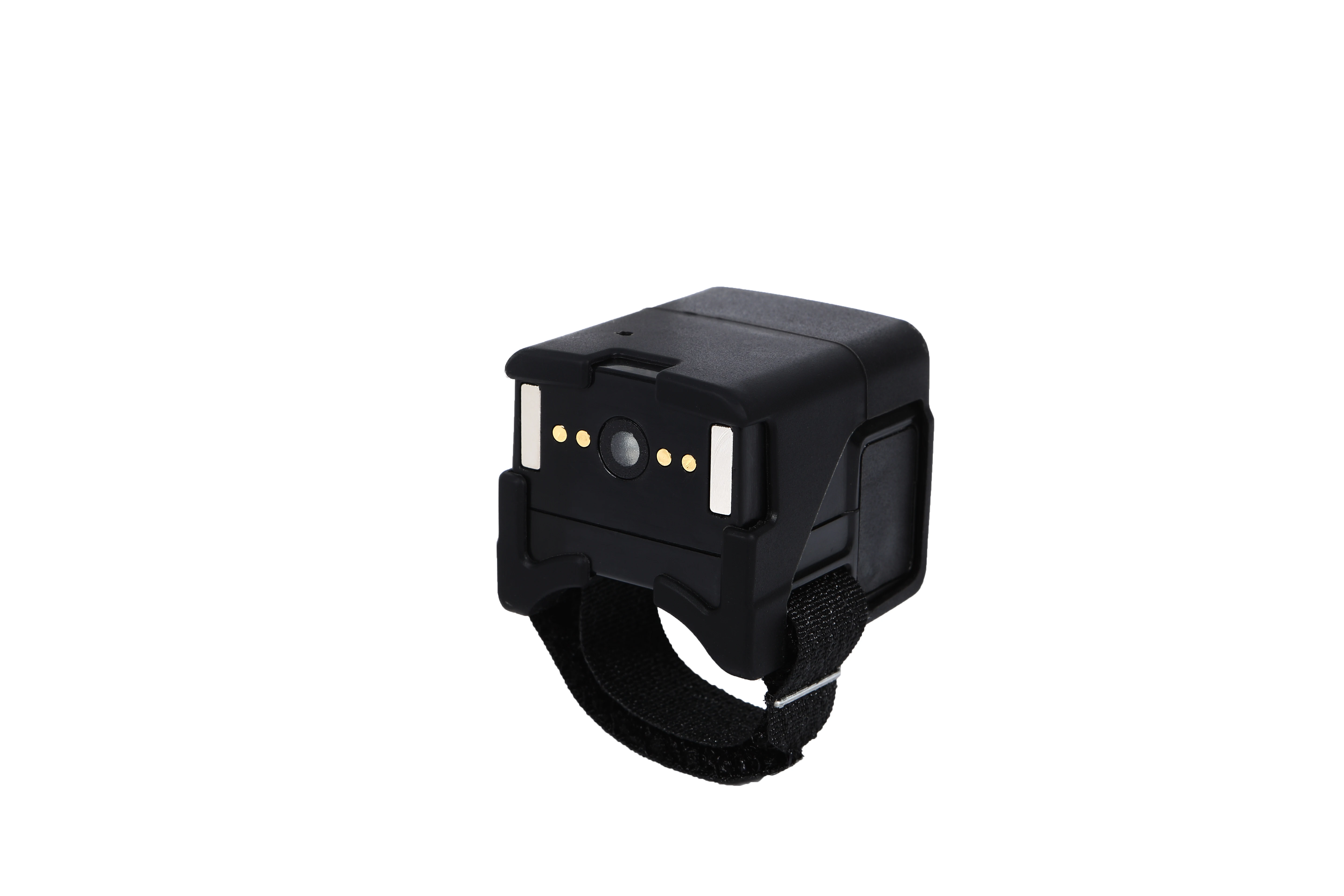

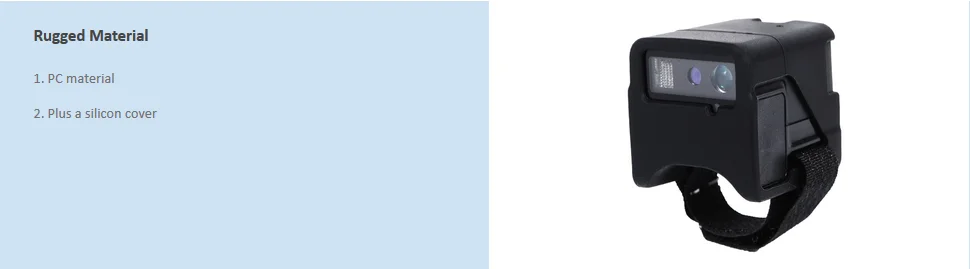

TS02 is Ring Bluetooth Scanner 2D with touch scanning , 500mAh battery and bluetooth charging cradle plus silicon cover will be its main features, such features make it mostly suitable for warehouse counter work or supermarket .
PRODUCT SPEC SHEET FOR TS02
| Product name | Wearable Ring 2D Scanner | ||||||||||||||
| Model name | TS02 | ||||||||||||||
| Dimensions | Length:35.2mm, Width: 32mm, Height:30.1mm | ||||||||||||||
| Weight | 35grams | ||||||||||||||
| Electrical | Power: DC5V Typical: 300mA DC5V | ||||||||||||||
| CPU | 32bit ARM CPU | ||||||||||||||
| Data storage | 100KB for offline mode: 6000 15 bytes barcodes(Other flash is optional). | ||||||||||||||

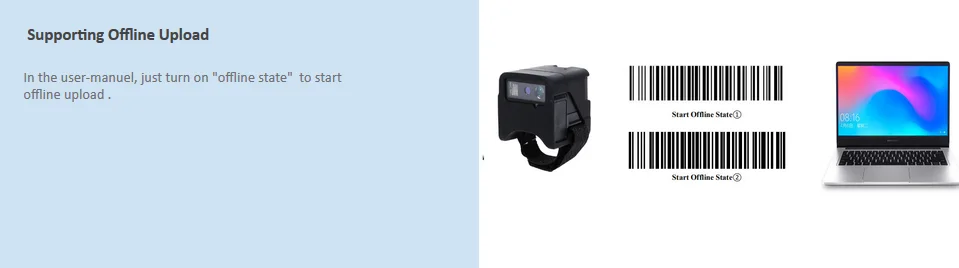

| Working mode | Bluetooth mode, offline mode | ||||||||||||||

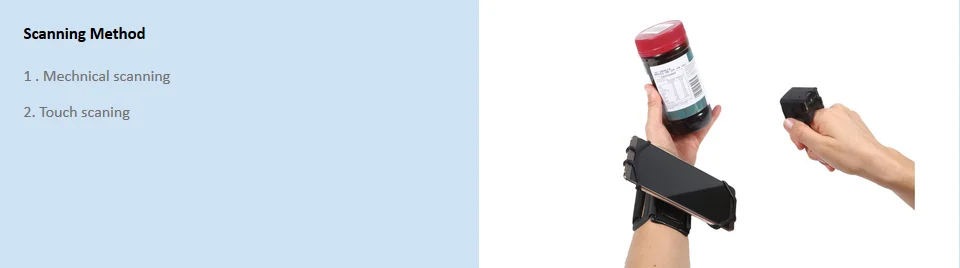

| Scan mode | Manual mode, Continuous, Host, Sense mode | ||||||||||||||
| Ambient illumination | 0~107,639 lux | ||||||||||||||
Scanner performance | Sensor Type: 640 (horizontal) × 400 (vertical) pixels Light: 610nm LED 660nm red LED Scanner Angle: ±60°,±60°,±360°(skew, pitch, Roll) Field of view: Horizontal: 42° , Vertical: 28° Contrast: ≥20% | ||||||||||||||
Battery power |
Internal Battery: Rechargeable 500mAh Li-ion Battery, Standby 30 days, working time after full charge with good decode as below:
Charge time: About 2 hours | ||||||||||||||
Barcode Type |
1D | UPC-A, UPC-E, UPC-E1, EAN-8/JAN-8, EAN-13/JAN-13, Bookland EAN, ISSN EAN, Code 128, GS1-128(formerly UCC/EAN-128), ISBT 128, Check ISBT Table, Code 128 Reduced Quiet Zone, Code 39, Trioptic Code 39, Convert Code 39 to Code 32, Code 32 Prefix, Code 39 Check Digit Verification, Code 39 Full ASCII, Code 39 Reduced Quiet Zone, Code 93, Code 11, Interleaved 2 of 5, I 2 of 5 Readuced Quiet Zone, Discrete 2 of 5, Codabar(NW-7), CLSI Editing, NOTIS Editing, MSI, Chinese 2 of 5, Matrix 2 of 5, GS1 DataBar-14, GS1 DataBar Limited, GS1 DataBar Expanded, Convert GS1 DataBar to UPC/EAN/JAN, Composite CC-C, Composite CC-A/B, Composite TLC-39, GS1-128 Emulation Mode for UCC/EAN Composite Codes | |||||||||||||
2D | PDF417, MicroPDF417, Code 128 Emulation, Data Matrix, Maxicode, QR Code, Micro QR, Aztec, HanXin, US Postnet, US Planet, UK Postal, Japan Postal, Australia Post, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal | ||||||||||||||
| Decoding depth & | Code 39 | 51mm -162mm (5mil); | |||||||||||||
Max. Resolution (1 mil = 0.0254 mm) | Code 128 | 63mm -127mm (5mil); |
| PDF417 | 63mm -160mm (6.6mil); | |
| PDF417 | 45mm - 228mm (10mil); | |
| 100%UPC | 50mm -317mm (13mil); | |
| Code 39 | 50mm - 495mm (20mil); | |
| Data Matrix | 38mm - 343mm (20mil); | |
| QR Code | 38mm -279mm (20mil). | |
| Communication | Class 3 Bluetooth HID, SPP, BLE with 20M distance | |
| OS | IOS, Android, Windows, Mac | |
| Certificate | CE, Rohs, FCC, EN60950, IEC60825, IP65, EMC, 1.5m drop test(200 times). Utility Model Patent No.: ZL201420211350.8 | |
| Laser safety | IEC60825-1-2007, Class 1 | |
| Temperature | Operating: -20°C to 60°C (-4°F to 140°F); Storage: -40°C to 70°C (-40°F to 158°F) | |
| Humidity | 5% to 90% (non-condensing) | |
1: 2 years quality guarantee (all items will be checked 200% before shipping)
2: Directly factory manufature (quantity price will be favorable)
3: Professional R&D department to provide the technical support
4: OEM is accepted according to customer's requirement
5: Excellent service of the express which can make you receive the goods easily
6: After-sale service: We will undertake shipping charges if items caused by quality problem
7: CE, Rohs, FCC certifcation approved
Q1. What's your main products ?
- Laser Barcode Scanner - Image Barcode Scanner - Thermal Receipt Printer
- Dot -matrix Receipt Printer - Bluetooth Printer - Cash Register Drawer
Q2. Are you a manufacturer?
Yes, our factory located in ShenZhen .
Q3. Do you have stock products to sell?
Yes, and we also work on OEM /ODM orders, customized your brand & label as your requiment;
Q4.What's the time of delivery ?
It's subject to your order quantity and our production schedule . Usually , 3-5 working days for sample, 12-15 working days for mass production after receipt of payments .
Q5. What information should I let you know if I want to get a quotation?
- The type you need, if possible, the specific product name
- Color & Interface
- Quantity of order
- Market of country If possible, let us know if you have any experience on barcode scanners business
Q6. Can I get a sample? And how can I get it? How many days will samples be finished?
Yes, samples can be provided , but to be paid by customers. Sample fee will be in formal order. Most of samples are in stock, it takes 3-6 days by express delivery.
Q7. Do you inspect the finished products?
Yes, each step of production and finished products will be carried out inspection by QC department before shipping.
Q8. What advantage do you have?
1.Full rang of barcode scanner products & Independent research and development department,Supply OEM.
2. We are a manufacturer, and it ensures we have the ability to carry out the production schedule for punctual delivery.
3. Strict QC. For each order, strict inspection will be carried out by the QC department before shipping,
4. Certificates: Kinds of Invention Patents & CE&FCC& ROSH&ISO900:2008 and so on;
Shenzhen Unique Electronic Limited was founded in 2011. Utechasia is one of the stores. Our company is one of the leading manufacturers of POS devices, peripherals and accessories. Our company offers barcode scanners, cash drawers, receipt printers, magnetic card readers and writers, customer pole displays and LCD touch monitors. Our products are used in the applications of POS, medical, industrialautomation, etc.
