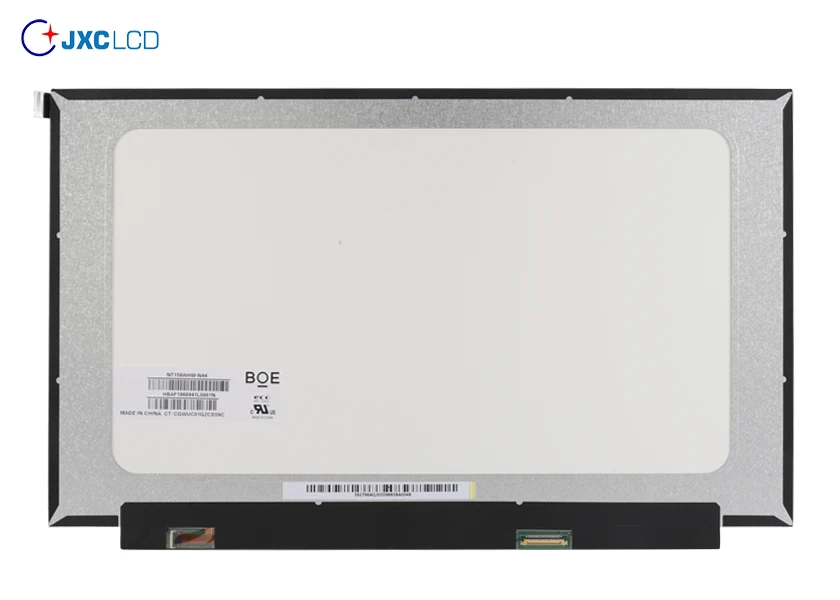

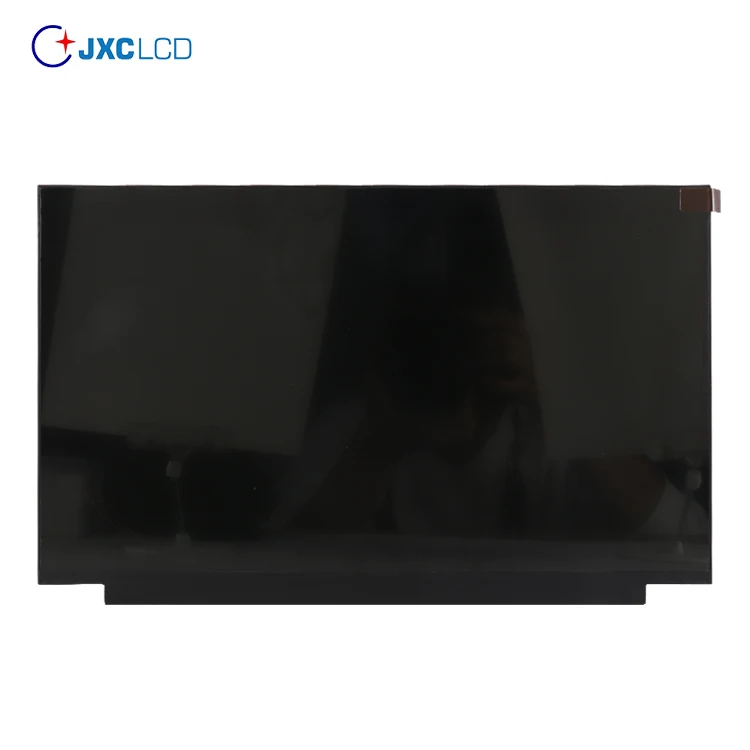

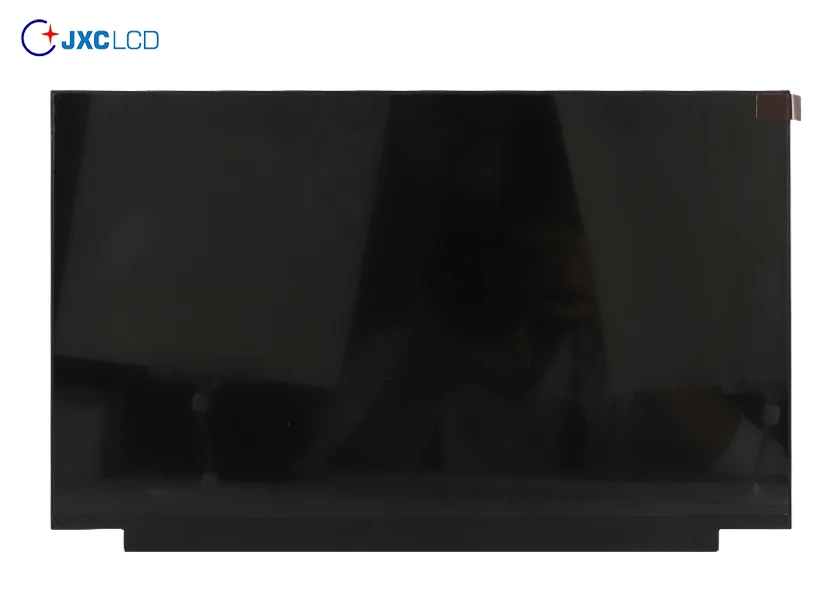

15.6inch laptop led panel NT156WHM N45 super slim 30pins original screen
- Category: >>>
- Supplier: Shenzhen Jingxingcheng Technology Co. Ltd.
Share on (62548248429):
Product Overview
Description
ManufacturerBOEModel NameNT156WHM-N45 (BOE0704) Compatible Model 1 Compatible
Screen Size15.6 inchScreen TypeLCM, a-Si TFT-LCD
Pixel Number1366(RGB)×768 (WXGA) ArrangementRGB Vertical Stripe
Active Area(mm)344.232 × 193.536 (H×V)Outline(mm)350.66 × 223.85 × 3.2 (H×V×D)
Bezel Area(mm)-TreatmentAntiglare
Luminance220 cd/m² (Typ.)Contrast Ratio400 : 1 (Typ.) (TM)
Viewing Angle45/45/20/40 (Typ.)(CR≥10) Left / Right / Up / DownResponse12 (Typ.)(Tr+Td) ms
Good View at6 o'clockWork ModeTN, Normally White, Transmissive
Color Depth262K 45% NTSCBacklight7S5P WLED , 15K hours , With LED Driver
Outline ShapeSlim (PCBA Flat, T≤3.2mm)Used forLaptop
Refresh Rate60Hz [Panelook copyright, copy is strictly prohibited]
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC CircuitTouchscreenWithout
Signal TypeeDP (1 Lane) , eDP1.2 , 30 pins Connector
Voltage Supply3.3V (Typ.)
Max. RatingsStorage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
| Brand | Size | Part No. | Grade |
| BOE | 14 | NT140WHM-N31-A | A |
| BOE | 14 | NT140WHM-T00-A | A |
| BOE | 14 | NT140WHM-T00-H | A- |
| BOE | 14 | NT140WHM-T00-G | Q |
| BOE | 14 | NT140WHM-T00-T | T |
| BOE | 15.6 | NT156WHM-N42-A | A |
| BOE | 15.6 | NT156WHM-N50-A | A |
| BOE | 14 | NT140WHM-N31-G | Q |
| BOE | 15.6 | NT156FHM-N41-T | T |
| BOE | 15.6 | NT156FHM-N41-G | Q |
| BOE | 15.6 | NT156WHM-N42-G | Q |
