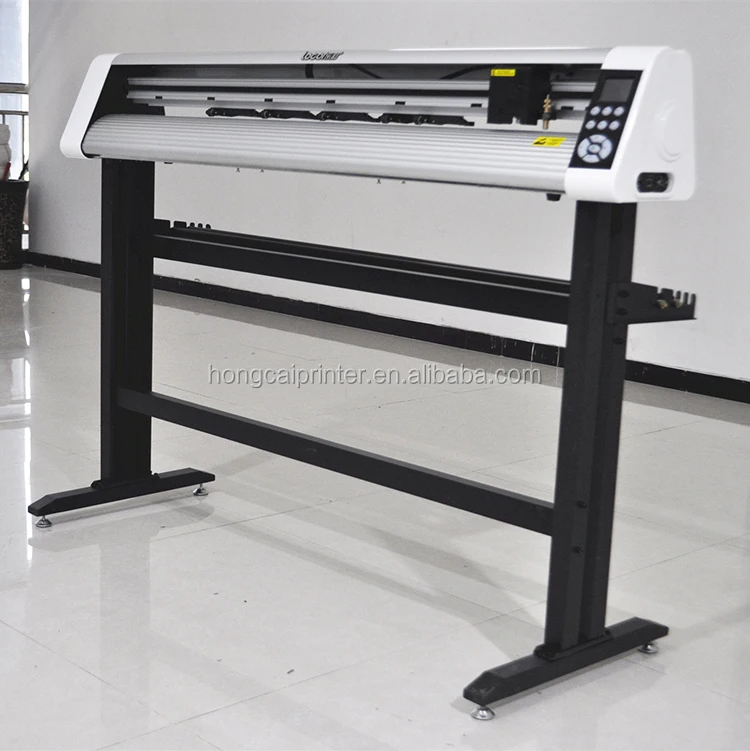

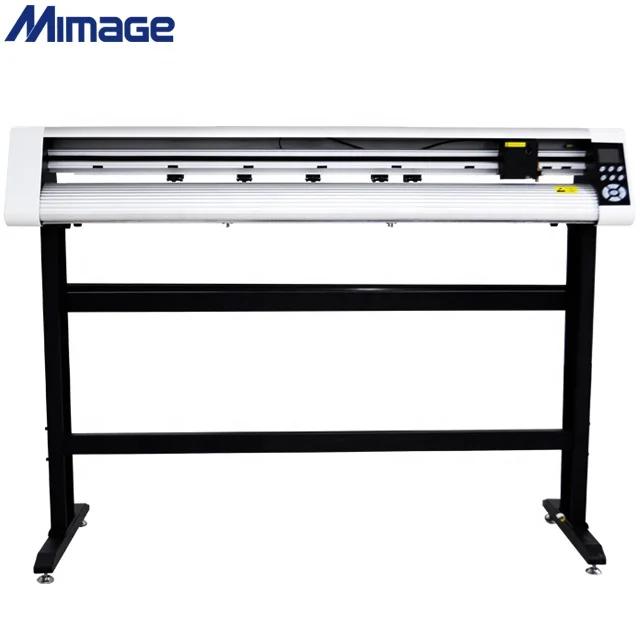

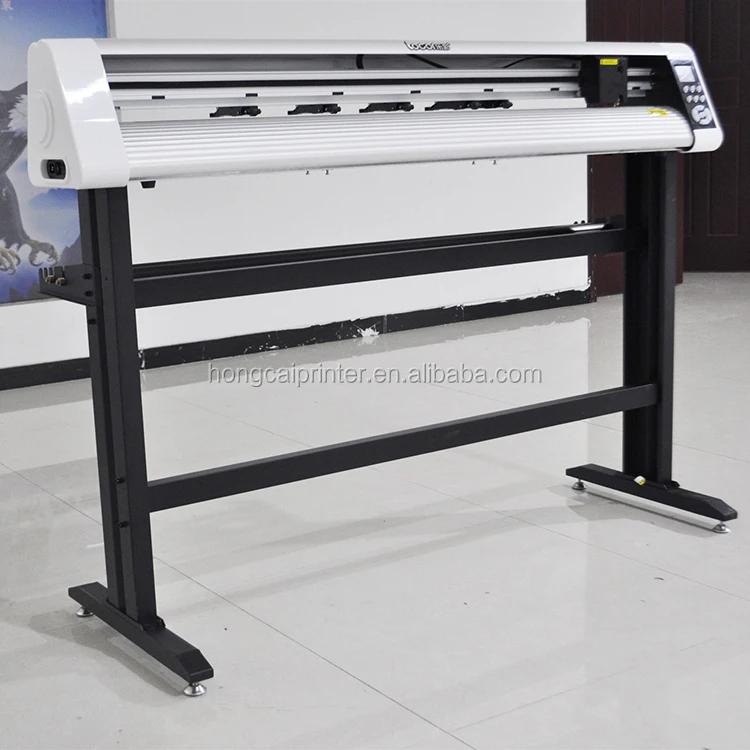

Automatic Contour Cutting Plotter Pvc Vinyl Sticker Cutter Machine

Product Overview

Description

Automatic contour cutting plotter pvc vinyl sticker cutter

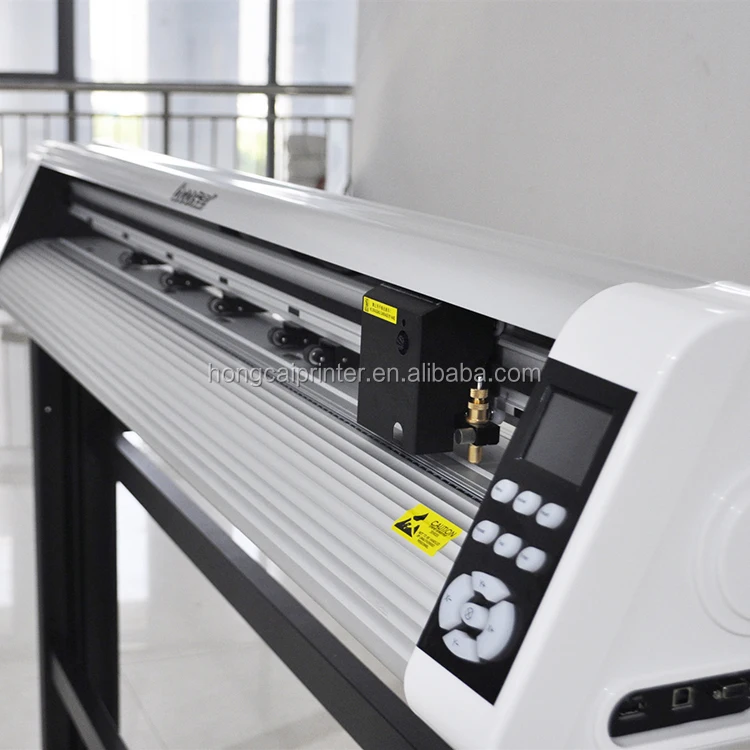

I. Main part of Cutting plotter:
(1)Large screen, eye-catching button



(2) High magnetic bearing carriage, high cutting accuracy, small words is not deformed.



(3) Various interface methods.



(4) Steel thorn paper-moving.







(5) Double spring pressure roller



II. Technical parameter of Cutting plotter :

Model	T-1360
Maximum Feeding Width	1360mm(53inch)
Cutting Width	1250mm(49inch)
Packaging Size/Weight	1580×330×380mm/36kg
Shape	Stereoscopic bracket
Cutting Speed	50-800mm/s
Cutting Pressure	0-1000g(digital adjustment)
Control Panel	1 liquid crystal display window, 9 Silica GEL Buttons, 3 power lights, English/Chinese Operation interface
Processor	8-bit CPU
Motor	Stepper Motor
Interface	USB serial port dual interface
Machine Accuracy	0.005mm
Repeat Accuracy	≤0.005mm
Pen type	11.4mm diameter water-based, oil-based, atomic pen, poster pen
Interface	USB/Serial port/U disk
Language	DMPL/HPGL
Software	Art cu/carving master/Flexsign /WINPCsign/Signcut(optional)
Cutlery	Yuma imported alloy knife
Power Supply	220V/110V,50HZ
Power	Max110W
Working Temperature	5-35℃
Working Humidity	30%-70%(without condensation)

Zhengzhou Lecai Science and Technology Co,. Ltd, known as Locor,  is among the first inkjet printer factories since 2005 in China before US NOVAJET.  In the past 13 years, Lecai has sucessfully developed global distribution system with popular high quality brands " Easyjet" "Deluxejet" and "Ultrajet" series.

To better serve our global customers, we set up branch company, Hongcai Digital Technology Co,. LTD,  with our Factory Direct Supply brands Macroprint and Mimage.

In the past 5 years, Macroprint and Mimage have gained great popularity in dometic market with stable performace and cost effetive features for online business, and now we hope these 2 brands will serve global customers for a better printing business !

Looking forward to have long term business with you !





Automatic contour cutting plotter pvc vinyl sticker cutter
