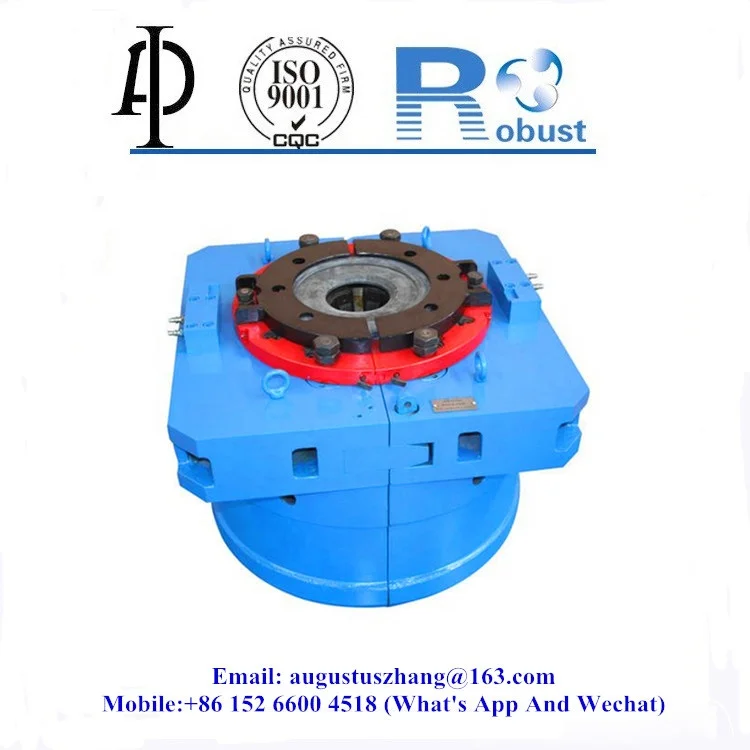

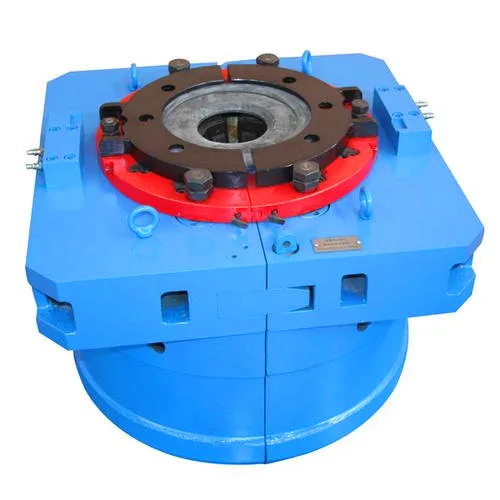

Newly manufactured high quality API Drill Pipe Slip Type QW375 Pneumatic Slips
Product Description
Description:

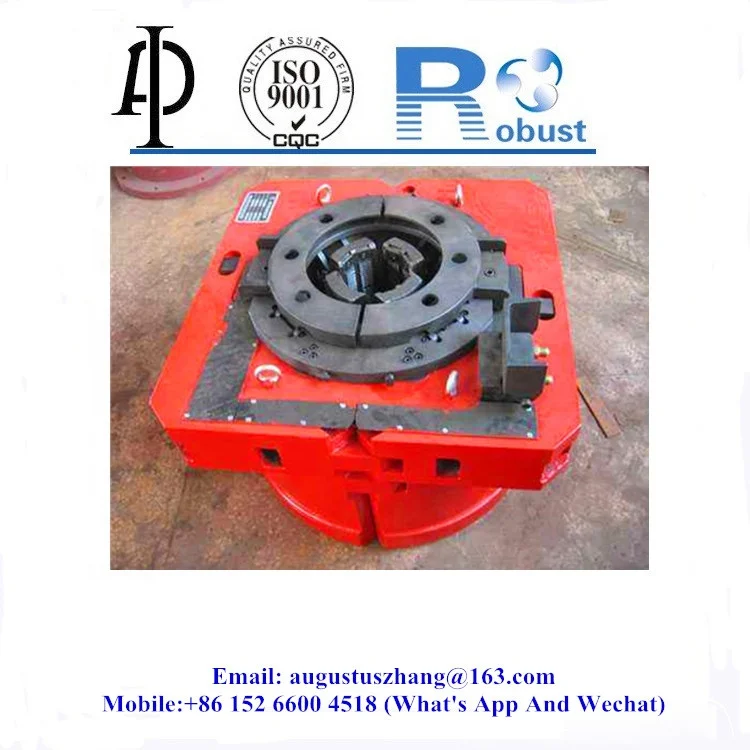

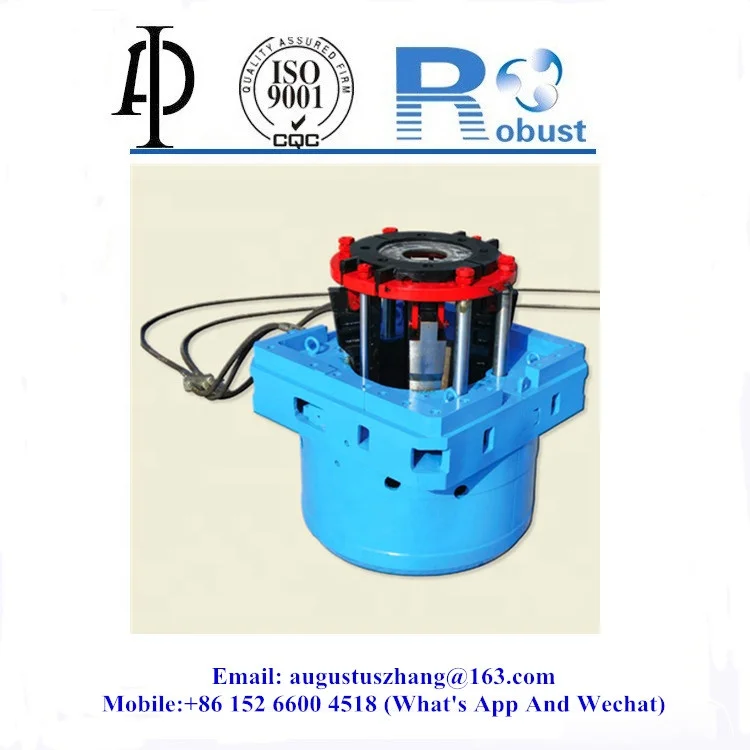

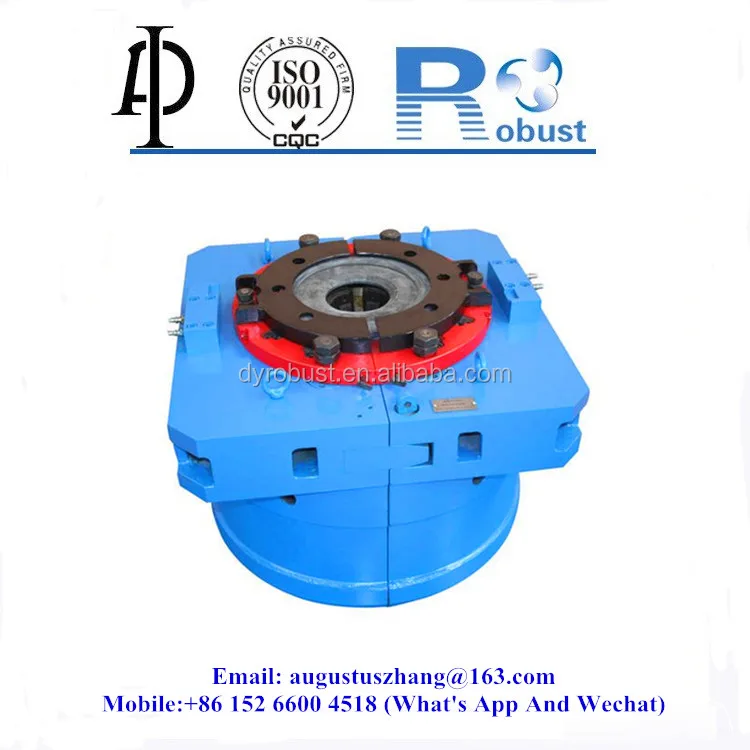

Type QW Pneumatic Slip is an ideal wellhead mechanized tool with double functions, it can automatically handle the drill pipe when the drilling rig is running in hole or does pipe wiping when the drilling rig is pulling out of the hole. It ca nnaccommodate different kinds of tdrilling rig rotary table.And it features convenient installation, easy operation, complete functions, high automation, low labor intensity, and can improve the drilling speed.

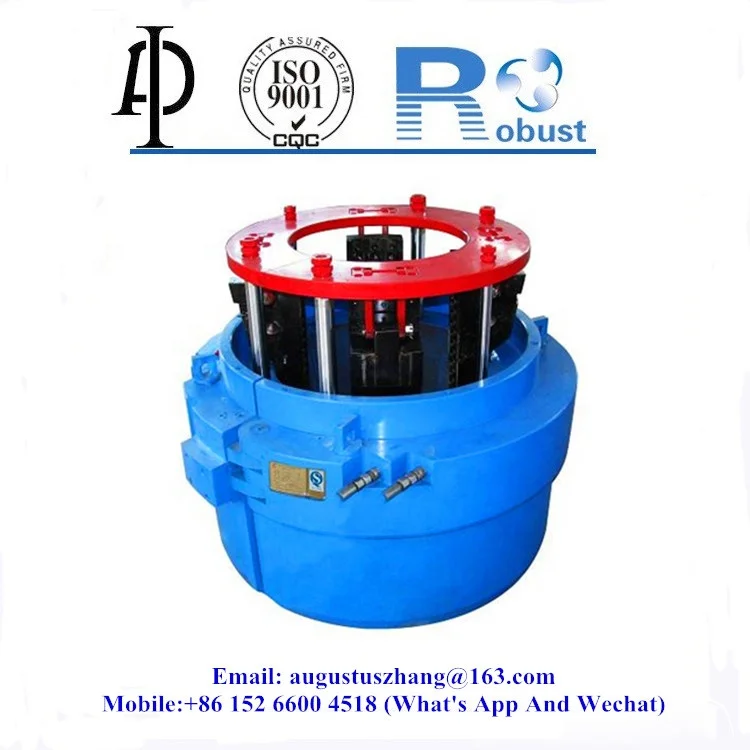

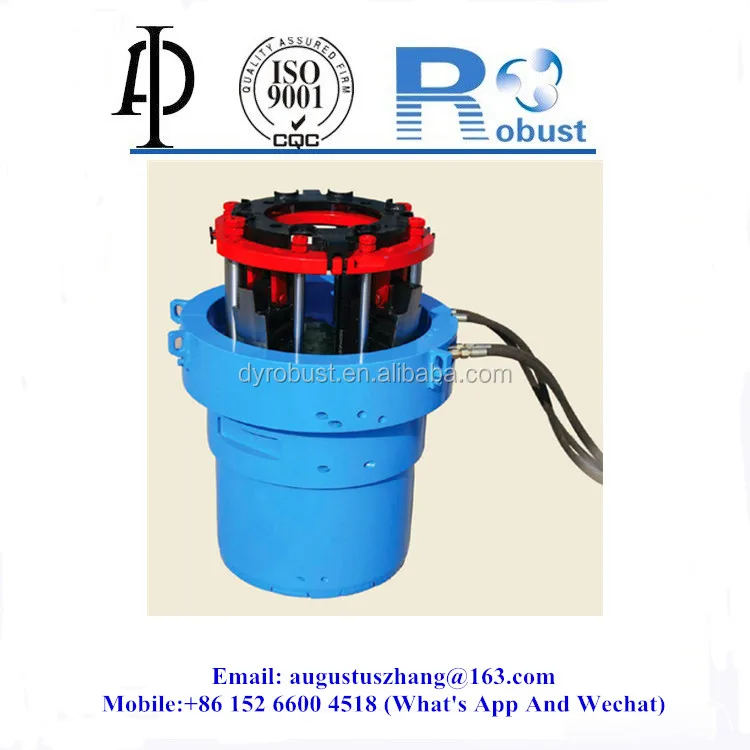

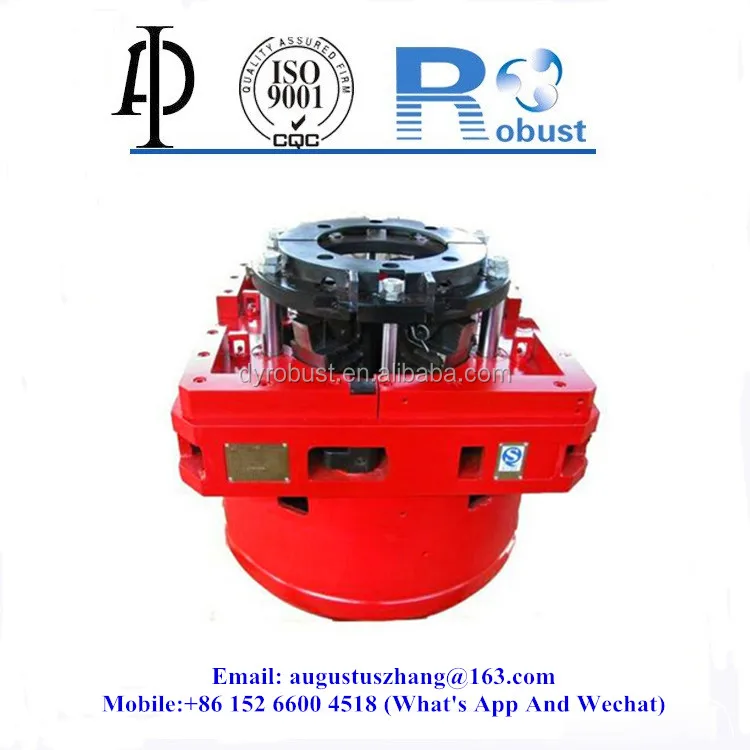

PS series Pneumatic Slips are pneumatic tools which are suitable for all kinds of rotary tables for hoisting drill pipes and handing casings. They are machnaized operating with strong hoisting force and large working range. They are easy to operate and dependable enough. Besides, they can not only reduce the workload but also improve the work efficiency. They are designed and manufacturerd according to API 7K specification for drilling and well servicing equipment.
Product Details: • PS Series Pneumatic Slips are pneumatic tools which are suitable for all kinds of rotary tables for hoisting drill pipes and handling casings.
• They are designed and manufactured according to API SPEC 7K.

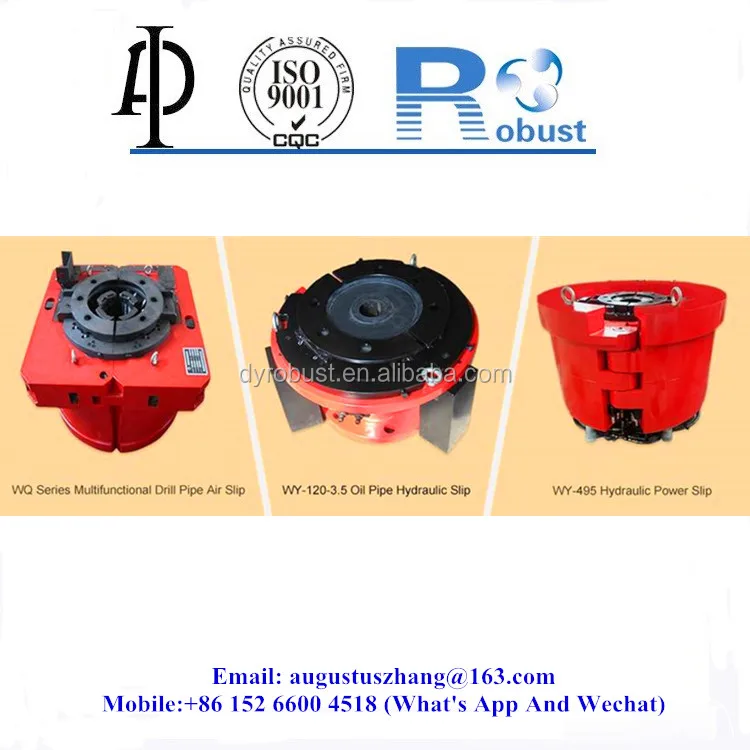

WQ series multifunctional drill pipe air slip is a power slip used to hold the drill pipe, drill collar or casing in position in oil and gas drilling or geologic drilling, and it is a highly automatic power tool used at wellhead. This tool can be used for rotary tables of various drilling rigs, and it can be used to take the place of hand-lifting slip, semiautomatic slip or dual elevator system. The multifunctional drill pipe air slip exhibits such advantages as convenient installation, easy operation, pneumatic movement and automatic mud scraping, and it effectively reduces the labor intensity while dramatically speeds up the tripping operation.
Parameter:
Model
QW-175
QW-205(520)
QW-275
QW-375
Suited for which rotary tables
ZP175
ZP205(ZP520)
ZP275
ZP375
Working pressure
MPa
0.6—0.9
psi
87 -130
Effective clamping length
mm
350
420
420
420
in
133/4
161/2
161/2
161/2
Rated load
kN
2250
2500
2500
2500
Slip extenstion height
mm
< 300
in
<12
Pipe range
in
41/2",5",51/2"
Size
mm
φ443×584
φ520×584
φ697×581
φ481×612
in
φ17.5×23
φ20.5×23
φ27.5×23
φ19×24
Weight
kg
440
620
1020
920
lb
970
1370
2250
2030
Model
Rotary Table Size in
Applicable Dia.
of Tubulars
Rated Capacity
(short tons)
WP PSI
WQ175
17-1/2
2-3/8”~5-3/4”
150
85~114
WQ205
20-1/2
2-3/8”~5-3/4”
250
85~114
WQ275
27-1/2
2-3/8”~9-7/8”
350
85~114
WQ375
37-1/2
2-3/8”~14”
500
85~114

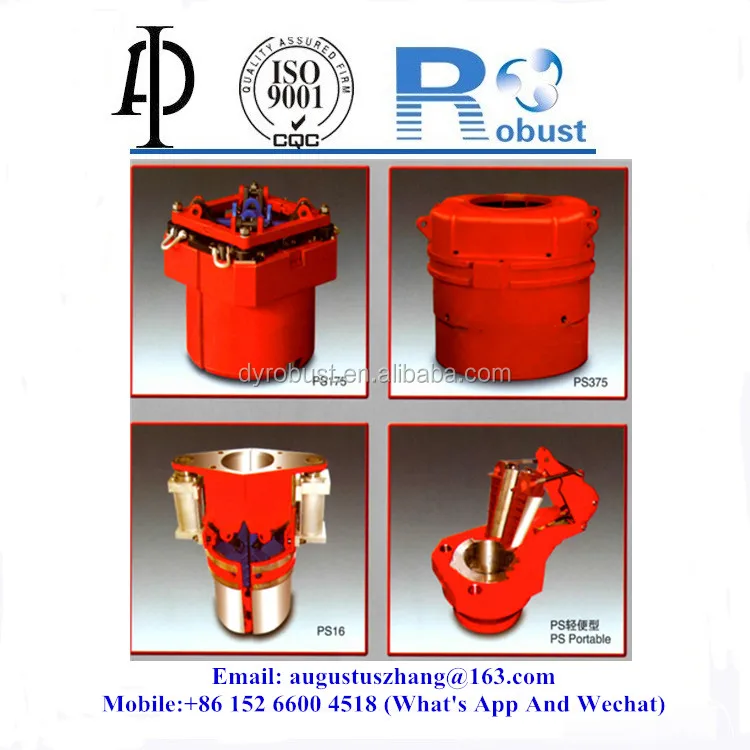

PS16
27-1/2, 37-1/2, 49-1/2
3-1/2”~7-3/4”
500
85~114
PS Portable
23, 27-1/2, 37-1/2, 49-1/2 Pin Drive
2-3/8”~5-1/2”
250
350
85~114
PS Slant Hole
For Slant Hole Drilling Rig
2-7/8”~13-3/8”
250
85~114
PS560
560mm Through Hole
1.9”~7”
350
85~114
Packaging & Shipping

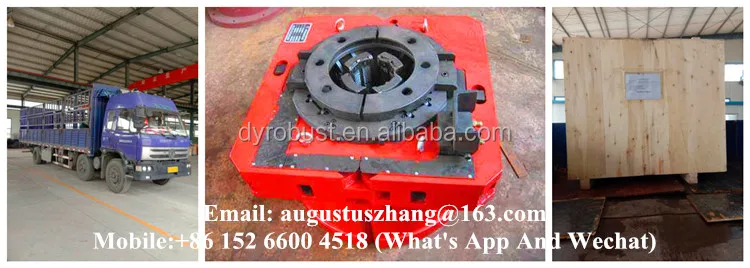

API Drill Pipe Slip Plywood cases or according to customers' requirement.
Our Services
1.We have our own casting foundry and maching workshop.
2.Our workers have more than 20 years experience.
3.Heat treatment production line,machine center,control machine.
4.We have our own experienced QC, all goods must be produced, inspected and tested according to ISO and/Or API standards.
5.We could accept any a third party, such as, BV, SGS, TUV, to inspect the goods in our plant.
Company Information
Our factory located in the second oilfield of China – Shengli oilfield. We have specialized technicians, senior engineers and professional marketing team.
We have been serving Sinopec -Shengli oilfield from past 16 years, and established a solid partnership and network with quality OEM factories.

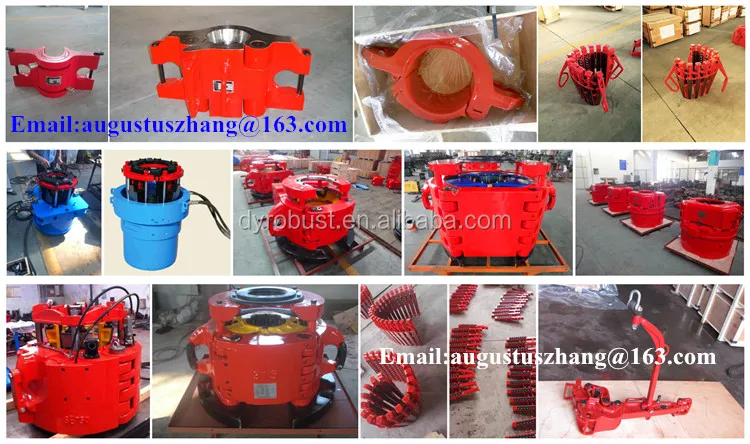

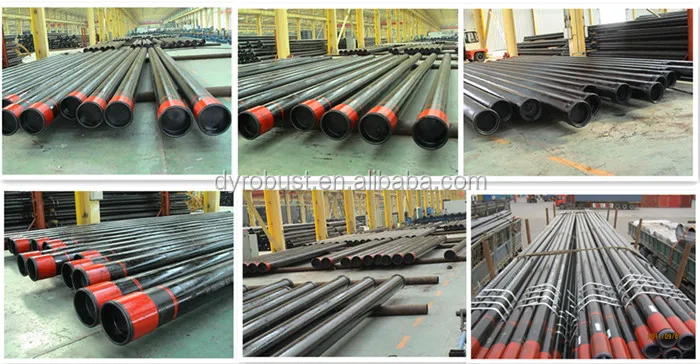

Our company is committed to develop, manufacture and supply a variety of oilfield equipments. Main products include: Petroleum equipment & tools such as drilling equipments, oil production equipments, oil pipes, wellhead equipments, download tools, well control equipments, cementing tools, and petrochemicals etc.
Moreover, we have established a complete quality control system, all products & equipments are manufatured as per international standard and API standard.
Besides other spares and consumables, we specialize in providing high-quality drilling tools, top drive spares and TDS repair/maintenance service.
FAQ
Q1: Are you a factory or a trading company?
We are manufacturer and trading company.
Q2: How is your quality?
We provide 12 month warrenty for all products.
Q3: How is your price level?
We have our own plant and works with lots selected and long time partnership manufacturers, always the factory direct price.
Q4: How is your shipping leading time?
According to the quantity of per size. Generally it is with 30 days if the goods are in stock,or it is 30-45 days if the goods are not in stock.
Q5: Do you provide samples ? Is it free or paid? Yes, we could offer the sample for free charge but cost of freight is under your responsibilty.
