Model: BX- | 500W | 1000W | 1500W | ||||
AC Input | Input method | Single-phase three wires (Zero line/FireWire+Ground) | |||||
Rated voltage | High voltage: 208/220/230/240VAC Low voltage: 100/110/120/127VAC | ||||||
Rated frequency | 50HZ/60HZ | ||||||
Input voltage range | High voltage: 85-300VAC±5VAC Low voltage: 55-145VAC±3VAC | ||||||
Input frequency range | (40-70)±0.5HZ | ||||||
Input power factor | >0.99 | ||||||
Bypass voltage | High voltage: 115-285VAC*(1±3%) Low voltage: 80-140VAC*(1±3%) | ||||||
DC charging input | Rated voltage | 12V | |||||
Input voltage range | 9-18V | ||||||
Input max. current | 10A | ||||||
Input interface | DC5525 | ||||||
Battery | Battery pack voltage | 36V | 36V | 48V | |||
Battery capacity | 600WH | 1000WH | 1200WH | ||||
Backup time (full load) | >45 minutes | ||||||
Battery charging time | Charge to 90% in 5 hours | ||||||
AC output | Output method | Single-phase ground | |||||
Output voltage | High voltage: 220/230/240VAC±2% Low voltage: 110/120/127VAC±2% | ||||||
Output frequency | 50/60HZ±0.5% | ||||||
Dynamic voltage transient | <7% | ||||||
Dynamic transient recovery time | <60ms | ||||||
Waveform | Pure sine wave | ||||||
Overload capacity | 105~125% 60s, 126~150% 30s, >150% 100ms | ||||||
Output current peak coefficient | 3:1 | ||||||
Conversion time | 0ms | ||||||
Product size | 165*225*380mm | 165*225* | 165*245*410mm | ||||
Product weight | 10.5KG | 11.5KG | 14.3KG | ||||

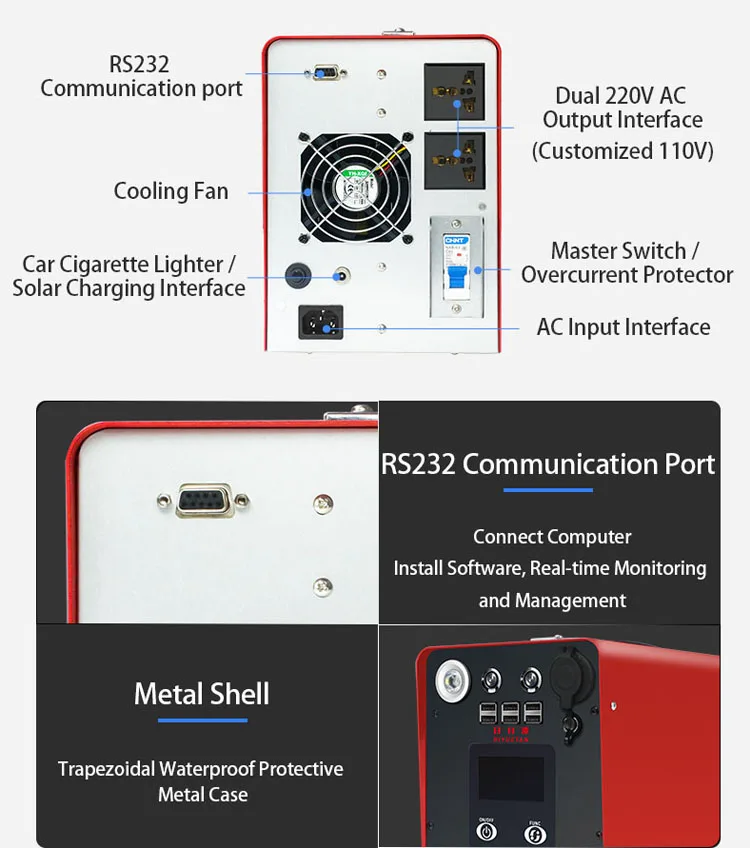

Communication and monitoring capabilities | RS232(optional), Network monitoring card, USB card | ||||||
Audio noise | <50dB | ||||||
Cycle life | Under 0.5C charge, 1C discharge, the number of times is ≥300 times, and the capacity remains 80% after that | ||||||
