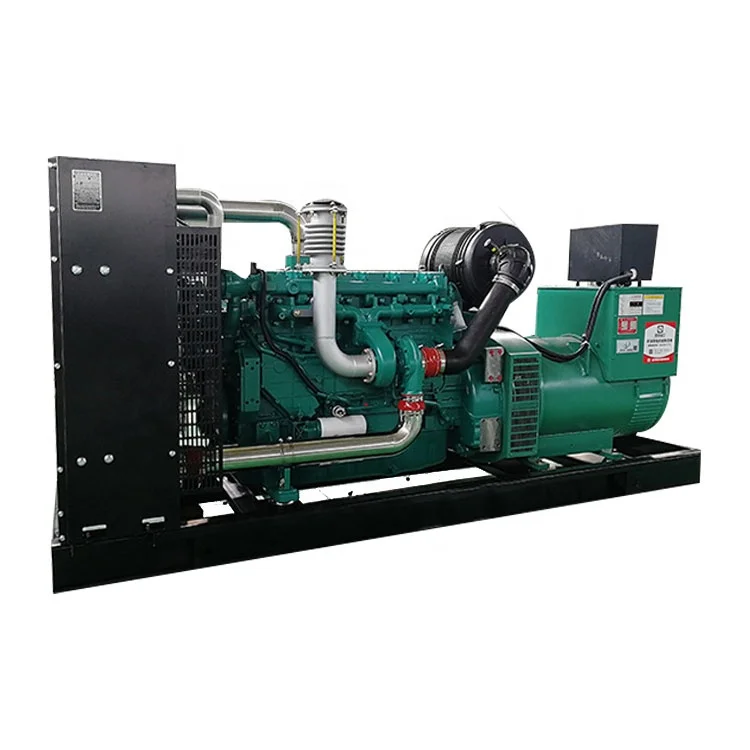

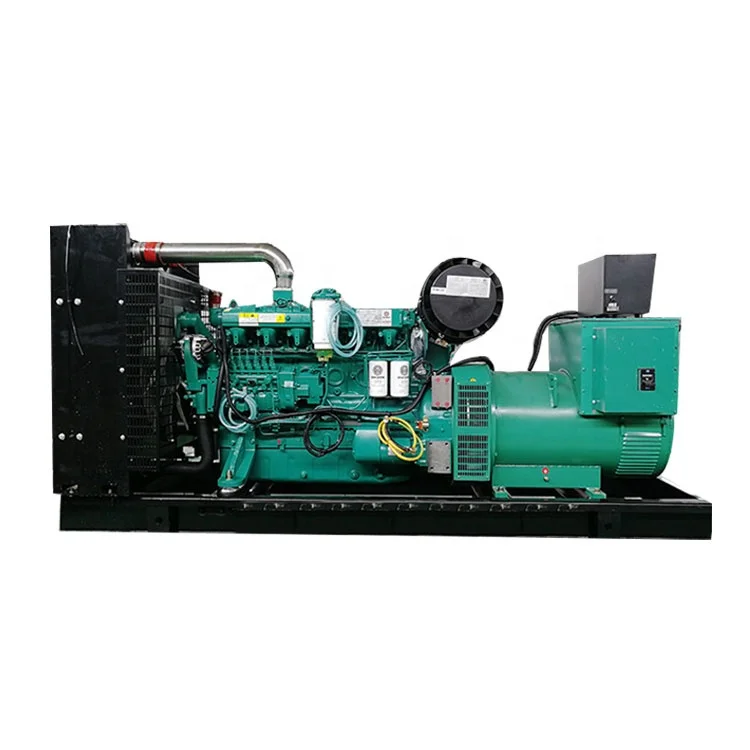

Weichai Automatic Power Generator Water Cooled Diesel Generator Industrial 350kW 1800rpm 3 Phase 50HZ/60HZ WP13D405E200
- Category: >>>
- Supplier: Jiangsu Haut Mechanical Co. Ltd.
Share on (62548462382):
Product Overview
Description
Technical Parameters
| Diesel Generator Technical Data | |||
| Genset | HT-350 | Prime Power (KW) | 350 |
| Rated frequency(Hz) | 50/60 | Prime Power (KVA) | 437.5 |
| Rated speed(Rpm) | 1500/1800 | Phase | 3 Phase |
| Voltage | 220/380V,230/400V, 240/415V,120/240V | N.W (KG) | 2630 |
| Rated Current | 630A | Size (L*W*H) mm | 2980*1240*1855 |
| Diesel Engine Technical Data | |||
| Brand/Original | Weichai Power | Type | Water Cool, Electric start |
| Engine Item No. | WP13D405E200 | Cylinder No. | 6 |
| Displacement (L) | 12.54 | Bore and Stoke (MM) | 127*165 |
| Prime Power (KW) | / | Fuel Consumption | 195(g/kw.h) |
| Standby power (KW) | 405 | Combustion | Direct Injection |
| Governor | Mechanical/Electronic | Aspiration Type | Turbocharged and air intercooled |
| Alternator Technical Data | |||
| Brand/ Original | Stamford copy/ Stamford original/Marathon/Leroy-Somer | ||
| Alternator Model | HT-350D | Protection | IP23 |
| Alternator Type | Brushless sel-excited | Insulation | Class H |
| Phase / wire | 3-phase& 4 line | Factor | 0.8 |
Control Module Specifications | |||
| Digital Control Module suitable for a wide variety of single, diesel or gas, gen-set applications. Monitoring an extensive number of engine parameters, the module will display warnings, shutdown and engine status information on the back-lit LCD screen and illuminated LEDs. | |||
| The control module gives digital readouts of: | |||
| Generator voltage | Output frequency | Engine hours run | |
| Engine speed | Battery voltage | ||
| The control module has indicators for failure information: | |||
| High water temperature | Failure to start | Battery charger failure | |
| Automatic shutdown occurs under: | |||
| Low engine oil pressure | High engine water temperature | ||
| Over speed/Low speed | Failure to start after three attempts | ||
Product pictures
Optional
Soundproof/Silent/Mobile trailer Box:
1. Silent box: Acid pickling and phosphating treatment, anti-rust, anti-corrosion
2. Noise Level@7m: 72dB(A)
3. Color optional
4. Oil tank mounted on base frame for 8-12 Hours working
5. Excellent ventilation
6. Security and Safety

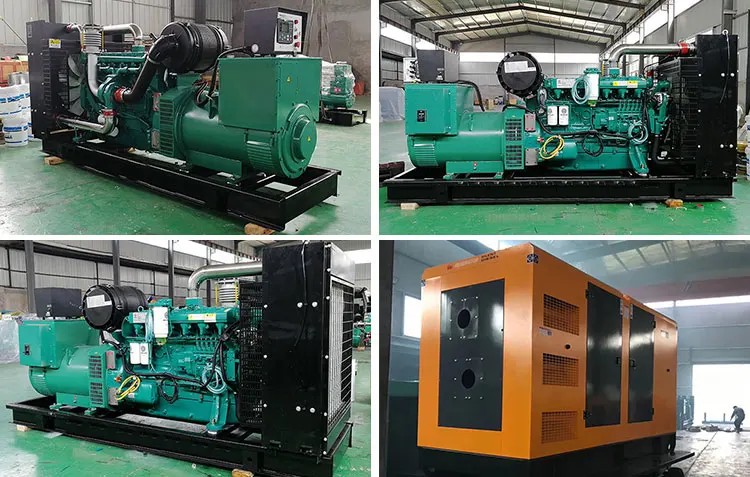

Factory pictures
Jiangsu Haut Mechanical Co., Ltd, is located in Yangzhou City.Jiangsu Province . Adjacent to Shanghai Port. With convenient transports access.For more than 20 years.We have been devoted to the design, development manufacture and sale of diesel generators, Gas generators and fishing net machinery.
The power of generating units range from 10 kw to 5000 kw.They all adopt automation silence. mobile. and remote monitoring.Our can provide all kinds of diesel generators according to your requirements. Our products are widely used in factories. communication engineering. military. ports. roads.railways and commercial facilities.
Our Advantages:
1. Solve technical problems and provide international warranty service for the engine within 24 hours
2. Design customized products according to customer requirements
3. Polyester varnish, anti-corrosion, protect the appearance and prevent rain
4. Test for two hours before delivery
5. ISO9001 and CE certification, strictly guarantee the quality
Delivery standard configuration:
1. Generator Set Distributor Random Technical Documents
2. Diesel engine, radiator / Muffler / Unit manual
3. Alternator / connection elbow / unit product quality certificate
4. Steel structure chassis / Battery and cable / Control screen
5. MCCB air protection switch / Damping pad / Engine original quality file
6. Generator original quality documents
FAQ
1.What's your power range of diesel generators? power generator
Answer: We can offer the range from 10kva~3000kva.
Weichai automatic power industrial generator 350kw 1800rpm 3 phase water cooled diesel generator
2.What's your delivery time?power generator
Answer: Generally,we can delivery in 7 days after we get the deposit.
Weichai automatic power industrial generator 350kw 1800rpm 3 phase water cooled diesel generator
3.What's your payment?power generator
Answer: We accept T/T, L/C,and 30% T/T as the deposit,the balance payment should bepaid before shipping.
China Weichai Generator Power Unit 250kw Three-phase Diesel Engine Generator 312.5kva
4.What's your warranty?power generator
Answer: All our products we offer on year warranty or 1500 hours which comes first.
Weichai automatic power industrial generator 350kw 1800rpm 3 phase water cooled diesel generator
5.What's your MOQ?power generator
Answer:We accept the MOQ is 1 set.
China Weichai Generator Power Unit 250kw Three-phase Diesel Engine Generator 312.5kva
6.What’s the frequency of diesel generators?power generator
Answer: 50/60HZ
Weichai automatic power industrial generator 350kw 1800rpm 3 phase water cooled diesel generator
7.Do you have single phase or three phase diesel generators?
Answer: Yes,we have single phase and three phase diesel generators.
