24v 48v 200w 400w bldc motor encoder for oxygen generator ventilators

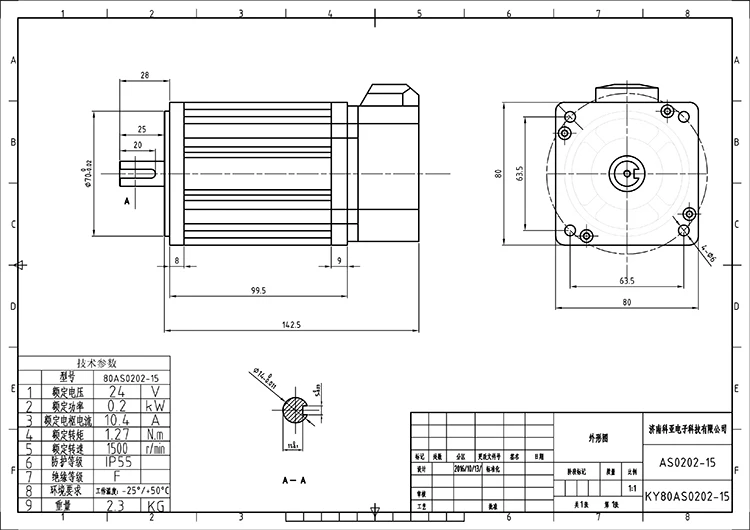

Model: KY80AS0202-15
| Product Description |
| *High Torque to inertia ratio&up to 25000Nm/kgm² |
| *Fast dynamic response, time constant <20ms |
| *Wide speed adjusting&feedback up to 1000:1 |
| *Steady speed precision up to 0.5% |
| *High overload, 2N.m/30s, 3.5N.m/10s |
| *Small volume and light weight |
| *Silent, the lowest noise is only 45dB(A) |
| *Protected with IP55, Class F insulation |
| Specification of pmsm motor KY80AS0202-15 | |
| Rated voltage | 24V |
| Rated power | 200w |
| Rated speed | 1500rpm |
| Rated current | 9.4A |
| Rated touque | 1.27N.m |
| Peak Torque | 3.81N.m |
| Line Resistance | 0.06Ω (20℃) |
| Rotor Inductance | 0.28mH |
| Torque Constant | 0.17N.m/A |
| Back EMF Constant | 17.3V/Kr/min |
| Rotor Inertia | 418kg.m2*10-6 |
| Mechanical Time Constant | 0.56ms |
| Electrical Time Constant | 0.5ms |
| Weight | 2.2kg |
| Number of poles | 5 pairs |
| Incremental optical encoder | 2500ppr |
| Brake | If need the brake, kindly advise |
| Support | If you need any help on the24v 48v 200w 400w bldc motor encoder for oxygen generator ventilators, kindly contact Nancy directly, Email address: sales(at)jnky.com |
| Product Overview |
24v 48v 200w 400w bldc motor encoder for oxygen generator ventilators
Connect cable

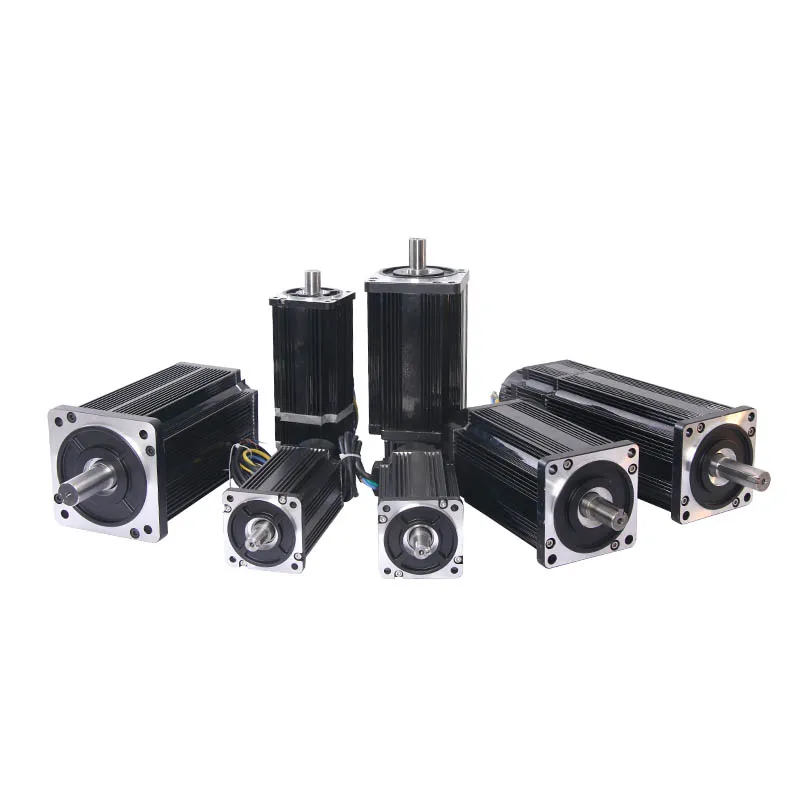

Related products |
| Model | Rated power/W | Rated volt/V | Rated speed/rpm | Rated Current/A | Rated Torque/N.m |
| KY60AS0201-30 | 100W | 24V | 3000RPM | 5.4A | 0.318N.m |
| KY60AS0202-30 | 200W | 24V | 3000RPM | 10.4A | 0.63N.m |
| KY80AS0202-15 | 200W | 24V/48V | 1500rpm | 9.4A/4.7A | 1.27N.m |
| KY80AS0204-15 | 400W | 24V/48V | 1500RPM | 21.3A/10.6A | 2.55N.m |
| KY80AS0204-30 | 400W | 24V/48V | 3000RPM | 18.8A/9.4A | 1.27N.m |
| KY110AS0405-15 | 500w | 24V/48V | 1500rpm | 28A/14A | 3.1N.m |
| KY110AS0408-15 | 800w | 24V/48V | 1500rpm | 44A/22A | 5.0N.m |
| KY110AS0410-15 | 1000w | 24V/48V | 1500rpm | 52A/28A | 6.3N.m |
| KY110AS0412-25 | 1200w | 48V | 2500rpm | 33A | 4.5N.m |
| KY110AS0415-15 | 1500w | 48V | 1500rpm | 37.5A | 9.5N.m |
| KY110AS0415-30 | 1500w | 48V | 3000rpm | 37.5A | 4.7N.m |
| KY110AS0420-25 | 2000w | 48V | 2500rpm | 55A | 7.6N.M |
| KY130AS0430-15 | 3000W | 48V | 1500rpm | 73A | 19.1N.m |
24v 48v 200w 400w bldc motor encoder for oxygen generator ventilators
Company Information
Our Service |
We devote ourself to Research & Development, welcome Costom-made products, if you need some unusual products, let's have further communication.
24v 48v 200w 400w bldc motor encoder for oxygen generator ventilators
FAQ
| FAQ |
1. Q: What are your main products?
A: We produce various kinds of bldc motor & controller.
2. Q: How long have you been in this field?
A: More than 15 years in this field.
3. Q: Do you have your own R&D team?
A: Yes. R&D is our core competitiveness, continuous innovation is just what we are seeking for all the time. Some of our engineers have more than 20years experience in the industry, and we also cooperate with colleges, scientific research institutions and large enterprises.
4. Q: How soon can you deliver the goods?
A: That depends on the exact model you order. For regular products, usually we will prepare some units in stock, we can deliver them within 3 working days.
5. Q: Can you make the product according to customer’s requirements?
A: Yes, welcome costom-made products.
6. Q: What is your payment term?
A: You can pay by TT, Paypal, Western Union.
| Contract |
Thank you for your visiting, when you need further more information, kindly contact Nancy directly, the detail information will be provided for you within 1 hours.
