8 футов, безшпиндельный станок для обрезки древесины диаметром 500 мм по цене
- Category: Wood Debarker >>>
- Supplier: Weihai Hanvy Plywood Machinery Manufacturing Co. Ltd.
Share on (62548526970):
Product Overview
Description
Product Description
Product Application
8ft Spindleless 500mm Diameter Wood Log Debarker Machine with Price for Sale
1.after the bark peeling could protect peeling knife in veneer peeling step, improve veneer grade.
2.adopts rotary cutting principle of non-chuck rotary lathe.
3.hydraulic pressure drive into the constructions, can quickly and effectively remove bark and complete log the round work.
4.competive price and quality.
5.Min.log diameter 140mm,max.log diameter 500mm/800mm/1500mm/2000mm(special log debarker can be customized based on large log diameter,please inquire us for further infor.)
8ft Spindleless 500mm Diameter Wood Log Debarker Machine with Price for Sale
Model | HBP1600 | HBP2000 | HBP2700 |
Working diameter | φ140-500 mm | φ140-500 mm | φ140-500 mm |
Working length | 1400 mm | 2000 mm | 2600 mm |
Rotary speed | 47 m/min | 47 m/min | 47 m/min |
Total motor power | 24 kw | 33.5 kw | 35.5 kw |
Knife size | 140x12.7x1600 | 140x12.7x2000 | 140x12.7x2700 |
Overall dimensions | 3650x2155x1700 mm | 4550x2155x1700 mm | 5482x2155x1700 mm |
Weight | 5875 kg | 6000 kg | 7600 kg |
Main Features
8ft Wood Log Debarker Machine Price with Carrier Roller
1.Adopts rotary cutting principle of non-chuck rotary lathe
2. Hydraulic pressure drive into the constructions, can quickly and effectively remove bark and complete log the round work.
3. One debarker machine can supply with two rotary lathe, save about five or six labor.
4.Hydraulic feeding, can debarking and roundup small size raw log.

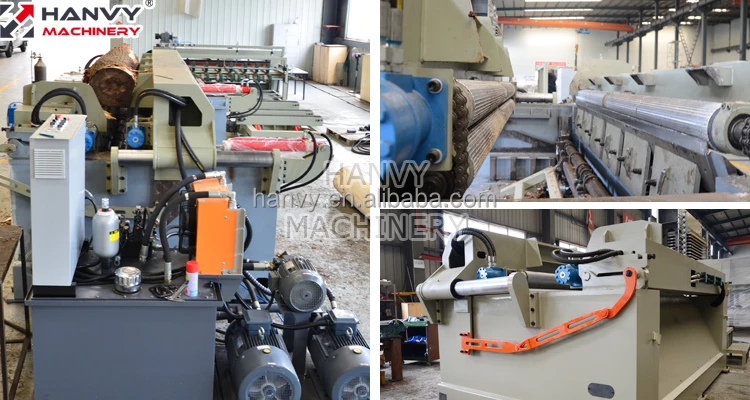

Detailed Images

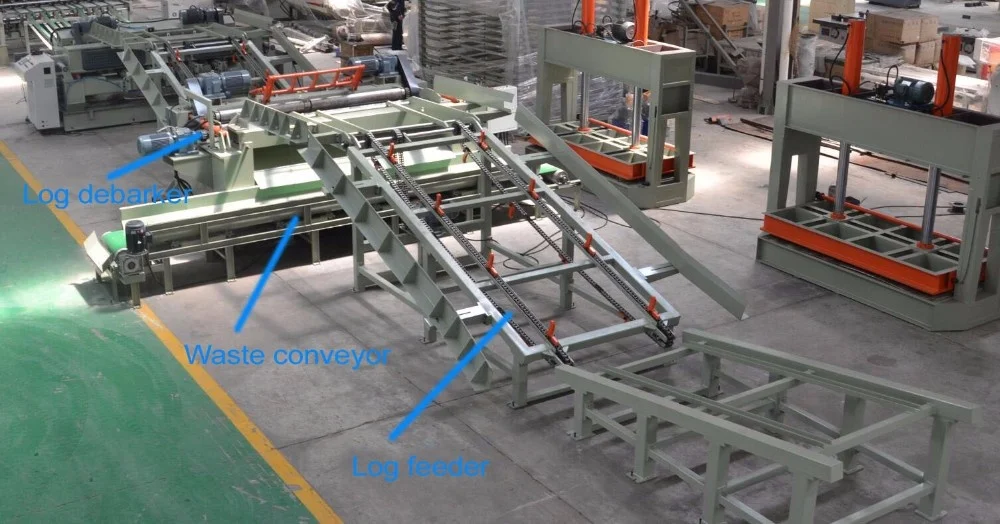

Tree bark removing machine
This machine can be equipped with log conveyor and log core conveyor machine,full automatic,save labor and improves working efficiency.

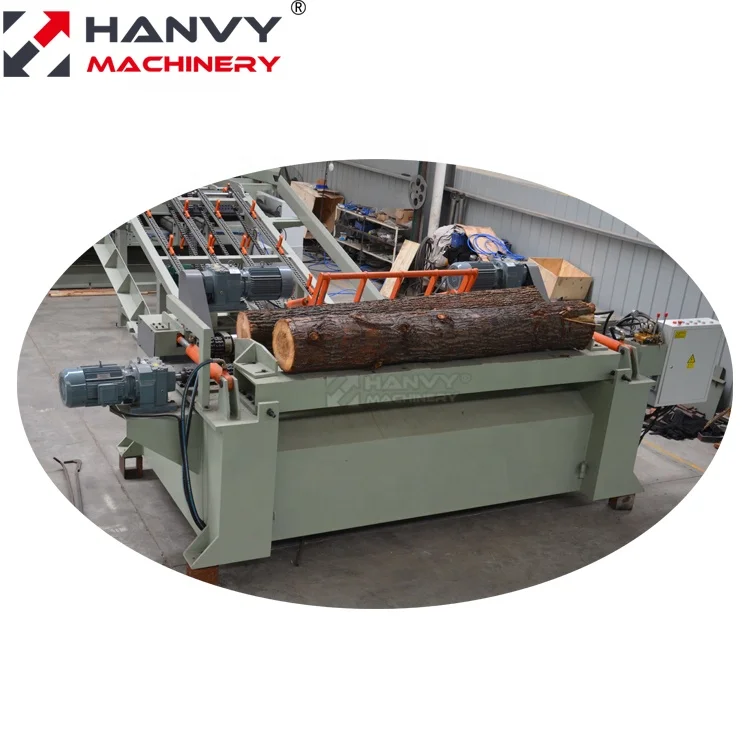

Spindleless wood log debarker with carrier roller
Optional carrier roller for log,improves working efficiency.

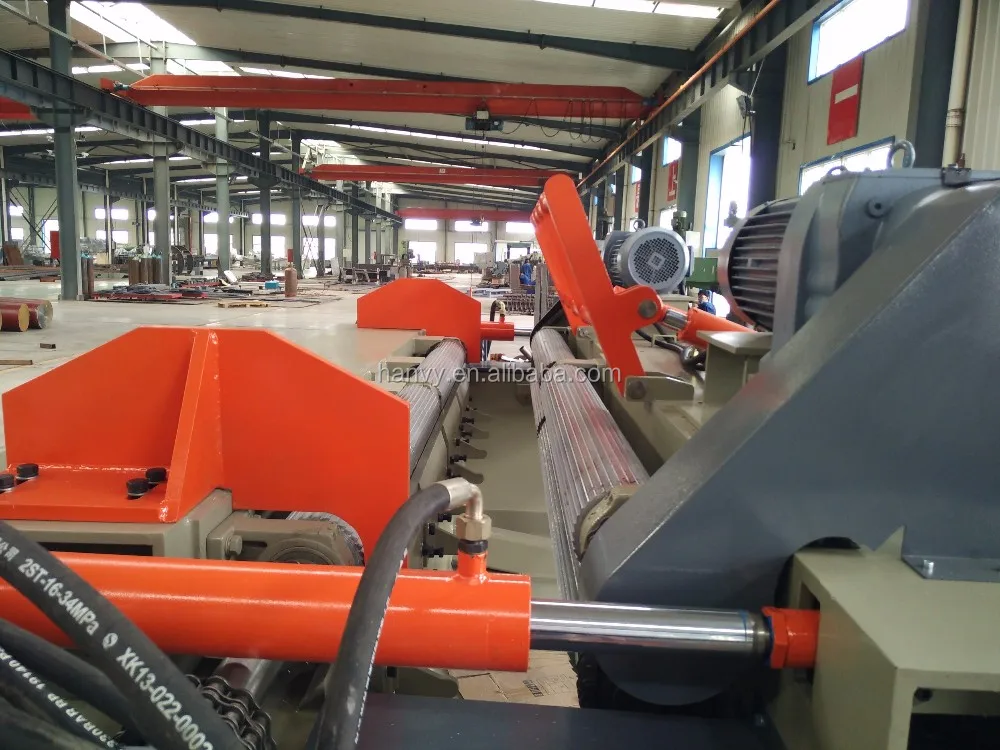

Automatic log debarker with log feeder
Brand for electric applicance:Schneider

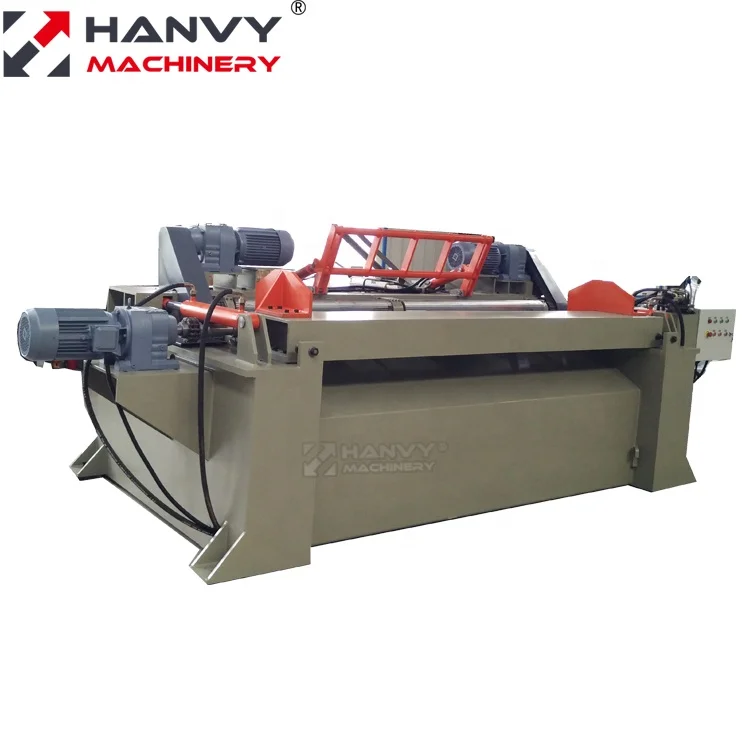

Wood Log Debarker Machine Price/Bark Removing Machine
This machinese adopts rotary cutting principle of non-chunk rotary lathe.Driven by hydraulic pressure,can remove bark quickly and effectively and make log rounding.

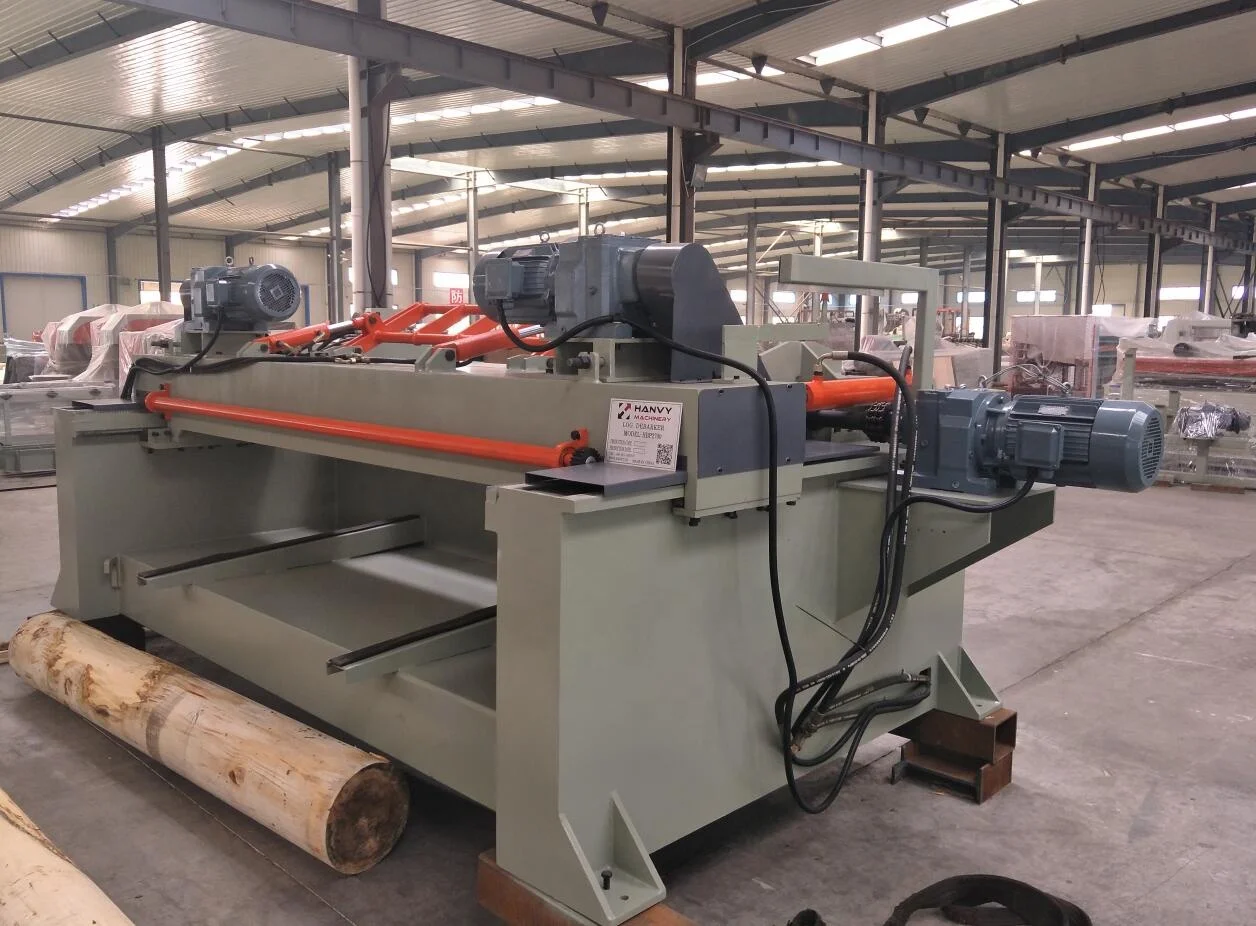

8ft Log debarking and rounding machine
Hanvy Machinery,is the real original factory for wood log debariker machine/bark removing machine in China.
Welcome to visit our factory for further negotiation.
Production Chart

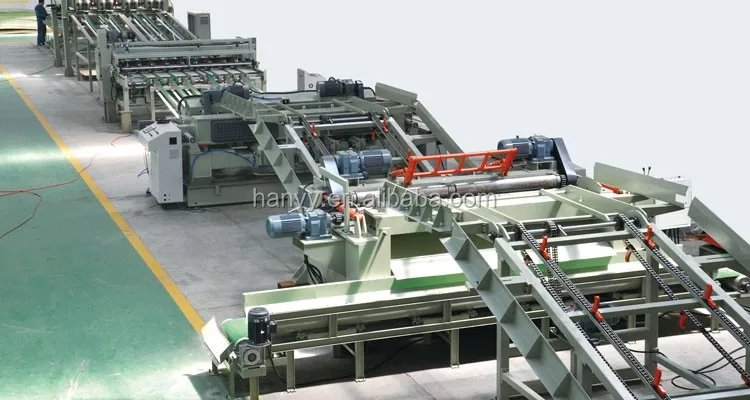

HANVY PEELING LINE
This veneer spindleless peeling line is very popular in veneer and plywood industry worldwide.
It occupies space 38x8m.
The full line includes:
1. Log feeder 2. Log debarker 3. Debarked log feeder 4. Veneer peeling machine
5. Veneer conveyor 6. CNC veneer rotary clipper 7. Veneer stacker 8. Waste conveyor
It occupies space 38x8m.
The full line includes:
1. Log feeder 2. Log debarker 3. Debarked log feeder 4. Veneer peeling machine
5. Veneer conveyor 6. CNC veneer rotary clipper 7. Veneer stacker 8. Waste conveyor
HANVY PRESSING LINE
The pressing line incudes 500Ton cold press machine with automatic infeed and outfeed device,SIEMENS PLC Control.600Ton or 800Ton
hot press machine,10/15/20 layers,opening 70mm or customized.
SIEMENS PLC control,5 different pressure controls,6 modes data for high plywood quality.
CE Certification,top quality in China.Click above picture into detailed link.
hot press machine,10/15/20 layers,opening 70mm or customized.
SIEMENS PLC control,5 different pressure controls,6 modes data for high plywood quality.
CE Certification,top quality in China.Click above picture into detailed link.
Certifications
We've got ISO and CE certificates for many plywood machines,widely sold to EU, US, Australia, African, Mexico,Southeast Asia,etc.
About Us
HANVY PLYWOOD MACHINERY-ABOUT US
We have accumulated over 30 years experience, and have successfully made a strong impact in the international markets. Our entire range comprises machines like Log Debarker, Veneer Lathe Peeling Machine, Veneer Dryer, Glue Spreader, Plywood cold press, Hot Press Machine, Plywood D.D Saw , Log Home Machinery, and Log / Timber Saws and Moulders.
Hanvy plywood machines are widely sold to over 60 countries so far,such as
Turkey,Russia,Poland,Germany,Brazil,Ukraine,Mexico,Australia,Southeast Asia,African,US,etc.
1 Year warranty for all machines,sit installation and commissioning service provided by our professional engineering team.
Hanvy plywood machines are widely sold to over 60 countries so far,such as
Turkey,Russia,Poland,Germany,Brazil,Ukraine,Mexico,Australia,Southeast Asia,African,US,etc.
1 Year warranty for all machines,sit installation and commissioning service provided by our professional engineering team.
Packing & Delivery
Packaging | ||
Size | 20ft | |
Weight | 7600kg | |
Packaging Details | Shrinkage film for overall,small sapre parts are packed in plywood box. Underneath with plywood pallet for forklift transportation. | |
