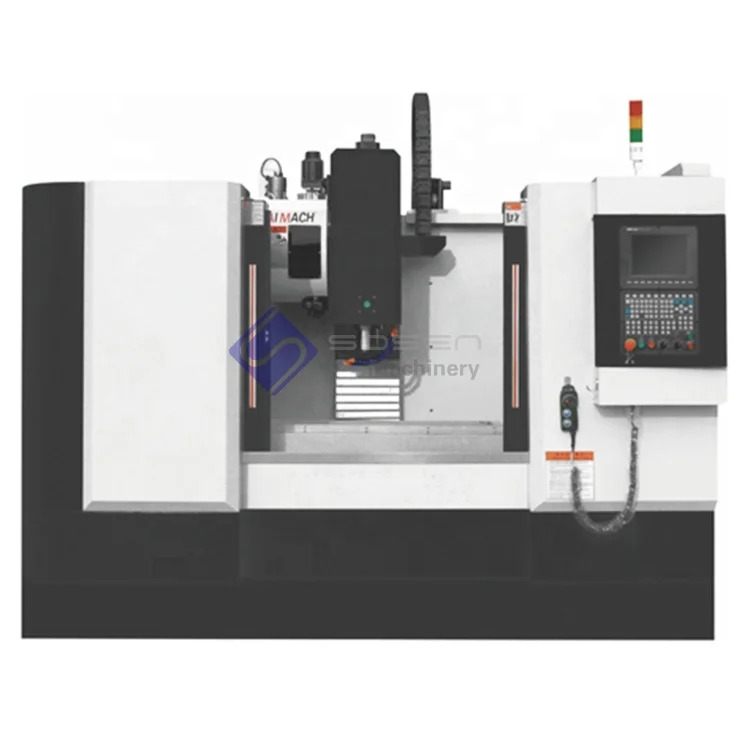

VMC850B CNC 4 axis milling machine metal with FANUC
- Category: >>>
- Supplier: Tengzhou Sosen Co. Ltd.
Share on (62548536138):
Product Overview
Description
Products Description

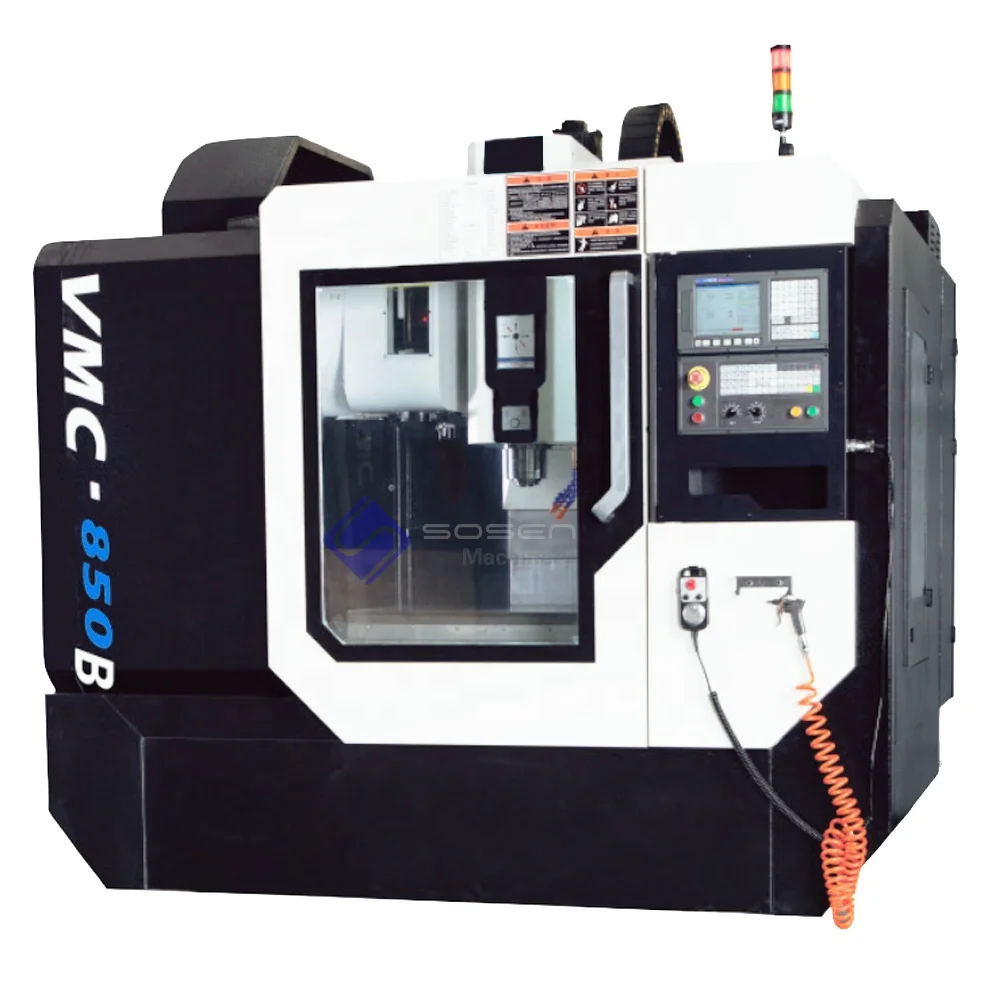

VMC850B CNC 4 axis milling machine metal with FANUC
Model | VMC850B |
Worktable size | 1100*500mm |
Max.loading capacity of worktable | 500kg |
Worktable travel X*Y*Z | 800*500*500mm |
Distance between spindle nose to table | 100-600mm |
Distance between spindle centre to column surface | 560mm |
Rapid moving speed X/Y/Z | 24/24/18m/min |
Cutting feeding speed X/Y/Z | 10-10000mm/min |
Spindle taper | BT40 |
Max.spindle speed | 8000rpm |
Spindle motor power | 7.5/11kw |
Position accuracy | 0.005mm |
Re-position accuracy | 0.003mm |
Automatic Tool magazine pieces | 16/24 pcs |
Max.tools weight | 8 kg |
Max.tools size | 130*300mm |
Time of tool changing | 3 s |
Overall size | 2615*2300*2500mm |
Machine weight | 5300 kg |
Standard accessories:
1.Umbrella-type 16 pcs Tools magazine from Taiwan.
2.BT40 spindle unit with 8000rpm spindle unit
3.X,Y,Z-axis with box guide way
4.Full protection
5.Work light
6.Coolant system
7.Electric Hand wheel
8.Centralized auto-lubrication system
9.GSK CNC controller
2.BT40 spindle unit with 8000rpm spindle unit
3.X,Y,Z-axis with box guide way
4.Full protection
5.Work light
6.Coolant system
7.Electric Hand wheel
8.Centralized auto-lubrication system
9.GSK CNC controller
Optional accessories:
1.4th axis CNC control rotary worktable
2.5th axis CNC control tilting rotary worktable
3.Spiral Conveyor
2.5th axis CNC control tilting rotary worktable
3.Spiral Conveyor
4.SIEMENS CNC controller
5.FANUC CNC controller
6.Oil coolant
7.Coolant through spindle
8.24 pcs disc type automatic tool changer
Details Images

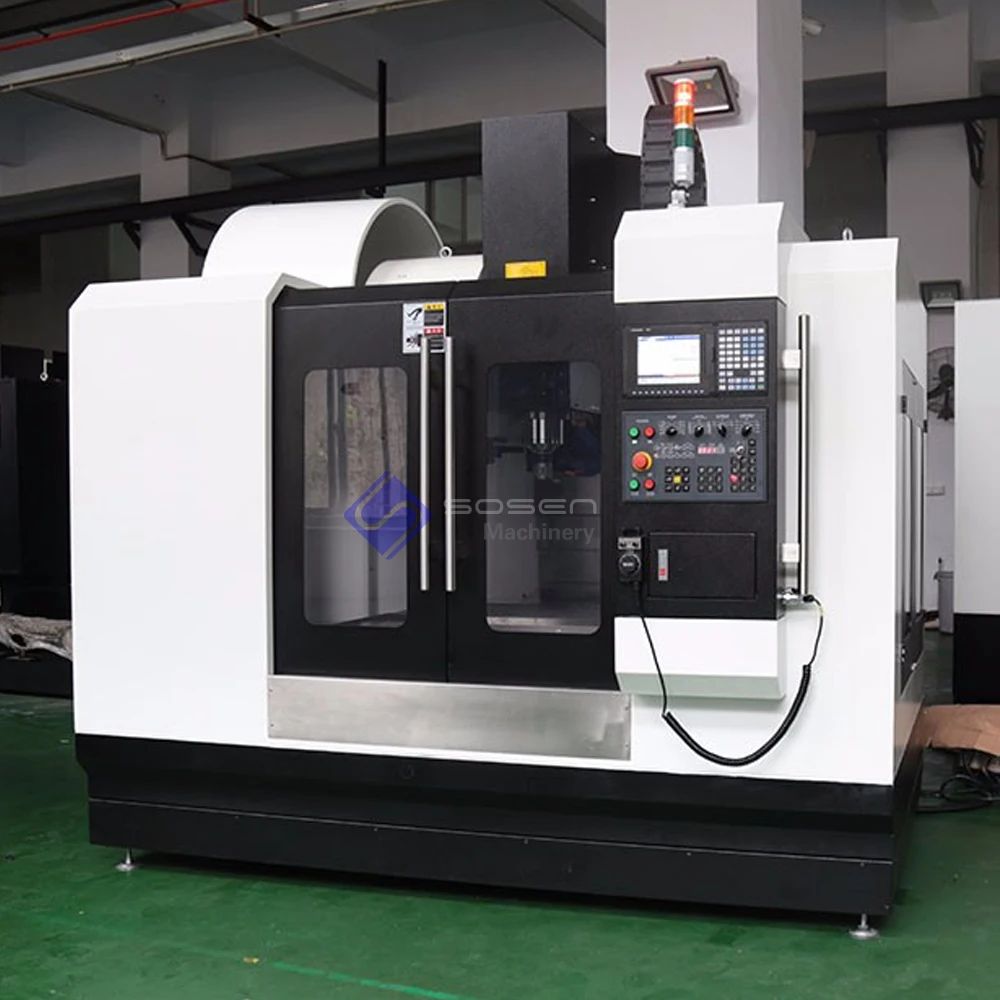

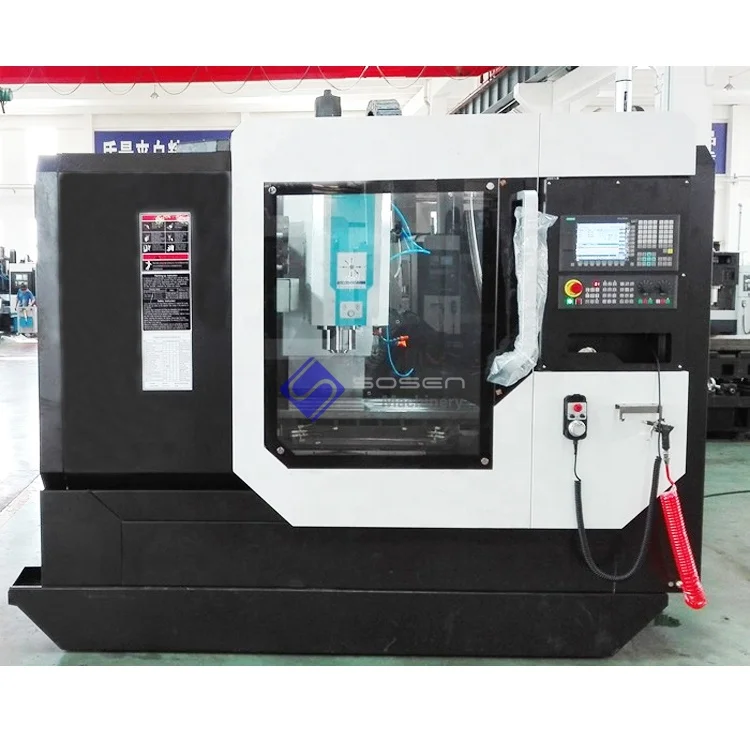

3-axis Metal milling CNC milling machine 4-axis vertical machine center with box guide way on X/Y/Z axis.
Spindle
Spindle speed 8000rpm

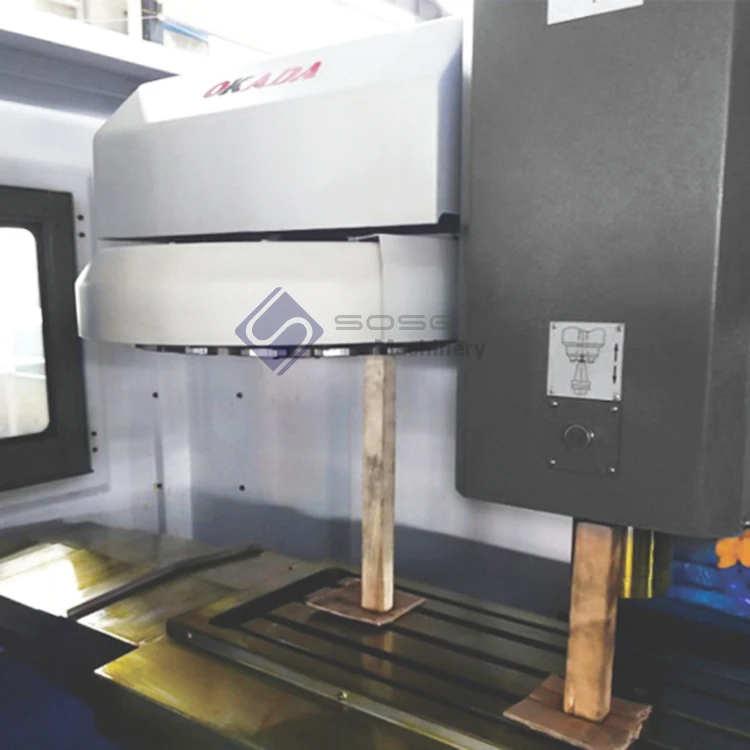

Automatic Tool Changer
Taiwan 16 pcs umbrella type ATC
Optional:
Taiwan 24 pcs disc type ATC

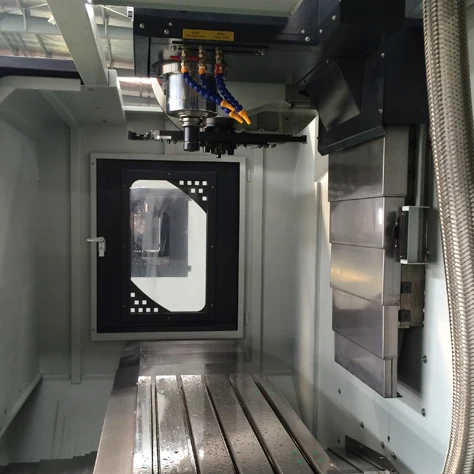

Inside
X,Y,Z-axis with box guide way
Full-closed protection cover

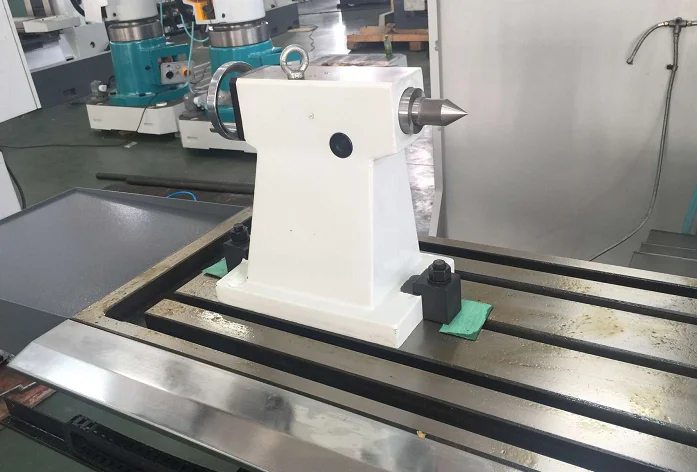

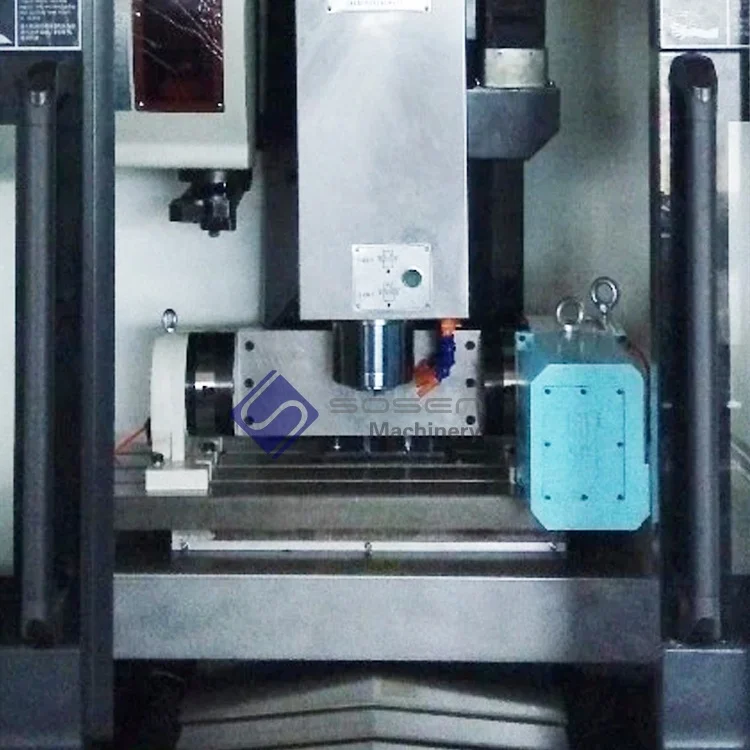

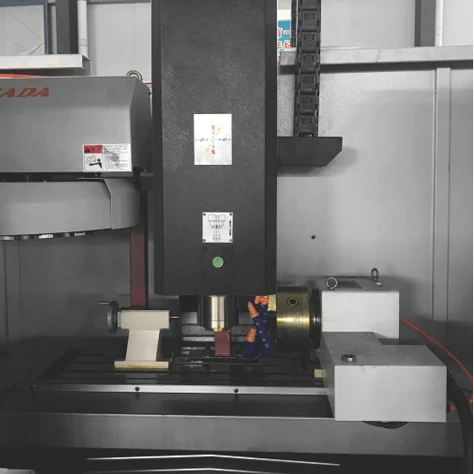

the 4th axis
Application:
VMC850B CNC metal 4 axis vertical milling machine center with FANUC CNC controller refers to a machining center where the axis of the spindle is perpendicular to the worktable, and is mainly suitable for processing complex parts such as plates, plates, molds, and small shells. The vertical machining center can complete the processes of milling, boring, drilling, tapping and thread cutting.
Advantage:
The CNC vertical milling machining center can complete a variety of processes in a centralized and automatic manner, avoiding artificial operation errors, reducing the time for workpiece clamping, measurement and machine tool adjustment, and workpiece turnover, handling and storage time, greatly improving processing efficiency and processing accuracy. So it has good economic benefits.
