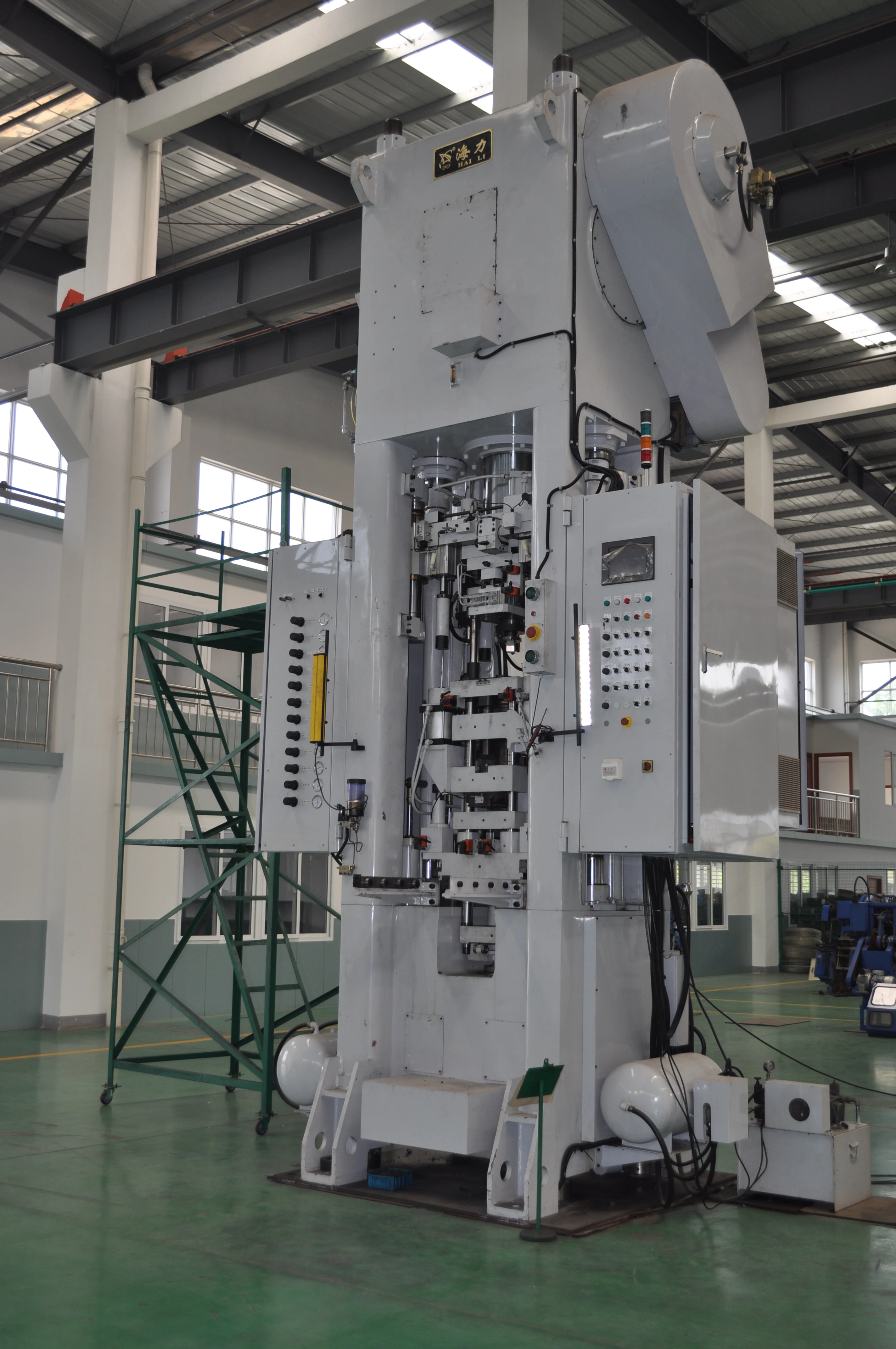

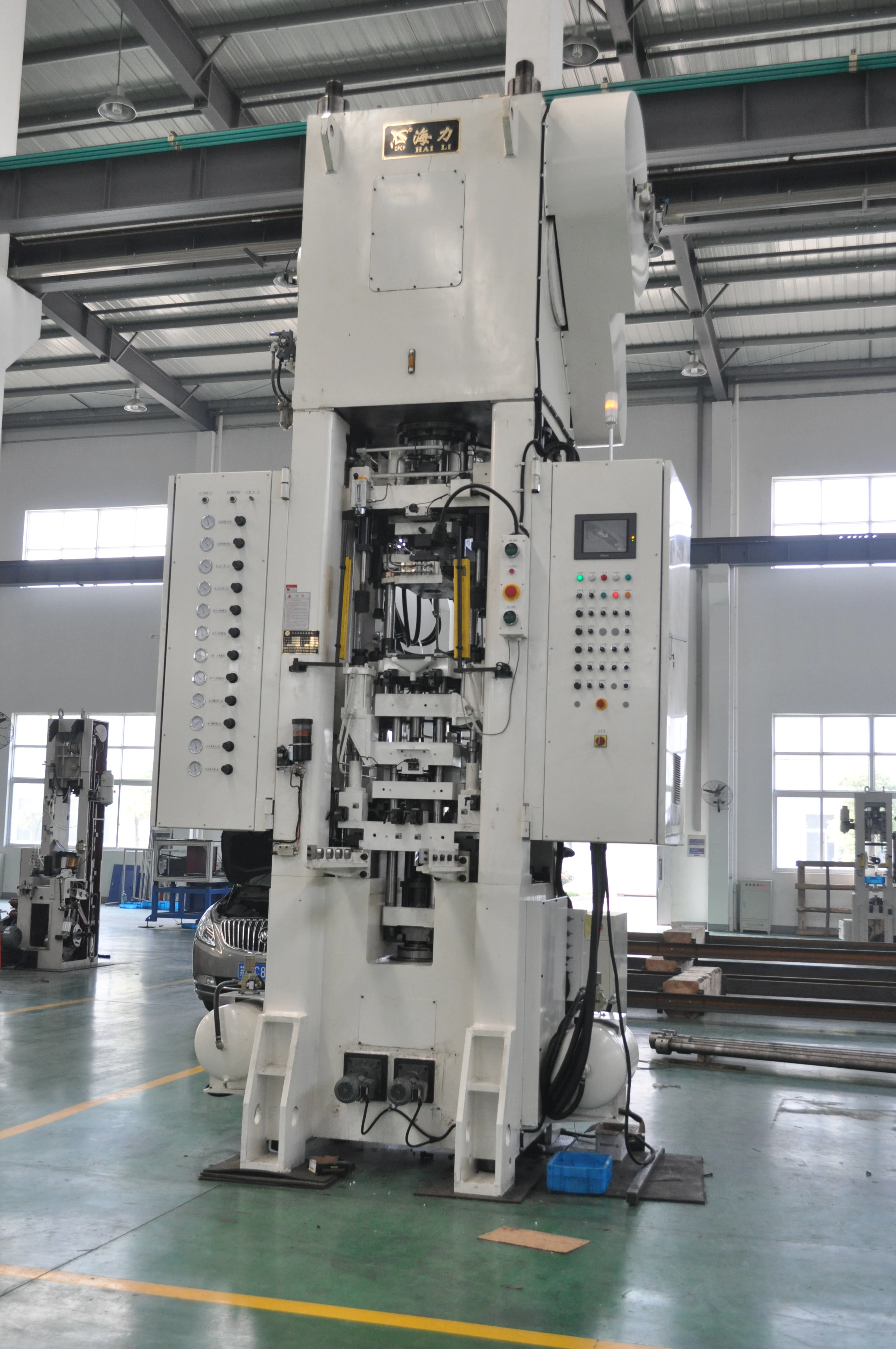

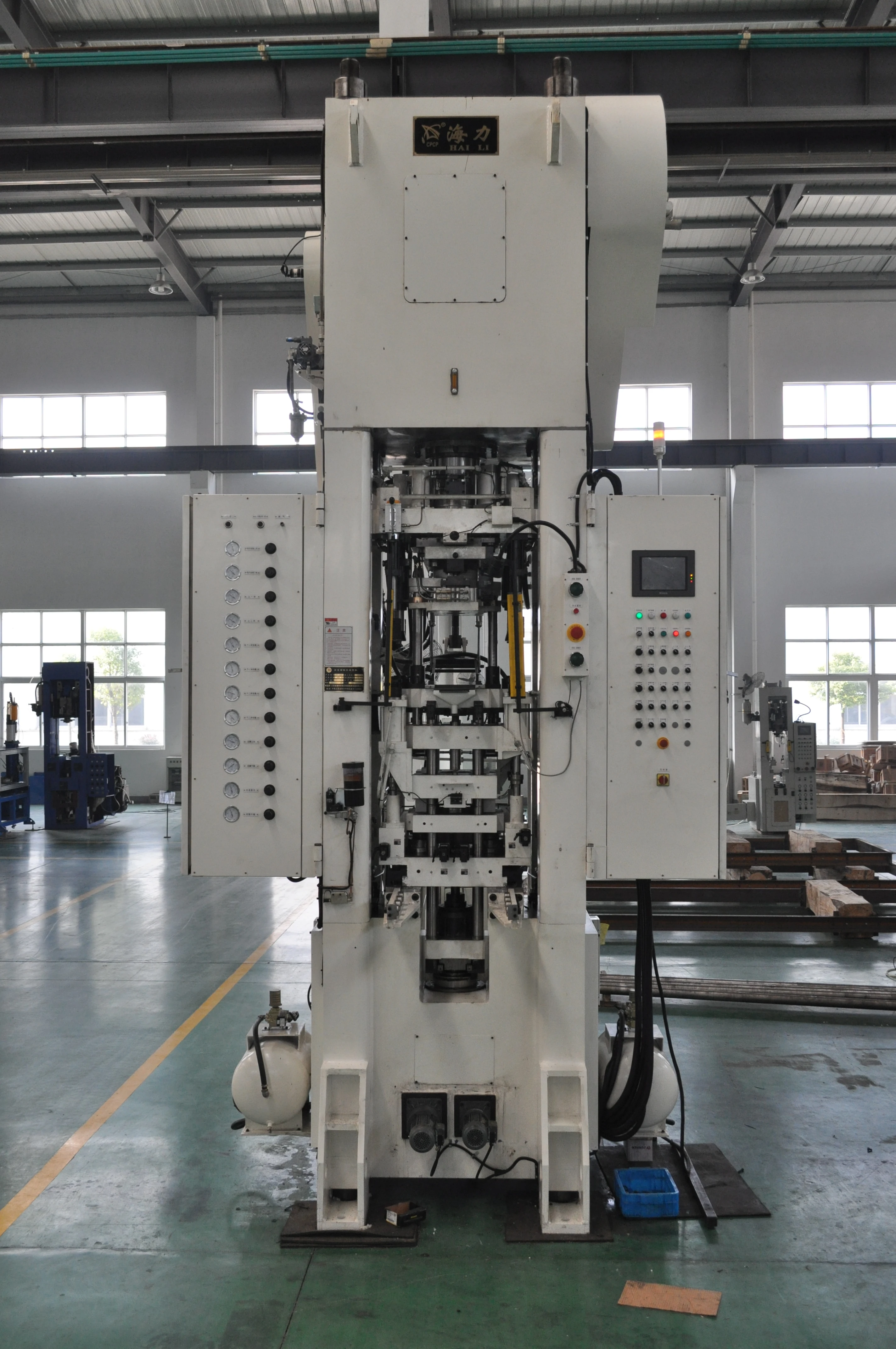

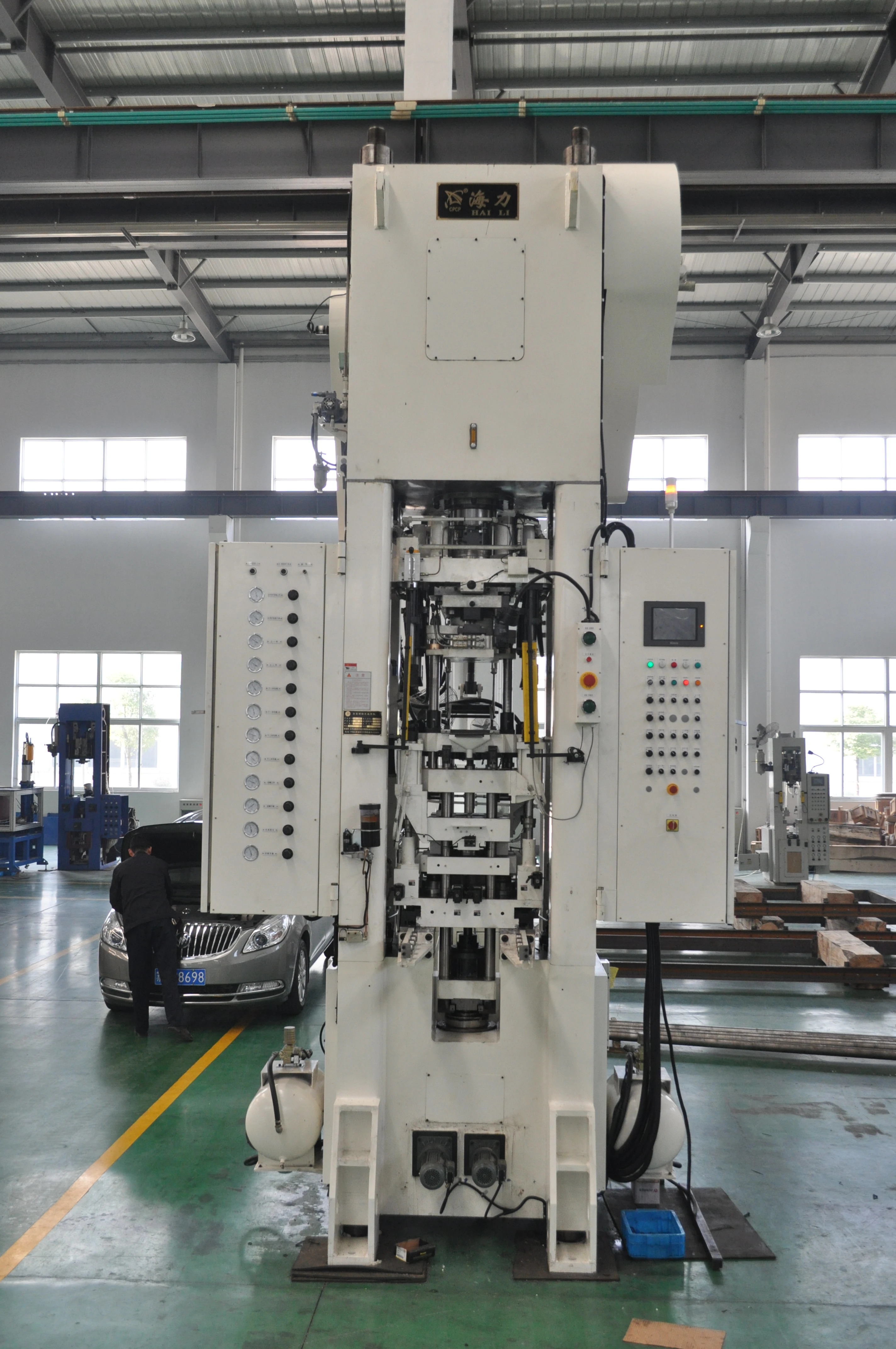

260 ton powder metallurgy press machine
- Category: >>>
- Supplier: Yangzhou Haili Precision Machinery Manufacturing Co. Ltd.
Share on (62548656186):
Product Overview
Description
Item | HPP-2600P |
Max pressing capacity(KN) | 2600 |
Max ejecting capacity(KN) | 1300 |
Upper punch stroke(MM) | 200 |
Upper punch adjustment stroke(MM) | 100 |
Max filling height(MM) | 150 |
Max ejection stroke(MM) | 100 |
Max top press stroke(MM) | 0-10 |
Over (under) filling stroke(MM) | 7.5 |
Die ejection level adjustment(MM) | ±7.5 |
Compacting rate(R/MIN) | 6-18 |
Weight of machine(KG) | 30000 |
Main motor power(KW) | 37 |

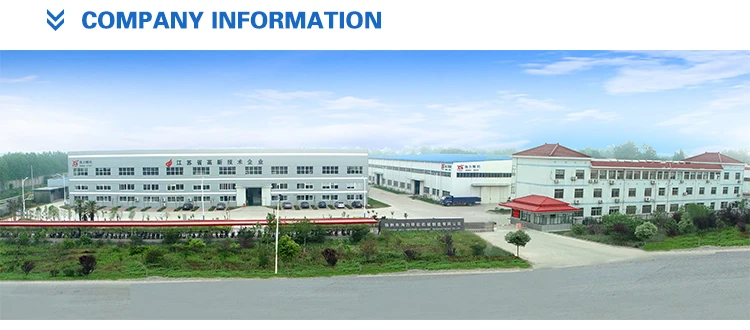

Our company already in powder metallurgy 30 years.It has 40,000 square meters area; the construction area is 26, 000 square meters.
HPP-P, HPP-S, HPP-F, HPP-N, HPP-H, HPP-T series full-automatic powder compacting press machine and HSP-J, HSP-H, HSP-P series sizing machine which widely used in powder metallurgy, hard alloy, magnetic material, fine ceramic, electrical carbon and so on. They are ranged from 1T to 850T.
We have vertical boring and milling machine center, turning machine center, screw grinder,
deep hole grinder, ultra precision cylindrical grinder, ultra precision surface grinder and other key equipment; the three-coordinates gauging machine and other precision inspection equipment; and CNC machine, CNC milling machine, large housing pane, large planer-type milling machine and other about 160 sets of metal cutting machines.
deep hole grinder, ultra precision cylindrical grinder, ultra precision surface grinder and other key equipment; the three-coordinates gauging machine and other precision inspection equipment; and CNC machine, CNC milling machine, large housing pane, large planer-type milling machine and other about 160 sets of metal cutting machines.
Machine Inspection Process
Step 1: Our technicians check all the press machine specification first whether meet the requirements
Step 2: Customer come to factory with mould and powder to test the press machine operation
Step 3: Our technicians go to customer factory to commissioning the press machine when machine arrived.
Our technicians also provide the free press machine training course.
Step 1: Our technicians check all the press machine specification first whether meet the requirements
Step 2: Customer come to factory with mould and powder to test the press machine operation
Step 3: Our technicians go to customer factory to commissioning the press machine when machine arrived.
Our technicians also provide the free press machine training course.
Each year we attend the Asia, Europe and the World powder metallurgy conference, Auto expo, Forming exhibition,and other related exhibition all over the world.
