Car air filter coil tube making forming machine for oil filter making
- Category: >>>
- Supplier: Platinum Overseas Trade Inc.
Share on (62548786196):
Product Overview
Description

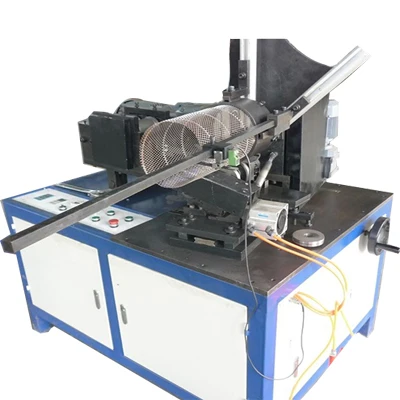

Spiral Filter Core Making Machine
This machine is specially for producing the cores of automotive filters.
Main Features
1、Very easy and quick to change the diameter of spiral tube.
2、Any length can be cut according to customer’s requirement.
3、By adjusting clutch, the machine can be suitable for different thick materials.
4、PLC control makes high efficient, stable quality, less procedures and materials and so reduces the production cost.
5、Fluid drive, large driving moment and stable run.
2、Any length can be cut according to customer’s requirement.
3、By adjusting clutch, the machine can be suitable for different thick materials.
4、PLC control makes high efficient, stable quality, less procedures and materials and so reduces the production cost.
5、Fluid drive, large driving moment and stable run.
Specification
1 | Production capacity: | 1.2 ~1.6 m/min |
2 | Diameter range of filter core: | 40mm~150mm |
3 | Length of core: | any, unlimited |
4 | Thickness of raw material: | 0.20~0.40mm |
5 | Width of raw material: | 50 mm,or 60mm |
6 | Motor power: | 3kw |
7 | Electric power: | 380V/50Hz (can be according to customer’s requirements) |
8 | Weight: | 800kg |
9 | Dimension of main part: | 1300mm x 1000mm x 1400mm |
10 | Dimension of unloading rack: | 1200mm x 800mm x 760mm. |
11 | Buildup of line: | decoiler, forming unit, fly cutter |
