Yam flour starch drying machine fruit drying production line

Product Overview

Description

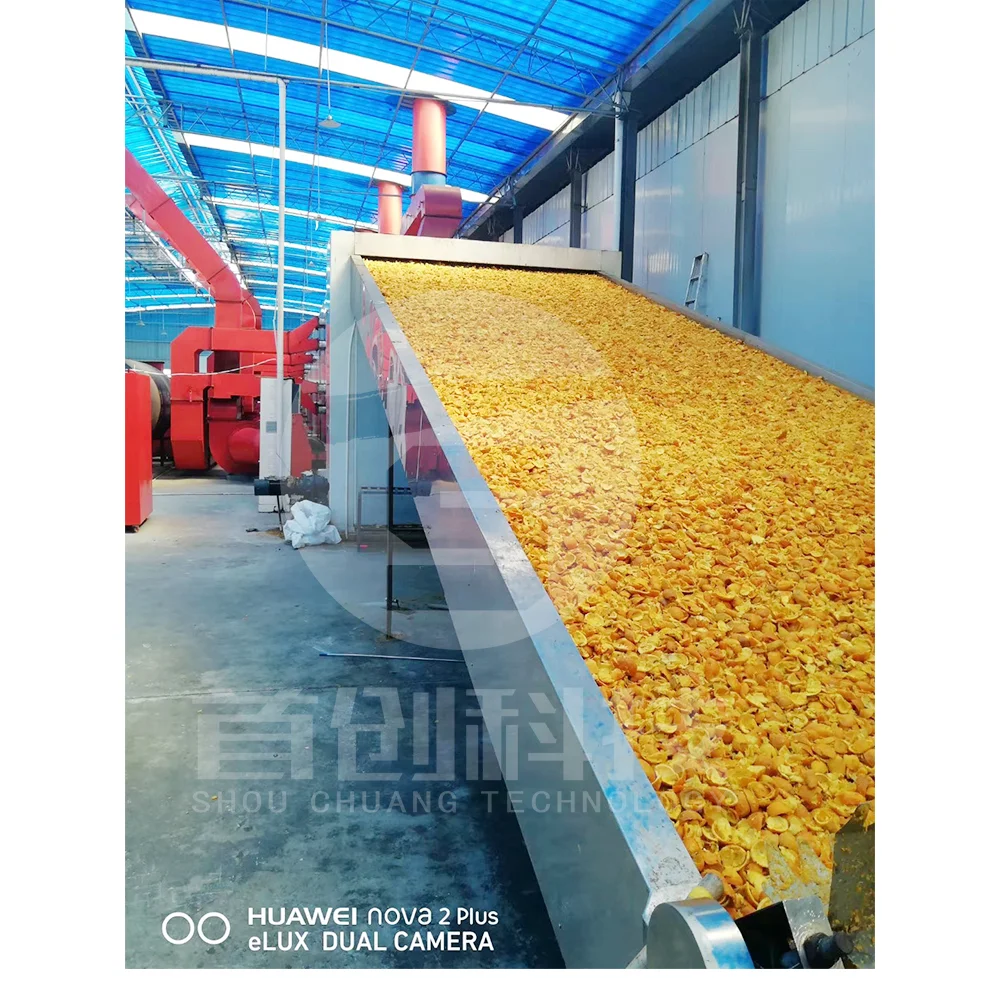

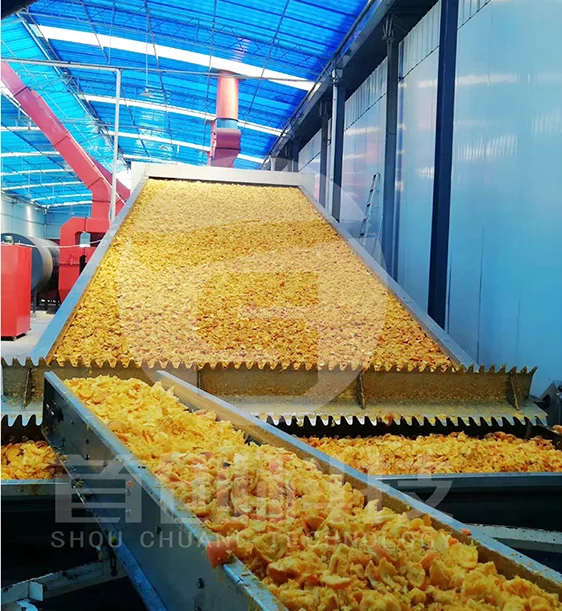

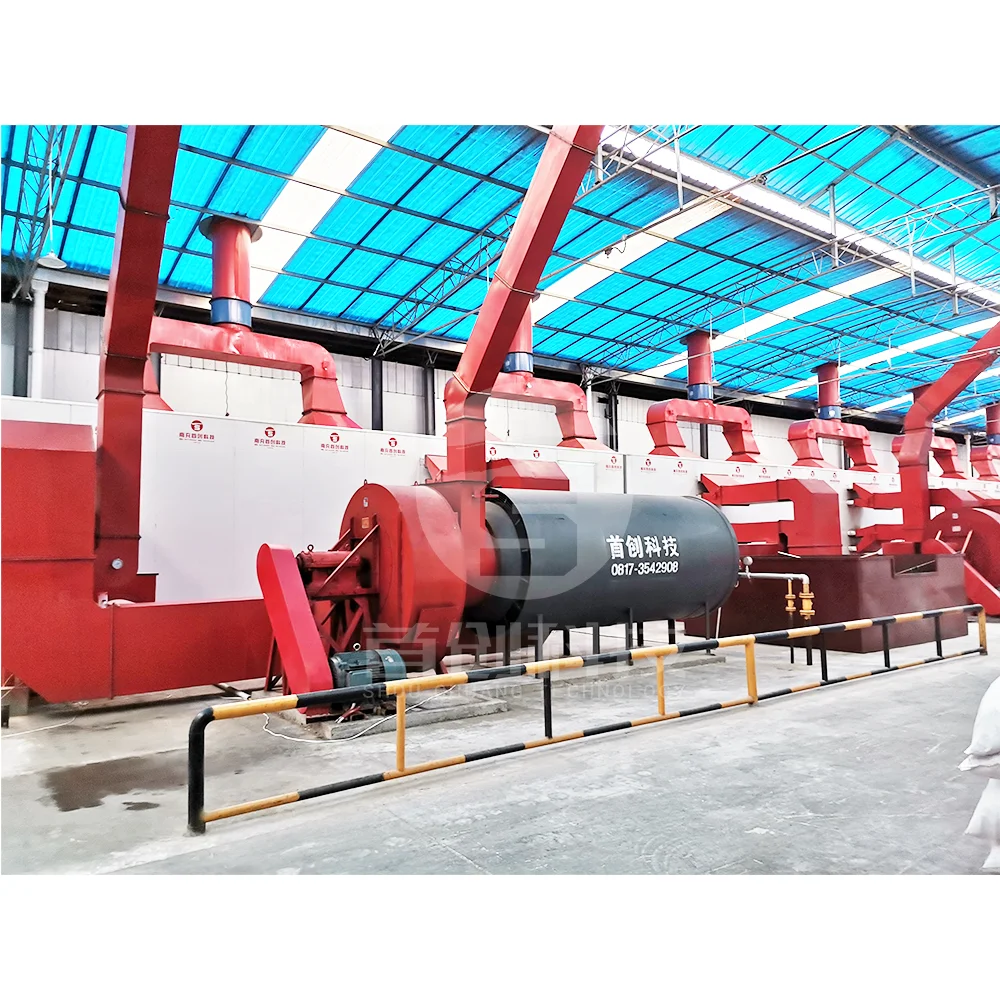

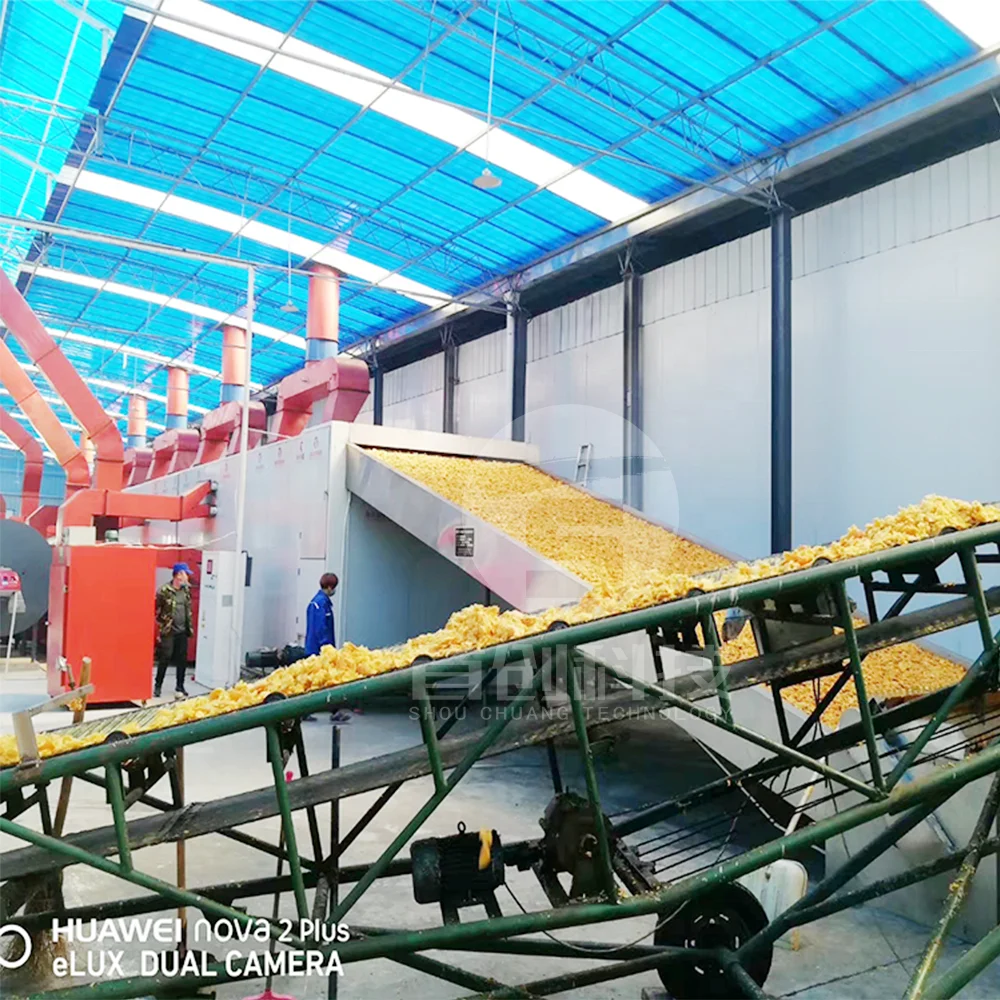

Working sites of drying machine

Working principle of drying machine

The hot air circulation oven adopts the long shaft circulation fan with high temperature resistance. The forced hot air heated by the electric heating pipe or the steam heat exchanger circulates in the oven, which enhances the heat transfer, improves the water evaporation rate and shortens the drying time. The whole box adopts a fully enclosed structure, most of the hot air is circulated in the box, and the hot and humid air is reasonably discharged and fresh air is added, with high thermal efficiency and energy saving. Under the effect of forced ventilation, the materials are dried evenly. The oven is equipped with an automatic temperature control system, with accurate temperature control.

Application of shouchuang wide range of applications drying oven sites

Modern food drying not only pays attention to the taste of food,but also pays more and more attention to the nutrition of food.



This rotary oven can satisfy the drying requirements of different foods without damaging the flavor substances,structure and various natural pigments and heat sensitive substances.



At the same time,it also maximizes the storage of vitamins,carbohydrates,proteins and other nutrients in processed materials to meet the needs of modern people for the nutritional value of dried foods.



ShouChuang dryer parameter





Item	SC-C1	SC-C2	SC-C3	SC-C4	SC-C5
Drying area (m2)	7.1	14.1	28.3	42.4	56.5
Effective volume (m3)	1.3	2.6	4.9	7.4	10.3
Drying capacity(Kg/batch)	60	120	240	360	480
Fan air volume (m3/h)	3450	3450	6900	10350	13800
Fan power(KW)	0.55	0.55	0.55×2	0.55×3	0.55×4
Dryer dimension(mm)	1410×1200×2160	2250×1200×2160	2250×2160×2160	3290×2160×2160	4360×2160×2160
Trolley	1	2	4	6	8
Tray	24	48	96	144	192
Weight (Kg)	480	1080	1520	1960	2400



Advantages and eatures:

1. The air supply and return part is connected with the drying room, and the target temperature is reached through multiple cycles, and the circulating air volume is not affected;

2. Suitable for drying most materials;

3. Common models: split type, closed type, integrated opening and closing.

Sichuan Nanchong Shouchuang Technology Development Co., Ltd is a service provider focusing on comprehensive processing solutions for agricultural products.It is a high-tech enterprise.It is committed to helping customers solve the problem of storage and collection of agricultural products,put an end to processing pollution and preserve the quality of agricultural products.



Processing flow

Company introduction



From micro machinery to large-scale complete set processing system,through our technology,software,equipment and services,we can help optimize the industry and help customers optimize their operation.Our products cover fruits and vegetables,herbs,drinks,feeds,food and other fields.

We persist in creating value for our customers with technological innovation,rely on high-level R&D platforms such as national research office and scientific research institute,and win the trust and cooperation of customers at domestic and abroad with our continuously enhanced innovation ability and perfect deleverability.

Shouchuang technology will continue to be committed to advocating the development of industry standards and responding to the ever-changing challenges of agricultural products processing.
