Factory supply hydrocyclone / hydrocyclone filter / sand separator hydrocyclone
- Category: >>>
- Supplier: Shandong Great Petroleum Equipment Co. Ltd.
Share on (62548959158):
Product Overview
Description
Product Description

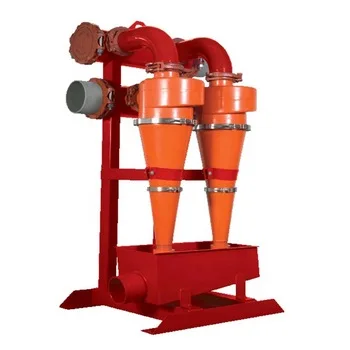

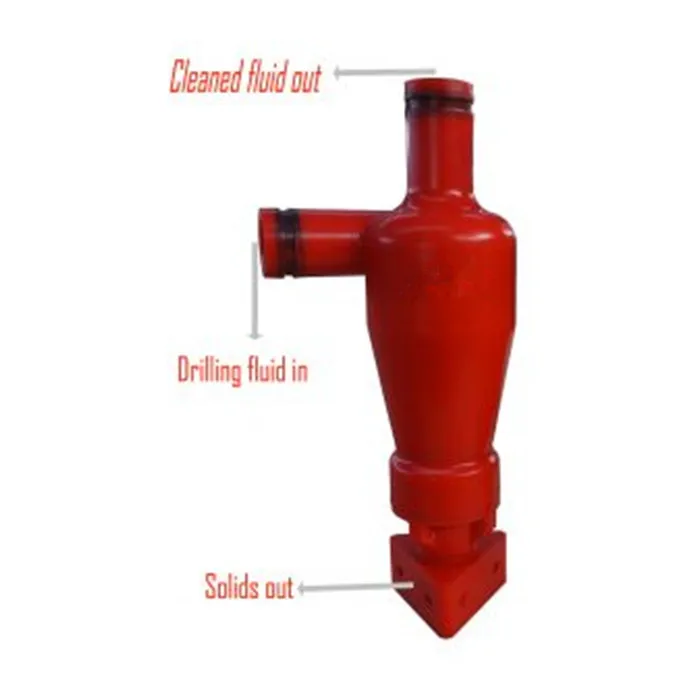

Hydrocyclone is also called cyclone separator, Hydrocyclones include hydrocyclone desander (10inch cone) and hydrocyclone desilter (4inch cone), which is used to separate sand and silt from the drilling fluid. Centrifugal pump is used to pump the drilling fluids from mud tank into the set of hydrocyclones.
SPECIFICATION FOR HYDROCYCLONE | ||||
Specifications | Diameter(mm) | Inlet Pressure(MPa) | Capacity(m3/h) | Cut Size(μm) |
FX840 | 840 | 0.04-0.15 | 500-900 | 74-350 |
FX710 | 710 | 0.04-0.15 | 400-550 | 74-250 |
FX 660 | 660 | 0.04-0.15 | 160-450 | 74-220 |
FX610 | 610 | 0.04-0.15 | 200-300 | 74-200 |
FX500 | 500 | 0.04-0.2 | 140-240 | 74-200 |
FX400 | 400 | 0.04-0.2 | 100-170 | 74-150 |
FX350 | 350 | 0.04-0.2 | 70-160 | 50-150 |
FX300 | 300 | 0.04-0.2 | 45-90 | 50-150 |
FX250 | 250 | 0.04-0.3 | 40-80 | 40-100 |
FX200 | 200 | 0.04-0.3 | 25-40 | 40-100 |
FX150 | 150 | 0.04-0.3 | 14-35 | 20-74 |
FX125 | 125 | 0.04-0.3 | 8-20 | 20-50 |
FX100 | 100 | 0.04-0.3 | 8-20 | 20-50 |
FX75 | 75 | 0.1-0.4 | 4-10 | 10-40 |
FX50 | 50 | 0.1-0.4 | 2-5 | 7-40 |
FX25 | 25 | 0.1-0.6 | 0.3-1 | 5-20 |
FX10 | 10 | 0.1-0.6 | 0.05-0.1 | 1-5 |
