Stainless Steel Milk Powder Making Machine Centrifugal Atomizer Spray Dryer Machine Factory
- Category: >>>
- Supplier: Hangzhou Anyan Instrument Manufacturing Co. Ltd.
Share on (62548973563):
Product Overview
Description
Product Description

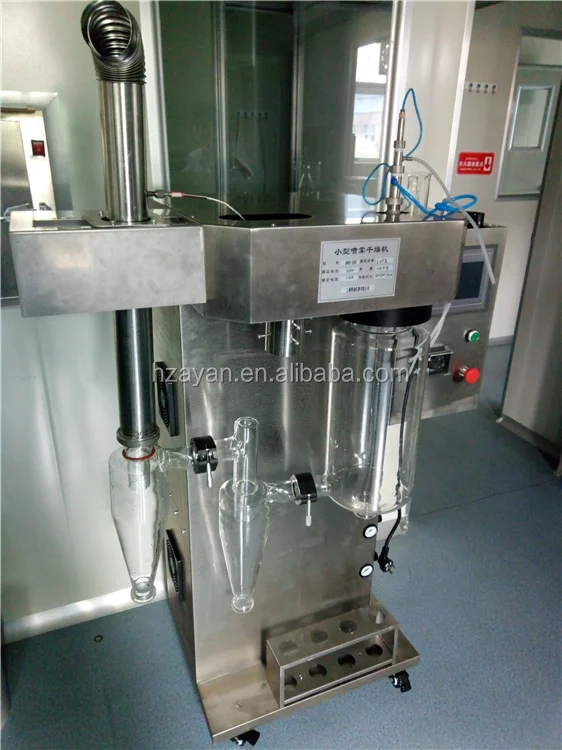

Small-sized Spray Dryer Introduction
The small-sized spray dryer is designed and manufactured by absorbing international advanced technology, whose design is compact and can be moved. It is mainly for processing the fluid of high liquidity.
1.Spray, drying chamber and collecting devices all adopt transparent high-quality glass, which is a kind of high-temp resisting, high-borosilicate glass material, to provide stable environment without pollution. All glass components are easy to disassemble and clean.
2.Visual process of spray drying experiment , easy to control and detect and solve problems timely.
3.Built-in imported oil-free air compressor; powder particles diameter is normally distributed with good liquidity and low noise which is less than 60 db, according with national standards for laboratory.
4.Two-fluid spray of atomized structure, made of stainless steel 316.
5.Adopt PID for the temperature controller with ±1℃ heating temperature control accuracy.
6.The feeding amount can be adjustable by peristaltic pump.
7.Jet device can automatically dredge (needle) and frequency can be adjusted. when the nozzle is blocked , the machine can automatically remove the obstacles in order to ensure the continuity of the experiment. 7. Automatic and manual modes, PLC control, color touch-screen display, all the parameters have a liquid crystal display (LCD).
8. With protection function, the heater will not work without the fan working.
9. Uniform granularity of the finished products. More than 95% of the died powder has the same particle size range.
10. When connected to the outer electric brake, the machine can be used without any auxiliary equipment.
1.Spray, drying chamber and collecting devices all adopt transparent high-quality glass, which is a kind of high-temp resisting, high-borosilicate glass material, to provide stable environment without pollution. All glass components are easy to disassemble and clean.
2.Visual process of spray drying experiment , easy to control and detect and solve problems timely.
3.Built-in imported oil-free air compressor; powder particles diameter is normally distributed with good liquidity and low noise which is less than 60 db, according with national standards for laboratory.
4.Two-fluid spray of atomized structure, made of stainless steel 316.
5.Adopt PID for the temperature controller with ±1℃ heating temperature control accuracy.
6.The feeding amount can be adjustable by peristaltic pump.
7.Jet device can automatically dredge (needle) and frequency can be adjusted. when the nozzle is blocked , the machine can automatically remove the obstacles in order to ensure the continuity of the experiment. 7. Automatic and manual modes, PLC control, color touch-screen display, all the parameters have a liquid crystal display (LCD).
8. With protection function, the heater will not work without the fan working.
9. Uniform granularity of the finished products. More than 95% of the died powder has the same particle size range.
10. When connected to the outer electric brake, the machine can be used without any auxiliary equipment.
Machine Application of Mini Spray Dryer:
1.The spray dryer is mainly for food, biology, beverage, chemical, medicine, etc for lab-use; widely used for all kinds of
solutions such as emulsion and suspension liquids; and also suitable for drying heat-sensitive materials such as biological
products, bio-pesticides, enzymes, etc.
2.Can be used to dry spices and pigments, polymer and resins, milk and egg products, plant and vegetable extracts, oxide,
pharmaceutical synthesis, thermal plastic material, bone and tooth powder, aromatic agent, fragrances, blood products, biochemical products, dyes, soap and detergents, food adhesive,etc. 3.Applicable to these fields: colleges and universities, research institutes and micro-enterprise about laboratories development and production of micro-particles powder in food, biology, beverage, chemical, materials, pharmaceutical and other aspects.
solutions such as emulsion and suspension liquids; and also suitable for drying heat-sensitive materials such as biological
products, bio-pesticides, enzymes, etc.
2.Can be used to dry spices and pigments, polymer and resins, milk and egg products, plant and vegetable extracts, oxide,
pharmaceutical synthesis, thermal plastic material, bone and tooth powder, aromatic agent, fragrances, blood products, biochemical products, dyes, soap and detergents, food adhesive,etc. 3.Applicable to these fields: colleges and universities, research institutes and micro-enterprise about laboratories development and production of micro-particles powder in food, biology, beverage, chemical, materials, pharmaceutical and other aspects.
Specification
Model | AY-PWGZ3000 |
Power Supply | 220v/50-60HZ |
Power Rate | 3.5KW/380V |
Diameter of Nozzle | 0.5/0.7/0.75/1.0/1.5/2.0mm (can be customized) |
Water Evaporation Capacity | 1500-2000ml/h |
Drying Time | 0.8～1.0S |
Max Inlet Amount | 1500ml/h |
Min Inlet Amount | 50ml |
Inlet Temperature | 30℃～150℃ |
Outlet Temperature | 30℃～100℃ |
Vacuum degree | - 0.05~0.08Mpa |
Weight | 150kg |
Size | 1300mm×770mm×590mm |
Technical Features
1. The whole drying process of spray drying is completed in a vacuum environment, which greatly reduces the drying temperature of materials and solves the problem of spray drying of heat sensitive materials containing sugar materials.

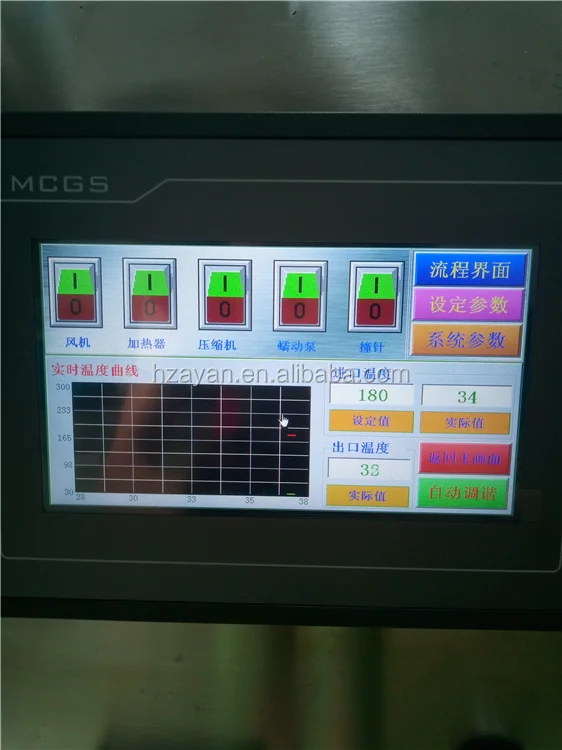

2. Parameter display of color LCD touch screen: air inlet temperature / air outlet temperature / peristaltic pump speed / air volume / needle passing frequency.
3. Full automatic control: one button start, set the spray process parameters, the temperature reaches the predetermined
temperature, the peristaltic pump starts automatically, the touch screen displays animation and the running process is
clearly displayed. It only needs to press the stop button, and the machine automatically and safely shut down.
4. Manual control: if it is necessary to adjust the process parameters during the experiment, it is convenient to switch to the manual state, and the whole experiment process is dynamically displayed on the color touch screen (animation)
5. Equipped with nozzle cleaner (through needle). When the nozzle is blocked, it will be automatically cleared and the frequency of through needle can be automatically adjusted.
6. Shutdown protection function: just press the stop button when shutting down, the machine will stop running immediately except for the fan, to ensure that the heating part of the equipment will not be burnt out due to misoperation (forced shutdown of the fan).

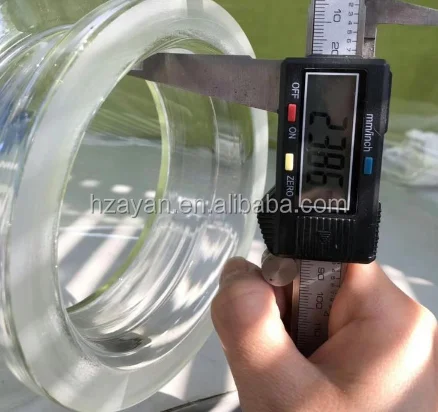

7. The spray, drying and collection system is made of transparent high-quality borosilicate heat-resistant glass material, so that the drying process can be carried out in a non polluting environment.
8. The spray head is a concentric spray head. When atomizing, it ensures that there is no eccentricity resulting in spraying on the side of the bottle wall. The spray head can be moved up and down after installation, so as to adjust the atomization
position and improve the spray drying effect. Atomizationstructure of the two fluid spray is made of high quality stainless
steel, and is designed with compact design and no need auxiliary equipment, and is convenient to use.
9. Built in imported oil-free air compressor, the particle diameter of powder spraying is normal distribution, the fluidity is
very good, the noise is very low, less than 60 dB.
10. Atomization structure of two fluid atomization, the whole machine is made of high quality stainless steel, compact design and no accessory equipment.
11. In the design of drying temperature control, real-time PID constant temperature control technology is adopted to make the temperature control in the whole temperature area accurate and the heating temperature control accuracy ± 1 ℃.
12. In order to keep the sample pure, the air inlet filter is equipped.
13. Solvent in material solutionis recyclable .
14. The feed volume can be adjusted by the feed peristaltic pump, and the minimum sample volume can reach 50ml.
15. After drying, the particle size of the dried powder is relatively uniform, and more than 95% of the dried powder is in the
same particle size range.
16. For viscous materials, a nozzle cleaner (through needle) is provided. When the nozzle is blocked, it will automatically clear and the frequency of through needle can be automatically adjusted.
17. The upgraded atomization system can effectively solve the adhesionand accumulationproblem of some viscous materials in the cyclone separator.

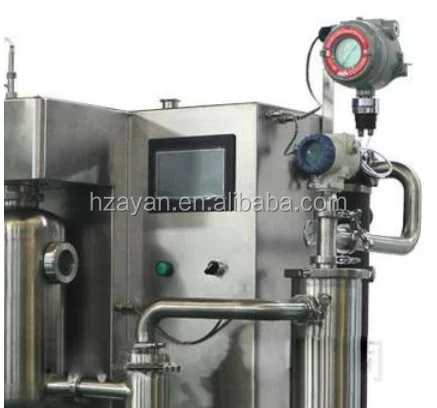

18. Explosion proof system:
The first layer of nitrogen explosion-proof: according to the nature of nitrogen inert gas, the whole pipeline adopts nitrogen
circulation, and the system can operate normally only when the oxygen content is less than 3%.
The second industrial control explosion-proof, the pressure is higher than 3000pa, the safety valve is opened, and the pressure can be released,.
The third explosion-proof is the explosion-proof sheet on the third layer. When the pressure in the drying tower system rises abnormally, the explosion-proof sheet on the top of the tower will open automatically for explosion relief
2. Parameter display of color LCD touch screen: air inlet temperature / air outlet temperature / peristaltic pump speed / air volume / needle passing frequency.
3. Full automatic control: one button start, set the spray process parameters, the temperature reaches the predetermined
temperature, the peristaltic pump starts automatically, the touch screen displays animation and the running process is
clearly displayed. It only needs to press the stop button, and the machine automatically and safely shut down.
4. Manual control: if it is necessary to adjust the process parameters during the experiment, it is convenient to switch to the manual state, and the whole experiment process is dynamically displayed on the color touch screen (animation)
5. Equipped with nozzle cleaner (through needle). When the nozzle is blocked, it will be automatically cleared and the frequency of through needle can be automatically adjusted.
6. Shutdown protection function: just press the stop button when shutting down, the machine will stop running immediately except for the fan, to ensure that the heating part of the equipment will not be burnt out due to misoperation (forced shutdown of the fan).
7. The spray, drying and collection system is made of transparent high-quality borosilicate heat-resistant glass material, so that the drying process can be carried out in a non polluting environment.
8. The spray head is a concentric spray head. When atomizing, it ensures that there is no eccentricity resulting in spraying on the side of the bottle wall. The spray head can be moved up and down after installation, so as to adjust the atomization
position and improve the spray drying effect. Atomizationstructure of the two fluid spray is made of high quality stainless
steel, and is designed with compact design and no need auxiliary equipment, and is convenient to use.
9. Built in imported oil-free air compressor, the particle diameter of powder spraying is normal distribution, the fluidity is
very good, the noise is very low, less than 60 dB.
10. Atomization structure of two fluid atomization, the whole machine is made of high quality stainless steel, compact design and no accessory equipment.
11. In the design of drying temperature control, real-time PID constant temperature control technology is adopted to make the temperature control in the whole temperature area accurate and the heating temperature control accuracy ± 1 ℃.
12. In order to keep the sample pure, the air inlet filter is equipped.
13. Solvent in material solutionis recyclable .
14. The feed volume can be adjusted by the feed peristaltic pump, and the minimum sample volume can reach 50ml.
15. After drying, the particle size of the dried powder is relatively uniform, and more than 95% of the dried powder is in the
same particle size range.
16. For viscous materials, a nozzle cleaner (through needle) is provided. When the nozzle is blocked, it will automatically clear and the frequency of through needle can be automatically adjusted.
17. The upgraded atomization system can effectively solve the adhesionand accumulationproblem of some viscous materials in the cyclone separator.
18. Explosion proof system:
The first layer of nitrogen explosion-proof: according to the nature of nitrogen inert gas, the whole pipeline adopts nitrogen
circulation, and the system can operate normally only when the oxygen content is less than 3%.
The second industrial control explosion-proof, the pressure is higher than 3000pa, the safety valve is opened, and the pressure can be released,.
The third explosion-proof is the explosion-proof sheet on the third layer. When the pressure in the drying tower system rises abnormally, the explosion-proof sheet on the top of the tower will open automatically for explosion relief
Packing & Delivery
Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides, you can choose to use your own shipping agent.
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides, you can choose to use your own shipping agent.
Company Profie
Hangzhou Anyan Instrument Manufacturing Co., Ltd. Is located in Yuhang District, Hangzhou city. It’s a professional manufacturer focusing on R&D, production, sales and service of lab equipments. More than 90% of the company’s R&D personnel are senior experts engaged in scientific research instrument industry for many years. Strong technical force greatly ensure the quality of our products and technical support service. The company’s main products are Molecular distillation equipment, Thin film evaporator, Fully-closed nitrogen blowing instrument, Nitrogen generator, Constant temperature thawing instrument, Low temperature spray dryer, Solid phase extractor, Fat analyzer, Soxhlet extractor and so on.
Anyan products are CE certified, and strictly implementing ISO9001-2000 quality control system instructions in the whole procedure of R&D and production. Currently, we have established long-term cooperation with many domestic university laboratories, well-known hospitals, Pharmaceutical companies, Food processing plants, Chemical plants and etc., sales channel cover over 30 provinces and autonomous regions in China, and has been exported to Europe, America, Oceania, the Middle East, Southeast Asia and other Countries and Regions. The products are well received by customers.
Anyan products are CE certified, and strictly implementing ISO9001-2000 quality control system instructions in the whole procedure of R&D and production. Currently, we have established long-term cooperation with many domestic university laboratories, well-known hospitals, Pharmaceutical companies, Food processing plants, Chemical plants and etc., sales channel cover over 30 provinces and autonomous regions in China, and has been exported to Europe, America, Oceania, the Middle East, Southeast Asia and other Countries and Regions. The products are well received by customers.
FAQ
1.Q: Are you a trading company or manufacturer?
A: We are a professional manufacturer of apparatus for laboratory and pilot plants. We can customize according to clients' requirements.
2.Q: Where is your factory?
A: Our factory located in Hangzhou City, Zhejiang Province.
3.Q: How long is your delivery time?
A: Generally our delivery time is within 15 working days. Ayan occupies a 2000 M2 production base, is able to guarantee our quality and fast delivery to users. Genuine products are assured by factory direct sales.
4.Q: What are your MOQ and your payment term?
A: Our MOQ is 1 set. While the value is less than 10,000USD, 100% prepayment. While the value more than 10,000 USD, 50% T/T in advance, balance before shipping.
5.Q: What is your package?
A: Sufficient inner protection with different materials, including bubble bag, foam board and foam grain. Then pack into plywood boxes or cartons for different products.
6.Q: How to install the apparatus and how to operate?
A: All of our apparatus are designed by simplicity assembly. The critical parts will be fixed in our plant and the whole equipment is debugged and tested before transportation.
