New Original Hot sale Fortinet FortiGate 101E Network Security Firewall Appliance FG 101E
- Category: >>>
- Supplier: Shenzhen Helpyou Information Technology Co. Ltd.
Share on (62548990193):
Product Overview
Description
Product Description
Fortigate 101E Network Security Firewall Appliance
FG-101E
FG-101E
FOrtinet Firewall FG-101E
The FortiGate 101E series delivers next generation firewall (NGFW) capabilities for mid-sized to large enterprises deployed at the campus or enterprise branch level. Protects against cyber threats with high-powered security processors for optimized network performance, security efficacy and deep visibility. Fortinet’s Security-Driven Networking securely integrates with the new generation of cybersecurity solutions.
specification

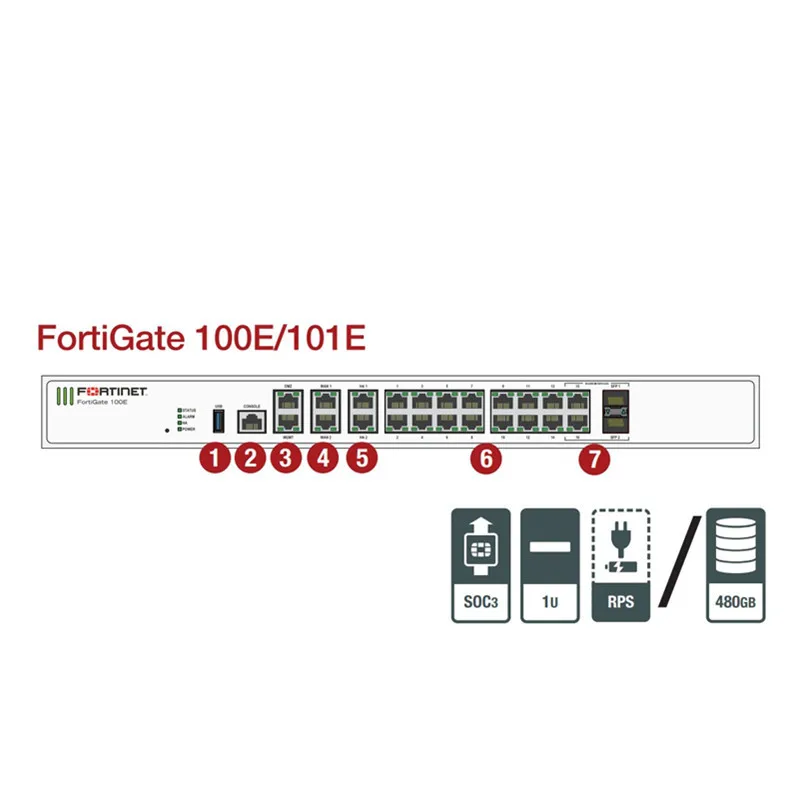

Interfaces
1. USB Port
2. Console Port
3. 2x GE RJ45 MGMT/DMZ Ports
4. 2x GE RJ45 WAN Ports
5. 2x GE RJ45 HA Ports
6. 14x GE RJ45 Ports
7. 2x GE RJ45/SFP Shared Media Pairs
Hardware Specifications | |||||
GE RJ45 Ports | 14 | ||||
GE RJ45 Management/HA/DMZ Ports | 1 / 2 / 1 | ||||
GE SFP Slots | - | ||||
GE RJ45 PoE/+ Ports | - | ||||
GE RJ45 WAN Ports | 2 | ||||
GE RJ45 or SFP Shared Ports | 2 | ||||
USB Port | 1 | ||||
Console Port | 1 | ||||
Internal Storage | 1x 480 GB SSD | ||||
Included Transceivers | 0 | ||||
System Performance - Enterprise Traffic Mix | |||||
IPS Throughput 2 | 500 Mbps | ||||
NGFW Throughput 2, 4 | 360 Mbps | ||||
Threat Protection Throughput 2, 5 | 250 Mbps | ||||
System Performance | |||||
Firewall Throughput | 7.4 / 7.4 / 4.4 Gbps | ||||
Firewall Latency (64 byte UDP packets) | 3 μs | ||||
Firewall Throughput (Packets Per Second) | 6.6 Mpps | ||||
Concurrent Sessions (TCP) | 2 Million | ||||
New Sessions/Second (TCP) | 30,000 | ||||
Firewall Policies | 10,000 | ||||
IPsec VPN Throughput (512 byte) | 4 Gbps | ||||
Gateway-to-Gateway IPsec VPN Tunnels | 2,000 | ||||
Client-to-Gateway IPsec VPN Tunnels | 10,000 | ||||
SSL-VPN Throughput | 250 Mbps | ||||
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 300 | ||||
SSL Inspection Throughput (IPS, avg. HTTPS) 3 | 130 Mbps | ||||
SSL Inspection CPS (IPS, avg. HTTPS) 3 | 130 | ||||
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 | 125,000 | ||||
Application Control Throughput (HTTP 64K) 2 | 1 Gbps | ||||
CAPWAP Throughput (HTTP 64K) | 1.5 Gbps | ||||
Virtual Domains (Default / Maximum) | 10 / 10 | ||||
Maximum Number of Switches Supported | 24 | ||||
Maximum Number of FortiAPs (Total / Tunnel Mode) | 64 / 32 | ||||
Maximum Number of FortiTokens | 1,000 | ||||
Maximum Number of Registered FortiClients | 600 | ||||
High Availability Configurations | Active / Active, Active / Passive, Clustering | ||||
Dimensions | |||||
Height x Width x Length (inches) | 1.75 x 17 x 10 | ||||
Height x Width x Length (mm) | 44.45 x 432 x 254 | ||||
Form Factor | Rack Mount, 1 RU | ||||
Weight | 7.28 lbs (3.3 kg) | ||||
Environment | |||||
Power Required | 100–240V AC, 50–60 Hz | ||||
Maximum Current | 100V / 1A, 240V / 0.5A | ||||
Total Available PoE Power Budget* | - | ||||
Power Consumption (Average / Maximum) | 23.0 W / 25.5 W | ||||
Heat Dissipation | 87.0 BTU/h | ||||
Operating Temperature | 32–104°F (0–40°C) | ||||
Storage Temperature | -31–158°F (-35–70°C) | ||||
Operating Altitude | Up to 7,400 ft (2,250 m) | ||||
Humidity | Up to 7,400 ft (2,250 m) | ||||
Noise Level | 40.4 dBA | ||||
Compliance | FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI | ||||
Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6 | ||||
