JPCI Type 9PF Cabinet fan heaters, range from 50 to 400W
- Category: >>>
- Supplier: Jpci Controls (foshan Gaoming) Co. Ltd.
Share on (62549189034):
Product Overview
Description
JPCI Type 9SX natural or forced convection heating Finned tubular heaters
Product Description
Description
Heavy duty fan heating in Traffic Signal Control Boxes, Automatic Teller Machines, Outdoor Electrical Power Enclosures, Control Panels, Control Valve Housings, Switch Gear, Clothing Lockers and Railway station lockers.
Operation: Temperature differences in cabinets, mostly in outdoor applications, often result in humidity and condensation which may cause function failures and corrosion. The use of the appropriate heating unit inside the cabinet will eliminate these problems.
Simply keep the cabinet temperature above the outer temperature (thermostat controlled models), or a humidity level below 50% (Humidistats controlled models). It also happens that the very low external temperature dips below the minimally acceptable ranges for electronics or other components. In this case the heaters are used to bring the internal temperature of the cabinet above the limit.
The fan distribute the internal warm air equally throughout the control cabinet
Compared to PTC heaters, sheathed tubular heaters deliver unsurpassed strength, a power invariable in time, they do not age and do not drift, and do not produce huge peak starting current.
The metal casing provides increased mechanical protection and the best heat resistance.
Main Features
Heating Element: 8mm diameter, 304L sheathed stainless steel heater. Other features of these elements (Humidity resistance, insulation etc…) see P7
Heater surface load: 0.5 w/cm² (2.2W/in²) or 1w/cm² (6.5W/in²) to avoid overheating.
Case Material: Electro-galvanized steel or 304 stainless steel according to models.
Manual reset temperature safety cut-out: set at 70°C (158°F) to protect against over-heating in case of fan failure, or obstructed air flow inlet
Setting range: 4ºC to 40ºC (40 to 105°F) for adjustable models. 40ºC(105°F) for fixed setting models
Fan: 120 x 120 mm, air flow: 100m³/h. L10 life expectancy: 50.000 h (>5 years) at 25ºC. L10 refers to the time at which statistically, 90% of the fan will still be operative. Life expectancy is reduced by about 50% when ambient temperature rises to 50-70°C.
Control lamp: illuminated when heating is on (on model 9PF3)
Operating voltage: 220-240V AC, 50/60Hz, (100-120V AC on request).
Operating temperature:-45 to +70°C. Max 90% RH.
Ingress protection: IP 20
Electrical connection: by screw locking connector (cord with connector, 2 meters, H05VVF 3x0.75mm² supplied)
Mounting: two screws, 130 to 140mm distance. We recommend installing heaters in the lower part of the cabinets, which is usually the coldest area, with ventilation blowing up, to produce optimal air circulation.
Option: mounting clips for 35mm DIN rail. (EN60715).
Accessories:
See P29 and 30, Din rail mounting remote thermostats and humidistat used in cabinet heaters.
-See last part of this catalog tables providing heaters power selection vs temperature and cabinet sizes.
(Add additional 50% to the determined power if the cabinet must be located in windy conditions)

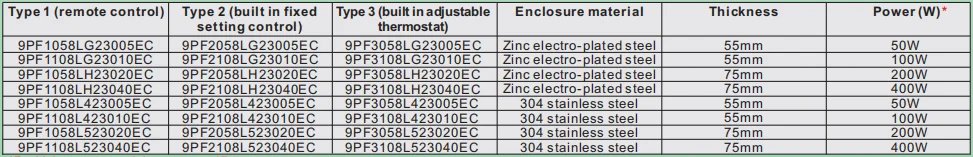

Main references
Packing&Shipping
Option : By air & By sea & By truck
Company Introduction
Company profile:
Established in China since 2000, with French technology and investment, our company is proud to have more than 60 years experience in manufacturing electromechanical components and 30 years experience in manufacturing safety component for Spas, swimming pools and hot tubs. This experience, combined with high tech equipment and high tech raw materials let us develop the new components needed by rapid expansion of Asian and Chinese market.
In our new factory, on more than 8000 square meters production lines, we have two manufacturing divisions:
Division one is producing components:
Thermostats, energy regulators pressure switches, level switches, flow switches, fire detection fusible links, heating elements and ceramic connection blocks.
Division two is producing complete assemblies and sub assemblies on customer specifications:
Swimming pools heaters, heat pumps backup heaters, spas heaters, small water heaters, immersion heaters, aluminum foils heaters, baseboard and convection heaters sub assemblies
Our R&D team develops new products upon customer specification, taking care of international safety standard (UL, CE, etc.).
We produce our own stamping, bending, plastic injection, zinc alloy injection, and machining.
We are equipped with up to date automatic and CNC TIG welding and laser welding equipment and ultrasonic welding checking.
We have our own climatic room, corrosion testing loops, salt spray testing, and more than 30 specific equipments for products life testing.
Our income quality control laboratory is equipped to check raw material (plastics, metals) physical characteristics and dimensions.
Our finished product control laboratory has more than 200 machines to calibrate and check temperature, pressure, level and flow controls.
From the raw material to the finished product we control every production step. Meet your control equipment demand rapidly and safely is our consistent promises.
