Металлическая труба, стальная труба на линии, оборудование для удаления сварных бусин

Product Overview

Description

Metal Tube Steel Pipe On Line Weld Bead Removal Equipment



TUBE MATERIAL:Stainless Steel/Titanium steel/Copper/Carbon Steel/Iron Etc

PIPE SHAPE:Round/Ellipse Etc

USAGE:Pipes for Industry, Furniture, Construction, Municipal Facilities Etc

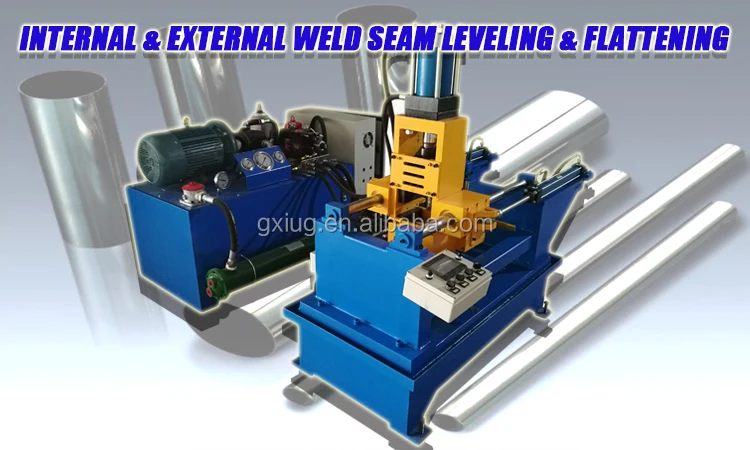

Internal & external weld seam flattening & leveling mechanical equipment Metal Tube Steel Pipe On Line Weld Bead Removal Equipment of stainless steel metal pipe is specially used for flattening weld reinforcement. Through the function of mandrel and mould, the equipment processes the weld of pipe, the external weld is rolled by mould, the internal weld is passively extruded by mandrel, and it moves back and forth to flatten the weld of pipe and smoothly transition with base metal, so that the pipe can achieve seamless pipe effect.

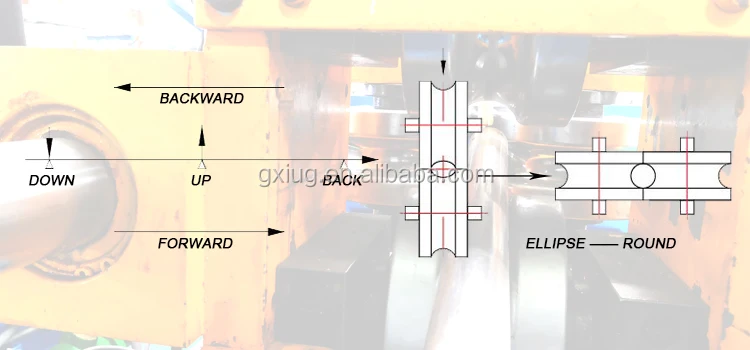

................................Production Process ................................

.................................Model & Parameter.................................

Metal Tube Steel Pipe On Line Weld Bead Removal Equipment
MODEL	GXG-30	GXG-40	GXG-50	GXG-60	GXG-70
Circular tube range (mm)	Ø15.8—31.8 5/8”—1-1/4”	Ø25.4—50.8 1”—2”	Ø31.8—76.2 1-1/4”—3”	Ø50.8—114.0 2”—4-1/2”	Ø76.2—168 3”—6-5/8”
Wall thickness range (mm)	0.5—1.5	0.5—2.5	0.5—3.0	1.0—4.0	1.0—5.0

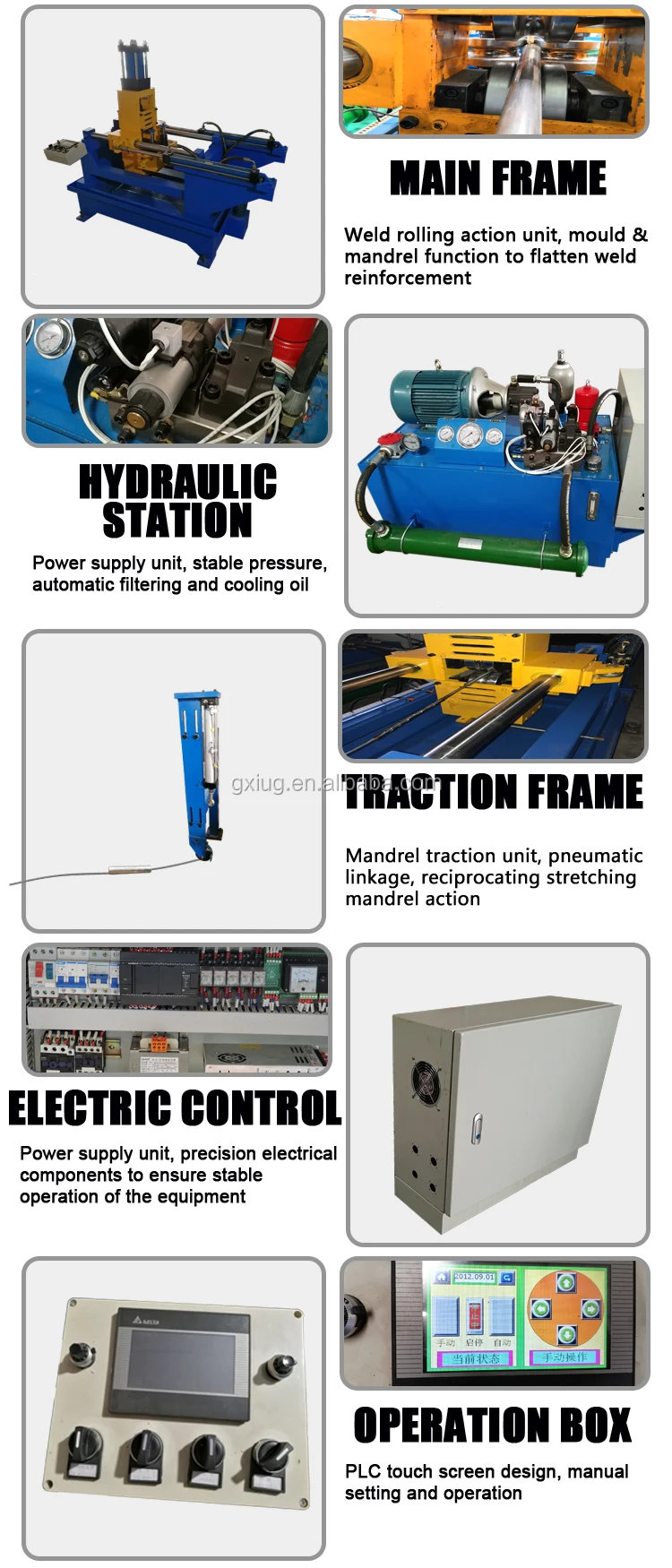

.............................................Detail.............................................

Metal Tube Steel Pipe On Line Weld Bead Removal Equipment
