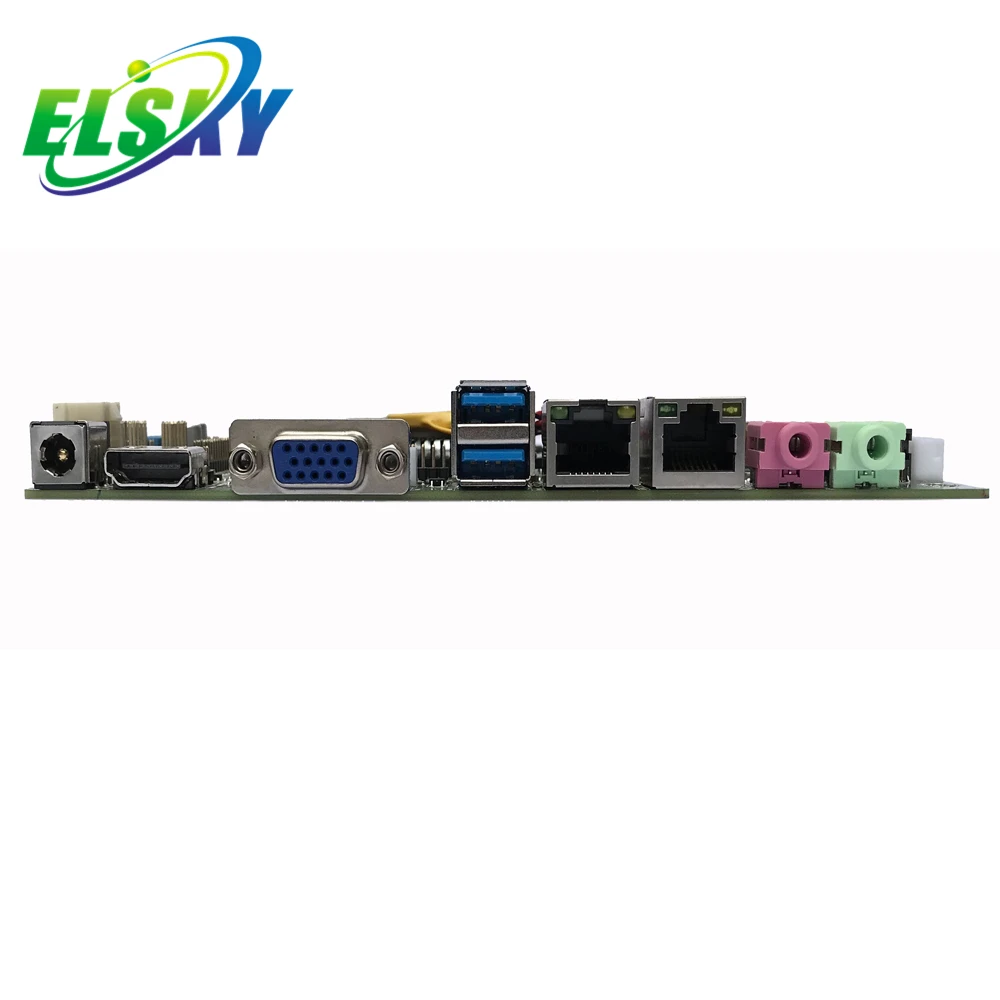

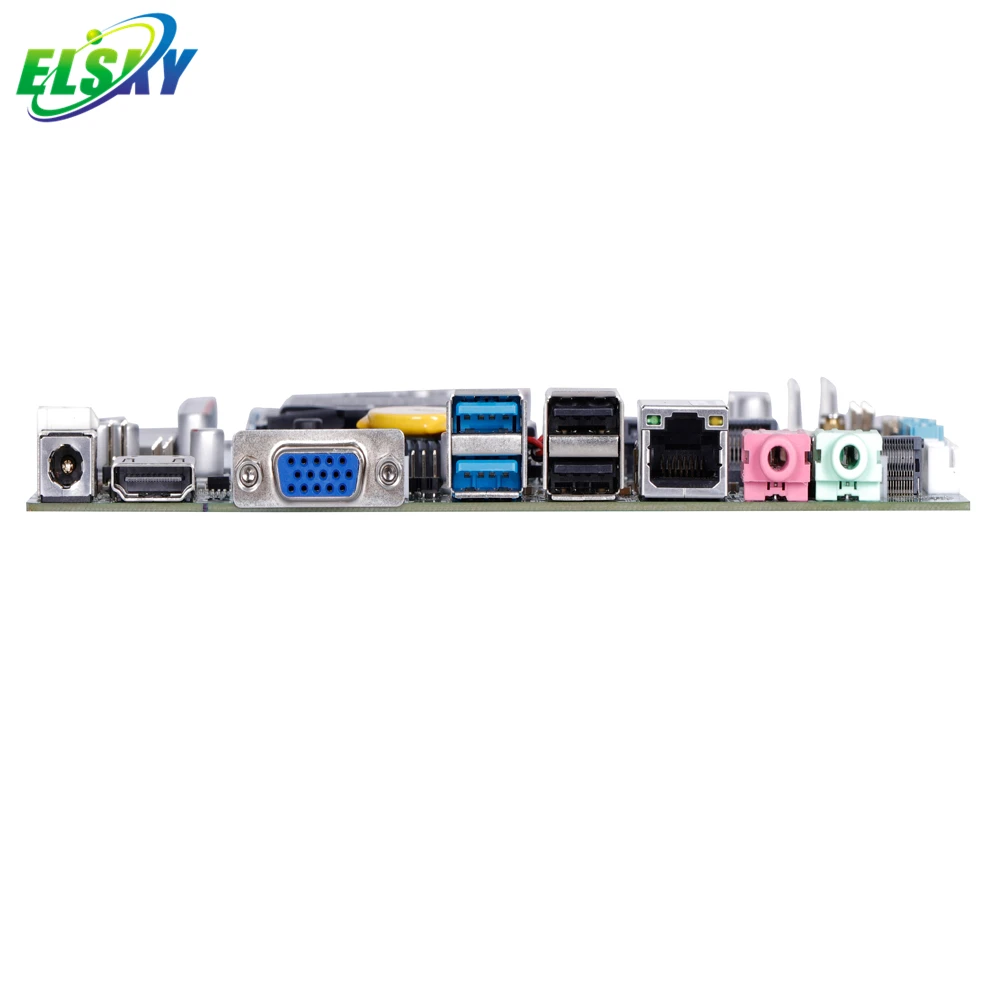

Kaby Lake Core i5 7400 LGA 1151 EDP LVDS mini itx motherboard for ordering machine self service
- Category: >>>
- Supplier: Shenzhen Elsky Technology Co. Ltd.
Share on (62549313645):
Product Overview
Description
Product Description
Hi dear friend !
If you are interested in our products, please contact us !
If you need complete product spcification or technical support, please contact us !
Different configurations, different prices. If you want to get better price, please contact us !
If you want to be our agent, please contact us !
If you want to customized motherboard or PC case, please contact us !
If you have after-sales problems, please contact us !
Thank you for your support !
Applications:
Kiosk,vending machine,HTPC,Soft routing,Thin client,Finance retail,Advertising display machine,Network Security,Firewall Host,Firewall Server,Firewall Computer,Audio Player/Server,Electronic map machine,All-in-One PC,POS cash register,Interactive ordering machine in restaurant,Intelligent transportation,Digital signage,Education touch screen interactive whiteboard),Conference electronic whiteboard,Industrial PC,Industrial computer,Embedded industrial computer,Embedded industrial motherboard,Nano PC,NUC PC,Subway/Metro/MRT/Tube/automatically Entrance&Export gate,Face recognition turnstile gate,Industrial camera,Data collection,Video capture,Automatic welding machine,Industrial robot,Bank ATM and other fields.
Specifications:

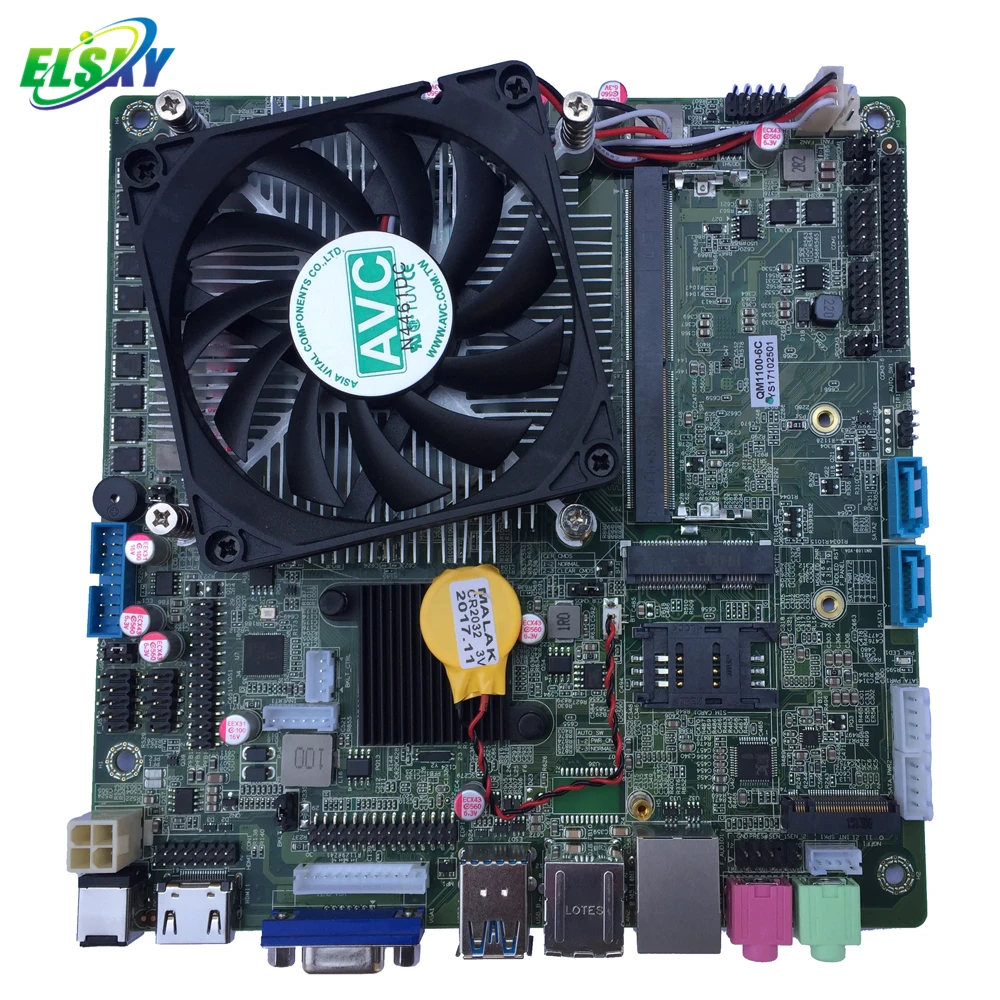

QM1100 Motherboard Specification | |
Form Factor | Standard Mini-itx,170*170mm(L*W) |
Processor | Support FCLGA1151 socket Core i3 i5 i7 processors. |
Chipset | Integrated 100 Series high-speed H110 chipset. |
Cooling system | Heat sink+thin silent cool fan(Active cooling) |
Power Supply | 1*DC_IN1 port;1*4Pin ATX1 port; Support DC12V or 19V; DC port:5.5*2.5mm. |
Memory | 1*Laptop SO-DIMM DDR4 2133MHz 1.2V Memory channel,Max.16GB RAM. |
Display
| Integrated HD Graphics 530 in 6th generation CPU. |
Integrated HD Graphics 630 in 7th generation CPU. | |
Support single display,dual display copy/expansion,single display under DOS. | |
Support 2K,FHD,4K,UHD,3D,H.264 display. | |
1*VGA DB15 interface supports Max. resolution1920*1200@60Hz | |
1HDMI 1.4 interface supports Max. resolution 4096*2160@24Hz | |
1*EDP1 pin supports Max. resolution 4096*2160@60Hz | |
1*24bit LVDS pin supports Max. resolution1920*1080@60Hz | |
Ethernet | 1*Realtek 8111F Gigabit NIC chip RJ45 LAN supports Wake-on-LAN and PXE diskless boot function. 1*Mini PCI-Express slot supports WIFI/3G/4G/BluetoothGPS,optional MSATA SSD. |
Hard Disk | Support maximum transmission speed 6.0Gbps. |
1*SATA1 interface supports 2.5-inch SATA3.0 SSD or HDD. | |
1*SATA2 interface supports 2.5-inch SATA3.0 SSD or HDD. | |
1*NGFF1 slot supports M.2 2280 SSD. | |
Sound
| Integrated Realtek ALC662 HD digital audio decoder,6-channel high-fidelity audio controller(HD Audio). |
1*MIC_IN interface;1*LINE_OUT interface;1*INT_SPK1 pin;1*F_AUDIO1 pin; 1*SPDIF1 pin. | |
USB | 2*USB2.0 interfaces;2*USB3.0 interfaces; 2*USB3.0 pins;4*USB2.0 pins. |
Switch | 1*F_PANEL1 pin;1*AUTO_SW1 pin. |
Other I/O | 1*SIM_CARD1 slot;1*CLR_CMOS pin;2*CPU fan pins. |
Operating Environment | Operating temperature:-20℃~60℃; Working humidity:5%~95% Relative humidity, no condensation. |
BIOS | AMI BIOS;Support power on,timing switch,remote switch,intelligently identify devices. |
Watch Dog | Watch Dog programming supports hardware reset function (256 levels, 0~255 seconds). |
Operating System | Win10, Win8.1, Win7,Linux , etc. |
Optional Case | K2P |
Price Explanation
Price Explanation!!!
All of prices are barebone motherboard(Without CPU).
If you need CPU,Memory,SSD,HDD,WIFI,License operating system,3G,4G,GPS,power adapter and other accessories, please contact us to get the prices.
If you need to purchase in large quantities, or want to know about promotional activities/clearance sale, please contact us for the best price.
The prices of this product link are for reference only!
We don't update product links frequently. If you want to know the latest price, please contact us.
Notice:The prices will vary with exchange rates and material costs.All prices are subject to change without notice.All product specifications are subject to change without notice.
Thank you for your attention and support!
Packaging & Shipping
Packing:
Before delivery,we guarantee that every item will be tested and carefully packed with individual Anti-static bubble bag and separated by stiff cardboards in carton boxes.
Carton size:
20*20*7cm carton For 1~2pcs motherboards;
30.3*27*23.5 carton For 3~5pcs motherboards;
47*30.3*23.5cm carton For 10pcs motherboards;
50*49*20cm carton For 20~30pcs motherboards.
Shipping:
1~3 working days after received full payment(In stock).
Express:DHL,Fedex,UPS,TNT,CDEK,EMS,Aramex,Epacket,etc.
We are manufacturer
About us:
We were established in 2009. We already have rich experience in the industrial control computer hardware industry. "ELSKY" is our own brand. Our brand has been familiar and trusted by customers all over the world.
We are motherboard manufacturer. And we have 35 R&D engineers and technicians. Every year we launch at least 15 new products. In recent years, the hot 1037F I3HGP I5HGP I7HGP M218F M219F M229F QM9400 QM9500 QM9600 QM9700 QM9850 QM10U QM6700 NUC600 NUC700 NANO8F NANO9F QM6600 QM6637 QM1100 QM3100 OPS9900 OPS9950 OPS994K OPS-H81 OPS8600 OPS-H110 OPS-10U OPS-H310 J19E4L J19E6L BT-4L and other products are developed and sold by our company.
We research and develop products, purchase raw materials, produce products, control quality, sales, and after-sales. We are familiar with the entire industry, our products are selling well, our prices are advantageous, and our products are guaranteed.
Please contact us, our products and prices will make you satisfied!
Please give us a chance to cooperate with each other, we will not let you down!
Thank you for your support and attention, my friend!
