2000KN compressive strength testing machine concrete compression test

Product Overview

Description

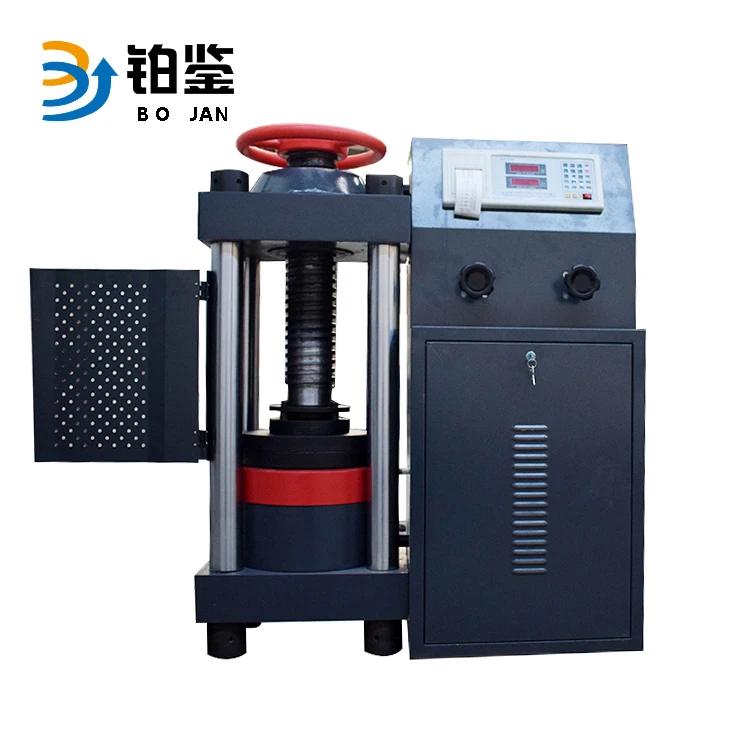

2000KN digital display compression testing equipment





Function

The test machine is used to measure the compressive strength of building materials such as bricks, stones and concrete.

This machine is electro-hydraulic loading, sensor force measurement, digital display force value, printer printing force value data, and conversion compressive strength. The test machine conforms to the international standard, should manually control the loading speed, and has a loading speed indicating device, peak holding, overload protection function, which is necessary for engineering, building materials, highway bridges and other engineering units. Test and test equipment.

Structure introduction:

The test machine consists of three main parts: the main organism, the hydraulic control box and the force measuring instrument.





Test Sample

It is can be used for brick, cement cube, ceramsite sand, refractory stone, wood.

Technical Parameters

The maximum load	2000KN
Indication accuracy	1 Level
The minimum resolution	0.1KN
The maximum distance between the pressure plate	320mm
Upper and lower pressure plate specifications	250mm × 220mm (customized)
Piston diameter * maximum stroke	diameter 240 × 40mm
Motor Power	0.75KW
Appearance size	1150mm × 510mm × 1400mm
Net Weight	About 700kg





Certificate

Our advantage



Our partners

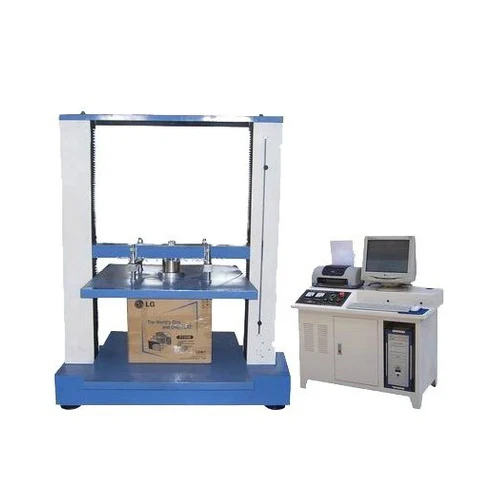

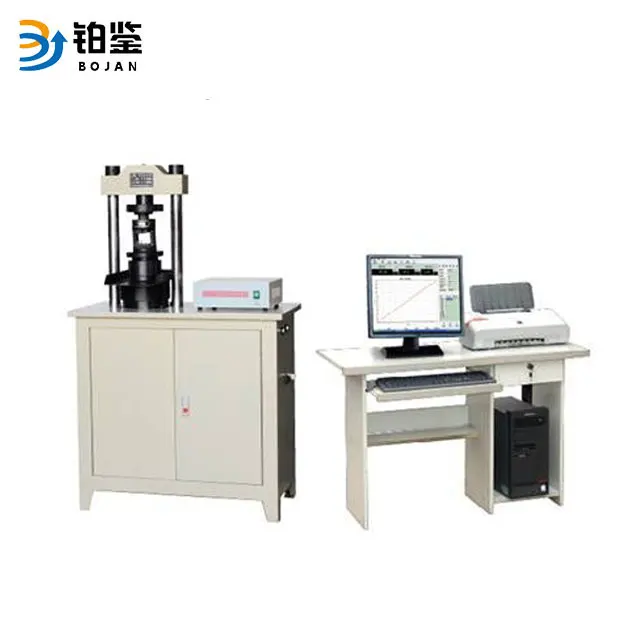

Related Products



FAQ

1.Are you factory of trade company?

  We are factory + trade company.



2.Do you offer after-sales service? How can I ask for that? And how about the warranty?

Every machine from our factory has a 12-month warranty after you received. If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or Skype video chat if necessary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.



3. What’s the delivery term?

Standard machines	In stock
Customized machines	We can negotiate ( 7-60 days )
In urgent need	We can consider making a special arrangement for you



4. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.



5.How to install and use the product?

We will send you operating instructions, English video by Email. Most of our machines are shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use.



6.How can I believe that after payment the goods to me?

We are honest and trust worthy supplier. we’re a member of alibaba trade assurance . It will guarantee of all of your payment.
