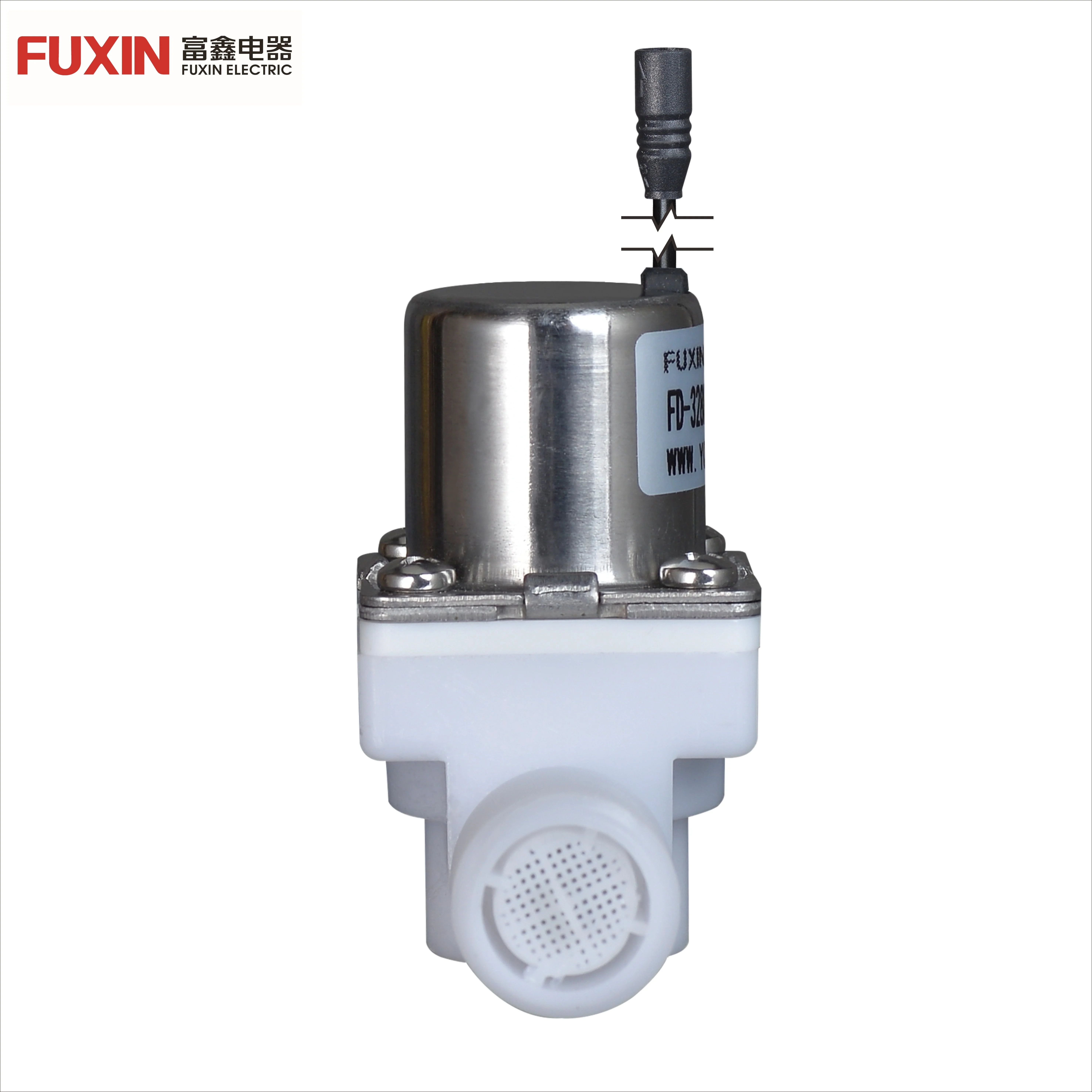

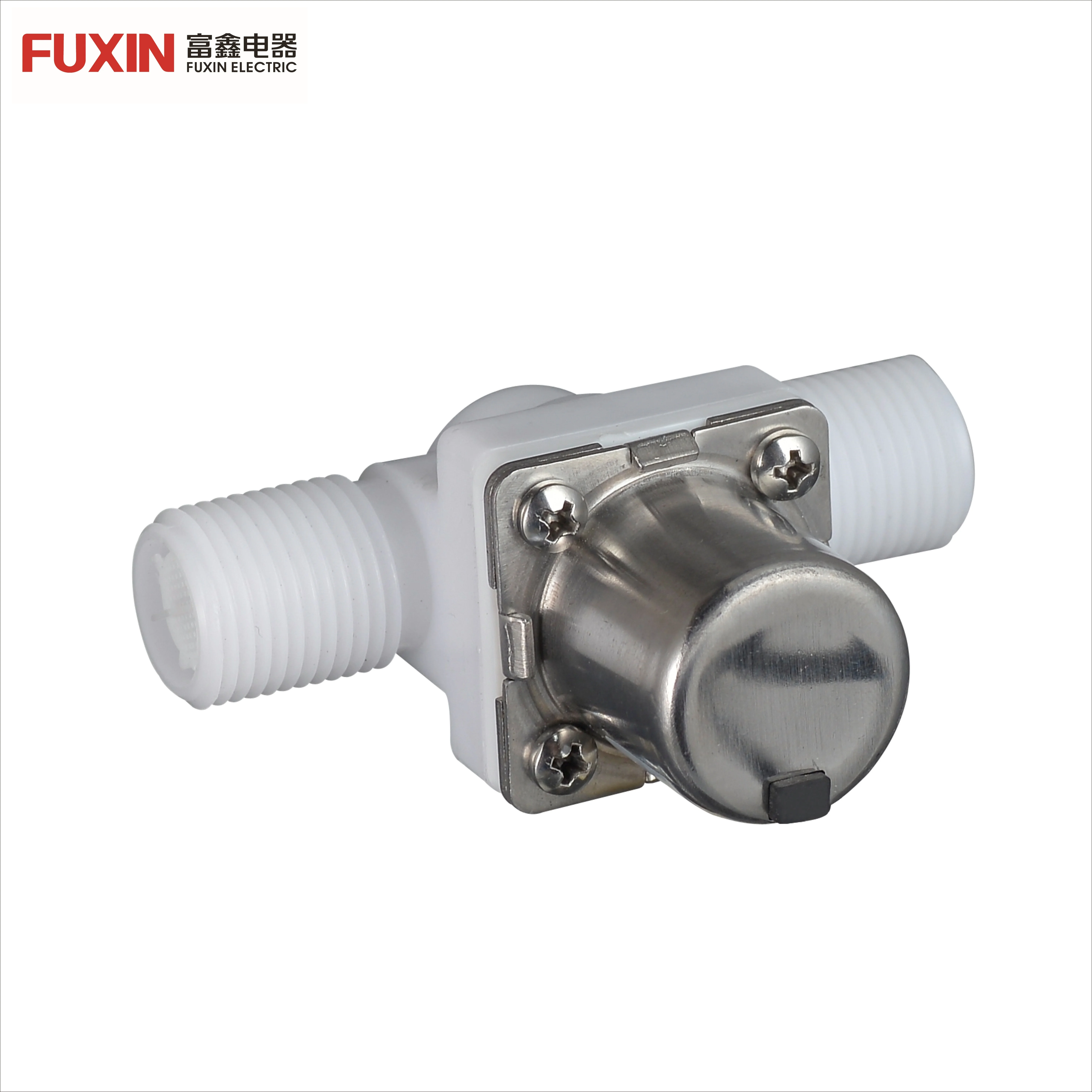

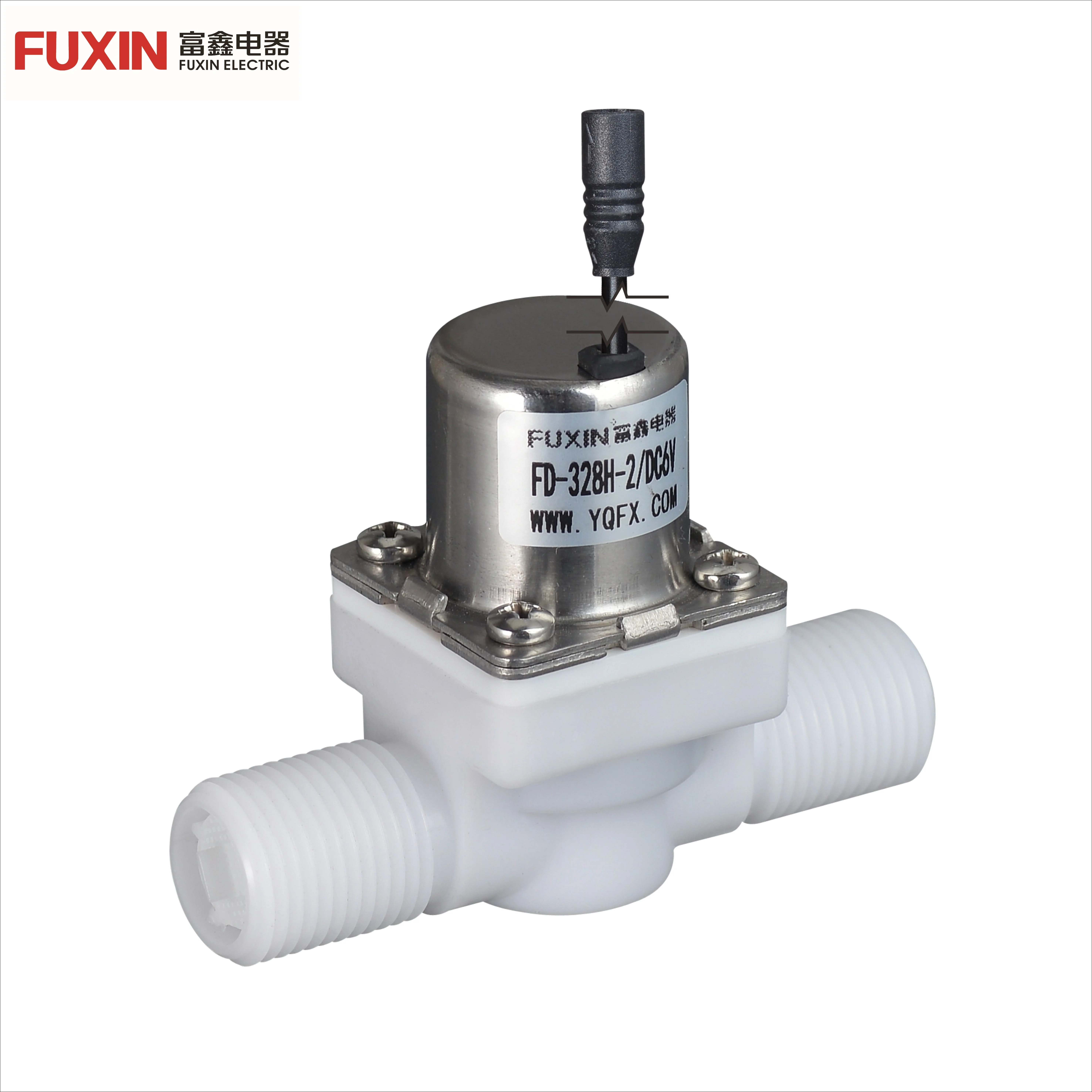

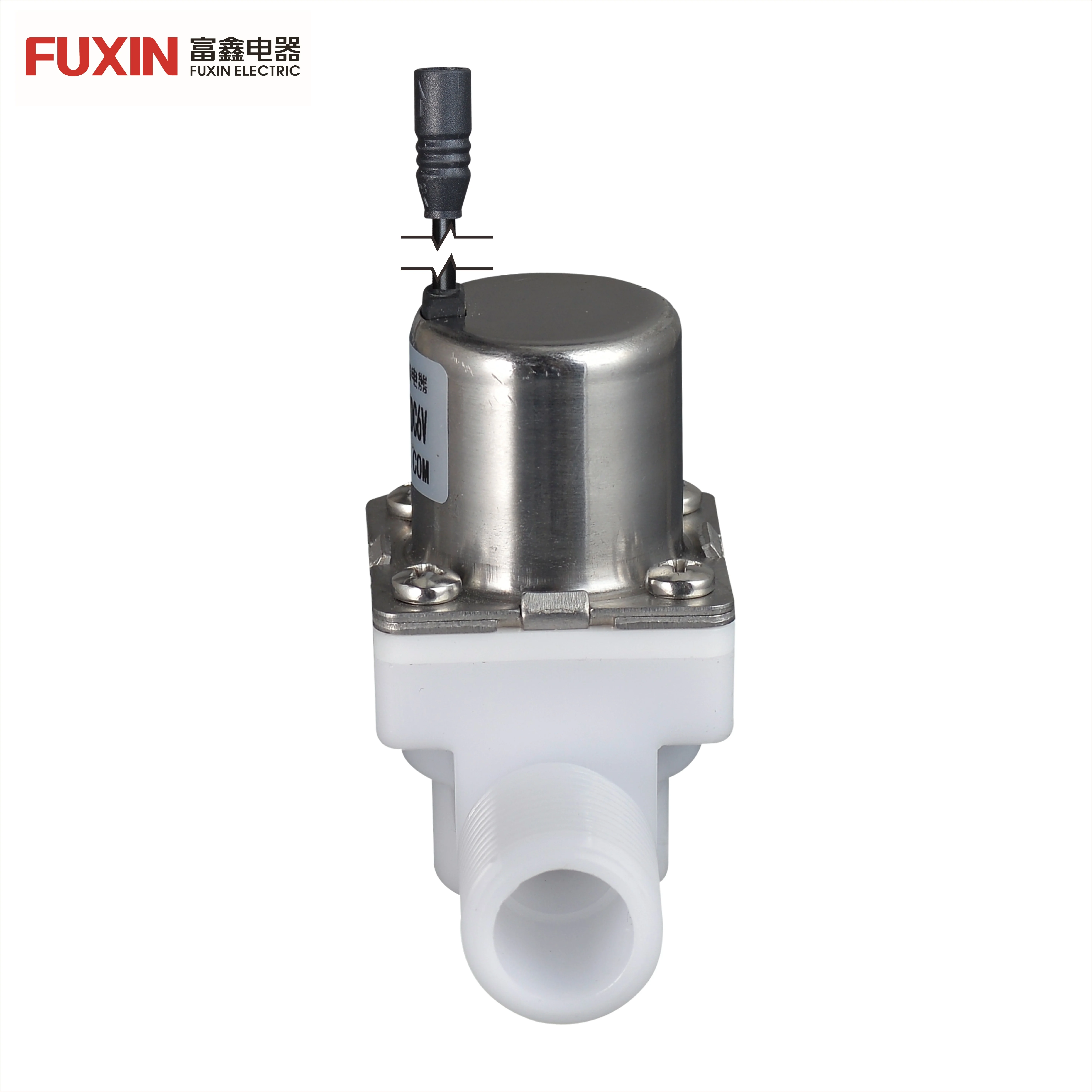

Fuxin Pulse Type Self Closing low pressure Solenoid Valve Direct Acting Flusher Solenoid Valve Control Water 6V 12V 24V
- Category: >>>
- Supplier: Yueqing Fuxin Electric Factory
Share on (62549477489):
Product Overview
Description
Products Description

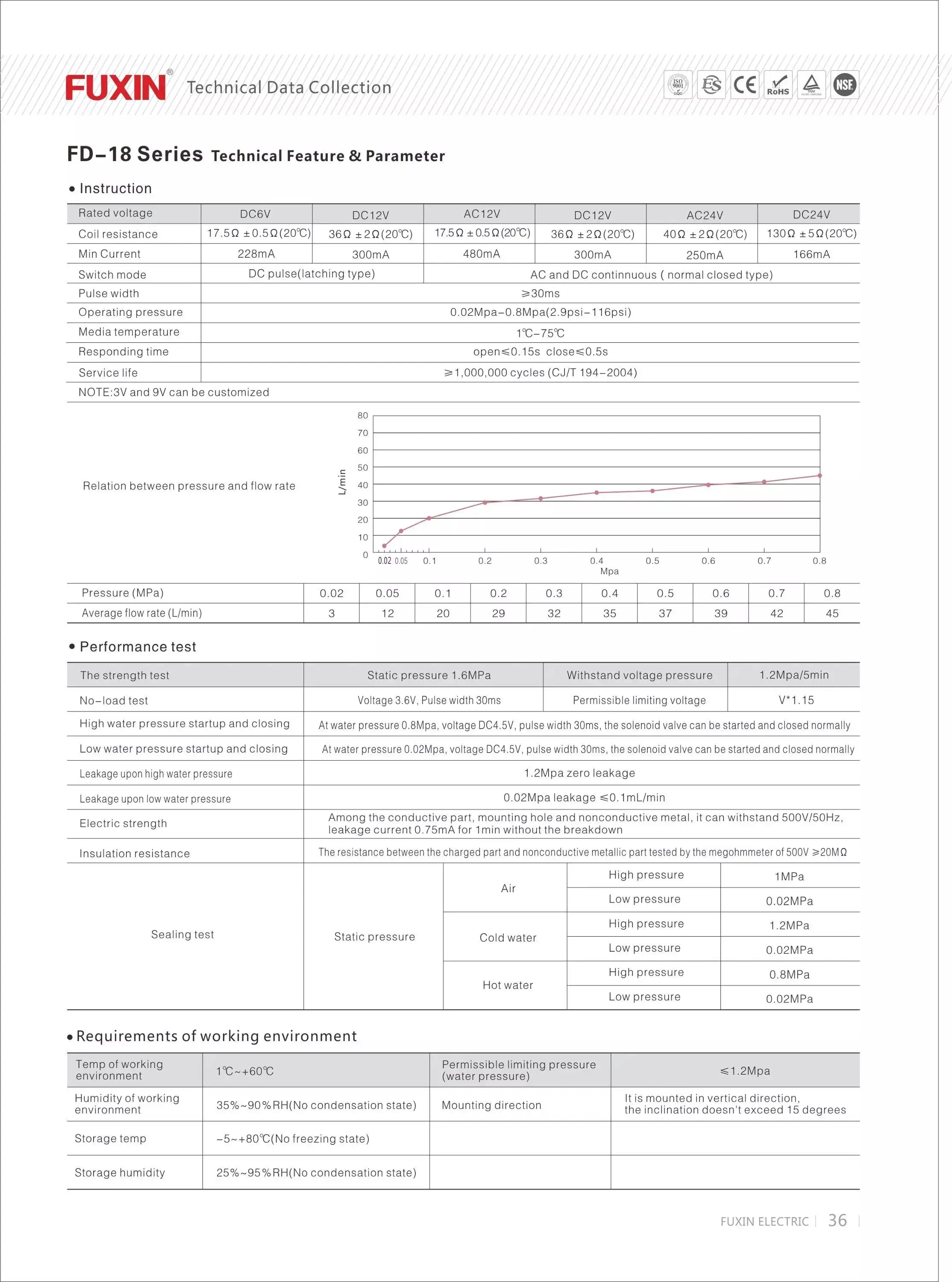

Rate voltage | DC 6V | Ac12V | DC 12V | AC24V | DC 24V | ||||
Coil resistance | 17.5Ω ±0.5Ω(20ºC) | 17.5Ω ±0.5Ω(20ºC) | 36Ω ±0.5Ω(20ºC) | 40Ω ±0.5Ω(20ºC) | 130Ω ±0.5Ω(20ºC) | ||||
Min current | 228mA | 480mA | 300mA | 250mA | 166mA | ||||
Switch mode | AC and DC continuous | ||||||||
Pulse wide | ≥30ms | ||||||||
Operating pressure | 0.02Mpa-0.8Mpa | ||||||||
Media temperature | 1ºC--75ºC | ||||||||
Responding time | Open ≤0.15s close≤0.5s | ||||||||
Service life | ≥1000000 cycles | ||||||||
Application Domain
Featured Products
Company Profile
Exhibition&Ceretificates
Product packaging
Our Services
1)Our advantage:
We are the manufacturer with more than 15 years experience in sensor sanitary solenoid valves. Best price, quality and service,
Also we can control the production status.
Fuxin team with strong ability in designing and after sell service. Cooperation with Carrier has improved our quality to a new
level.
2)Terms of payment: T/T, L/C, Western union.
3)Shipment: average 20-25days after receiving deposit.
4)Delivery: Shanghai/Ningbo ,by sea or air.
5)Gurantee: One year since delivery.
6)Inspection: 100% testing for all the valves.
7) All kinds of CERTIFICATE OF ORIGIN.
Welcome to choose Fuxin’s products , we are always ready!
We are the manufacturer with more than 15 years experience in sensor sanitary solenoid valves. Best price, quality and service,
Also we can control the production status.
Fuxin team with strong ability in designing and after sell service. Cooperation with Carrier has improved our quality to a new
level.
2)Terms of payment: T/T, L/C, Western union.
3)Shipment: average 20-25days after receiving deposit.
4)Delivery: Shanghai/Ningbo ,by sea or air.
5)Gurantee: One year since delivery.
6)Inspection: 100% testing for all the valves.
7) All kinds of CERTIFICATE OF ORIGIN.
Welcome to choose Fuxin’s products , we are always ready!
FAQ
Q: Are you the factory?
A: Yes, Our factory is located in Wenzhou,Zhejiang province, China,
Q: What's the warranty of your product?
A: All of our products have one year warranty.
Q: What certification your product have?
A: We have passed NSF,KTW,ACS,W270,TUV,CE,ROHS,ISO9001 Certificates
Q: What is the delivery date?
A: For sample order,2-7 days after the payment
For bulk order, 10-20 days after the payment
Q: Do you accept OEM/ODM or sample order?
A: Yes, we accept both OEM/ODM and sample order
Q: What are your terms of payment?
A: Paypal, Western Union, bank T.T,LC payment，etc.
Q: What's your shipment method?
A: We ship by Express, by air, by sea. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: What's your mainly market?
A: Europe,North and south American,Asia,Middle East,Africa and etc.
A: Yes, Our factory is located in Wenzhou,Zhejiang province, China,
Q: What's the warranty of your product?
A: All of our products have one year warranty.
Q: What certification your product have?
A: We have passed NSF,KTW,ACS,W270,TUV,CE,ROHS,ISO9001 Certificates
Q: What is the delivery date?
A: For sample order,2-7 days after the payment
For bulk order, 10-20 days after the payment
Q: Do you accept OEM/ODM or sample order?
A: Yes, we accept both OEM/ODM and sample order
Q: What are your terms of payment?
A: Paypal, Western Union, bank T.T,LC payment，etc.
Q: What's your shipment method?
A: We ship by Express, by air, by sea. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: What's your mainly market?
A: Europe,North and south American,Asia,Middle East,Africa and etc.
