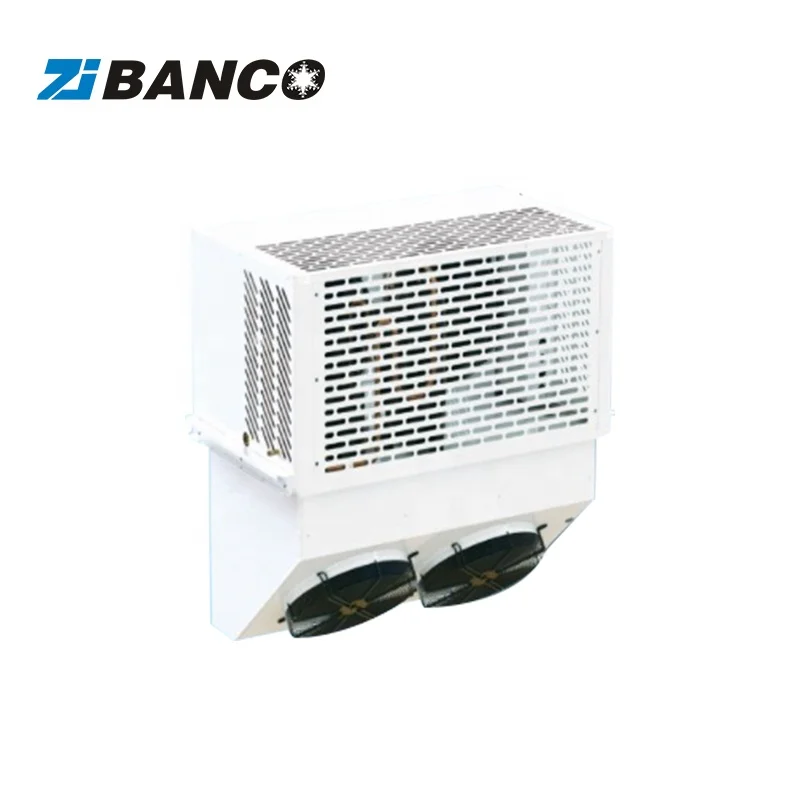

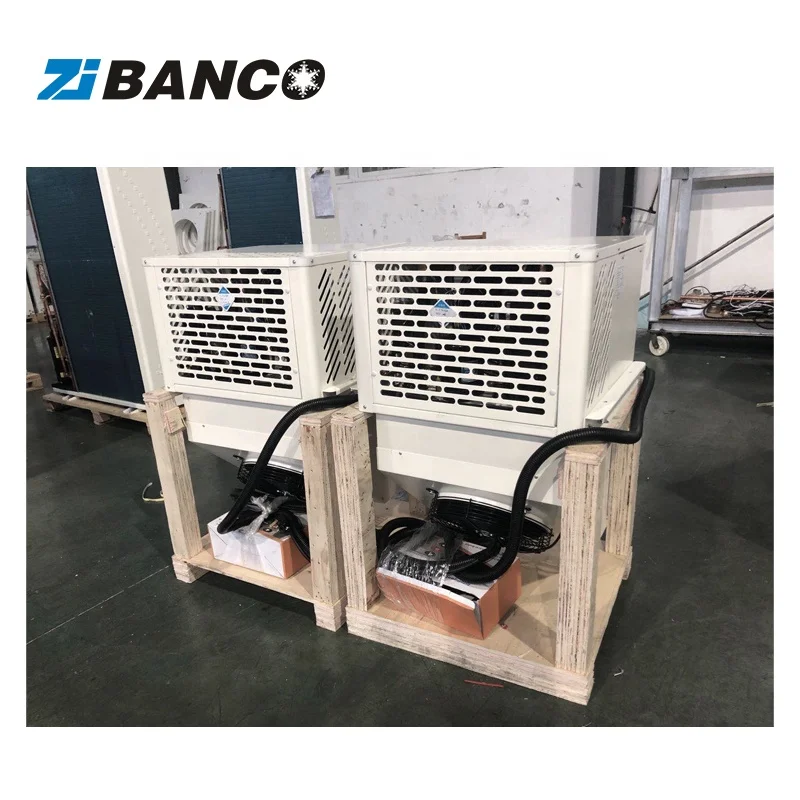

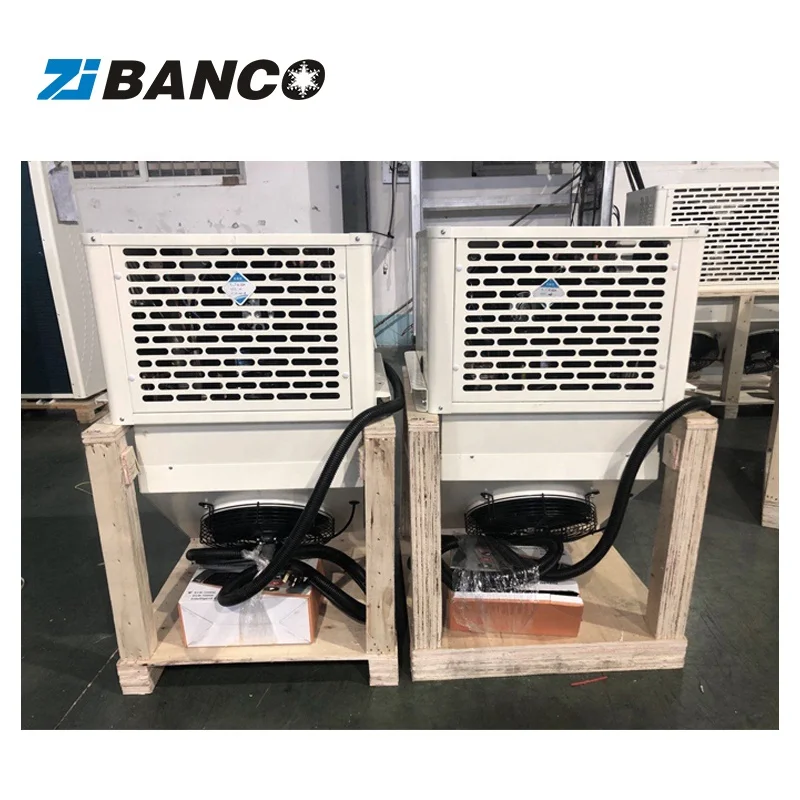

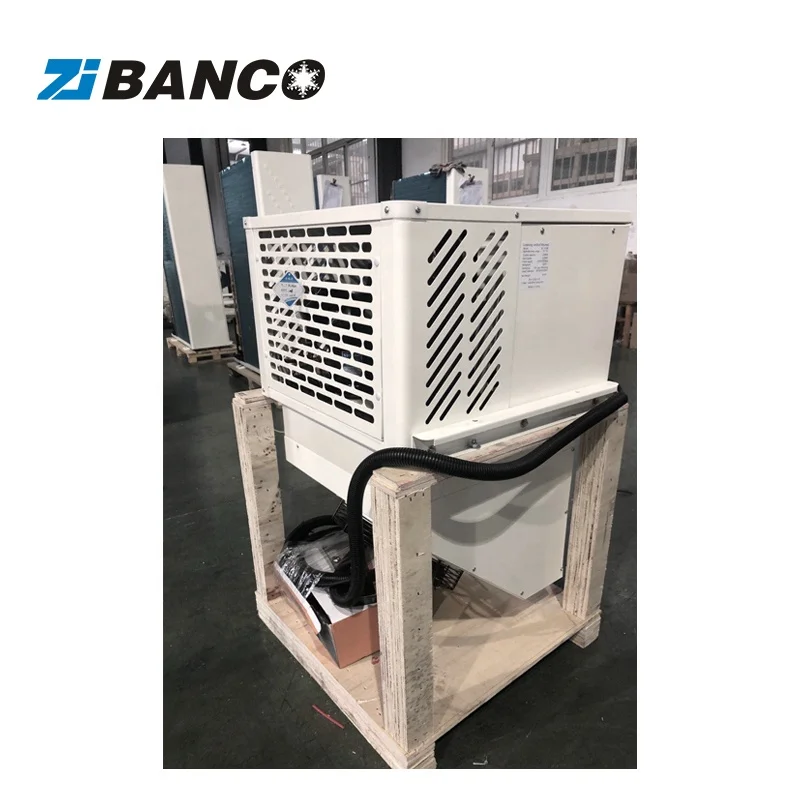

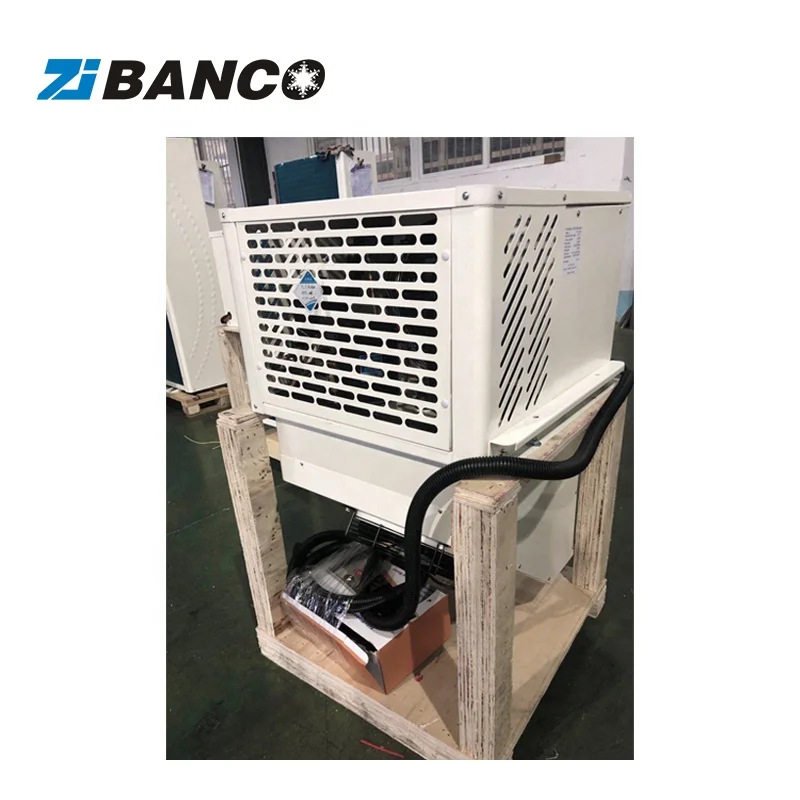

Down Blow Refrigeration Monoblock Unit, Refrigeration Condensing Unit

Product Overview

Description



The BC series of machine, called Monoblock Unit for cold room, that integrate evaporator, condenser, compressor, electrical control units into one compact body. It can be widely used for cold room of temperature of -5℃~5℃ or - 15℃~-25℃, in hotels, restaurants, medicines, agricultural, chemicals industries all other place where cold room is needed.







Model     BC~		10GM	15GM	18GM	28GM	35GM	18GL	28GL	35GL
Applicable cold room area(m³)		10m³	16m³	29m³	65m³	95m³	9m³	14m³	16m³
Cooling capacity(KW)		1.55	2.09	2.74	3.95	5.56	1.54	2.28	3.31
Power(KW)		1.033	1.32	1.83	2.71	3.57	1.73	2.52	2.54
Refrigerant		R404A					R404A
Power supply		220V-50Hz/60Hz-1Ph				380V-50Hz-3Ph	220V-50Hz/60Hz-1Ph		380V-50Hz-3Ph
Applicable tem range(℃)		-5℃~5℃					-15℃~-25℃
Overall dimension(MM)		556×556×378		656×606×428	1006×606×528		656×606×428	1006×606×528
Installation dimension(MM)		500×480		600×540	950×540		600×450	940×540
Condensing Motor	Motor power(W)	1×90		1×150	2×150		1×150	2×150
	Fan diameter(MM)	1×300		1×350	2×350		1×350	2×350
Evaporating Motor	Motor power(W)	1×90		1×150	2×150		1×150	2×150
	Fan diameter(MM)	1×300		1×350	2×350		1×350	2×350
Defrost Type		Hot freon defrosting					Hot freon defrosting



Main components
World famous brand refrigeration parts are employed for all products;
Highly compressor(Shanghai Hitachi);
Heat exchanger with high efficient in grooved copper tube and aluminum fin;
Electronic control board with functions of automatic temperature set, control,and hot gas defrosting;
Protection devices for over loading, sub-heating, lack of phase, high & low pressure etc;

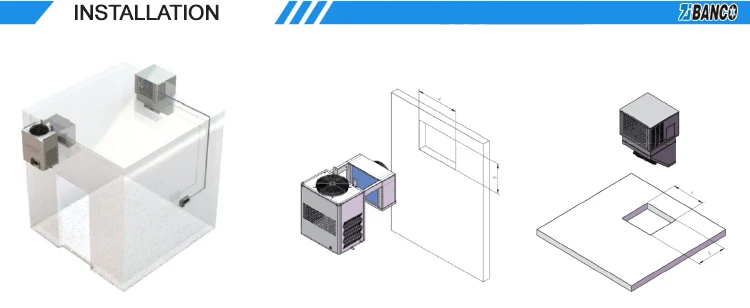

Eeasy installation.
