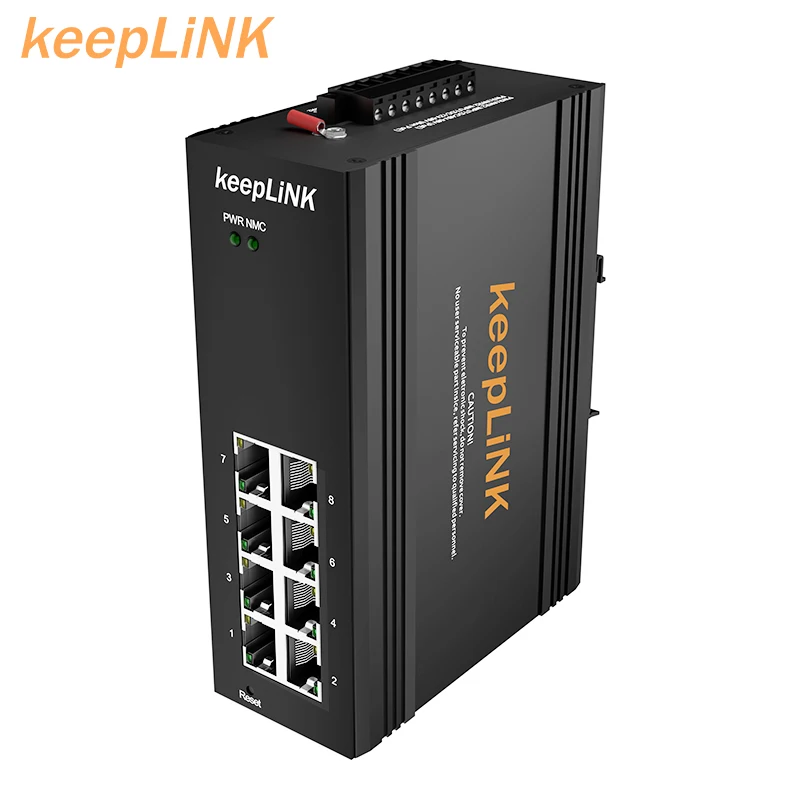

Full gigabit rj45 managed L2 8 port poe switch ethernet switch industrial network
- Category: Computer Hardware & Software >>>
- Supplier: Shenzhen I-Hirsmann Technology Co. Ltd.
Share on (62549584965):
Product Overview
Description
Product Description
Full gigabit rj45 managed L2 8 port poe switch ethernet switch industrial network
Fixed Port | |
Fixed Port | 8*10/100/1000Base-T |
Power interface | Phoenix terminal, redundant dual power supply |
L2 Switching | |
Switching capacity | 36Gbps |
Packet forwarding rate | 26.78Mpps |
MAC address table | 16K |
VLAN | 4K |
Forwarding delay | <10us |
Buffer | 12M |
MDX/MIDX | Support |
Flow control | Support |
Jumbo frame | Support 10Kbytes |
WatchDog | Support |
Spanning tree | STP/RSPT/MSTP |
Ring Protocol | ERPS |
Link Aggregation | 12 group |
Multi cast | IGMP snooping |
Port mirroring | Support |
Storm control | Support |
Interfce counters | Support |
QINQ | Support |
802.1x | Support |
MAC authentication | Support |
Port isolation | Support |
Rmon | Support |
NTP client | Support |
DHCP client | Support |
DHCP snooping | Support |
PING/TRACEROUT | Support |
Dying gasp | Supoort |
DDM | Support |
PoE | |
PoE port | 1~8 |
PoE Protocol | 802.3af, 802.3at |
Pin Assignment | 1,2,3,6 |
PoE Mode | Support standard/Non standard PoE |
Remote PD Reset | Supported |
| Management | |
CLI | Support |
Console | Support |
Telnet | Support |
Web management | Support |
Management IP | Supoort IPV4/IPV6 |
SNMP | Support SNMPv1/v2c/v3 |
User management | Support |
System log | Support |
Configuration file download/upload | Support |
Upgrade Firmware | Support |
Electrical Specifications | |
Input voltage | DC48-58V(PoE); DC12~58V(Non-PoE) |
Power consumption | Without PoE<10W, With PoE<130W |
Voltage Alarm | Support |
Mechanical structure | |
Product size | 143X104x65mm( L*W*H) |
Weight | 0.85KG around |
Mounting | DIN-rail |
EMC & Ingress Protection | |
IP level | IP40 |
Surge protection of Power | IEC 61000-4-5 Level X (6KV/6KV) (8/20us) |
Surge protection of Ethernet port | IEC 61000-4-5 Level 4 (6KV/4KV) (10/700us) |
RS | IEC 61000-4-3 Level 3(10V/m) |
EFI | IEC 61000-4-4 Level 3(1V/2V) |
CS | IEC 61000-4-6 Level 3(10V/m) |
PFMF | IEC 61000-4-8 Level 4(30A/m) |
DIP | IEC 61000-4-11 Level 3(10V) |
ESD | IEC 61000-4-2 Level 4(8K/15K) |
Free fall | 0.5m |
Environment | |
Operating temperature | -40℃~ +75℃ The device is tested for 8 hours at temperatures in 85°C |
Relative humidity | 5%~95% (Non-condensing) |
Accessories | Equipment, Terminals, Instruction, Certificate, Power adapter(optional) |
Company Information
Packaging & Shipping
Packing | Packing size | 18.5*16*6.5cm |
Net weight | 0.58KG | |
Gross weight | 1KG | |
Packing | Switch x1; Phoenix terminal x1; Certificate of inspection x1; Instructions&Warranty card x1 | |
Shipping | Sample order is within 1~3 days, other quantity need to be negotiated | |
Note: Power adapter and SFP transceivers are not included by default when place an order | ||
FAQ
FAQ
Q: Are you manufacturer or trading company?
A: Manufacturer, and industry network total solution provider.
Q: Do you accept ODM or OEM?
A: Yes. We provide customized service for our clients.
Q: What is your minimum order quantity?
A: MOQ is 1 PCS.
Q: What’s the payment type ?
A: T/T, L/C, Western Union, Money Cram, Credit Card, Alipay, Cash.
Q: What’s the accepted delivery terms ?
A: EXW, FOB, CIF, FAS, CIP, FCA, CPT, DED, Express Delivery.
Q: How about shipping time?
A: Within 3-15 days after receiving full payment , but if you need OEM/ODM, the shipping time depends on the specific specifications of the product.
Q: How about after-sales service?
A: We are 7*24 hours online and respond to user's field device problems in time.
Q: How about the warranty
5 years.
