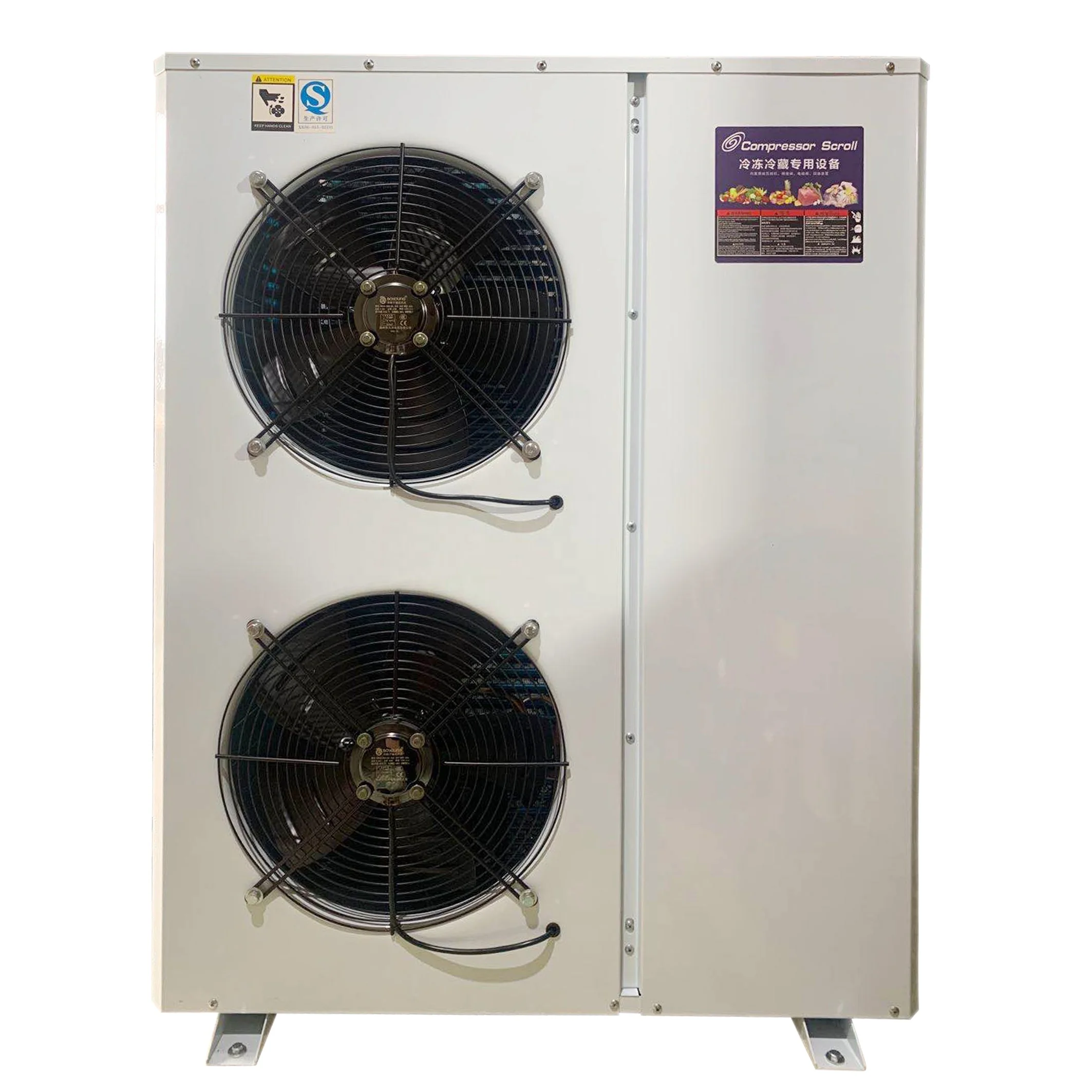

fruit vegetable cold roon storage use copeland compressor scroll compressor model numbers
- Category: >>>
- Supplier: Guangxi Cooler Refrigeration Equipment Co. Ltd.
Share on (62549751106):
Product Overview
Description

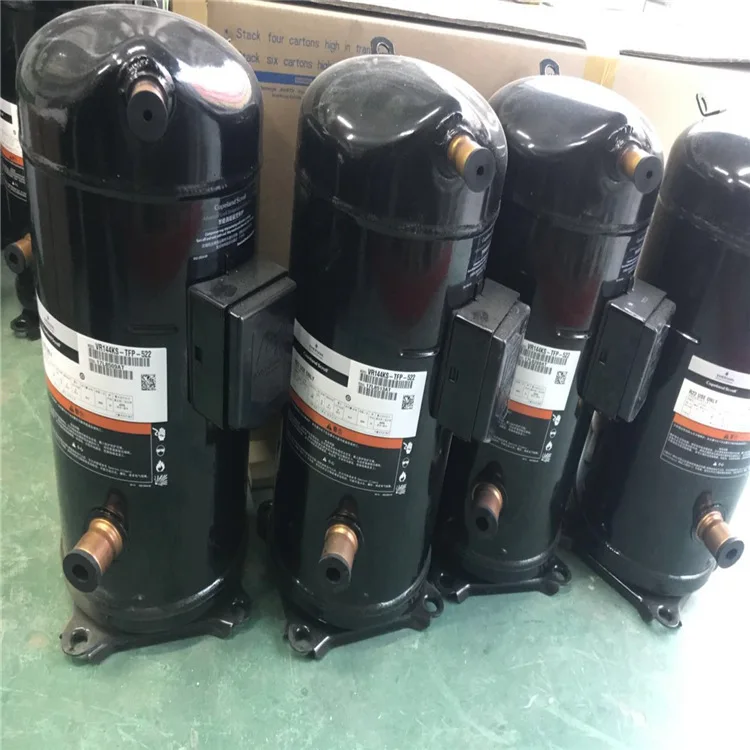

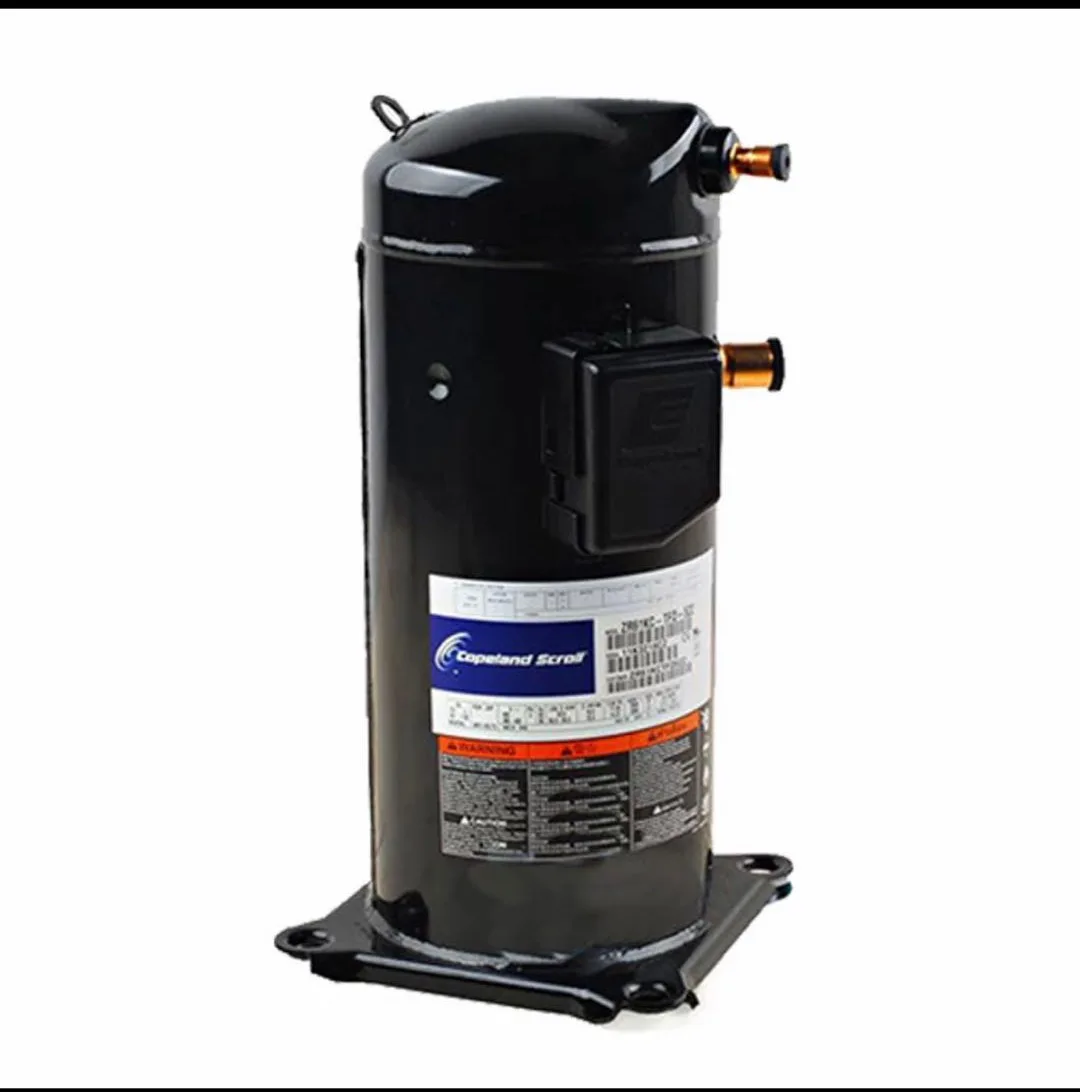

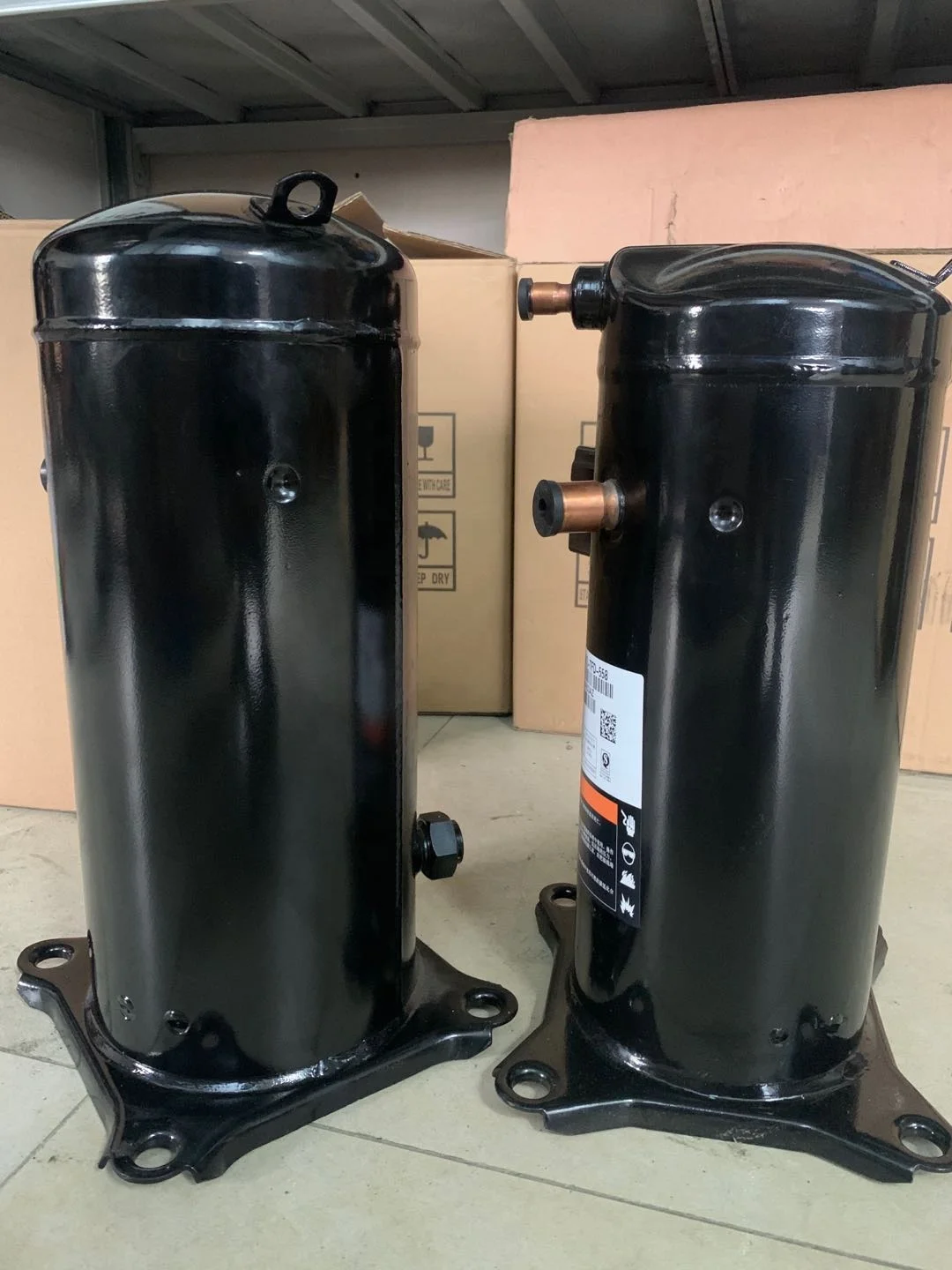

cold room scroll compressor unit refrigeration compressor unit copeland scroll compressor
Product name | Model | Power | Displacement | Cooling capacity | Motor Power | Temperature |
Copeland scroll series | ZB21KQ(E）-TFD-558 | 3HP | 8.6m³/h | 4.65kw~10.5kw | 2.1kw | -20~-+10℃ |
Copeland scroll series | ZB29KQ(E）-TFD-558 | 4HP | 11.4m³/h | 6.25kw~14.1kw | 2.9kw | -20~-+10℃ |
Copeland scroll series | ZB38KQ(E）-TFD-558 | 5HP | 14.4m³/h | 7.75kw~17.6kw | 3.8kw | -20~-+10℃ |
Copeland scroll series | ZB45KQ(E）-TFD-558 | 6HP | 17.2m³/h | 9.45kw~21.1kw | 4.5kw | -20~-+10℃ |
Copeland scroll series | ZB48KQ(E）-TFD-558 | 7HP | 18.8m³/h | 10.4kw~23.2kw | 5.1kw | -20~-+10℃ |
Copeland scroll series | ZB58KQ(E）-TFD-550 | 8HP | 22.1m³/h | 11.85kw~28.05kw | 5.9kw | -20~-+10℃ |
Copeland scroll series | ZB76KQ(E）-TFD-550 | 10HP | 28.8m³/h | 16.4kw~36.85kw | 7.5kw | -20~-+10℃ |
Copeland scroll series | ZB88KQ(E）-TFD-551 | 12HP | 33.2m³/h | 18.75kw~42kw | 8.8kw | -20~-+10℃ |
Copeland scroll series | ZB95KQ(E）-TFD-551 | 13HP | 36.4m³/h | 19.55kw~45.2kw | 9.6kw | -20~-+10℃ |
Copeland scroll series | ZB114KQ(E）-TFD-551 | 16HP | 43.3m³/h | 23.2kw~54.5kw | 11.4KW | -20~-+10℃ |

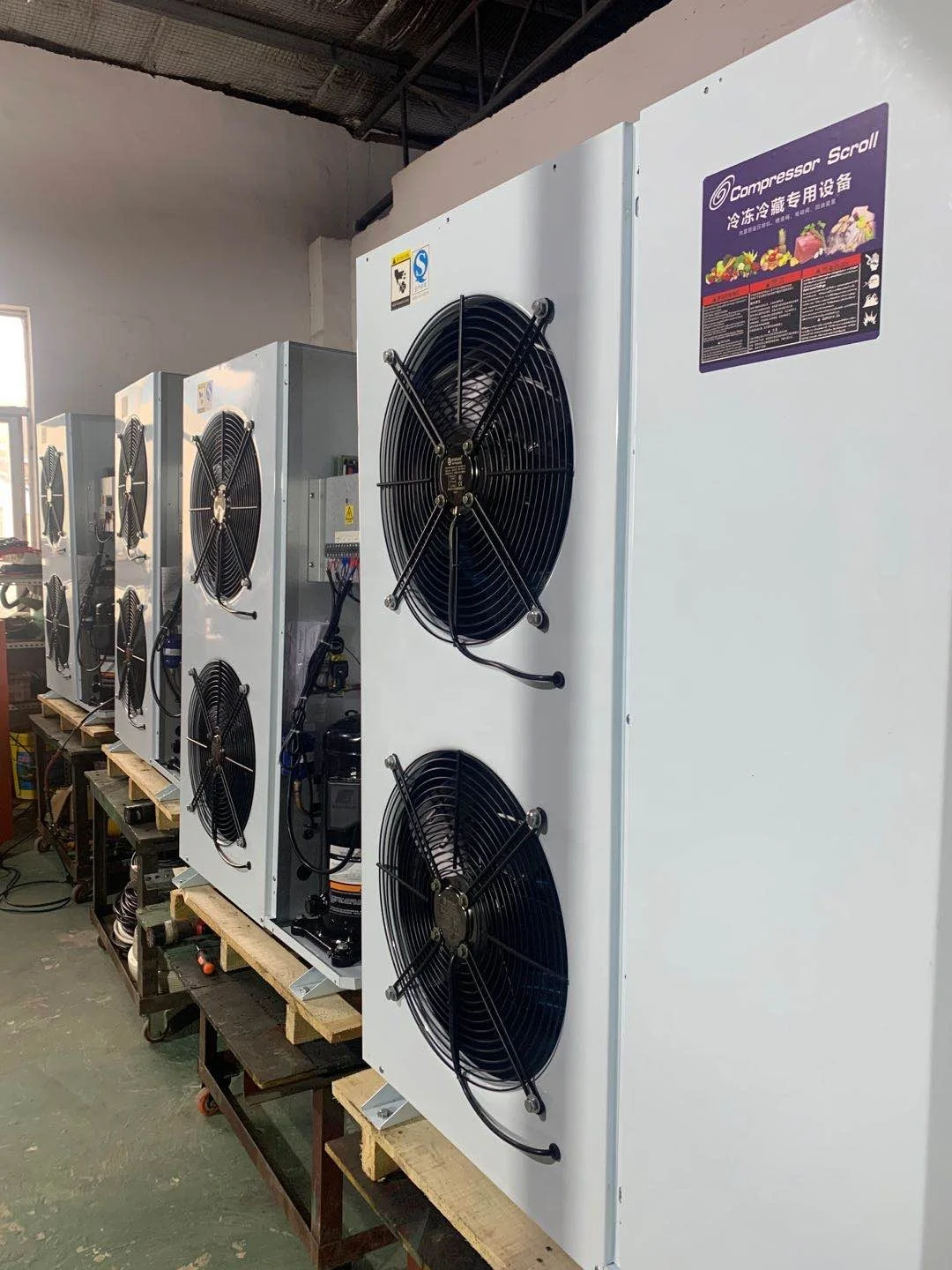

copeland scroll compressor and condensing unit for cold room freezer /cold storage

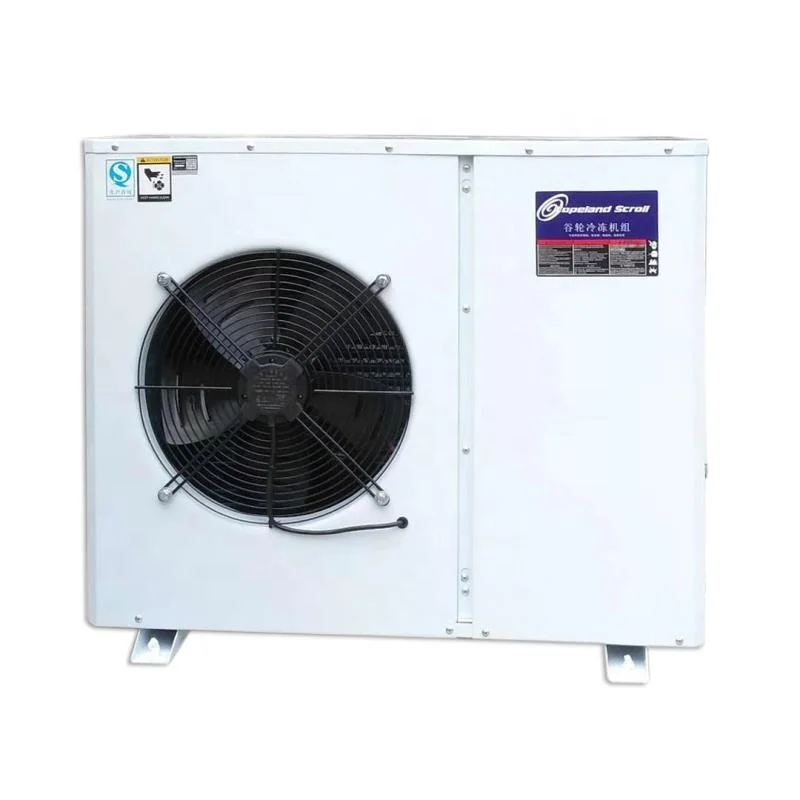

3hp copeland S-series Air-cooled condensing unit
3HP~5HP copeland scroll compressor unit
5HP~8hp copeland scroll compressor unit
5HP~8HP copeland scroll compressor unit

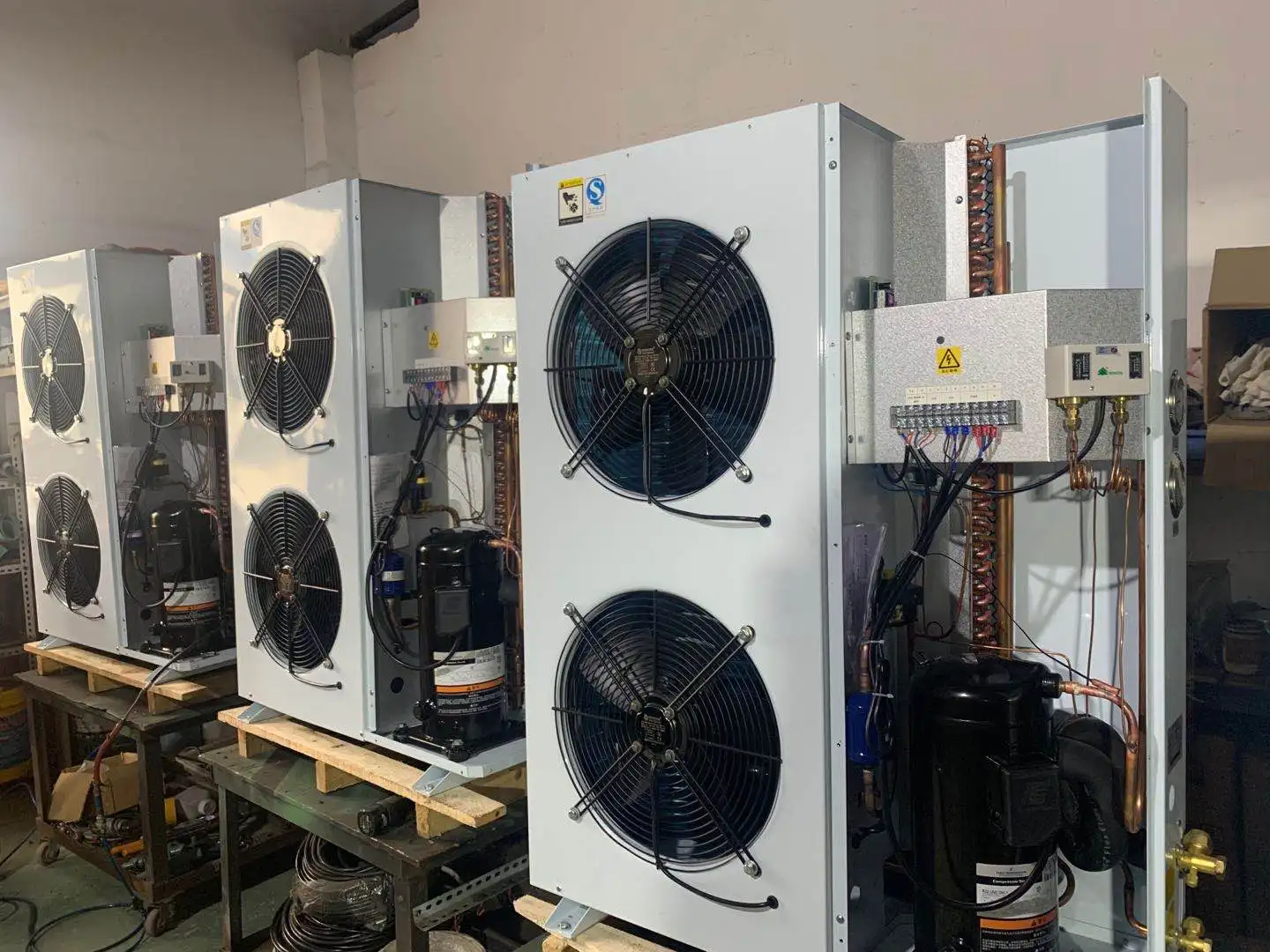

10HP~16hp copeland scroll compressor unit
10HP~16HP copeland scroll compressor unit

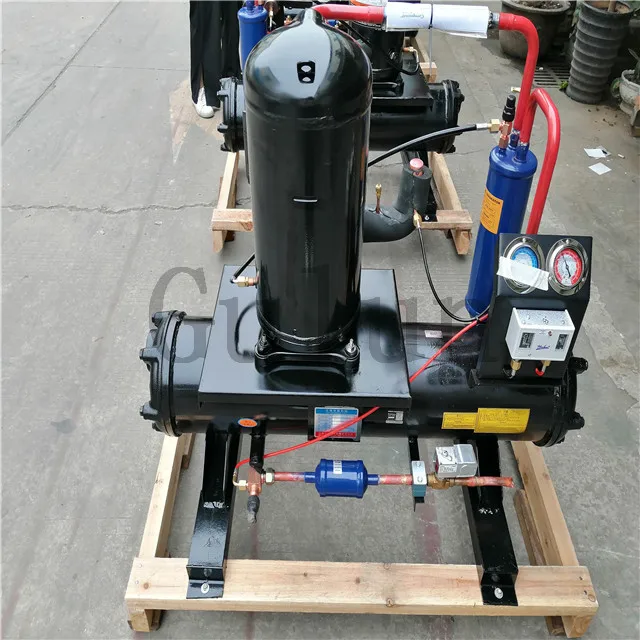

20HP~50hp copeland scroll water-cooled condensing unit
20HP~50hp copeland scroll water-cooled condensing unit
Our compressor and condensing unit product advantages:
1. High volumetric efficiency: The pressure difference between the crescent-shaped spaces adjacent to the scroll compressor is small, the leakage is small, there is no suction and exhaust valve, the resistance is small, and there is no re-expansion of the volume of the free space.
2. High thermal insulation efficiency. Under the same cooling capacity, the scroll compressor is about 10% higher than the reciprocating type.
3. Low noise and low vibration
4. Copeland compressors have a solid cast iron body to provide a large heat dissipation area to improve the cooling effect of the compressor, and use light-weight Lu pistons to reduce friction and vibration, and have a cutting-edge electronic protective film to provide comprehensive motor protection.
2. High thermal insulation efficiency. Under the same cooling capacity, the scroll compressor is about 10% higher than the reciprocating type.
3. Low noise and low vibration
4. Copeland compressors have a solid cast iron body to provide a large heat dissipation area to improve the cooling effect of the compressor, and use light-weight Lu pistons to reduce friction and vibration, and have a cutting-edge electronic protective film to provide comprehensive motor protection.
Application
Company Profile
Why Choose Us?
On Production: Well controlling of every process. The manufacturing workers have over 10 years experiences in high quality
refrigeration field.
refrigeration field.
On quality: Training the quality control department to distinguish between premium quality from mid-market or low grade quality.
On price: Normally, we are following our
well-established workflows to save cost for our clients and maintain a high quality at the same time.
well-established workflows to save cost for our clients and maintain a high quality at the same time.
On delivery: We treat customers' requirements as our owns. Delivery on time and as required is always what we do.
We can provide a complete set of cold storage equipment.
As a manufacturer, we can customize products for you according to your requirements. If you don't know which model is suitable for you, just please send message to us. Making a customized solution for you is our duties. Related Products
Certifications
Packing&Shipping
FAQ
Q1: Are you a factory or a trading company?
A1: We are a factory.
Q2: What’s your delivery time?
A2: Delivery time is 3-5 days for the Goods in stock , and customized products will inform you of the delivery time in advance according to the order.
Q3: What are the payment term and payment methods?
A3: Payment<=1000USD, 100% in advance. Payment >1000USD, 30% TT in advance, balance before shippment. Accept payment by PayPal, Western Union, Telegraph Transfer(WireTransfer) and Credit card through Alibaba Trade Assurance.
Q4: How do you ship the products?
A4: The equipments can be sent by sea/by air/by express.
Q5: How about quality control in your factory?
A5: We strictly operate full QC process during production, and each machine will be tested before delivery.
