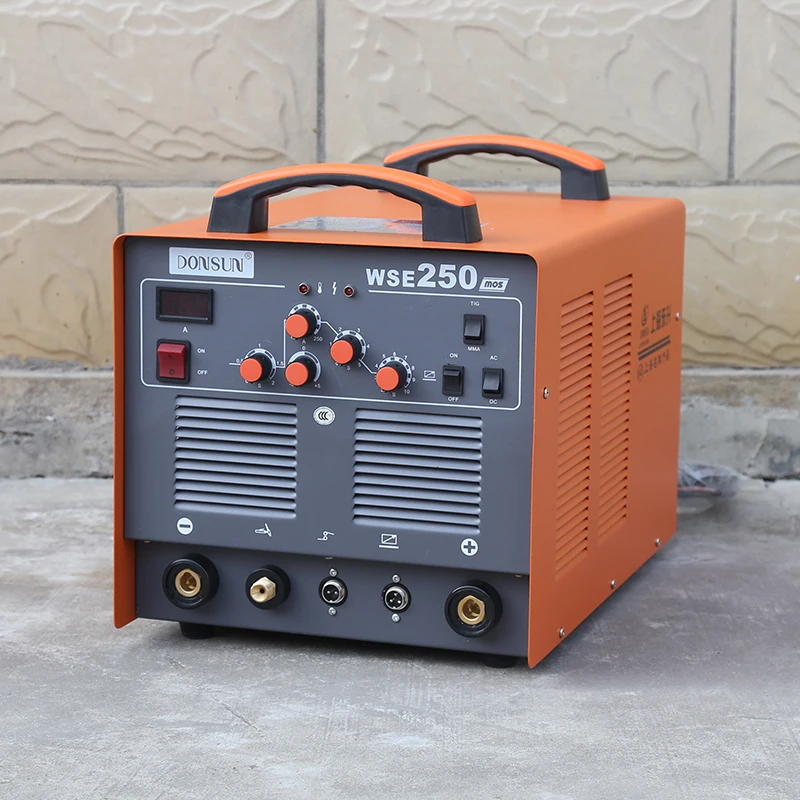

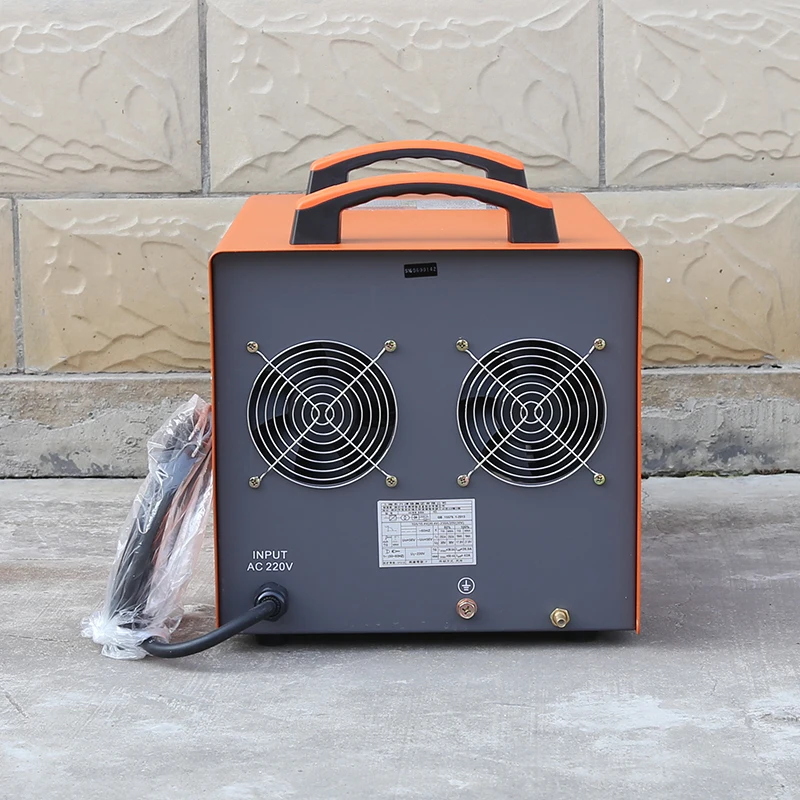

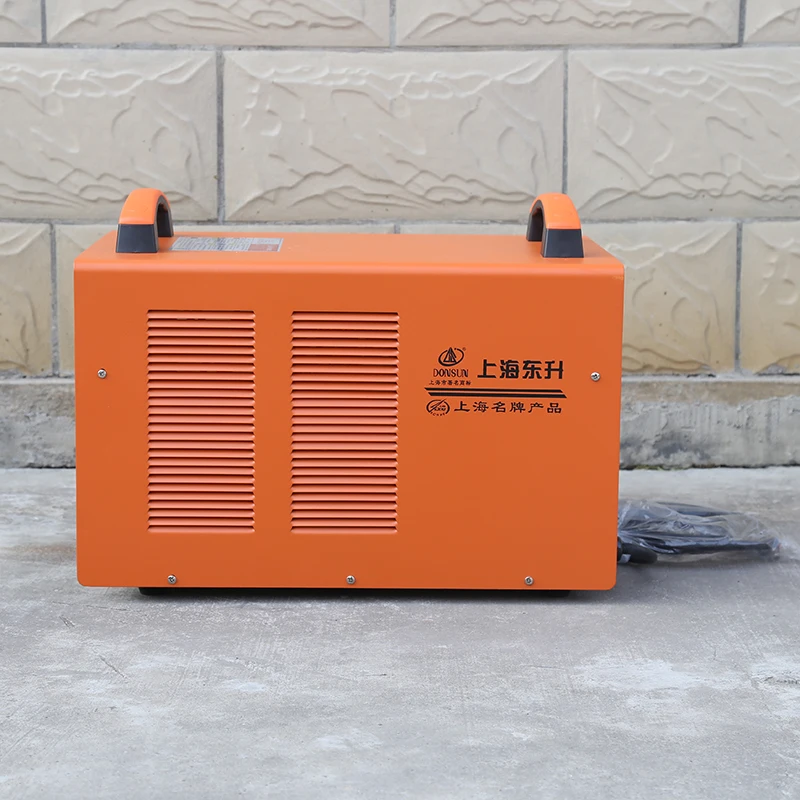

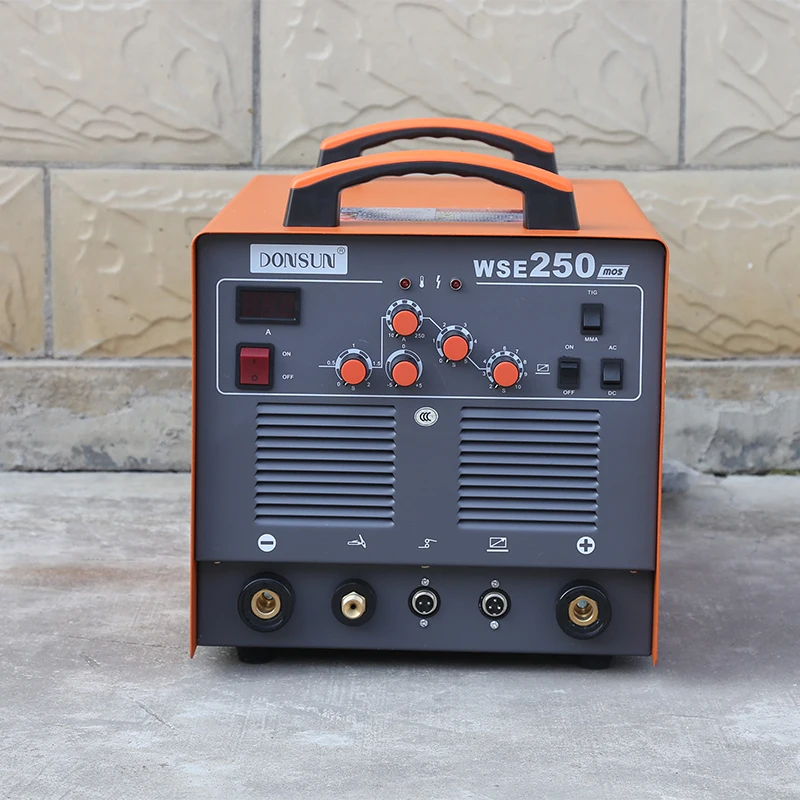

TIG 250 ACDC, DONSUN WSE 250 inverter Welding machine AC DC Pulse High frequency welder with MOSFET technology
- Category: >>>
- Supplier: Shanghai Donsun Welding Equipment Co. Ltd.
Share on (62549772372):
Product Overview
Description
Product Description
| Parameter | TIG250 AC/DC |
| Inverter Technology | MOSFET |
| Input Voltage(V) | AC220V±15% |
| Frequency(HZ) | 50/60 |
| Rated Input Current(A) | 43.5 |
| No-load Voltage(V) | 44 |
| Output Current Range(A) | 10-250 |
| Rated Output Voltage(V) | 20 |
| Pre-flow(S) | 0-2 |
| Vale Value Current(%) | 20-80 |
| Down-slope(S) | 0-5 |
| Post-flow(S) | 2-10 |
| Remote Control | YES |
| Duty Cycle(%) | 60 |
| Arcing Way | Transfer |
| Efficiency(%) | 80 |
| Power Factor | 0.73 |
| Insulation Grade | F |
| Housing Protection Grade | IP21 |
| Net Weight(kg) | 20.5 |
| Packing Dimension(mm) | 605x445x425 |
TIG ACDC accessories

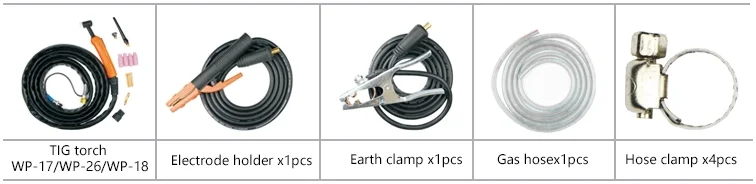

Standard accessories:

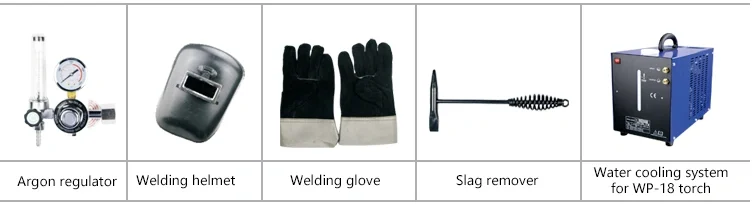

Optional accessories:
