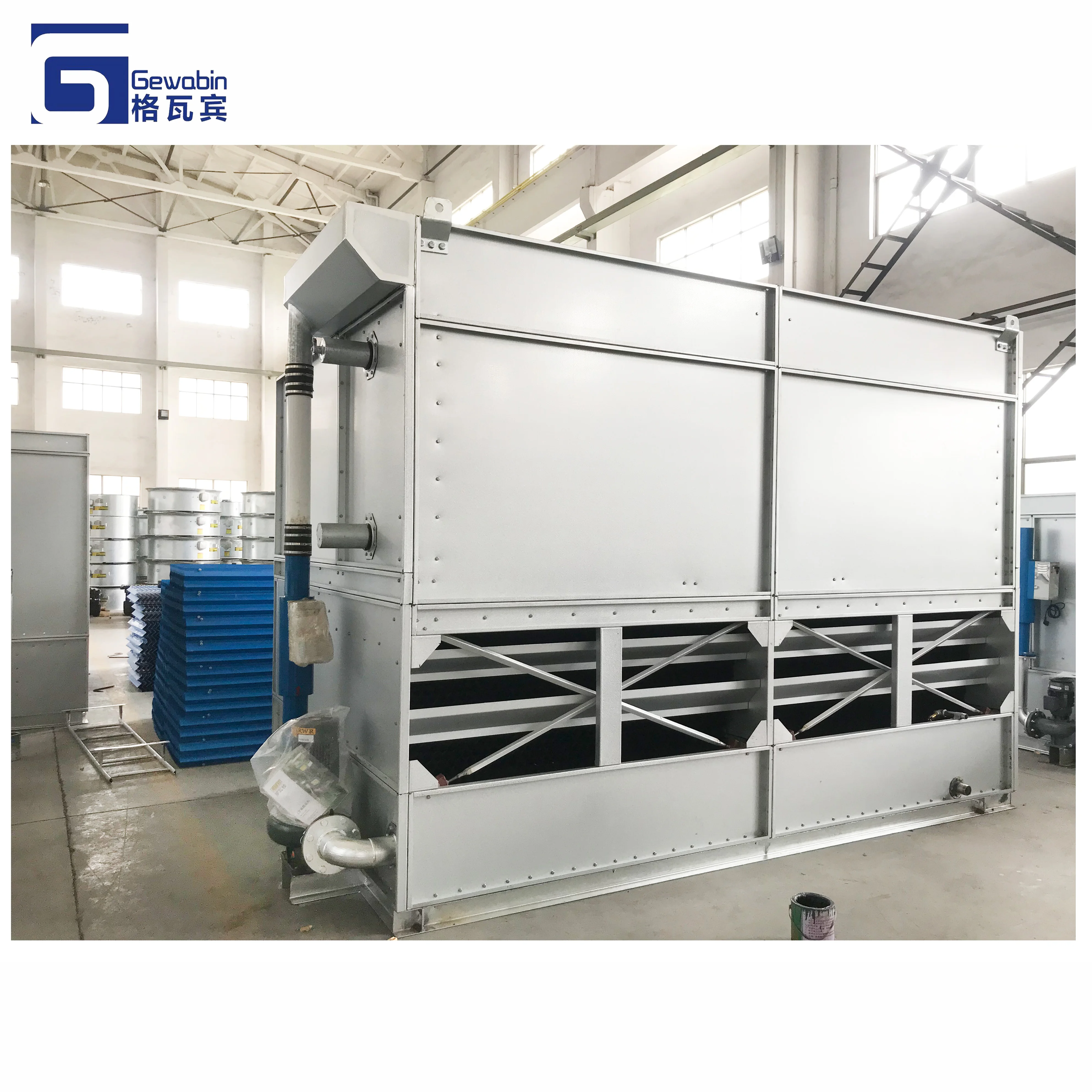

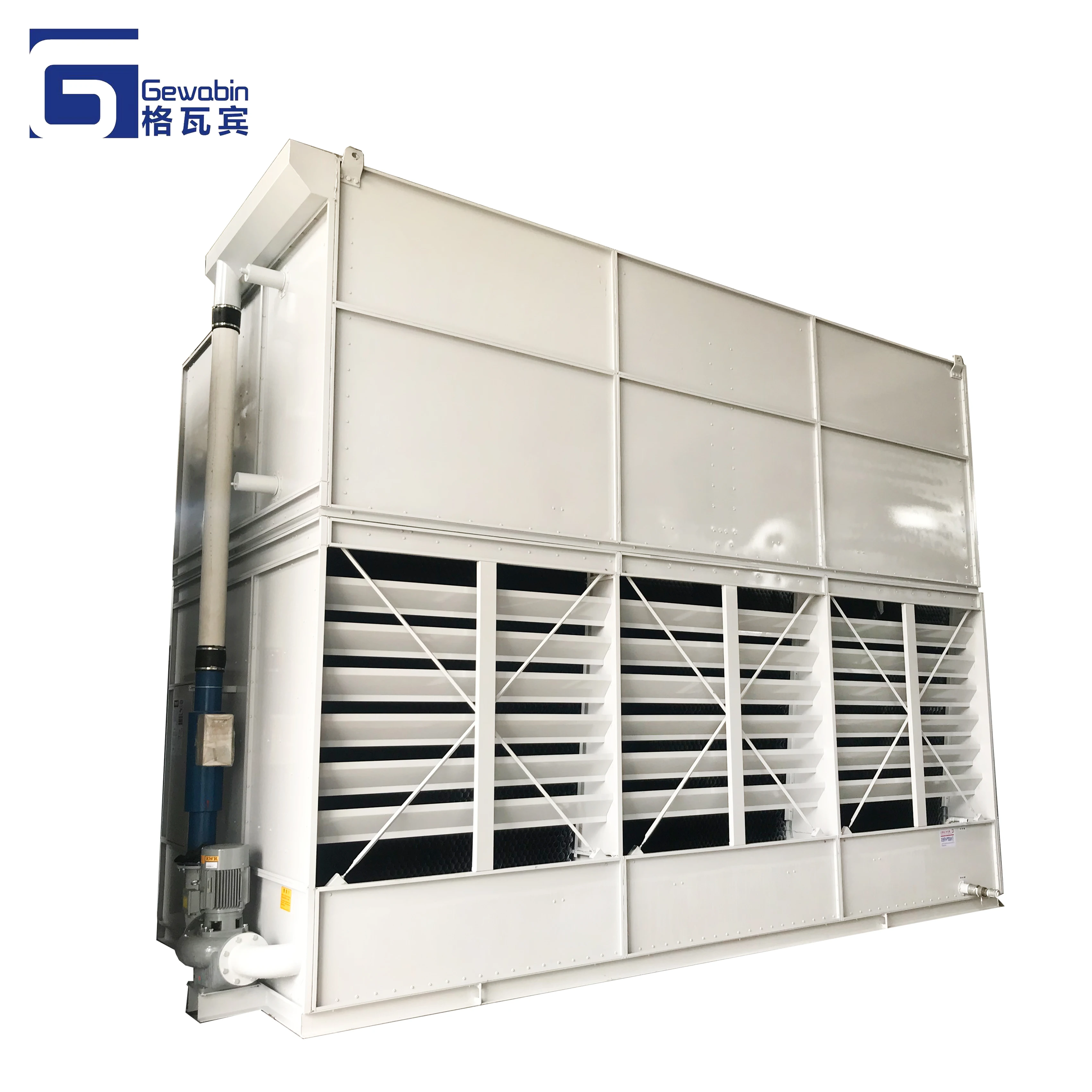

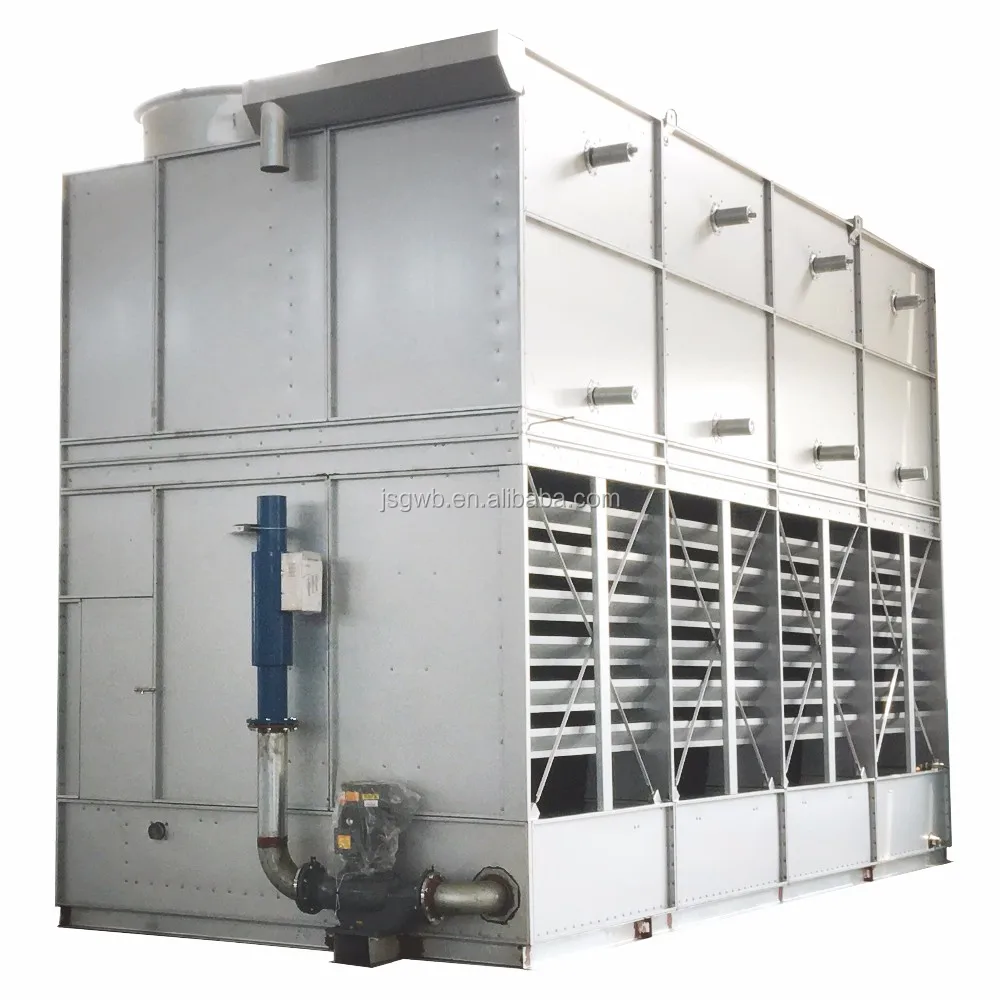

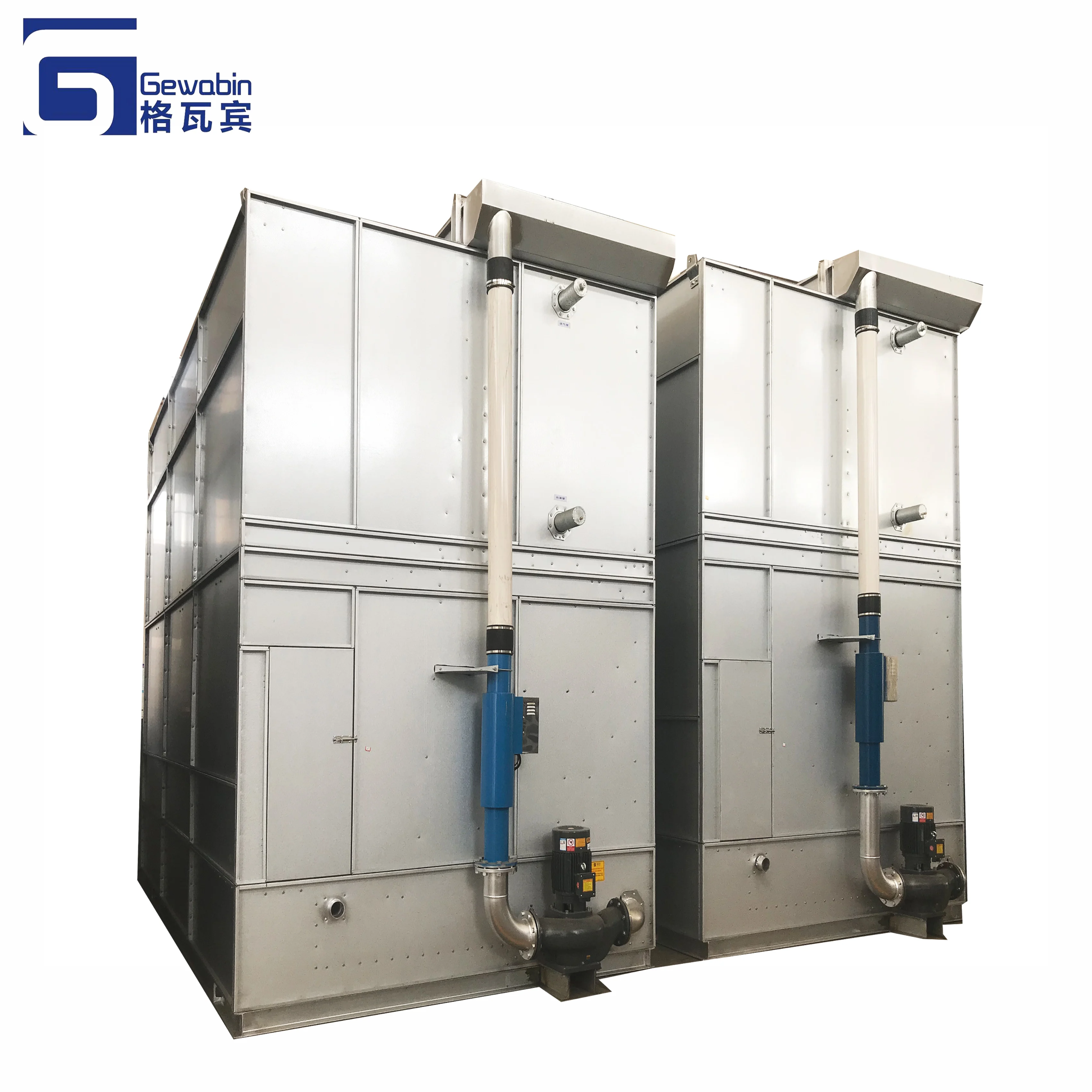

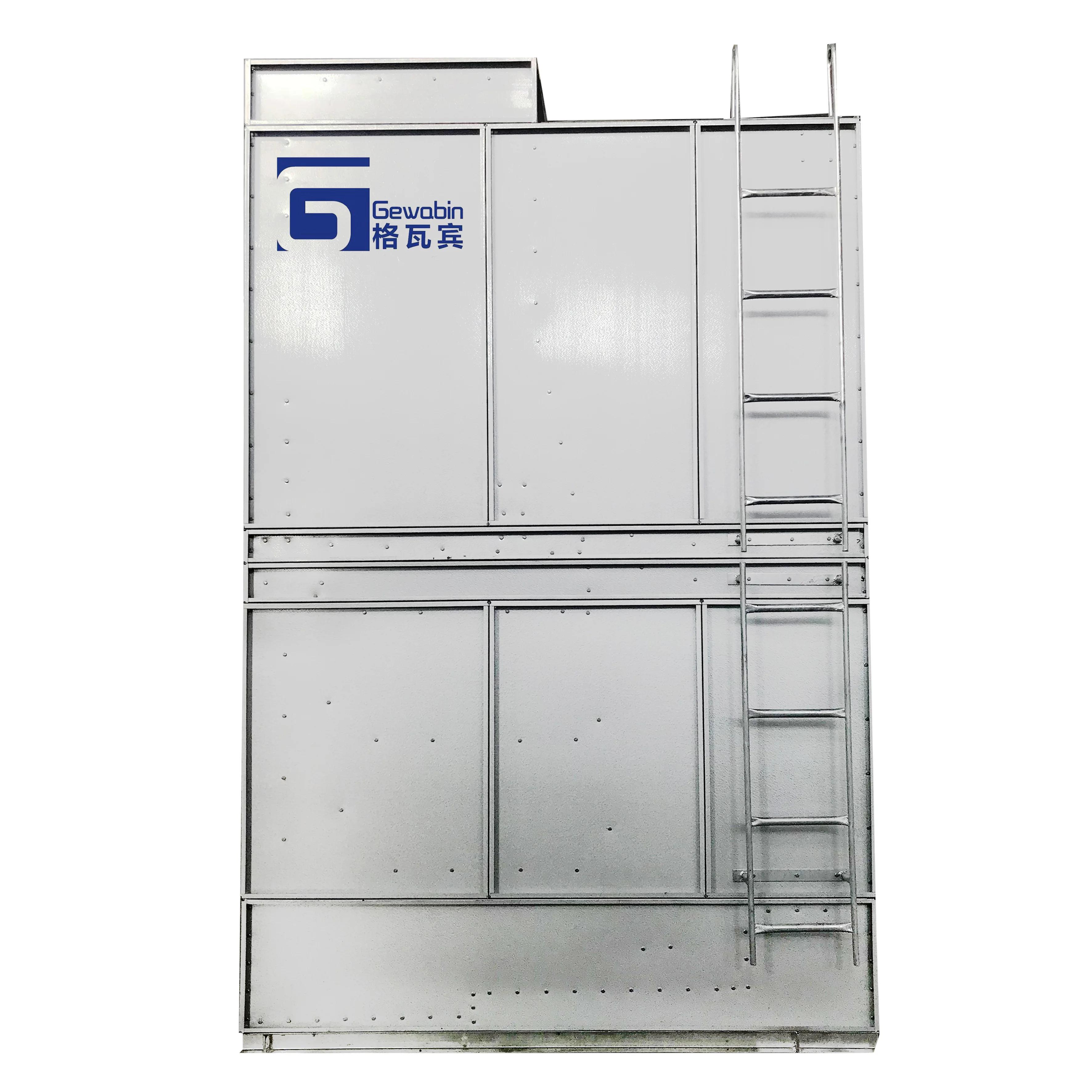

The evaporative condenser is a heat exchange device used for cooling the cold storage.It is made up of components such as fan, condensing coil, heat exchange sheet and box .The evaporative condenser is widely applied to Ice-store,Chemical industry,Food industry and Electronic industry, etc.
Technical Datas:
Specification of 3000kw Hot sale freon Evaporative Condenser
Heat refection under Nominal operating condition
kw
3000
Dimension
mm
6050x3200x4890
Propeller fan
Qty.
set
3
blowing rate
m3/h
3x110000
Power
kw
3x7.5
Water circulating pump
Water volume
m3/h
230
Power
kw
5.5
Weight
shipping
kg
13590
Operating
kg
22210
Refrigerant charge
kg
322
Main Feature（ammonia refrigeration compressors Evaporative Condenser）
1.Excellent heat exchange performance
2.Low operating cost and Energy saving,space saving 3.Convenient examine and repair 4.Reliable fixing element 5.low fault rate 6.Convenient trasportation and installation
Product Details
Name:Condensing coil
Brand:Gewabin
Original:China
1.Material:high-quality seamless steel tube Φ25mm(GB/T8163) 2.The design pressure is 1.97Mpa and all the coils have been pneumatically tested 3 times at 2.5Mpa to avoid leakage. 3.Integrated hot dip galvanizing of condensing coil can enhanced corrosion resistance.
Name:Propeller Fan Brand:Mingxin
Original:China
1.The ventilating system of GWBS adopts the aluminum alloy propeller fan for cooling tower.
2. Advantage:high blowing rate,low damping,low noises,good perormance and high efficiency.
3.motor:Fully closed and self-cooled ,low noise,reliable operation,etc.
Name:Water Pump Brand:RWR Original:China
1.The Water pump uses a high-quality mechanical seal that is not limited by the steering
2.Motor:special outdoor type motor,the advantage of the motor is low power,high flow,low noise.
Name:PVC Filler Brand:Xianglong Original:China
1.Material:PVC honeycomb type stuffing. 2.Use:Extended water cooling time to improve the effect of cooling.
3.Adavantage:aging resistance,low wind resistance and deformation resistance.

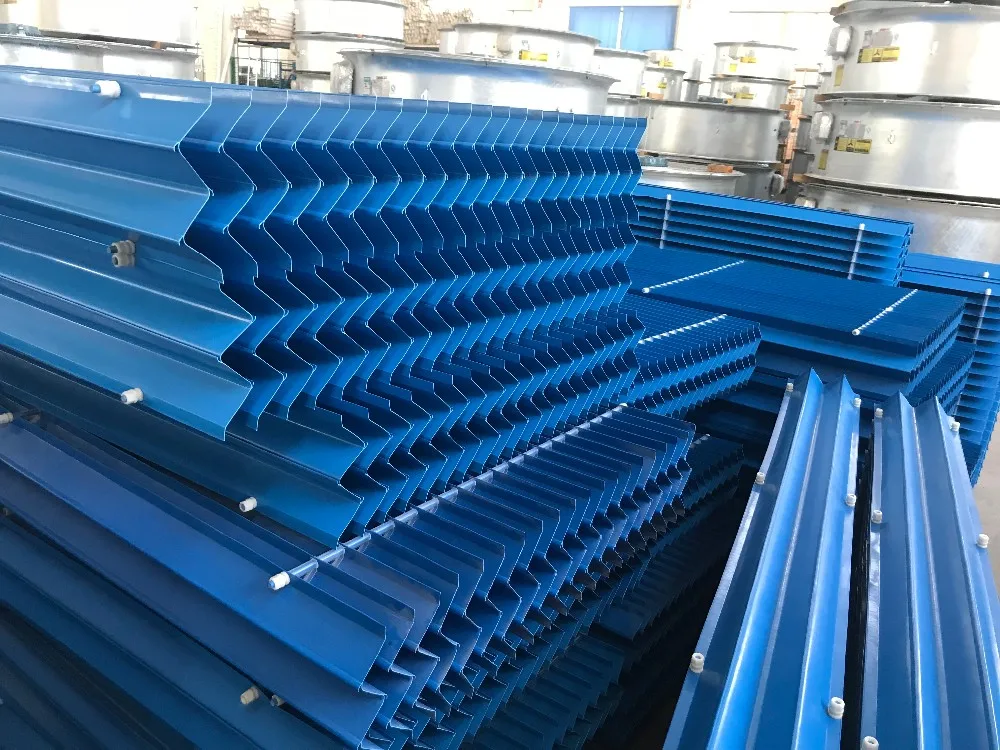

Name: PVC Drift Eliminators Brand:Gewabin Original:China 1.Material:specially designed non-corroding PVC 2.Advantage:remove moisture effectively from the moist air .It ia convenient to disassemble.
Our Service
Pre-sales Service
1.Professional technical Team: Providing technnical proposal and Various CAD Drawings available.
2.High quality sales team:Helping customers to choose suitable products.
After-Sales Service
1.When the product is sent to the user, our company will assign relevant personnel to confirm with your company and sign the product acceptance form.
2.help customers to train install machine and use machine for free.
3.Acceping the customers‘ feedback and opinons.
Pruducts case

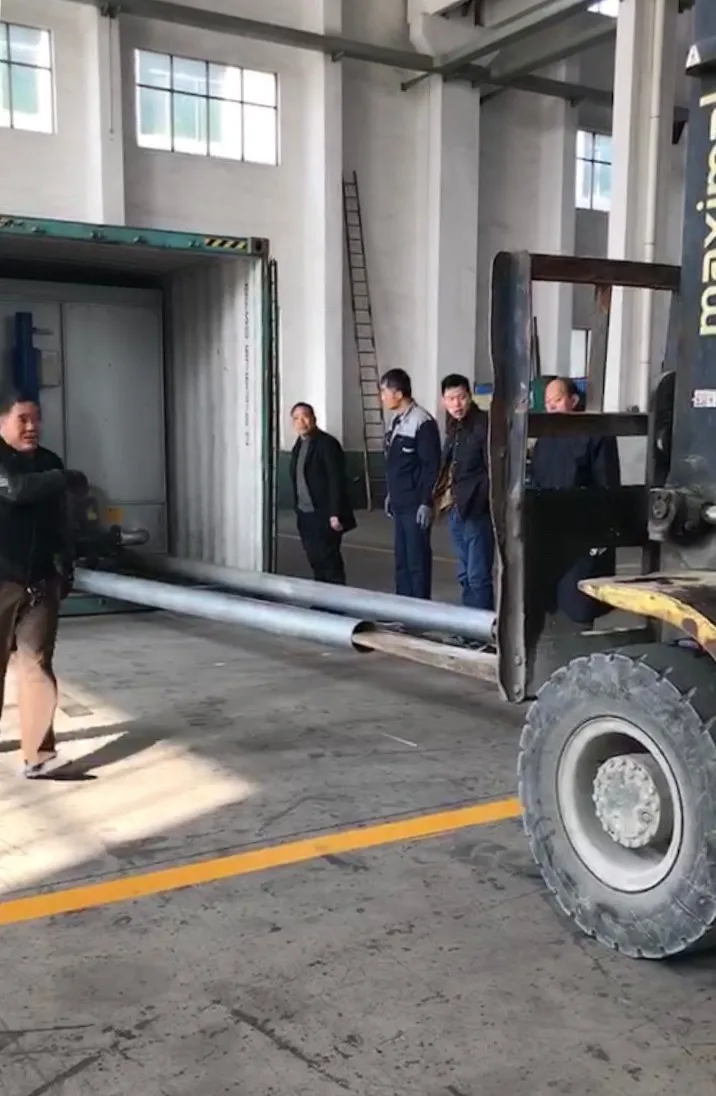

Packing & Delivery
Packing
Size
6050*2700*4890
Packing Details
1.Two body parts: upper and bottom boxes.
2.Packing with plastic film
3.Shipped by one 40ft container.Upper and bottom body parts are separated in the same container.
Delivery time:
shipped in 30 days after payment
FAQ
1. Q: Are you trading company or manufacturer ? A: We are industrial and Trading Company.we have an own facory in yixing city,Jiangsu,China.Welcome to visit us!
2. Q: What is your price? A:Our FOB price is based on the quantity , material and size of the product you buy.
3.Q:When can I get the price? A:Usually within 24 hours after receiving your inquiry. And if you are very urgent, you can call us or send an e-mail to us that we can reply you in time.
4.Q: How long is your delivery time? A: If the goods we have in stock,the delivery time is 30 days after payment. or if the goods are not in stock, it is according to your quantity.
5.Q: What is your terms of payment ? A: When payment ≤2000USD, 100% in advance. Payment ≥2000USD, 30% T/T in advance ,balance before shippment.
